Seite 1/5

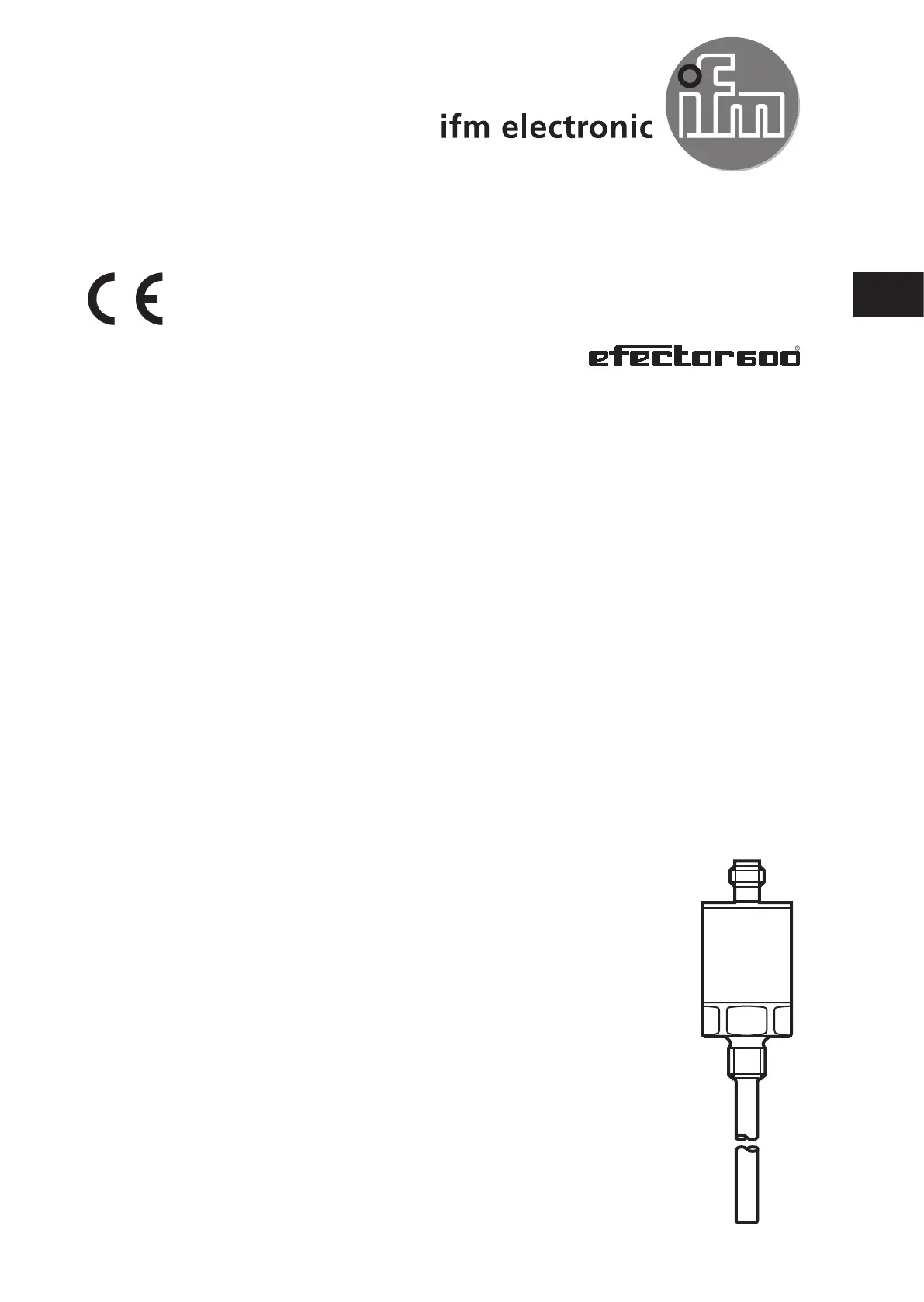

Installation Instructions
Temperature transmitter
TA3171โ€‚
704729 / 02 11 / 2010
UK
2
1โ€‚ Functionsโ€‚andโ€‚features
The temperature transmitter detects the current system temperature and converts
it into an analogue output signal (4 ... 20mA).
โ€ข Measuring range: -50 ... 150ยฐC / -58 ... 302ยฐF
โ€ข Measuring element: Pt 1000 to DIN EN 60751, class A
โ€ข Temperature resistance
๎˜Ÿ๎˜Ÿ๎˜ž ๎˜Ÿ๎˜Ÿ๎˜ ๎˜Ÿ๎˜œ๎˜ž ๎˜Ÿ๎˜œ๎˜ ๎˜Ÿ๎˜›๎˜ž ๎˜Ÿ๎˜›๎˜ ๎˜Ÿ๎˜š๎˜ž ๎˜Ÿ๎˜š๎˜ ๎˜Ÿ๎˜๎˜ž
๎˜™๎˜˜๎˜—๎˜–
๎˜š๎˜ž
๎˜•๎˜ž
๎˜Ÿ๎˜œ๎˜ž
๎˜Ÿ๎˜”๎˜ž
๎˜œ๎˜ž๎˜ž
๎˜œ๎˜š๎˜ž
๎˜™๎˜“๎˜’๎˜‘๎˜–
๎˜ž
๎˜Ÿ
๎˜Ÿ๎˜๎˜
Maximum operation time depending on the medium temperature
Contents
1 Functions and features ........................................................................................2
2 Installation............................................................................................................3
3 Electrical connection ............................................................................................3
4 Scale drawing ......................................................................................................4
5 Technical data ......................................................................................................5
3
UK
2โ€‚ Installation
โ–บ Mount the unit to Gยผ process
connection.
3โ€‚ Electricalโ€‚connection
The unit must be connected by a suitably qualified electrician.
The national and international regulations for the installation of electrical
equipment must be observed.
Voltage supply to EN50178, SELV, PELV.
โ–บ Disconnect power.
โ–บ Connect the unit as follows:
๎˜Ÿ
๎˜ž
๎˜
๎˜œ
๎˜›๎˜š
๎˜Ÿ
๎˜
๎˜œ
๎˜ž
๎˜™๎˜˜
๎˜™๎˜—
๎˜™๎˜–
๎˜•๎˜” ๎˜›๎˜“
๎˜’๎˜‘๎˜๎˜‘
๎˜’๎˜‘๎˜๎˜‘
Core colours of ifm sockets:
1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black).
n.c. = not connected.
