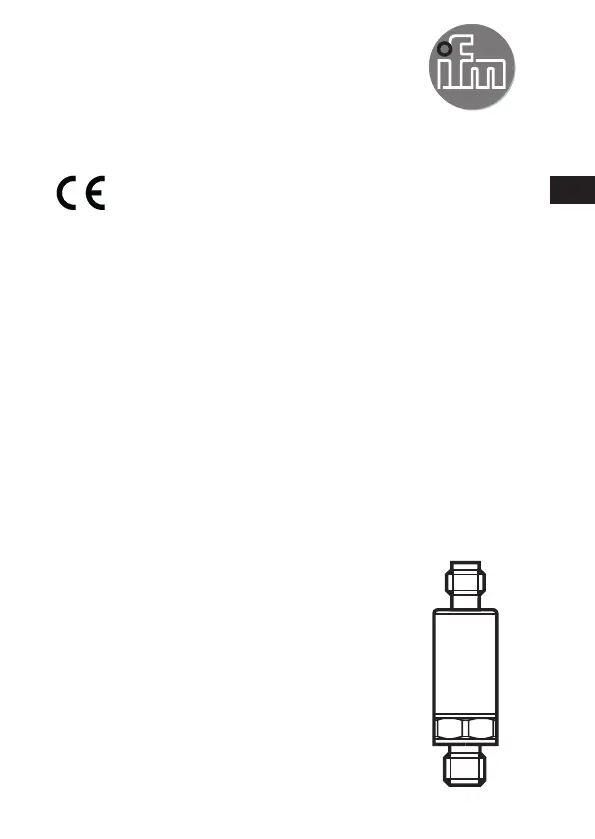

Operating instructions
Electronic pressure sensor
for industrial applications
PC5024
PC5115
PC5194
11421181 / 00 10 / 2021
UK
UK
UK
UKUK
2
1 Preliminary note
Symbols used
â–ºInstructions
→Cross-reference
Important note
Non-compliance may result in malfunction or interference.
Information
Supplementary note.
2 Safety instructions
• The device described is a subcomponent for integration into a system.
- The manufacturer of the system is responsible for the safety of the system.
- The system manufacturer undertakes to perform a risk assessment and to
create a documentation in accordance with legal and normative requirements
to be provided to the operator and user of the system. This documentation
must contain all necessary information and safety instructions for the operator,
the user and, if applicable, for any service personnel authorised by the
manufacturer of the system.
• Read this document before setting up the product and keep it during the entire
service life.
• The product must be suitable for the corresponding applications and
environmental conditions without any restrictions.
Contents
1 Preliminary note 2 ...................................................................................................
2 Safety instructions 2 ...............................................................................................
3 Functions and features 3 .......................................................................................
3.1 Applications ...................................................................................................3
4 Function ...............................................................................................................4
5 Installation............................................................................................................5
6 Electrical connection 5 ............................................................................................
3
UK
• Only use the product for its intended purpose (→ Functions and features).
• Only use the product for permissible media (→ Technical data).
• If the operating instructions or the technical data are not adhered to, personal
injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences
caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the unit
must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.
3 Functions and features
The unit detects the system pressure and converts it into an analogue output
signal.
For these units the ventilation diaphragm used for pressure compensation
of the measuring cell and the environment is closed.
When these sensors are used, a deviation of measurement caused by
fluctuations of the atmospheric pressure and pressure fluctuations inside
the units (Δ 10 K ≤ 30 mbar) are possible.
The use of these sensors is only recommended for applications with
stable ambient temperatures or where large tolerances of precision are
permissible.
â–ºCheck if the application is suitable for use without the pressure
compensation being active.
3.1 Applications
• Type of pressure: relative pressure
Information on pressure rating and bursting pressure → data sheet.
Avoid static and dynamic overpressure exceeding the indicated pressure
rating by taking appropriate measures. The indicated bursting pressure
must not be exceeded. Even if the bursting pressure is exceeded only for
a short time, the unit may be destroyed. ATTENTION: Risk of injury!
