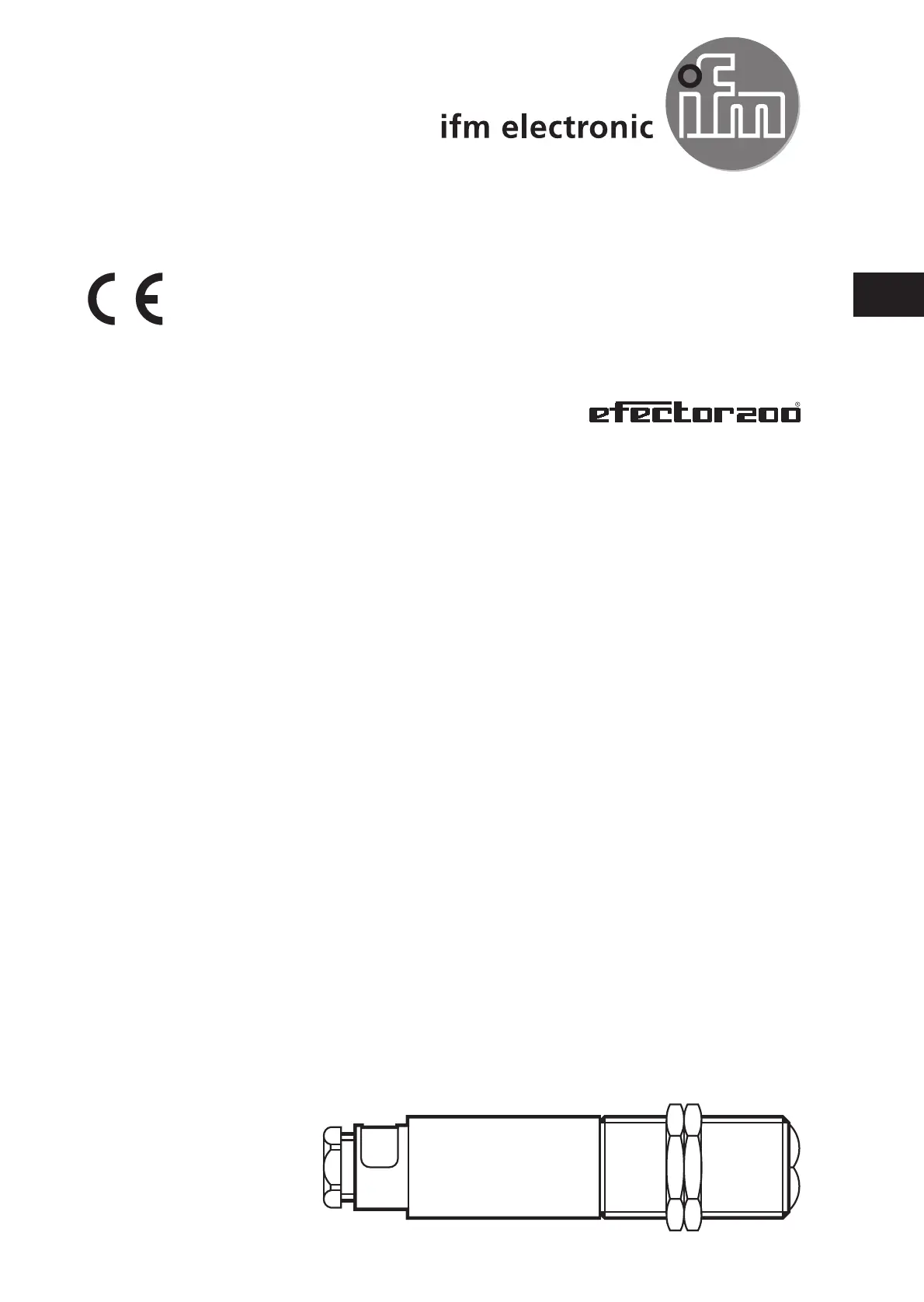

Operating instructions
Retro-reflective sensor with
polarization filter OI
Diffuse reflection sensor OI
OI
UK
80234481 / 00 01 / 2016
2
1 Preliminary note
1.1 Symbols used
â–ºInstruction
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
→Cross-reference
Important note
Non-compliance can result in malfunction or interference.
2 Safety instructions
• Please read this document prior to set-up of the unit. Ensure that the product is
suitable for your application without any restrictions.
• Improper or non-intended use may lead to malfunctions of the unit or to
unwanted effects in your application. That is why installation, electrical
connection, set-up, operation and maintenance of the unit must only be carried
out by qualified personnel authorised by the machine operator.
• In case of malfunction of the unit please contact the manufacturer. If the unit is
tampered with and/or modified, any liability and warranty is excluded.
3 Functions and features
The unit is used as a photoelectric retro-reflective / diffuse reflection sensor.
3
UK
4 Technical data
4.1 DC
Operating voltage: 10-55 V DC incl. residual ripple
Current consumption: < 30 mA at 24 V
Current rating: 250 mA with short circuit, reverse
polarity and overload protection
Output: PNP / NPN transistor
4.2 AC/DC
Operating voltage: 20-250 V AC, DC
47-63 Hz
Current consumption: < 6 mA
Current rating: 350 mA AC up to +50°C
250 mA AC up to +80°C, 100 mA DC
Output: semiconductor
5 Programming
5.1 Diffuse reflection sensor
Bridge closed (light-on mode)
Bridge open (dark-on mode)
5.2 Retro-reflective sensor
Bridge closed (dark-on mode)
Bridge open (light-on mode)
