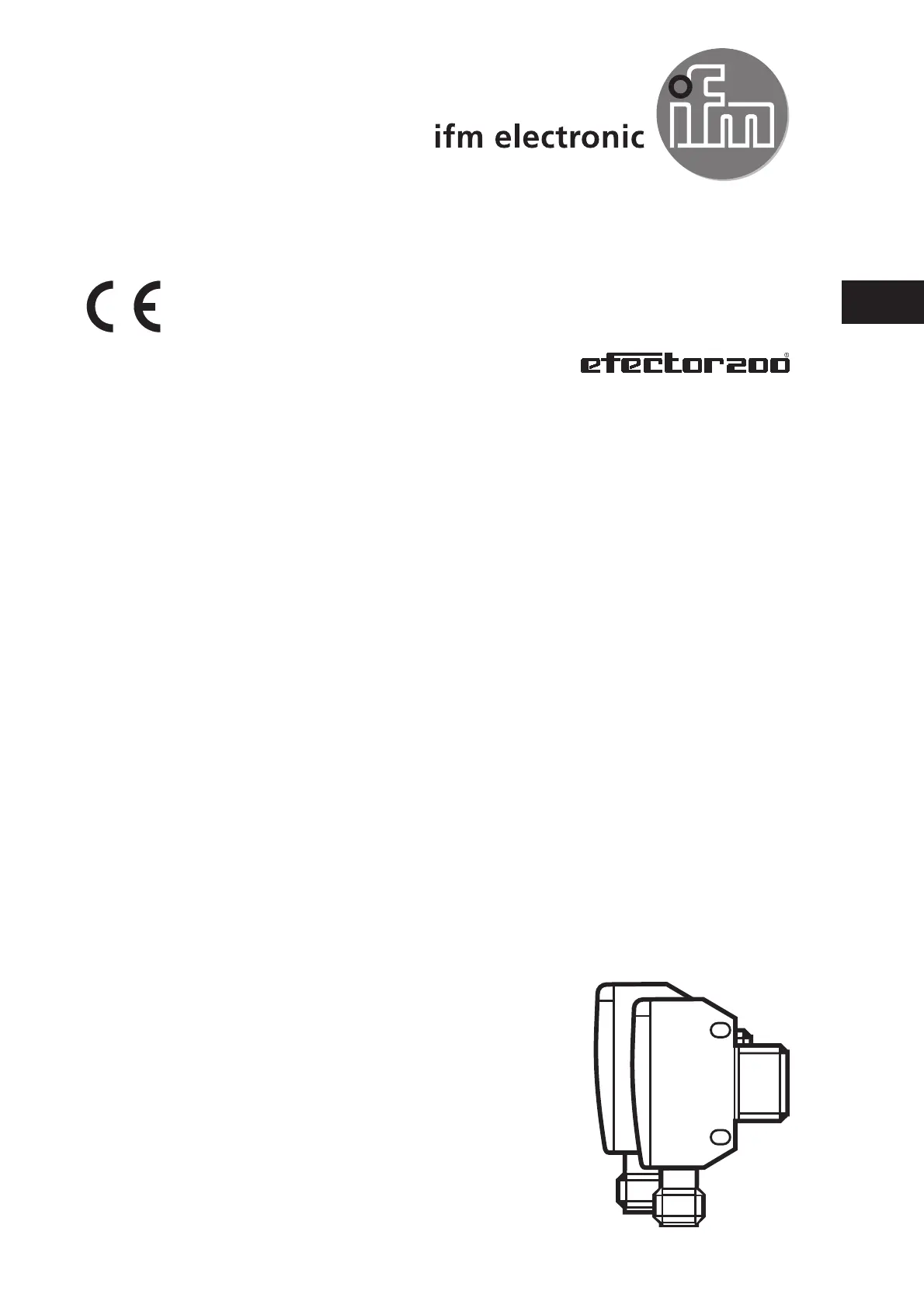

Operating instructions
Through-beam sensor
OGE38x
OGS38x
7200011 / 00 11 / 2011
UK
UK
UK
UK
UK
2
1 Functions and features
The through-beam sensor detects objects and materials without contact and
indicates their presence by a switching signal.
For the range see the type label.
2 Installation
â–ºInstall the receiver (OGE38x) and secure it to a bracket.
â–ºAlign the transmitter (OGS38x) to the receiver and secure it also to a bracket.
> Maximum range only with accurate alignment.
3 Electrical connection
â–ºDisconnect power.
â–ºConnect the unit as follows.
3.1 Transmitter
1
3
L+
L
pin 1 = L+ (10...30 V DC)
pin 3 = L-
(pin 4 = not connected)
(pin 2 = not connected)
3
UK
3 Receiver
PNP
L+
L
1
4
3
pin 1 = L+ (10...30 V DC)
pin 3 = L-
pin 4 = load (PNP, 200 mA)
(pin 2 = not connected)
NPN
L+
L
1
4
3
pin 1 = L+ (10...30 V DC)
pin 3 = L-
pin 4 = load (NPN, 200 mA)
(pin 2 = not connected)
4 Operation
Check whether the sensor operates correctly.
• Receiver (OGE38x): The yellow LED is lit when the switching ouptut is swit-
ched. The green LED is lit when the sensor is ready for operation.
• Transmitter (OGS38x): The green LED is lit when the sensor is ready for
operation.
5 Maintenance
â–ºKeep the lens of the sensor free from soiling.
â–ºFor cleaning do not use any solvents or cleaning agents which could damage
the plastic material.
