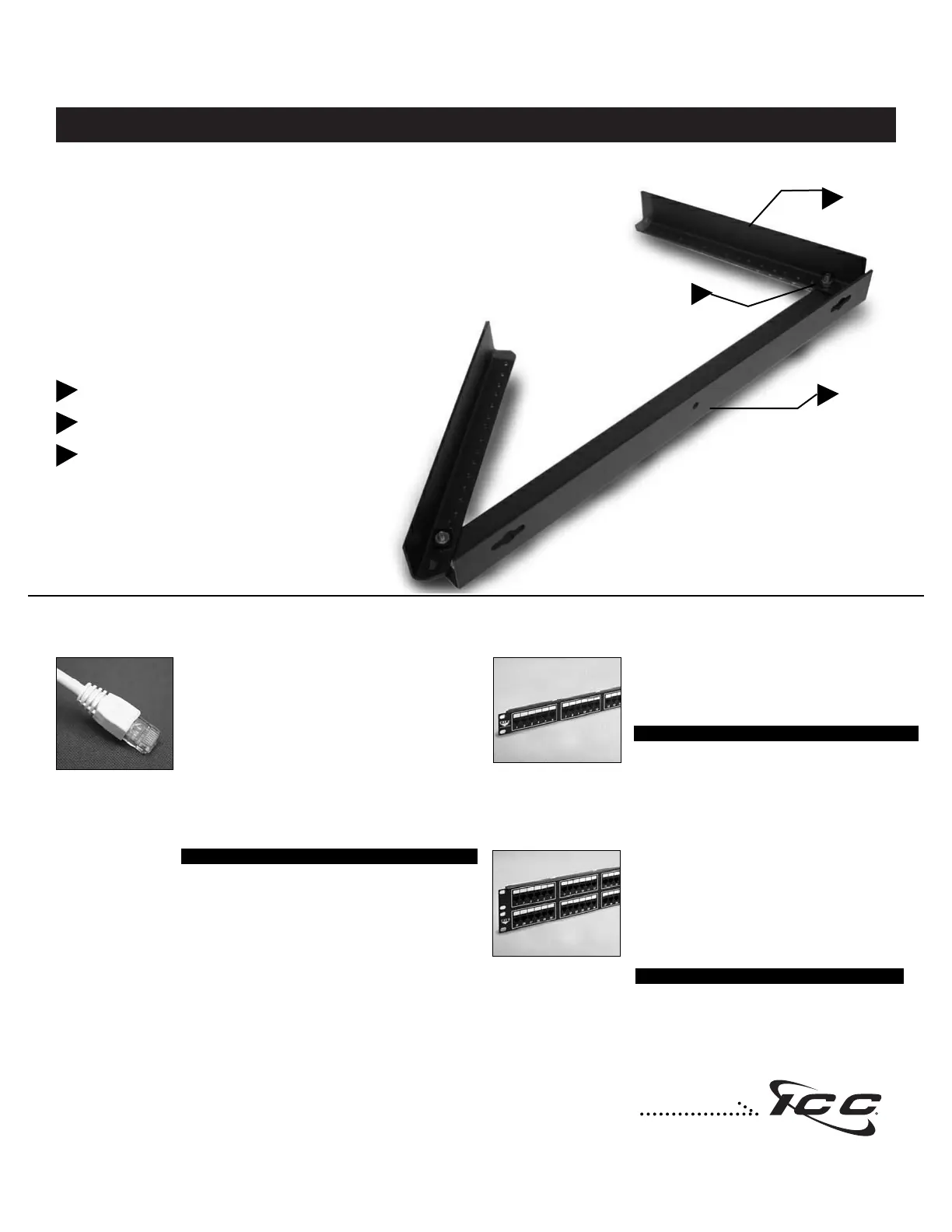

Vertical Wall Mount Utility Bracket
I N S T A L L A T I O N I N S T R U C T I O N S
CUSTOMER CARE / TECHNICAL SUPPORT • CSR@ICC.COM / 888-275-4422 (ASK-4-ICC)
High-Density Booted Patch
Cords
ICC provides a wide range of CAT 5e and CAT 6
patch cords that surpasses component level industry
requirements. The uniquely designed ultra-slim line
boots allows patch cords to fit adjacent to each other
in high-density applications where more ports are
required in tighter spaces. Available in red, blue,
white, gray, yellow, black, green, and now orange,
they help simplify installation by allowing easy identi-
fication of circuits.
ITEM NUMBER DESCRIPTION
ICPCS YYXX* CAT5e Patch CordsJ
ICPCS CAT6KYYXX* Patch
Cords YY=Lengths: 25' 01, 03, 05, 07, 10, 14,
XX=Colors: BK, GN, OR, BL, GY, RD, YL, WH
24-Port CAT 5e Patch Panel
Exceeds TIA/EIA CAT 5e standards. Includes
mounting screws.
ITEM NUMBER DESCRIPTION
ICMPP0485E
ICMPP0245E
ICMPP12V5E
48-Port, 2 RMS
24-Port, 1 RMS
12-Port, Vertical
48-Port CAT 6+ component-
Rated Patch Panel
CAT6 patch panel surpasses industry require-
ments for component rated Category 6 perfor-
mance. It comes integrated with universal label
allowing for either 568-A/B wiring. Package
includes mounting screws.
ITEM NUMBER DESCRIPTION
ICMPP0486048-Port, 2 RMS
ICMPP0246024-Port, 1 RMS
ICMPP12V6012-Port, Vertical
Available Accessories
ICC provides a full range of Category 5e and Category 6 cross connect products for all your con-
necting and patching needs. Please visit our website at www.icc.com for complete information.
AMounting Fixture , 1 piece
BArms, 2 piece
C
PACKAGE INCLUDES:
Premium
Products
I Proven
Performance
I Competitive
Prices
B
INSTARAQ
This utility rack accommodates all standard 19" rack mounted
patch panels, rack enclosures, networking hubs, and switches
regardless of their depth, while allowing for greater front and
rear access, simplifying the overall installation and cable rout-
ing. Its durable steel frame design can support over 75
pounds of equipment, in 5 RMS (rack mount space),
making it an excellent solution for small to medium
size installs where floor or wall space is at a
premium. C
A
Mounting Hardware
Flange Nut, 2 piece
Hex Bolt, 2 piece
Color Code: (BK) Black, (BL)Blue, (GN) Green, (GY) Gray, (OR) Orange, (RD) Red, (YL) Yellow, (WH) White
ITEM #: ICCMSWMUR5
Step 2.
Unfold the arms until the
indexing tabs are
engaged in their slots as
shown.
Step 1.
Loosen the hex bolts and flange
nuts until the mounting fixture
arms are able to be unfolded;
do not loosen the bolts and
nuts all the way.
Step 3. Step 4.
ASSEMBLY INSTRUCTIONS
© Co y ight 2008, IC .p r C ICC and ICC logo are registered t ade name and t adema k.r r r All ights rese ed.r rv MSR-0385 REV B
Tighten hex bolts and
flange nuts as the arms
are perpendicular with the
mounting fixture body.
Mount bracket vertically
to wall studs or back-
board with hardware of
your choice.
Step 5.
For alignment purposes, install
your equipment to the Utility
Bracket from the end of the
mounting fixture arms using the
#12-24 x 5/8 mounting screws
provided as shown.
