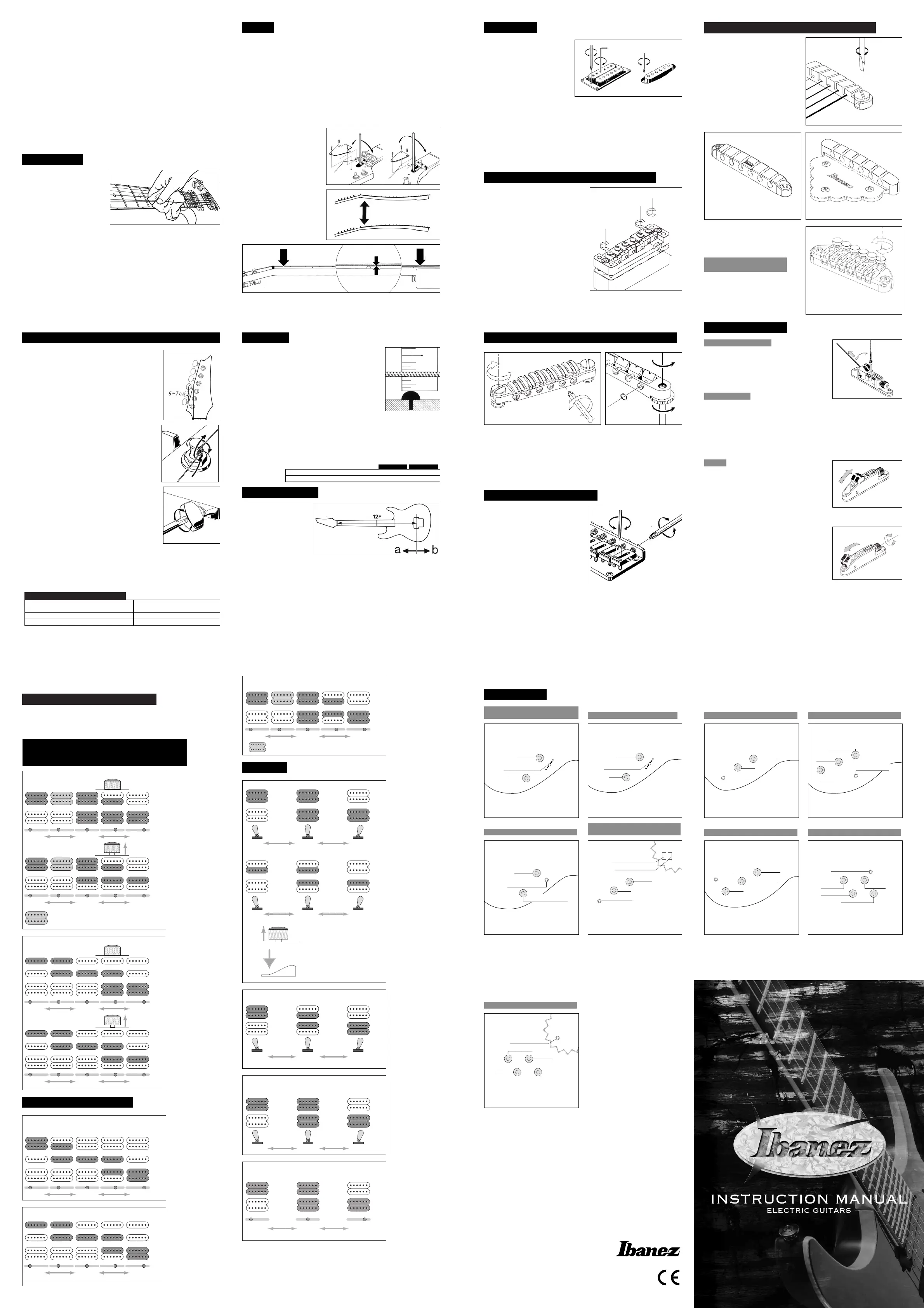

1 VOL, 1 TONE & 3 WAY LEVER SELECTER
INSTALLING THE STRING
To install a new string insert the ball end of
the new string into the slot and place the ball
end into the internal hook area of the saddle
as shown. Pull the string tight to the saddle
and restring the rest of the string as you
normally would on the machine head.
QUIK CHANGE ULTRA / FINE
TUNNING FUNCTION
QUIK CHANGE ULTRA has FINE
TUNER function.
Even after by the tuning machine,
you can make a quick-fine
adjustment by FINE TUNERS (E).
SPLITS FUNCTION
WITH "TRUE-DUO"SYSTEM
*BRIDGE PICKUP : "TRUE-DUO BUCKER"
DOWNSHIFTER
This is to certify that the aforementioned
equipments fully conform to protection
requirements of the following EC council directives.
DIRECTIVES:89/336/EEC Electromagnetic compatibility
Printed in China AUG2005WEG ©2005
NECK CENTER BRIDGE
Ibanez Instruments are unique in the simplicity and versatility of our
switching systems. Each model was designed to allow the maximum
amount of useful pickup positions with the simplest operations.
JEM. PGM, RG, GRG, S(*), EXR, NDM, GRX :
3 PICKUPS (H-S-H)
(*) except S520EX
NECK CENTER BRIDGE
Humbucking is parallel connected.
RG(*), SA120 : 2 PICKUPS (H-H)
(*)except RG120
NECK CENTER BRIDGE
GSA, GRX : 3 PICKUPS (S-S-H)
NECK CENTER BRIDGE
MMM, RG120, S520EX, GSA, GRX, GAX30 :
2 PICKUPS (H-H)
NECK CENTER BRIDGE
AR, ARC, ARX, AXS, GAX(*), IC, ICX, RVX, GSZ:
2 PICKUPS (H-H)
(*) except GAX30
SWITCHING FUNCTION
The output level of the
instrument as well as the
quality of the signal can be
affected by the pickup height.
Pickup height should be
adjusted until the volume of
neck and bridge pickups are
almost equal with both
volumes wide open. The volume may drop drastically if the pickup
height is too low. As the pickups are magnetic, fret buzzing and
distortion may occur if the pickup is too close to the strings. Use a small
screwdriver to make adjustments to raise or lower the pickup.
*Instruments that have adjustable pole pieces can be adjusted to balance the output of each string.
PICKUPS
Ibanez steel string models are equipped with adjustable truss rods. The
purpose of a truss rod is to adjust the neck to counteract string tension.
There are many reasons for truss rod adjustments. One of the most
frequent reasons is changing string gauges or tuning pitch which can
affect string tension. String tension changes may affect the string height
and cause fret buzz or notes that don’t ring true. To adjust the truss rod,
locate the truss rod nut and adjust it by inserting the correct wrench into
the nut and tightening (clockwise) or loosening (counter clockwise) the
rod. Truss rod tension can be measured by installing a capo at the first
fret the holding the strings down at the fret position where the neck joins
the body. Insert a thickness gauge between the string and the fret at the
8th fret. There should
between 0.3 mm to 0.5mm
clearance. That clearance is
referred to as “neck relief.”
Too much neck relief can
cause the neck to have
higher action in the middle of
the neck causing poor
intonation and uncomfortable
playability. No neck relief can
cause fret buzz.
*Appropriate care must be taken when
adjusting the neck and we recommend only
qualified technicians perform this procedure.
NECK
Regular cleaning of your
guitar is one the most
important ways you can
maintain the finish and
lengthen string life. After
playing, wipe down your
instrument to remove any
perspiration from the
instrument. Perspiration can actually contain acids that can be corrosive
to the strings and metal parts of the guitar. Gloss finish guitars should be
polished with polish formulated specifically for musical instruments, and
a soft, treated guitar cloth or a cotton rag. Abrasive rags such as
polyester can scratch the finish. Oil finished guitars should be wiped
clean immediately after playing with a dry cotton rag only. If your guitar
has become discolored due to extended use or heavy perspiration,
factory appearance, see a qualified guitar repair person about methods
to restore the oil finish to its original factory appearance.
LOOSEN
TIGHTEN
8TH FRET
0.3~0.5mm
Maintenance ➣➣
Our congratulations and deepest thanks on
making Ibanez your choice of instrument. Ibanez
standards are second to none. All Ibanez
instruments are set up to our strict quality control
standards before shipping. The purpose of this
manual is to explain how to maintain your
instrument’s finish and to keep your guitar playing
as well as it did when it left our factory.
If strings become dirty, discolored, or produce a
dull sound or buzz, replace the strings with new
ones. For best results we recommend replacing
one string at a time, this will help to avoid
removing the string tension from the neck. When
replacing strings with different gauge strings, it
may be necessary to adjust the truss rod tension.
(We recommend only qualified technicians
perform this.) Instruments that have tremolo
systems installed may need to be adjusted after
string replacement as changes in string tension
can cause the tremolo to raise or lower. Ibanez
guitars and basses are factory equipped with the
following string gauges. Please follow the
instructions below for your particular model.
The strings should be tightly wound on to the
tuning machines from top to bottom with 2 to 3
string wraps around the post. In the case of
unwound guitar strings, the ends of the strings
should be prepared as shown in the diagram to
prevent unintentional slippage from the posts. In
the case of tuning machines, where the string
ends are inserted into the posts, the string can be
cut to length in advance using a pair of string
cutters.
If the tuning machines are sealed gear units, they
are self-lubricating types. The set screws for the tuning knob are
adjustment screws that can be tightened with a small Phillips head
screwdriver to increase the tension.
*The use of coarse strings may lead to buzzing and sound distortion. Using strings that have twists or kinks may
cause buzzing or decreased sustain. Make sure that the new strings are smooth and free from any defects
before installing.
STRINGS AND TUNING MACHINES
1
3
2
LOOSEN
TIGHTEN
Solid guitars w/Tremolo, JTK, ICX, RVX & ALL Gio
RG321MH, SZ, AXS, AR,ARC, ARX & IC
7-String model
MMM1
.009/.011/.016/.024/.032/.042 inch
.010/.013/.017/.026/.036/.046 inch
.010/.013/.017/.026/.036/.046/.054 inch
.014/.017/.030/.040/.056/.074 inch
STRING GAUGES
LOOSEN TIGHTEN
LOOSEN
TIGHTEN
CLEANING
Intonation adjustment is
the operation of
adjusting the location of
the string at the saddle
to compensate for
different string gauges
or different tunings.
Follow the instructions
of the particular bridge intonation below. Intonation is properly set when
the 12th fret note and the 12th fret harmonic are exactly the same note .
This is the center point of the scale and the most accurate way of setting
a standard scale length. With the harmonic note as the standard, if the
fretted note is flat move the bridge saddle forward toward the headstock
(a) to decrease the string length. If the fretted note is sharp, move it back
away from the headstock (b) to increase the string length intonation
adjustments.
*Please note that strings can be broken when the saddle is moved, so always loosen the strings before
making adjustments.
INTONATION
Ibanez guitar and bass string action is set at the
factory. However there are many reasons that an
instrument’s string height can change. Instruments
can be affected by changes in temperature and
moisture. High string action can make the guitar
difficult to play. If the string action is too low, fret
buzz or unclear notes can occur. To remedy this,
follow the instructions for the particular type of
bridge installed. In the case of string action, make
sure the guitar is in tune and the truss rod is adjusted properly. Ibanez
action is set at the 14th fret. The action may also need to be readjusted
after the neck has been adjusted or strings have been changed to a
different gauge. Follow the instructions in the relevant bridge manual to
make adjustments.
*If strings other than those described above are used, gradually increase the action clearance from the treble side
through to the bass side.
ACTION
.009-string's guitars except Gio Ibanez
all Gio Ibanez & .010-, .014- string's guitars
BASS SIDETREBLE SIDE
Guitar Bridges ➣➣
To change strings, thread the new
strings through the string grommets
located on the back of the guitar and
bring them up and over the saddle.
The intonation can be adjusted by
adjusting the saddle forward or
backward using a Phillips (+) head
screwdriver on the intonation
adjustment screw at the rear of the
bridge. String height is controlled by
raising or lowering the small Allen screws using a wrench on either side
of the saddle.
HARDTAIL BRIDGE
The height adjustment can be
adjusted by 4 pcs of 2.0mm of allen
screws (B) on the bridge. Since the
adjustment screws are locked by the
bridge lock screw (A), you must
loosen the bridge lock screw by
3.0mm Allen wrench before
adjustment.
Each saddle is also locked by a
saddle lock screw (C). To adjust the
intonation, use a 2.0mm Allen
wrench to loosen the saddle locke
screws, and then adjust the
Intonation screw (D) by a 2.0mm
Allen wrench. When you are finished with the adjustment, lock the
saddle and tune the guitar.
GIBRALTAR CUSTOM BRIDGE
A
B
C
D
SPLITS FUNCTION
Guitar Electronics ➣➣
OTHERS
GIBRALTAR III & FULL TUNE III
The action can be adjusted by using a slot head (-) screwdriver to turn
the adjustment bolt at either end (A).
The intonation can be adjusted by moving the saddle forward or
backward using a screwdriver to turn the adjustment screw of each
saddle (B).
The height adjustment of the QUIK
CHANGE III can be adjusted by
using a slot head (-) screwdriver or
a coin turn the adjustment studs at
either side of the tailpiece (C).
(A)
(B)
(A)
(B)
NECK CENTER BRIDGE
SZ : 2 PICKUPS (H-H)
CONTROLS
VOLUME
5 WAY
PICKUP SELECTOR
TONE
JEM, PGM, NDM, RG, SAS, SA, GSA60,
GRX70,40
VOLUME
3 WAY
PICKUP SELECTOR
TONE
w/COIL TAP ON/OFF SW.
JS
(*)Coil Tap Switch on Tone
3 WAY
PICKUP SELECTOR
NECK
VOLUME
BRIDGE
VOLUME
NECK TONE
BRIDGE
TONE
AR, IC
Guitar Controls ➣➣
*
NECK TONE
BRIDGE TONE
3 WAY
PICKUP SELECTOR
NECK
VOLUME
BRIDGE VOLUME
AXS, AX, GAX70,75
TONE
NECK VOLUME
BRIDGE
VOLUME 3WAY PICKUP
SELECTOR
SZ, ARC, ARX
VOLUME
TOGGLE SWITCH
TONE
ICX, RVX
TOGGLE
NECK
VOLUME
TONE
BRIDGE VOLUME
GSZ
QUIK CHANGE TAILPIECES
QUIK CHANGE MINI QUIK CHANGE CLASSIC
QUIK CHANGE III
QUIK CHANGE ULTRA
(E)
VOLUME
TOGGLE SWITCH
TONE
SEESAW SW. FOR BRIDGE PU
SEESAW SW. FOR NECK PU
JTK
NECK CENTER BRIDGE
NECK CENTER BRIDGE
HUMBUCKER PICKUP MODE
SINGLE PICKUP MODE
VOLUME POT
SWITCH PUSH DOWN
VOLUME POT
SWITCH PULL UP
SAS36/SA260 : 3 PICKUPS(S-S-H)
JS : Coilt Tap Switch by TONE POT
Pull up=TAP ON NECK&BRIDGE Both
pickups
JTK : Coil Tap Swith by SEESAW Switch
SEESAW DOWNED UPFOWARD=TAP ON
NECK CENTER BRIDGE
NECK CENTER BRIDGE
JS, JTK : 2 PICKUPS (H-H)
JS, JTK (WHEN COIL TAP SWITCH WORKED)
NECK CENTER BRIDGE
NECK CENTER BRIDGE
HUMBUCKER PICKUP MODE
SINGLE PICKUP MODE
VOLUME POT
SWITCH PUSH DOWN
VOLUME POT
SWITCH PULL UP
HUMBUCKERS
PARALEL COONNECTED
SAS32 : 2 PICKUPS(H-H)
The Ibanez DOWNSHIFTER allows the pitch of a string to be dropped to a
preset desired position with a simple lever operation. To achieve precise
tuning for both the up and down positions, you will need to preset both
lever settings before operating the Downshifter.
PLEASE NOTE: The Downshifter device was designed to provide the
highest level of pitch accuracy. However, it should be understood that
the Downshifter is a mechanical device. Pitch variations and tuning
readjustments, especially after frequent use, are to be expected.
(C)
tuning screw clockwise to reduce the pitch,
or counter clockwise to raise the pitch. This
adjustment can be done by hand or with a
standard screwdriver or a coin until the
desired down pitch is acquired. (The preset
factory pitch is set one whole step down to
D.) When the lever is raised to the up
position, the thumbscrew can be turned
freely but will have no effect on the raised lever pitch. However, it will
affect the settings of down lever pitch.
TUNING
First check that the Downshifter lever arm is
raised to the up position then tune the string
normally using the standard tuning machines
on the headstock.
(Note: the Downshifter tuning screw has no
effect on the pitch in the up position.) Next,
lower the lever on the Downshifter to the down position and the pitch of
the string will drop down. Adjust the rear
1
2
3
SPECIAL TUNING
The Downshifter also allows the pitch to be raised by setting the standard
tuning while the lever is in the lower position. When the lever is raised the
pitch will also be raised and can be adjusted to the desired pitch.
VOLUME
3 WAY
PICKUP SELECTOR
TONE
MMM, RG120, S520EX, GSA20,
GRX20,22, GAX30
1 VOL, 1 TONE(*) & 3 WAY TOGGLE SWITCH
1 VOL, 1 TONE & 3 WAY TOGGLE SWITCH
& 2 SEESAW SWICHES
1 VOL, 1 TONE & 3 WAY TOGGLE SWITCH 2 VOL, 1 TONE & 3 WAY TOGGLE SWITCH
2 VOL, 1 TONE & 3 WAY TOGGLE SWITCH 2 VOL, 2 TONE & 3 WAY TOGGLE SWITCH
2 VOL, 2 TONE & 3 WAY TOGGLE SWITCH
1.5mm
1.7mm
2.0mm
2.3mm
1 VOL(*), 1 TONE & 5 WAY LEVER SELECTER
*SAS/SA260 : TRUE-DUO Switch on Volume
ILT
ADJUSTING THE TREMOLO SPRING
The tremolo springs adjust the
tremolo angle by tightening or
loosening the tremolo tension. To
adjust tremolo angle, locate the
adjustment screws in the rear
tremolo cavity. The tremolo system
when in tune should sit parallel to
the surface of the guitar as follows.
If the tremolo system is not sitting
parallel to the surface of the guitar, remove the tremolo cavity cover
plate and tighten the Tremolo tension adjustment screws if the tremolo
is forward dumped. Loosen the screws if the tremolo is up-pulled.
Retune the strings to the proper pitch
and check the angle. Choose the number
and placement of the tremolo springs
according to the string gauge and the
tremolo angle.
REPLACING THE STRINGS
In the case of EDGE III tremolo, replace the
strings one by one. Removing all the old strings
at once will release the tension on the tremolo
and change the tremolo angle up-pull. Loosen“ ”
the Pressure pad screw (D) on the locking nut
and loosen the string to be replaced. Loosen the
String stopper screw (G) and remove the string
from the saddle. Cut off the ball end of new
string as shown on the illustration and insert the cut side of new string
between the saddle and the String holder block.Tighten the String
stopper screw (G) and tune the string. After checking the intonation,
tighten the Pressure pad screw (D) on the locking nut.
ADJUSTING THE STRING HEIGHT
The height adjustment of the tremolo can be
raised or lowered by adjusting the pivot studs
(B) that the tremolo mounts on. These are
located at either side of the front of the bridge.
Clockwise lowers the tremolo and counter
clockwise raises the tremolo.
TREMOLO ARM INSTALLATION
The tremolo arm can be inserted and removed
very easily. Insert the arm into the armhole on
the tremolo base plate. Pull up on the arm to
remove it.
TREMOLO ARM
Loosen the screw cap, insert the arm into the tremolo unit, and rotate it
to fasten it in place (Fig.8). Rotate the arm to adjust it to the desired
height. The arm torque is adjusted by the tightness of the screw cap. To
remove the arm, loosen the screw cap and rotate the arm counter-
clockwise (Fig.9).
REPLACING THE STRINGS
Loosen the string stopper bolt of the
locking nut (Fig.11), completely loosen
the string at the tuning machine, use
an Allen wrench to loosen the string
stopper bolt of the bridge saddle
(Fig.12 A), and remove the old string.
Use wire cutters to remove the ball
end from the new string as shown in
Figure 13, insert this end of the string
into the bridge saddle, fasten it firmly,
and then tighten the string at the
tuning machine. After tuning, check
the angle of the tremolo unit, and
fasten the string stopper bolt of the
locking nut to finish the procedure.
TREMOLO ARM INSTALLATION
The tremolo arm can be inserted and
removed very easily. Insert the arm into
the armhole on the tremolo base plate. Pull
up on the arm to remove it.
ADJUSTING THE INTONATION
Loosen the Pressure pad screw (D) on the
locking nut and loosen the string to be adjusted.
Loosen the Saddle lock screws (F) on the saddle
to be adjusted and adjust the saddle forward or
backward. Tighten the Saddle lock screw (F)
and tune the string. After rechecking the
intonation, tighten the Pressure pad screw (D).
EDGE III
ADJUSTING THE TREMOLO SPRING
The tremolo springs adjust the tremolo
angle by tightening or loosening the
tremolo tension. To adjust tremolo
angle, locate the adjustment screws in
the rear tremolo cavity. The tremolo
system when in tune should sit parallel
to the surface of the guitar as follows.
If the tremolo system is not sitting parallel to the surface of the guitar,
remove the tremolo cavity cover plate and tighten the Tremolo tension
adjustment screws if the tremolo is forward dumped. Loosen the screws
if the tremolo is up-pulled.Retune the
strings to the proper pitch and check the
angle. Choose the number and placement
of the tremolo springs according to the
string gauge and the tremolo angle.
ADJUSTING THE ACTION
To adjust the entire tremolo unit up or down,
use an Allen wrench to turn the stud bolt (E)
located at the left and right of the tremolo
unit. (This cannot be adjusted for each
individual string.)
FINE TUNING
Even after locking the locking nut, you can use
the fine tuners to make fine adjustments to the
tuning of each string. You should adjust all of
the fine tuners (C) to the center of adjustable
range before you lock the locking nut.
ARM ACTION
The tremolo arm action can be adjusted by
using a 3.0mm Allen wrench on the screw (B)
of the tremolo screw.
ARM ROTATION TORQUE
The rotation torque of the arm can be adjusted
by raising the tremolo and inserting a 1.5mm
Allen wrench in the screw (A) on the tremolo
block, turning this screw clockwise will
tighten the arm torque and turning the screw
counter clockwise will loosen the arm torque.
ADJUSTING THE INTONATION &
THE STRING HEIGHT (FAT 6)
The intonation can be adjusted by
adjusting the saddle forward or
backward using a philips(+) head
adjustment screw at the rear of the
bridge. String height is controlled by
raising or lowering the small allen
screws using a wrench on either side
of the saddle.
TREMOLO ARM INSTALLATION
The tremolo arm can be inserted and
removed very easily. Insert the arm
into the armhole on the tremolo base
plate. Pull up on the arm to remove it.
ARM ROTATION TORQUE
The rotation torque of the arm can be
adjusted by raising the tremolo and
inserting a 1.5mm Allen wrench in
the screw (A) on the tremolo block,
Turning this screw clockwise will
tighten the arm torque and turning
the screw counter clockwise will
loosen the arm torque.
ADJUSTING THE STRING HEIGHT (FAT20/FAT10/SAT10)
The height adjustment of the tremolo can be raised or lowered by
adjusting the pivot studs (C) that the tremolo mounts on. These are
located at either side of the front of the bridge. Clockwise lowers the
tremolo and counter clockwise raises the tremolo.
ADJUSTING THE STRING HEIGHT (SAT PRO)
To adjust the action of each
string, use a 1.5 mm Allen
wrench to turn the screw on the
saddle (C). The overall height
can be adjusted on either side
of the SAT PRO tremolo unit. To
adjust the height, use a 3 mm
Allen wrench to turn the stud (D)
located on either side of the
unit. Use caution when
adjusting the height of the entire tremolo unit; adjust both sides to the
same height to ensure optimum tremolo operation.
FAT/SAT (expect FAT6)
ADJUSTING THE TREMOLO SPRING
A standard tremolo can be adjusted
so that the pitch can be raised when
the tremolo arm is pulled up to
loosen the tremolo springs located
under the tremolo cavity on the back
of the guitar. One disadvantage of
this procedure is that it can cause
the pitch to go sharp if string breaks.
To remedy this, adjust the tremolo
plate so it sits flush on the body by
tightening the tremolo springs.
Choose the number and
placement of the tremolo
springs according to the string
gauge and the tremolo
adjustment .
FLOATING PARALLEL
REPLACING THE STRINGS
To replace strings, thread the new
strings through the string holes
located on the back of the guitar. The
strings are then threaded through the
tremolo block and up and over the
saddle.
FAT/SAT TREMOLO
Tremolos
➣➣
ARM ROTATION TORQUE
The rotation torque of the arm can be
adjusted by raising the tremolo and
inserting a 2.0mm Allen wrench in
the screw (A) on the tremolo block,
Turning this screw clockwise will
tighten the arm torque and turning
the screw counter clockwise will
loosen the arm torque.
FINE TUNING
Even after locking the locking nut,
you can use the fine tuners to make
fine adjustments to the tuning of
each string.
You should adjust all of the fine
tuners (C) to the center of their
adjustable range before you lock the
locking nut.
ARM ACTION
The tremolo arm action can be
adjusted by using a 2.0mm Allen
wrench on the screw (B) of the
tremolo block.
ADJUSTING THE ACTION
To adjust the entire tremolo unit up
or down, use an Allen wrench to turn
the stud bolt (E) located at the left
and right of the tremolo unit. (This
cannot be adjusted for each
individual string.)
EDGE PRO II TREMOLO
REPLACING THE STRINGS
The EDGE-PRO II tremolo will accommodate
either strings from which the ball end has
been cut, or conventional strings from
which the ball end has not been cut.
To remove a string, use a 3 mm Allen
wrench to loosen the pressure pad screw of
the locking nut (Fig.1), remove the string
from the tuning machine, and use a 3 mm
Allen wrench to loosen the string stopper
screw of the saddle (Fig.2). Turning this
counter-clockwise will automatically retract
the holder block, so loosen the string stopper
screw all the way until the holder block
stops retracting. Remove the old string,
insert approximately 3 cm of the new string
with ball end into the saddle, and while
making sure that the string is positioned in
the center of the saddle, tighten the string
stopper screw (Fig.2). Turning this clockwise
will automatically advance the holder block,
so after making sure that the string is firmly
fastened, wind the string around the tuning
machine post, tune it, and then tighten the
pressure pad of the locking nut.
When installing a wound string from which the ball end has been cut off,
you can leave the overwound portion of the winding intact in order to
prevent the winding from loosening. Insert approximately 1~3 cm of the
tip into the saddle, and install the string in the same way as a
conventional string from which the ball end has not been cut off.
Since the attachment angle of the tremolo will change significantly if all
strings are removed at once, you should replace the strings one at a time.
On the bottom of each saddle there is a guide stopper that indicates the
length of string to be inserted. The appropriate length will be inserted if
you insert the string until the tip contacts this guide.
If a string breaks at the saddle, it may fall into the tremolo cavity when
you loosen the string stopper screw. Remove the broken string either by
detaching the tremolo spring cavity cover plate from the back of the
guitar, or from the opening in the cover plate. If the broken spring
remains in the saddle, remove it from above.
Note: Before you tune a string, make sure that the string stopper screw is firmly tightened.
Note: To prevent the string stopper screw from falling out, do not loosen it more than three
turns after the holder block has stopped retracting.
ADJUSTING THE INTONATION
Before you adjust the intonation, use a 3 mm Allen wrench to loosen the
pressure pad screws (G) of the locking nut so that the strings are
released. Use a 2 mm Allen wrench to loosen the saddle lock screws (F)
of each saddle, and move the saddle. Firmly tighten the saddle lock
screws, tune the guitar, and then check the intonation. Repeat these
adjustments until the intonation is correct, and then tighten the pressure
pad screws of the locking nut.
You may install each saddle lock screw in either the forward or rear
position, depending on the position of the saddle.
The unit is designed so that the fine tuning screw will not operate if the
position of the saddle extends beyond the front edge of the base plate.
Note: When loosening the saddle lock screws, you must loosen the strings sufficiently before
making adjustments.
FINE TUNING
Even after locking the locking
nut, you can use the fine tuners
(Fig.10 A) to make fine
adjustments to the tuning of
each string.
You should adjust all of the fine
tuners to the center of their
adjustable range before you lock
the locking nut.
ZR TREMOLO(ZERO RESISTANCE)
TREMOLO SPRINGS
The EDGE-PRO II tremolo is designed to
function optimally when it is installed
approximately parallel with the surface
of the guitar body (Fig.4). The angle at
which the tremolo is attached can be
adjusted by changing the length of the
tremolo springs inside the tremolo spring
cavity in the back of the guitar body.
Working through the adjustment holes in
the tremolo spring cavity cover plate, use
a Philips (+) screwdriver to turn the
tremolo tension adjustment screws to
adjust the length of the tremolo springs.
If the tremolo is tilted forward toward the
neck of the guitar (Fig.5), turn the screws
clockwise to tighten the springs.
Conversely, if the tremolo is tilted
backward away from the neck (Fig.6),
turn the screws counter-clockwise to
loosen the springs. Tune the guitar
accurately, re-check the angle of the
tremolo, and repeat the adjustment until
the tremolo angle is correct. The EDGE-
PRO II tremolo is designed to function
optimally when three springs are
tensioned equally with a 0.009" gauge
set of strings installed. If you replace the strings with a different gauge set,
you can adjust the tremolo angle by changing the number of springs or the
way in which the springs are installed.
Loosen all strings before you add or remove a tremolo spring.
The EDGE-PRO II tremolo uses a block lock mechanism to fasten the
tremolo springs to the block. Before you change the number of springs or
the way in which they are installed, use a Philips (+) screwdriver to
remove the block lock (Fig.7).
NOTE: If you want to install four or five tremolo springs, insert the springs into the block nut
attachment screw holes. (In this case, it will not be possible to attach the block nut.)
FIG.4
FIG.5
FIG.6
FIG.7
ADJUSTING THE ACTION
To adjust the entire tremolo unit up or down, use an Allen wrench to turn
the stud bolt (Fig.10 B) located at the left and right of the tremolo unit.
(This cannot be adjusted for each individual string.)
ADJUSTING THE INTONATION
Loosen the string stopper bolt of the
locking nut (Fig.11). Remove the
intonation adjustment bolt (Fig.12 B)
from within the bridge unit, fasten it
into the screw hole in the rear of the
saddle, and tighten it so that the tip of
the bolt contacts the boss of the
bridge unit. Loosen the saddle lock bolt
(Fig.10 C), and turn the intonation
adjustment bolt to adjust the position
of the saddle. After completing the
adjustment, tighten the saddle lock
bolt sufficiently to prevent the saddle
from moving forward during tuning,
and store the intonation adjustment
bolt inside the bridge unit.
A
B C
FEG
A
B
C
FIG.1
FIG.2
FIG.3
FIG.8 FIG.9
FIG.10
FIG.11
FIG.12
FIG.13
TREMOLO ARM
Insert the tremolo arm into the
arm socket and tighten the
fingertip tension adjustment
wheel. The rotation torque of the
arm can be tightened or loosened
by adjusting the tremolo arm nut
located at the base of the tremolo
arm.
FINE TUNING
After locking the top lock, fine tuning the instrument can be done by
turning the fine tuning screws (A).
REPLACING THE STRINGS
In the case of Lo-TRS II tremolo, replace the
strings one by one. Removing all the old strings
at once will release the tension on the tremolo
and change the tremolo angle up-pull.“ ”
Loosen the Pressure pad screw (C) on the
locking nut and loosen the string to be
replaced. Loosen the String stopper screw (E)
and remove the string from the saddle. Cut off
the ball end of new string as shown on the illustration and insert the cut
side of new string between the saddle and the String holder block .
Tighten the String stopper screw (E) and tune the string. After checking
the intonation, tighten the Pressure pad screw (C) on the locking nut.
* To allow maximum fine tuning adjustment, it is recommended that the fine tuners be set to the middle position
before locking the nut.
ADJUSTING THE INTONATION
Loosen the Pressure pad screw (C) on the
locking nut and loosen the string to be adjusted.
Loosen the Saddle lock screws (D) on the saddle
to be adjusted and adjust the saddle forward or
backward. Tighten the Saddle lock screw (D)
and tune the string. After rechecking the
intonation, tighten the Pressure pad screw (C).
* On the base plate there are two holes for each Saddle lock screw. These allow the user to change string gauges
while allowing the maximum saddle movement. If the intonation cannot be adjusted because the saddle needs
to be set back further, remove the intonation screw and insert it into the hole located further back on the bridge
plate.
(A)(B) (D)
(E)
(C)
ILT LOCKING TREMOLO
INTONATION ADJUSTMENT (FAT10/SAT10)
The intonation can be adjusted by adjusting the saddle forward or
backward using a Phillips (+) head screwdriver on the intonation
adjustment screw at the rear of the bridge.
FAT10
(C)
(C) (C)
FAT20 FAT10
SAT10
SAT10
EDGE III TREMOLO
(D)
*
On the base plate there are two holes for each Saddle lock screw. These allow the user to change string gauges
while allowing thee maximum saddle movement. If the intonation cannot be adjusted because the saddle needs to
be set back further, remove the intonation screw and insert it into the hole located further back on the bridge plate.
(G)
(C)
(F)
(E)
(B)
(A)
Main Spring
2
1
Tremolo Block
Stop Rod
Stopper
With the guitar tuned correctly, adjust the
Main Spring make sure that the Stop Rod
makes contact with the Tremolo Block
and Stopper.
If the Stop Rod does not make contact
with the Tremolo Block and Stopper,
adjust the Main Spring adjustment screw
until contact is made.
With the guitar tuned correctly, Stop Rod
must make contact with the Tremolo
Block and Stopper. If it is adjusted
correctly, the tension while pushing down
on the arm will be slightly less than
tension while pulling up.The balance of
force is about 3:7 (With this setup, stop
rod must the tremlo block and stopper
even the 1st string is comlpetely loosened.)
Again, if the Stop Rod does not make
contact with theTremolo Block and
Stopper, adjust the Main Spring
adjustment screwuntil contact is made.
<Note>
When a string breaks,because of the tension of neck,the tuning of other strings will be a
little higher butstill limits within acceptable range.
TREMOLO ARM ADJUSTMENT
(SAT PRO)
To adjust the height of the arm,
remove the tremolo spring cover
from the back of the guitar, and use
a 3 mm Allen wrench to turn the
height adjustment screw attached to
the bottom of the tremolo block.
Tightening this in the clockwise
direction will raise the height.
(C)
(D)
(E)
ADJUSTING THE ZERO POINT SYSTEM
The Zero Point system makes it easier to
tune a floating tremolo unit, provides
greater tuning stability after arming, and
limits the tuning drift that would
otherwise occur when a string breaks.
*If the Zero Point system is not
adjusted to the correct position it will
not function optimally, since it will
either be completely floating, or the
Zero Point system and the string
tension will be in balance. You must
perform this adjustment accurately.
<NOTE>
INTONATION ADJUSTMENT
(SAT PRO)
To adjust the intonation, use a 1.5 mm
Allen wrench to turn the screw located
at the rear of the saddle (E). Turn the
screw clockwise to move the saddle
toward the rear, or counter-clockwise
to move the saddle forward.
INTONATION ADJUSTMENT
(FAT20)
To assure that no movement can
occur each saddle has a set screw
that locks the saddle. When adjusting the
intonation, loosen the saddle lock screw
using a 2mm Allen wrench. (D)
To adjust the intonation, insert a 2.5mm
Allen wrench into the saddle screw at the
rear of the tremolo. Turning the wrench
clockwise will adjust the saddle
backward. Counter clockwise will adjust
the saddle forward. After the correct
intonation location of the saddle is set
tighten the saddle lock down screw to
assure no movement will occur. (E)
SAT PRO
(C)
(D)
(E)
(D)
(E)
FAT20
FIG.14
SWITCHING TO FLOATING OPERATION
By stopping the Zero Point system from
functioning, you can make the tremolo
float completely. While holding the arm
up, remove the stop rod and sub spring.
With the guitar tuned correctly, use the
main spring adjustment knob (Fig. 14E)
to adjust the angle of the tremolo unit. If
the tremolo unit is tilted forward toward
the neck, turn the spring adjustment
knob in the plus (+) direction.
Conversely, if the tremolo unit is tilted
backward away from the neck, turn the
spring adjustment knob in the minus (-)
direction.
*You will need to tune repeatedly during
the process of adjusting the tremolo
angle in the floating state, since the
tuning will drift each time you adjust the
main spring adjustment knob.
(A)
Produktspezifikationen
| Marke: | Ibanez |
| Kategorie: | Gitarre |
| Modell: | RC320M |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Ibanez RC320M benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Gitarre Ibanez
2 September 2024
2 September 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
Bedienungsanleitung Gitarre
- Gitarre Yamaha
- Gitarre Pyle
- Gitarre Sennheiser
- Gitarre Peavey
- Gitarre Fender
- Gitarre Behringer
- Gitarre Boss
- Gitarre Chord
- Gitarre Line 6
- Gitarre Gibson
- Gitarre Orange
- Gitarre Bugera
- Gitarre Gretsch Guitars
- Gitarre AER
- Gitarre Gallien-Krueger
- Gitarre Ultrasound Amplifiers
- Gitarre Epiphone
- Gitarre Gretsch
- Gitarre Warwick
- Gitarre Cordoba
- Gitarre Aria
- Gitarre Traveler Guitar
- Gitarre Carlsbro
Neueste Bedienungsanleitung für -Kategorien-
5 Oktober 2024
4 Oktober 2024
3 Oktober 2024
29 September 2024
24 September 2024
22 September 2024
12 September 2024
9 September 2024
5 September 2024
3 September 2024
