User’s guide Gebrauchsanweisung Uživatelská příručka

Instrukcje obsługi Užívateľská príručka Vartotojo

vadovas

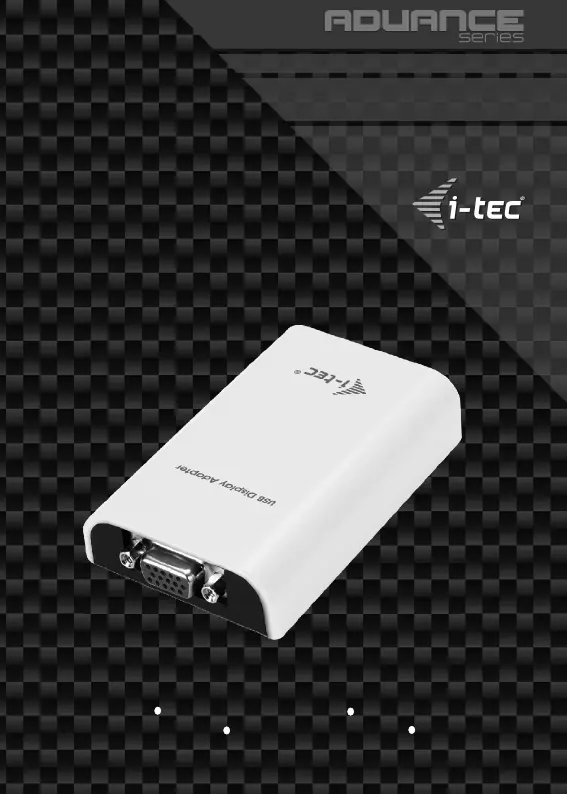

USB Display Adapter

VGA

INTRODUCTION

This USB Display Adapter convert USB2.0 to graphic output V . It enables you to connect GA

one more monitor, LCD or projector with VGA-output to a computer with a USB 2.0 port. Can be

used in your office (for graphic designer, financial department,...), you can use it for making

multiple screen presentations, on fairs or for your home-use (entertainment). Adapter supports

FullHD resolution 1920x1080 pixels.

PACKAGE CONTENT

1) USB 2.0 Display Adapter FULL HD

2) USB cable - 1 m length (one side is connector type A, second is MiniUSB) – enables

connect adapter to PC/NB

3) Driver CD

4) User’s manual

SPECIFICATION

1) USB 2.0, powered by USB, do not need external power source

2) VGA

3) RAM: 512 MB

4) Supported Resolutions: 640x480, 800x600, 1024x768, 1280x960, 1280x1024,

1360x768, 1366x768, 1368x768, 1400x1050, 1440x900, 1600x1200, 1680x1050,

1920x1080

5) Dimension: 84.3 (L) x 54 (W) x17.8 (H) mm

6) Working temperature: 10-40 Cº

7) Supported Modes: Extend (Default), Mirror, Primary Display

8) Supported colors: 16 / 32 bit

SYSTEM REQUIREMENTS

1) Hardware: PC, one available USB 2.0 port. If you have USB 1.1, the transfer speed will be

slower. Processor Intel Pentium 1.2 GHz or higher, 512 MB RAM (we recommend

processor Intel Pentium 2.0GHz or higher and 1GB RAM).

2) Windows 2000 SP4, Windows XP SP2 32bit, Windows Vista 32/64bit, Windows 7 OS:

32/64bit, Windows 8 32/64bit, Windows 8.1 32/64bit, Mac OS X

Note: There is a description of installation in Win XP; in Win 2000 / Vista / 7 / 8 / 8.1 it is similar,

just screens may differ.

DRIVER INSTALLATION IN WINDOWS XP/VISTA

Do not connect the adapter to your computer before installing the provided driver.

1) Insert the provided driver CD into CD-ROM drive and double-click the SETUP.EXE file

under the Driver folder.

2) Then follow the on-screen prompts to complete the installation.

For Windows Vista you should install the program as Administrator and then restart your

PC/NB;

For Win 2000 OS: if prompted for system patch after running the setup file, please

download and install the required patch first. After that, execute the setup file again to

install the driver.

3) Connect the smaller end of the USB cable to the adapter. Then connect the other end of

the cable to an USB 2.0 port on your computer. After the connection, Windows will

automatically complete the installation.

4) Then we recommend the restart of your PC again.

i-tec USB Display Adapter

Note: DO NOT connect the adapter to your computer before installing the driver.

1) Before the installation is complete, it’s normal that the screen flicks black a couple of

times.

2) Then we recommend the restart of your PC again.

DRIVER INSTALLATION IN MAC OS

Don't connect display adapter to PC/NTB before first use, untill you install right drivers for

video port from attached CD-ROM. It is necessary to install drivers before first use only.

Use the drivers from CD-ROM or download the latest drivers for video port at

www.displaylink.com (DL-165) and install them in standard way:

a) Screen can blinks during installation, but it is not unusual.

B) We recommend to reboot PC after installation of drivers finish.

HOW TO USE IN WINDOWS OS

1. Next to the time on the menu bar Start click on the network connection icon.

Here you can select the configuration Update and Update withdrawal; then the Screen

Resolution, Colour Quality - Medium (16bit) or High (32bit)and Screen Rotation.

This is followed by an important setting:

-you can select either Extend or Mirror for the way of setting the next screen. The Extend

selection will extend the existing monitor by now installed monitor and by means of Extend

To you select its position, or the selection Mirror makes it possible to have „mirror“ on the

next screen. The selection Off switches off the Display adapter.

The ed settings – after clicking on Advanced there is initiated the system Setting of advanc

display (can also be selected directly from the system).

2. Now you can carry out settings similar to those by means of point 1- Extend and Mirror

a) for Mirror: on the menu bar The display setting select adapter “DisplayLink Device“ and let

the blank field Extend the surface also to this monitor

b) for Extend: on the menu bar Setting the display select adapter “DisplayLink Device“ and tick

off the field Extend the surface also to this monitor.

Note: By ticking off the field „Use this equipment as a primary monitor“ you chose it as the main

one.

After clicking on the mentioned monitor and its drawing over you position it as need may be.

Confirm the warning on the change in setting the display.

Now by means of the mouse cursor you can work on both monitors and position the open

applications as need may be.

SAFETY INSTRUCTIONS

- do not expose to the extreme temperatures and air moisture

- use the device on the flat pads – you avoid the slip and fall on the ground

- keep the activators and manual for the later possible use

In the co-operation with the service department:

- check the functionality after the drop into water, on the ground

- check the functionality after the cover breakthrough

- claim the equipment non-functioning according to the manual

For more information please refer to the User´s Guide on the provided CD.
