i-tec THUNDERBOLTℱ 2
DOCKING STATION
(GB) User Manual
( Gebrauchsanweisung DE)
(CZ) ManuĂĄl
(PL) Instrukcja
(SK) ManuĂĄl
ENGLISH
INTRODUCTION
Thank you for purchasing the i-tec THUNDERBOLTℱ 2 docking station. The docking station will
allow you easy and extremely powerful connection of all accessories to your Mac / PC. It oïŹ€ers two
Thunderboltℱ ports with the transmission speed of 20 Gbps. One will be used for connecting your
Mac and the other one can be used for connection of other Thunderboltℱ devices such as external
drives or monitors.
Using the 4K HDMI interface you can connect any monitor with resolution up to 4096x2160 a
pixels. Then you have three USB 3.0 ports that can be used for connection of your USB devices as
well as for charging of phones, tablets, or other mobile devices.
Then you have a Gigabit Ethernet port for fast internet connection. A separated microphone input
and earphone output will allow conference calls as well as wonderful experience from movies or
games.
Please, read the entire user manual carefully fore you begin installation start using be and
the docking station.
TERMINOLOGY
 Interface / port / c nector / input / sloton a place where two devices are physically –
connected.
 a semiconductor device in a Mac / PC controlling the function of a port. Chipset –
 Thunderbolt / Thunderbolt ℱ2 ℱ– standard for fast hardwar interface that allows a e
connection of devices (peripherals - monitors, external HDD, HUBs,...) to a computer over
an expansion bus. A single allows connection of HUBs or serial Thunderboltℱ port
connection of up to six Thunderboltℱ devices. Thunderboltℱ 2 is backwards compatible
with Thunderboltℱ.
 standard for interface / port for connection of various USB devicesUSB 3.0 / 2.0 –a USB .
Various USB devices can be connected to the docking station using the USB interface type
A.
 standard for digital graphic interface port for connection of monitors and other HDMI –a al /
graphic display devices. al
 Display port (DP) standard for digital graphic interface / port with a higher resolution –a al
used for connection of monitors and other graphical display devices.
 LAN (Local Area Network) Ethernet is currently the most commonly used LAN and in –
the docking station it can reach a theoretical transmission speed up to 1 Gbit/s –
designated GLAN / RJ-45.
 Audio designation for audio input (microphone) or output (earphones / loudspeakers) –
devices.
SPECIFICATION
 s, bidirectional input / output), backwards compatible with 2x Thunderboltℱ 2 (20 Gbp
Thunderboltℱ - you will use one port for connecting your Mac and the other one can be
used for connection of other Thunderboltℱ devices.
 1x HDMI 1.4b output (resolution up to 4096 x 2160 pixels, HDCP compatible)
 1x RJ-45 10/100/1000BASE-T Gigabit Ethernet network adapter
 3x USB 3.0 (5 Gb/s, 1.5A, of which 1x USB charging as per the 1.2 speciïŹcation) BC
 1x 3.5 mm earphone stereo output
 1x 3.5 mm microphone mono input
 1x input for charging (DC 12V 5A) /
SYSTEM REQUIREMENTS:
Mac computer: OS X 10.9 or higher with a interface and the most recent ïŹrmware Thunderboltℱ
and software.
PACKAGE CONTENTS:
 i-tec THUNDERBOLTℱ 2 docking station
 Thunderboltℱ cable (100 cm)
 Power e - input: AC 100-240V, 2A 50/60Hz (130 cm cable); output: DC 12V/5A adapt r
 CD with user manuals
 Quick Start

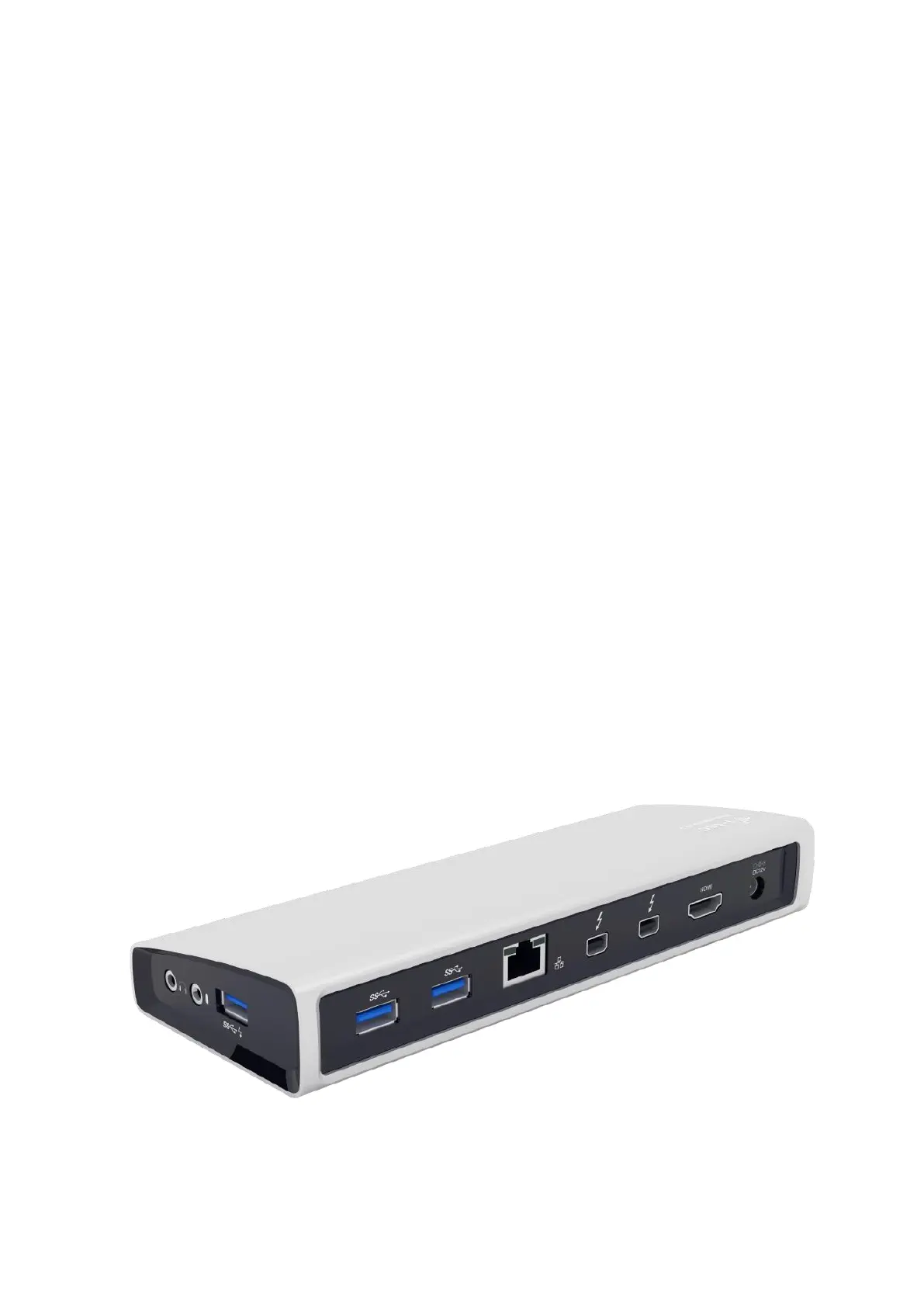

DESCRIPTION OF THE DOCKING STATION
1. LED after connecting the docking station and the power er to the AC 110V / 230V grid –adapt
the light is ON
2. 1x audio output for earphones loudspeakers 2.1 /
3. 1x audio input for c mi rophone
4. 1x USB 3.0 port type with the BC 1.2 speciïŹcation A
5. 2x USB 3.0 port type for connection of devices to the docking station A –USB
6. 1x Ethernet 10 / 100 / 1000 Mb/s GLAN RJ-45 port for connection t the Etherne network or –o t
to the internet modem
7. 2x Thunderboltℱ 2 port – Thunderboltℱ for connection of devices (you will use one port for
connecting your Mac and the other one can be used for connection of other Thunderboltℱ
devices)
8. 1x HDMI port for connection of the monitor –
9. 1x power input from the power er to the AC 110V / 230V grid adapt
SETTING THE S DI PLAY
 HDMI output with a resolution up to 4096 x 2160 pixels 24 Hz, 3840 x 2160 pixels 30 at at
Hz, a 2560 x 1600 pixels 60 Hz. nd at
 Two monitors are supported when connected over the HDMI and Thunderboltℱ 2 or when
using two Thunderboltℱ monitors in serial connection.
 The resolution of the video output and the refresh rate can be aïŹ€ected by the performance
of the system / Mac.
You can ïŹnd more information on connecting the monitor to the Thunderboltℱ 2 port at the Apple
website here: https://support.apple.com/en-us/HT204154#18 a on connecting the monitor to nd 4K
the Thunderboltℱ 2 port to Mac here: a https://support.apple.com/en-us/HT202856
