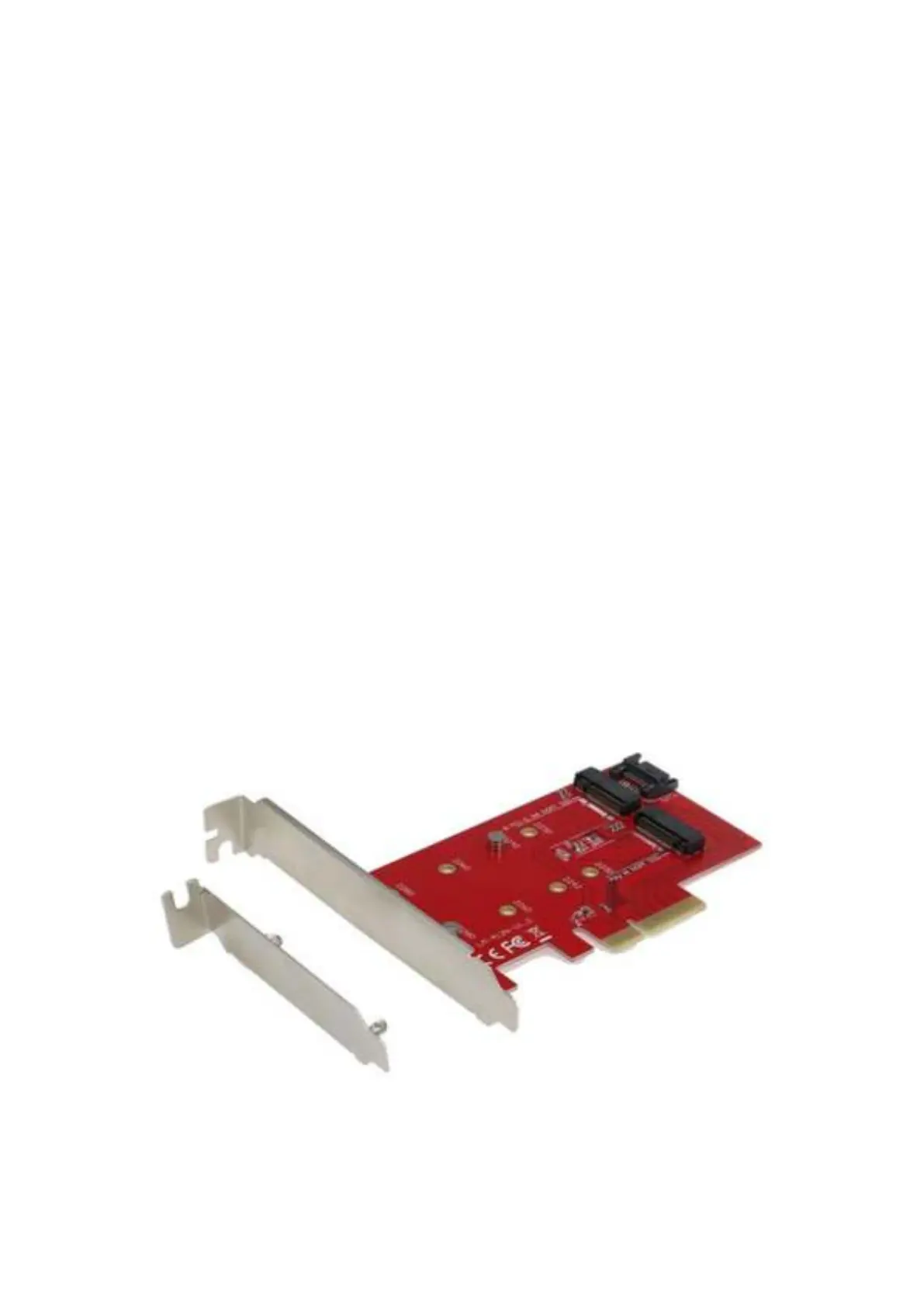

i-tec PCI-E 2x M.2 Card (PCI-E/SATA)
with Low Profile Backplate
(GB) User Manual
(DE) Gebrauchsanweisung
(CZ) Manuál
(PL) Instrukcja
(SK) Manuál
(LT) Vadovas
ENGLISH
Internal PCI-E card for your desktop computer. Add fast SSD disk format M.2 to your system.
The card has one slot for M.2 SATA discs and one slot for M.2 PCI-E discs.
SPECIFICATION
Allows simultaneous connection of M.2 SSD, 1x B key and 1x M key NGFF SSD via
PCI-E 4X interface
Complies with PCI Express M.2 Specification 1.0.
Complies with SATA 3.0 specification for the B key
Complies with PCI-E 4X 3.0 specification for M key
Support for data transfer speeds of up to 6 Gbps
Support for SATA-based B key and PCI-E 4X-based M key NGFF SSD
Support for sizes 2230, 2242, 2260, 2280 NGFF SSD
Support for booting
Support for Windows XP 32/64bit, Windows Vista 32/64bit, Windows 7 32/64bit,
Windows 8 32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Linux
CONNECTORS
1x connector for SATA-based B key NGFF SSD
1x SATA connector to the motherboard
1x connector for PCI-E 4X-based M key NGFF SSD
PACKAGE CONTENTS
i-tec PCI-E 2x M.2 Card
Low profile backplate
SATA cable
Mount kit
Manual
SYSTEM REQUIREMENTS
Pentium compatible PC with a free PCIe 4X slot
OS Windows XP 32/64bit, Windows Vista 32/64bit, Windows 7 32/64bit, Windows 8
32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Linux
DESCRIPTION OF THE DEVICE
PCIe card enabling connection to M.2 SSD. SATA-based B key and PCI-E 4X-based M key
NGFF SSD, both individually and simultaneously.
HARDWARE INSTALLATION
1. Turn off your PC and connected devices.
2. Disconnect power from the PC.
3. Remove the cover of the PC.
4. Remove the cover of the free PCIe slot.
5. Insert the appropriate M.2 SSD into the appropriate slot.
6. Insert the PCIe card into the appropriate slot.
7. In case SATA-based B key NGFF SSD is inserted, also connect SATA cable to the
SATA connector on the PCIe card and the other end to a free SATA connector on the
motherboard.
8. Attach the PCIe card with the screw.
INSTALLATION
Card is installed to the operating system automatically. Connected M.2 SSD are displayed as
additional units. In case a new, unformatted M.2 SSD is inserted, you must first format it in
the Disk Administrator.
FORMATING NEW M.2 SSD
1. Right-click on "My Computer".
2. Select "Manage".
3. Click on "Disk Management”
4. Select the "Unassigned" SSD with stated capacity of the inserted disc (shown by
several orders less).
5. Right-click on the area of the disk and select "New Simple Volume", click "Next".
6. Keep the volume size to maximum and click "Next".
7. Select "Assign a drive letter" and click "Next".
8. Select "Format this volume with the following settings" (leave the default). Click
"Next" and "Finish".
9. The SSD will be formatted. Formatting time depends on the size of the SSD, the
SSD is then visible in the system.
USING M.2 SSD AS A BOOT DISK
M.2 SSD can be used to install the operating system. In this case, follow the instructions of
the installer of the appropriate operating system. Also set the appropriate disk as a boot in
the motherboard BIOS.
