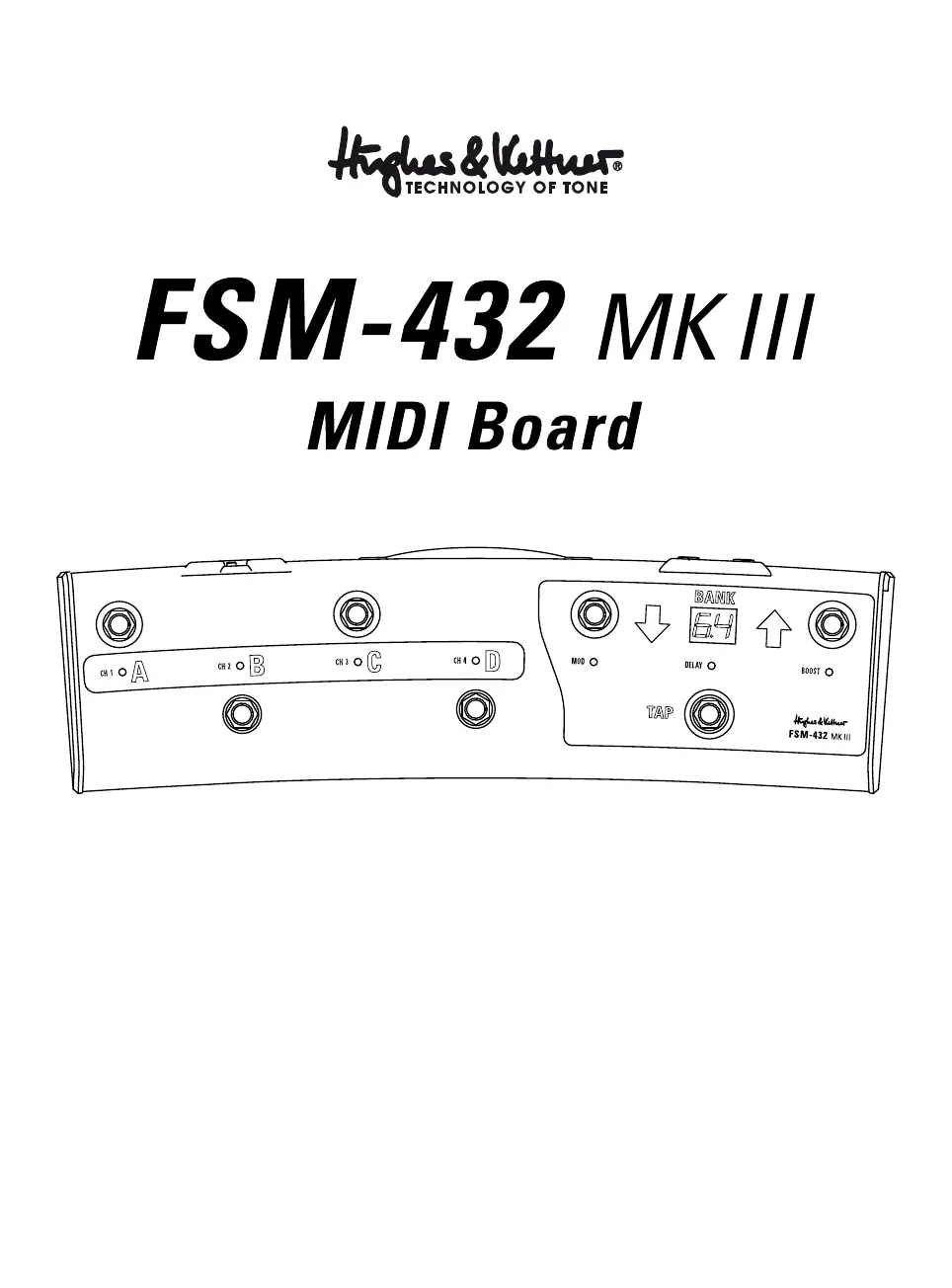

Manual 1.2
⢠English ⢠Deutsch ⢠Français ⢠Italiano ⢠EspaĂąol ⢠ăŤăťăă ⢠ä¸ć
ä¸ć
ä¸ć
ä¸ćä¸ć
2
1 General
The development of the Hughes & Kettner FSM-432 MK III
is based on the FSM-432 MK II which you might know if
you have ever used the Hughes & Kettner SwitchBlade
or CoreBlade. Optimised for the Hughes & Kettner
GrandMeister 36, the MK III version however offers all
functions of the FSM-432 MK II, so it can be used not only
for GrandMeister 36, but also for SwitchBlade, CoreBlade,
and TubeMeister 36
Like its forerunner, the FSM-432 MK III comes with a
7-pin MIDI cable. Used with one of the above-mentioned
Hughes & Kettner amps (SwitchBlade, CoreBlade,
TubeMeister 36, GrandMeister 36), you do not need an
external power source for the FSM-432, because phantom
power is provided through the ampâs 7 pin MIDI In socket.
If you wish to use a 5-pin MIDI cable, you will however
need a wall wart. For such cases, the FSM-432 provides an
innovative mains port that accepts any AC or DC adapter
rated for 9 to 15 volts and providing at least 250 mA.
If the FSM-432 MK III is connected correctly, it will run
through the following starting sequence, once switched
on: The display shows the version number, all LEDs light
up from left to right. After this, the display will either
change to â1â, if the FSM-432 is in Preset Mode or âSbâ, if
the FSM-432 is in Stompbox Mode (read more about the
two modes and their functions in section 3.1). The LED
below the button A lights up continuously in both modes.
The FSM-432 is now ready to operate.
2 Handling Basics of the FSM-432
Those who know the MK II version of the FSM-432 can
skip this section and continue reading in chapter 3. If
you donât know the FSM-432 yet, please read these
instructions carefully to learn more about the handling
basics of all FSM-432 versions.
To date, the FSM-432âs main function was selecting
presets stored in the above-mentioned Hughes & Kettner
amps. All of these amps offer 128 memory slots arranged
in 32 banks of four presets each. The preset buttons A,
B, C, D as well as the Bank Up/Down buttons serve to
select presets.
2.1 The preset buttons A, B, C, D
Presets within a bank activate directly, that is, you can
switch straight from A to B within the same bank. The
LEDs above respectively below the A, B, C, and D buttons
indicate the selected preset.
2.2 Bank Up/Down
The FSM-432âs display always shows the currently
selected bank number. To access a preset in another bank,
select the target bank using the Up and Down buttons.
You can continue playing with the current preset while
youâre navigating. The display of the FSM-432 shows the
banks number; it flashes until you select a preset in the
target bank by pressing A, B, C, or D. The FSM-432 will
not switch over to the new preset until you do this.
Direct Mode
Direct Mode lets you trigger a direct program change via
Bank Up/Down. In this mode, the FSM 432 will not wait
for your input by way of the A, B, C, or D buttons, instead
switching directly, for example, from preset B in bank 16
to preset B in bank 17 (Up) or bank 15 (Down). Hereâs how
to activate Direct Mode:
⢠Press and hold TAP, and then press Preset A.
⢠First release Preset A, and then TAP. The decimal point
in the display lights up.
Follow the same sequence to deactivate Direct Mode.
Note that it is a volatile rather than a permanent mode.
FSM-432 automatically reverts to standard mode when
you switch the amp off.
2.3 Tap
SwitchBlade, CoreBlade and GrandMeister 36 come
with an FX module including delay. When the delay is
activated, the FSM-432âs Tap button offers you a quick,
3
convenient way of adjusting delay time: Simply tap your
foot on the Tap button in time with the beat to match delay
time to the tempo.
Note: In combination with the above-mentioned Hughes
& Kettner amps, the FSM-432 can also be used for
programming presets. Please consult the particular ampâs
manual for detailed information on this.
3 Whatâs New?
The most eye-catching alteration is the new ergonomic
shape of the die-cast case. Accordant to the radius of your
footâs motion, the FSM-432 MK III is slightly bent. The
distance between the now staggered buttons has been
extended to avoid accidental operating errors.
Particularly for the use with the GrandMeister 36, the
FSM-432 MK III offers some new technical features and
connections:
3.1 Mode switch: Preset/Stompbox
The sliding switch above the MIDI connections on the rear
side of the footswitch determines if the FSM-432 MK III is
operating in Preset Mode or Stompbox Mode.
If you move the sliding switch to "Stompbox Mode", the
display shows âSbâ. In this mode, the FSM-432âs buttons
do not serve to select presets, but to switch channels
directly. In addition, modulation FX, delay and boost can
be independently activated and deactivated at the push of
a button. So in this mode, the GrandMeister 36 operates
just like any common amplifier used with external FX
pedals and stomp boxes.
The four buttons A, B, C, D are now firmly assigned to
the GrandMeisterâs four channels Clean, Crunch, Lead
and Ultra. GrandMeister 36 automatically âremembersâ
the Gain, Volume, Bass, Mid, Treble, Resonance und
Presence settings for every channel without having to store
them manually. This procedure relates to the Stompbox
Mode only. It is completely independent from the sound
presets of the Preset Mode and will therefore not erase or
overwrite any of these presets.
Heads Up: You can store sound settings even when youâre
in Stompbox Mode: Just press Store for longer than 3
seconds, and the amp will store the current sound settings
in the lastly selected preset in the Preset Mode before
switching to the Stompbox Mode. If you do not wish to
overwrite the lastly selected preset, you can easily select
a new memory slot. To do so, move the mode switch over
to Preset Mode, press the Store button briefly and then
select a memory slot using the Up/Down buttons and the
preset buttons A, B, C, or D. You can learn more about this
procedure in the GrandMeister 36 manual.
In the Stompbox Mode, the internal effects, the FX loop,
and the noise gate function as global controls. That is, the
amp settings for effects, FX loop, and noise gate are valid
for all channels. Modulation FX, Delay and Boost can be
switched on and off separately using the Mod, Delay and
Boost buttons. Reverb is accessible using an additional
footswitch or expression pedal connected to the FSM-432
(see section 3.3).
3.2 MIDI In
The "MIDI In" of the MFS-432 MK III is necessary for
the use of GrandMeister 36 in combination with the
GrandMeister iPad⢠app and a MIDI interface. Connect
the MIDI In of your FSM-432 with the MIDI output of the
interface and the MIDI Out of the FSM-432 with the ampâs
MIDI input. The ampâs MIDI output should be connected
with the interfaceâs MIDI input. Learn more about this
feature in the manual of the GrandMeister iPad⢠app.
You can also use the MIDI In to connect other MIDI
devices that can send program changes. In this case, the
FSM-432 serves as a true MIDI merger forwarding the
MIDI information from MIDI In to MIDI Out.
3.3 Control 1 and Control 2
Use and mode of operation
You can connect either expression pedals or single
footswitches to these two 6.3 mm (1/4") jack plugs (see
Picture 2), both of which you can assign additional control
functions for the GrandMeister 36 to, so all of the ampâs
programmable functions can be remote controlled.
GrandMeister 36 is assigned to a controller number (that
is: a function). The following chart shows all functions
and the corresponding controller numbers. According
to the following instructions the controller numbers can
be assigned to the two inputs Control 1 and Control 2.
The parameters of the assigned functions can now be
controlled via external expression pedals or footswitches
connected to these inputs. For instance, you can control
the reverb of the ampâs FX module using an expression
