The HP ProLiant DL380e Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced
configuration flexibility, unmatched performance, and leading energy efficient design the DL380e Gen8 offers the perfect solution for the
dynamic compute and storage requirements of today's demanding datacenters.

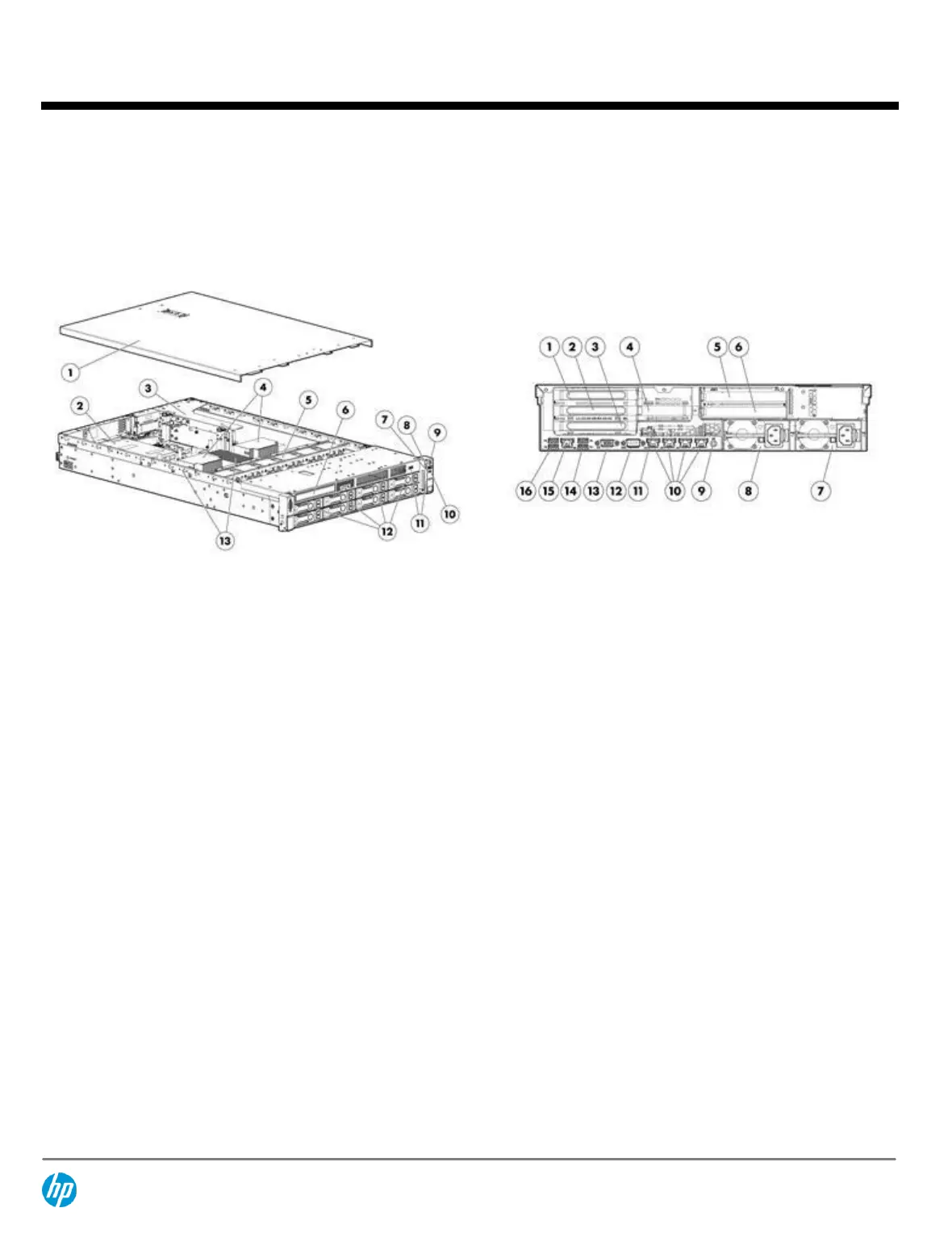

Front View:
Rear View:
1.
Quick removal access panel
1.
Slot1 PCIe3 p1-x8 (4, 1)
2.
Redundant Hot Plug Power Supplies(upgradeable option)
2.
Slot2 PCIe3 x16 (8, 4, 1)
3.
Removable Riser Cage assembly
3.
Only for riser board without SAS support: Slot3 PCIe3 p1-x8 (8, 4, 1)
4.
Up to 2 Intel E5-2400 Series Processors
4.
Slot4 PCIe2 p1-x8 (4, 1)
5.
Removable Hot Plug Fans modules, (optional, full N+1
redundancy)
5.
Slot5 PCIe3 x16 (16, 8, 4, 1) (optional)
6.
Optical Disk Drive Bay
6.
Slot6 PCIe3 x16 (8, 4, 1) (optional)
7.
Health LED
7.
Power Supply bay1 (Primary Power Supply)
8.
Network activity LED
8.
Power Supply bay 2 (Shown populated: optional)
9.
Power On /Standby button and system power LED button
9.
Unit ID LED/Button
10.
Unit ID LED
10.
HP Ethernet 1Gb 4-port 366i Adapter (4 x 1GbE)
11.
USB connectors
11.
Service tool
12.
Hard Drive bays
12.
Serial connector
13.
12 DIMM slots: DDR3 Registered(RDIMM), Load Reduced
(LRDIMM) or Unbuffered(UDIMM) memory
13.
Video connector
14.
USB connectors (2)
15.
iLO connector
16.
USB connectors (2)
QuickSpecs
HP ProLiant DL380e Generation 8 (Gen8)
Overview
DA - 14328 Worldwide — Version 18 — April 29, 2013
Page 1
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
depending on Model
Entry Processors
NOTE:
All support up to 1066MHz DDR3 memory speeds.
Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT)
Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT)
Base Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2-
3/3/4/4/5/5)Turbo
Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2-
3/3/4/4/5/5)Turbo
Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1333, HT, Turbo2-
3/3/4/4/5/5)Turbo
Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2-
3/3/4/4/5/5)Turbo
Performance Processors
NOTE:
All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/8GT-s QPI/95W,DDR3-1600, HT, Turbo2-
5/5/6/6/7/7/8/8)Turbo+
Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600, HT, Turbo2-
5/5/6/6/7/7/8/8)Turbo+
Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/8GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/3/3/4/4/5/5)Turbo+
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE:
Turbo2 indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 8, 7, 6, 5, 4, 3, 2 and 1 cores active.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on
the quantity and type of DIMMs installed.
NOTE:
Up to 2 processors supported. Mixing different processor models is not supported.
NOTE:
For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the
Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 =
Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.
Cache Memory
One of the following
depending on Model
20MB (1x20MB) Level 3
NOTE:
For Eight-core processors.
15MB (1x15MB) Level 3
NOTE:
For Six-core processors.
10MB (1x10MB) Level 3
NOTE:
For Quad-core processors.
NOTE:
All processor models above list the L3 Cache associated with that particular processor.
QuickSpecs
HP ProLiant DL380e Generation 8 (Gen8)
Standard Features
DA - 14328 Worldwide — Version 18 — April 29, 2013
Page 2
Chipset
Intel® C600 Series Chipset
Intel® E5-2400 Processor Family
NOTE:
For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
.
Upgradeability
Upgradeable to 2 processors (16 Cores)
Up to 12 DIMM slots available
NOTE:
To take advantage of DIMMs 7-12, a second processor must be installed
10 Gigabit networking options via standup card
Optional 2 slot riser (x16, x8)
NOTE:
To take advantage of the additional 2 PCI slot upgrade, a second processor must be installed.
Redundant Power Supply
Redundant Fan
Optical Drive (8SFF/8LFF only)
On System Management
Processor
HP iLO (Firmware: HP iLO 4)
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
Memory Protection
Advanced ECC
Online Spare
Lock-step mode
Memory
One of the following
depending on Model
Type
HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
12 (6 DIMM slots per processor, 3 channels per processor, 2 DIMMs per
channel)
Standard (Entry Models -
SATA)
4GB (1 x 4GB) Registered DIMMs PC3-10600R (1333MHz)
Standard (Entry Models -
SAS)
4GB (1 x 4GB) Registered DIMMs PC3-10600R (1333MHz)
Standard (Base Models -
LFF)
8GB (2 x 4GB) Registered DIMMs PC3-10600R (1333MHz)
Standard (Base Models -
SFF)
8GB (2 x 4GB) Registered DIMMs PC3-10600R (1333MHz)
Standard (High
Performance Models)
24GB (6 x 4GB) Registered DIMMs PC3-12800R (1333MHz)
Standard (Storage Models
- LFF)
12GB (3 x 4GB) Registered DIMMs PC3-12800R (1333MHz)
Standard (Storage Models
- SFF)
12GB (3 x 4GB) Registered DIMMs PC3-12800R (1333MHz)
QuickSpecs
HP ProLiant DL380e Generation 8 (Gen8)
Standard Features
DA - 14328 Worldwide — Version 18 — April 29, 2013
Page 3
