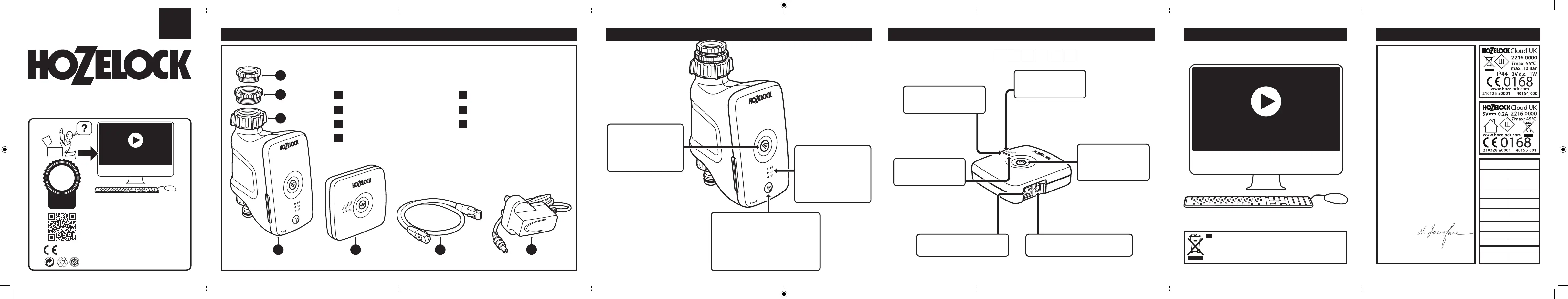

2216
Cloud Controller
GB WEEE
Do not dispose of electrical appliances as unsorted municipal waste, use separat e collection
facilities. Contact you local government for information regarding the co llection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into t he food chain, damaging your health and well-being. In
the EU, when replacing old appliances with new ones, the retailer is legally obligated to take back
your old appliance for disposals at least free of charge.
Contents Cloud Controller Declaration of conformity to CESee the Quick Start VideoHozelock Hub
A
B
C
D E F G
A 21mm G½ (½”)
B 26.5mm G¾ (¾”)
C 33.3mm G1 (1”)
D Cloud Controller
E Hozelock Hub
F Ethernet cable
G Power supply
Technical Data
Cloud Controller (outdoor s)
Operating
Pressure 0.1 – 10 Bar
Operating
Temperature 0 - 55°C
Max. Water
Temperature 30°C
Battery Type 2x A A 1.5v Lithium/
Alkaline Batteries
Purpose of
Control
Elect rically
operated water
valve
Mounting
Method Surface mounting
Action Type Type 1
Pollution Degree 4
Hozelock Hub (indoors)
Operating
Temperature 2 - 45°C
www.hozelock.com/cloudsupport
Hozelock Ltd.,
Midpoint Park, Birmingham, B76 1AB. England
www.hozelock.com
33915-002
www.hozelock.com/cloudsupport
See the
Quick Start Video
2
Year
guarantee
Pair button
Pair button is for;
• Pairing
Wireless LED
Green or red
Power LED
Green
Network LED
Green
Ethernet socket 5v Power socket
Water Now button
Water Now button is for;
• Water for 10, 30, 60 minutes
• Stop range test
• Battery level check
Pair button
Pair button is for;
• Pairing
• Range test LEDs
LEDs are for;
• Range test
• Water Now duration
• Battery level indicator
Hub I.D.
0168
Hozelock Ltd declare that the following Electrically
Operated Water Valves:
• Cloud UK (2216 0000)
• Cloud EU (2216 1240)
Comply with:
• the Essential Health and Safety Requirements
of the Machinery Directive 2006/42/EC and its
amending direc tives.
• EMC Directive – 2014/30/EU
• RoHS Directive 2011/65/EU
and declare that the above models are in compliance with the
essential re quirements and other reler vant provisions of
• R&TTE Directive 1999/5/EC
and conforms to the following harmonised s tandards:
• HEALTH & SAFETY (Art. 3(1)(a)):
EN 60950-1:2006/A2:2013; EN 62479:2010;
EN 60730-2-8:2002+A1:2003, EN 60730-2-7:2010,
EN 60730-1:2011
• EMC (Art . 3(1)(b)): EN 301 489-1 V1.9.2:2011;
EN 301 489-3 V1.6.1 :2013; 60730-2-
8:2002+A1:2003,
EN 60730-2-7:2010, EN 60730-1:2011, EN 55022
:2010, EN 55024 :2010, EN 61000-3-2 :2014,
EN 61000-3-3 :2013
• SPECTRUM (Art. 3(2)): EN 300 220-2 V2.4.1 :2012
Supplementary information:
Notified body involved:
TUV SUD BABT, Oct agon House, Segen sworth Road,
Fareham, Hampshire, PO15 5RL , UK
Identification mark: 0168 (Notified Body number)
Date of Issue: 09/05/2016
Signed by: ...............................................................................................
Nick Iaciofano
Technical Director,
Hozelock Ltd. Midpoint Park, Sutton Coldfield,
Birmingham. B76 1AB. England.
33915-002 CloudControllerInst-UK.indd 1 11/04/2016 12:55
Position your Hub within 0.5m of your router. Plug the
Power Supply into your mains and connect to your Hub.
The Hub starts up, LEDs flash until only the Power LED remains permanently on. If
this doesn’t happen, check the Power Supply is plugged in and switched on at the
mains.
Connect the Hub to your home router using the Ethernet
cable supplied.
The Network LED should now be lit. If not check that both ends of the Ethernet
cable are plugged in and your router has internet access.
Do not install batteries until you are ready to install the
Cloud Controller. Do not install the Cloud Controller on your
garden tap yet. Remove the front panel from the valve unit.
Install 2x AA 1.5v Lithium/Alkaline batteries into the back of
the front panel. Replace the controller front panel.
When batteries are installed the LEDs will flash until all 3 LEDs go out. The motor
will operate the internal valve. If you have installed flat batteries the ‘10’ LED will
flash red. You will not be able to operate the water timer until the batteries are
replaced with new ones. Replace batteries each season.
Download the App onto your smart phone and follow the
setup instructions in the app to pair the system.
For Apple iPhones the app is available from the Apple iTunes store. For Android
phones the app is available from the Google Play store.
When you have completed the setup in the app install the
Controller on your tap. Check which adaptors are required
to fit the valve unit onto your outdoor tap.
A ½ inch BSP and a ¾ inch BSP thread adaptor are supplied.
With the correct adapters in place, hold the Cloud Controller
up to the tap. Tighten firmly by hand to avoid leaks. Attach
your hose pipe to the hose connector and turn on your tap.
Do not use a spanner or other tool to tighten it up because this could cause damage
to the component threads.
It is important that your water timer is in radio reception
range of the Hub. You can test the signal strength by doing
a Range Test.
Up to 50m depending on obstacles between the Hozelock Hub and the Cloud
Controller. See the troubleshooting section on the Hozelock website for details of
how to do a range test. www.hozelock.com/cloudsupport
You can turn on the water controller at any time by pressing the Water Now
button.
Water now function
Press Once 10 minutes watering
Press Twice 30 minutes watering
Press Three times 60 minutes watering
Press Four times Cancels Water Now
The LED light will come on to indicate you have turned the controller on and will
start to flash when the valve has opened. Depending on the mode selected the
lights will count down as the time lapses; So if you press the button 3 times to water
for 60 minutes, after the first 30 minutes the top light will stop flashing and the
bottom two lights will continue to flash.
If you decide to stop manual watering at any time simply press on the Water Now
button until all the green lights stop flashing. You will hear the motor operate the
internal valve turning the water off.
Note: To protect battery life the water controller can only be turned on and off a
maximum of 3 times in one minute.
How do I cancel an automatic watering operation
The button can also be used as a manual override to cancel any current
automatic watering operation that has started. The schedule will then resume.
Battery Level Check (Press And Hold Down The Water Now Button)
3x Green Lights Battery level is Excellent
2x Green Lights Battery level is Good
1x Green Light Battery level is ok but consider replacing them soon
1x Red Light Battery level is low - replace the batteries now
Failure prevention mode
A built in safety feature detects when the battery levels have dropped to a level
that could fail whilst the valve is open and result in wasting water. The safety mode
prevents the controller from turning on until the batteries have been replaced.
The LED indicator light will flash red when the failure prevention mode has been
activated. The Water Now function will also not operate until the batteries have
been replaced.
This product is not designed to be used in sub-zero (frost) temperatures.
During winter months drain any remaining water out of your timer and bring
it indoors until the next watering season.
G½ (½”BSP)
G¾ (¾”BSP)
G1 (1”BSP)
1
GB Inside your home Manual operation (Water Now)Outside your home
2 3 4 75 6 Inside Outside
Router not supplied
33915-002 CloudControllerInst-UK.indd 2 11/04/2016 12:55
