Seite 1/16

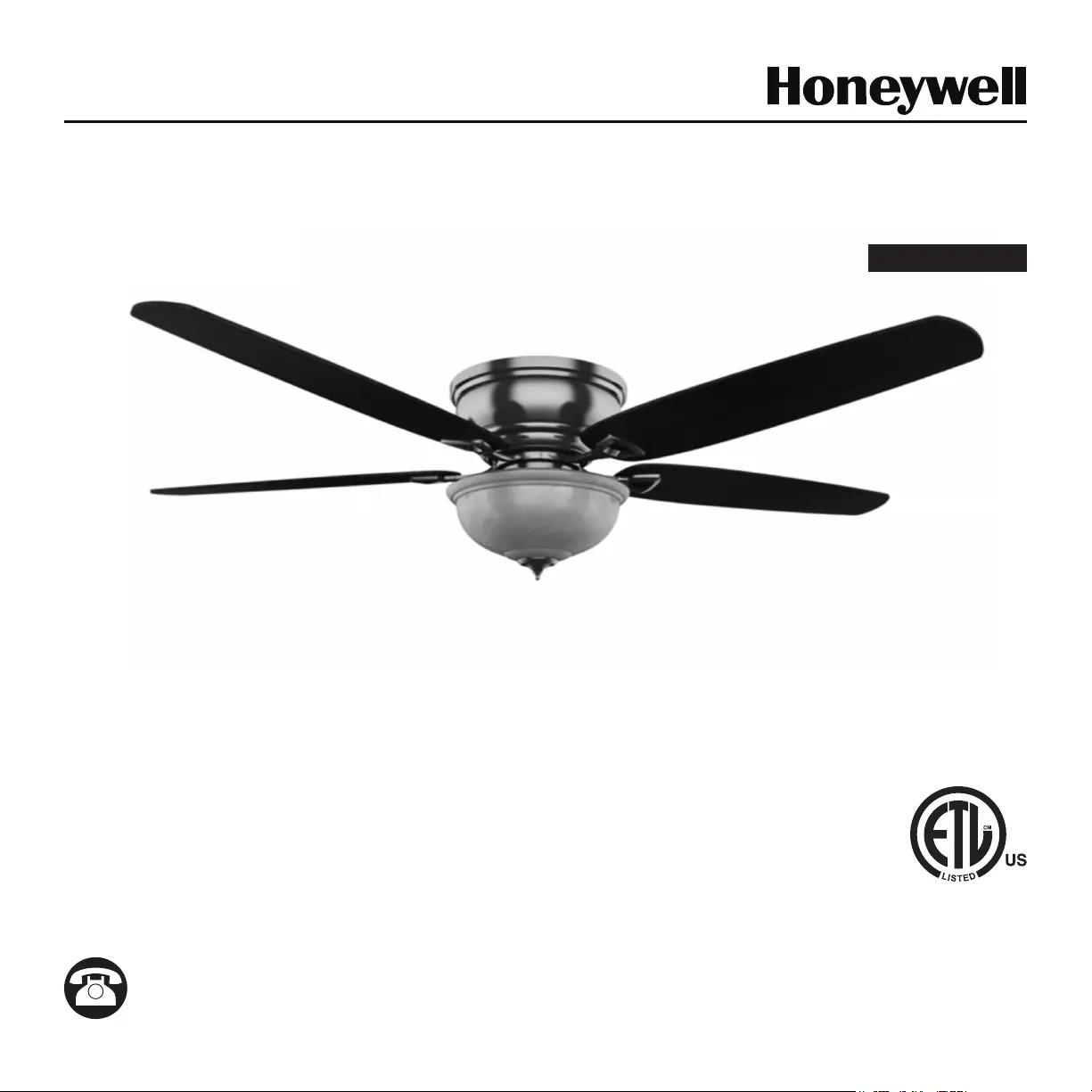

EASTOVER 52” CEILING FAN
MODEL #10214
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 17
2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 60 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut o󰀨 the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 16.28 lbs. (7,38 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Mounting Bracket Installation . . . . . . . . . . . . . . . . . . .5
Hanging Your Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Wiring.....................................7
Motor Housing Installation . . . . . . . . . . . . . . . . . . . . .8
Blade Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Light Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . .10
Final Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operating Installation . . . . . . . . . . . . . . . . . . . . . . . .13
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . .16
Unpack your fan and check the contents. You should
have the following items:
1. Upper Mounting Bracket
2. Motor with Lower Mounting Bracket
3. Blade Arm (5)
4. Switch Housing
5. Light Kit
6. Motor Housing
7. Blade (5)
8. E26-base LED Bulbs (2)
9.Glass Bowl
10. Finial Cap
11. Finial
12. Loose parts bags containing (not shown):
Mounting hardware, electrical hardware, pull
chains, wire connectors, etc.
13. Owner’s Manual (not shown)
1
2
6
3
7
4
10
8
5
11 9
3
PACKAGE CONTENTS
