OUTDOOR CABINETS
Installation Instructions
AEAD / AESDR / AEDR

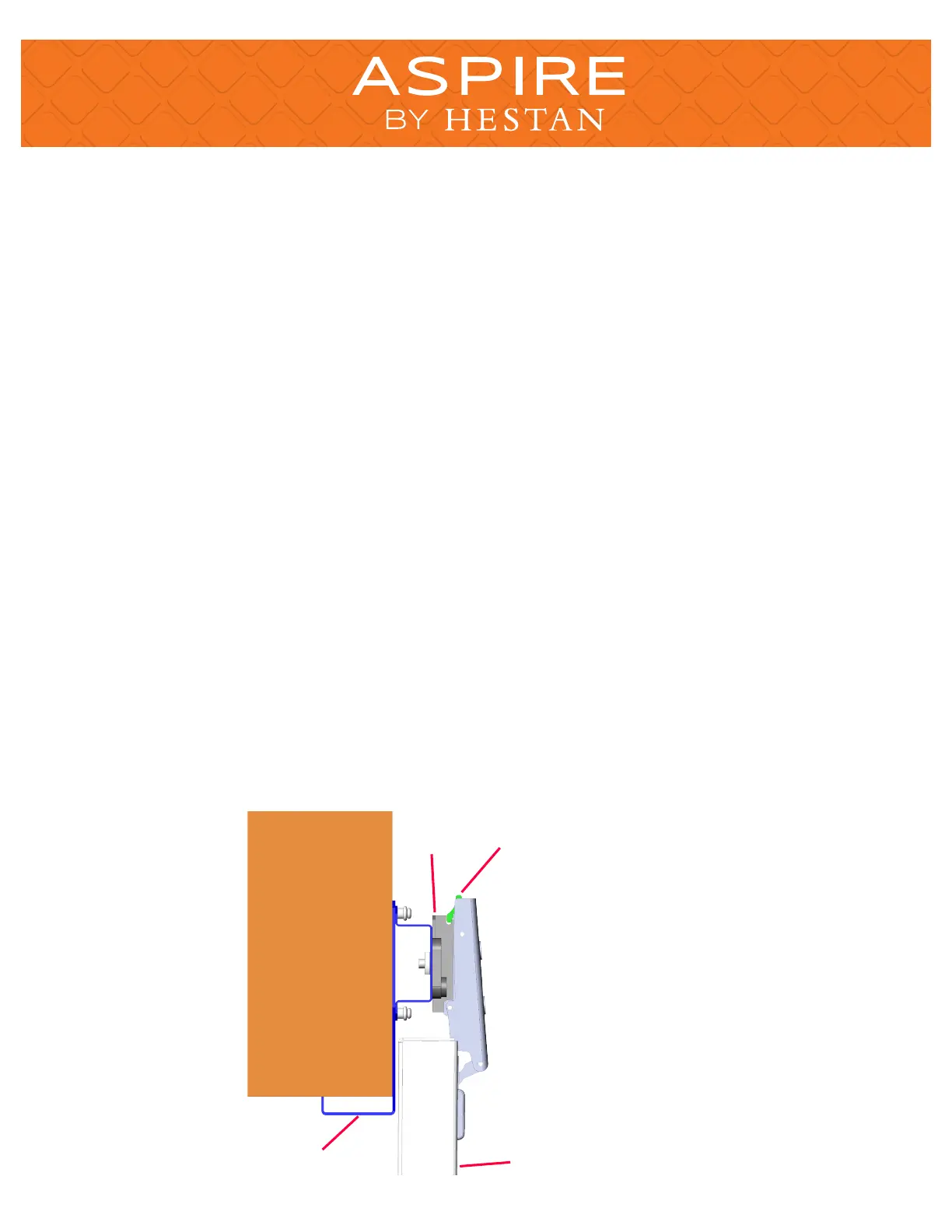

CABINET DOOR INSTALLATION (AEAD, AESDR, AEDR)
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
ACCESS
DOOR
FRAME DOOR
MOUNTING
BASE
STRUCTURE
(DOOR JAMB)
PINCH HERE
TO UN-CLIP
HINGE
1. Your new Aspire cabinets come with doors pre-installed in their frames. It will be necessary to detach
them before installing the frame in your island structure. As shown below, pinch the back of the hinge to
un-clip it from the mounting base. The door may now be removed.
Some parts have sharp edges. Care must be taken when handling the various components to avoid personal
injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and
initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT discard
any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of your
cabinets. You may leave any exterior protective film on until after installation is complete.
©2017 Hestan Commercial Corporation
2
CABINET DOOR INSTALLATION
(continued)
2. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions
for the Aspire Outdoor cabinet product you are installing. The cutouts should be square at all corners
for proper fitment of the cabinet. The installer will have to build up any internal structural elements or
supports in the island in order to secure the cabinet in place. Stainless steel hardware (not included) is
highly recommended.
3. Slide the frame into the opening and check for proper alignment. Secure the frame to the structural
members of your island using the various available mounting holes in the frame. Use at least 2 screws per
side.
4. To re-install the door, follow the instructions shown below.
ACCESS
DOOR
FRAME
ATTACH AT THIS
NOTCH FIRST
DOOR
STRUCTURE
(DOOR JAMB)
MOUNTING
BASE
PUSH HINGE
UNTIL REAR
CLIP ENGAGES
©2017 Hestan Commercial Corporation
3
CABINET DOOR INSTALLATION
(continued)
5. Aspire cabinet doors feature 3-way adjustable hinges. It is recommended to do the height
adjustment first. Loosen the top & bottom screw on each mounting base, then use the height
adjustment screw shown below to fine-tune the vertical height of the door in the frame. Tighten
the top and bottom screws when done.
HEIGHT
ADJUSTMENT
6. The side and depth adjustment of the doors are shown below.
SIDE-TO-SIDE
ADJUSTMENT
DEPTH
ADJUSTMENT
