Owner’s Manual

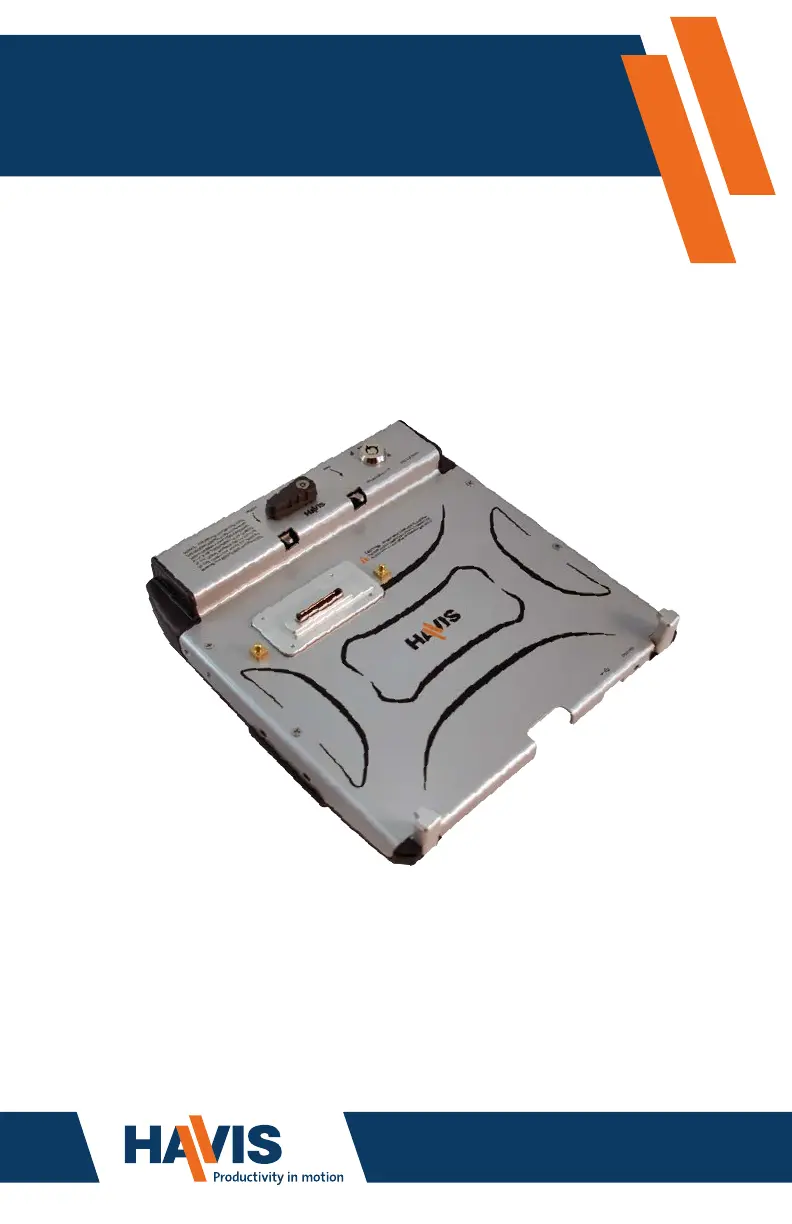

Havis Rugged Mobile Docking Station
For Panasonic CF-19 Toughbook
www.havis.com
1-800-524-9900
DS-PAN-211
DS-PAN-211-2
DS-PAN-212
DS-PAN-212-2
DS-PAN-213
DS-PAN-214
DS-PAN-214-2
DS-PAN-221
DS-PAN-221-2
DS-PAN-222
DS-PAN-222-2
DS-PAN-210 Series/220 Series
DS-PAN-211
DS-PAN-211-2
DS-PAN-212
DS-PAN-212-2
DS-PAN-213 DS-PAN-214
DS-PAN-214-2
DS-PAN-221
DS-PAN-221-2
DS-PAN-222
DS-PAN-222-2
Before Beginning (Original Instructions)
2
Havis is pleased to provide this Owner’s Manual to aid in the proper installation
and use of the DS-PAN-210 Series/220 Series Docking Station for the Panasonic
CF-19 laptop computer.
For questions regarding the set-up of your DS-PAN-210 Series/220 Series
Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com
for additional product support and information.
This Owner’s Manual applies to the following Part Numbers:
‱ NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
‱ DO NOT USE COMPUTER WHILE DRIVING.
‱ READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
‱ DO NOT MATE COMPUTER TO DOCKING STATION UNLESS COMPUTER’S DOCKING CONNECTOR ACCESS DOOR IS
FULLY OPEN OR DAMAGE MAY RESULT.
‱ DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING
WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT
DAMAGE.
‱ FOR THE DS-PAN-211, DS-PAN-211-2, DS-PAN-212, DS-PAN-212-2, DS-PAN-214, DS-PAN-214-2,
DS-PAN-221, DS-PAN-221-2, DS-PAN-222 & DS-PAN-222-2 DOCKING STATIONS:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certied, automotive
grade, Panasonic approved 90W power source rated for a continuous, regulated 15VDC output
. Failure to comply with this requirement will cause product (Havis Part Number LPS-101 or equivalent)
damage that is NOT repairable and is NOT covered under warranty.
‱ FOR THE DS-PAN-213 DOCKING STATION:
DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Panasonic CF-19 laptop requires a
certied, Panasonic approved power source rated for a continuous, regulated 15.6VDC output.
Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT
covered under warranty.
Installation of Screen StiïŹ€ener (DS
COMPUTER MARK LEVEL DOCKING STATION IDENTIFICATION
MARK 4 & HIGHER
DS-PAN-210 SERIES
DS-PAN-211, DS-PAN-211-2
DS-PAN-212, DS-PAN-212-2
DS-PAN-214, DS-PAN-214-2
‘NOTICE’ in upper left corner
ALL MARK LEVELS
DS-PAN-220 SERIES
DS-PAN-221, DS-PAN-221-2
DS-PAN-222, DS-PAN-222-2 LABEL in upper left corner
‱ FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-PAN-212, DS-PAN-212-2,
DS-PAN-222, DS-PAN-222-2), REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.
‱ WHEN LAPTOP IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0°C to 50°C (32°F to 120°F).
PLEASE REFER TO PANASONIC TOUGHPAD CF-19 OWNER’S MANUAL FOR MORE INFORMATION.
‱ FOR PROPER SYSTEM FUNCTION, SPECIFIC DOCKING STATION MODELS MUST BE USED WITH SPECIFIC CF-19
MARK LEVEL COMPUTER MODELS. (PLEASE VISIT WWW.HAVIS.COM/CF19 FOR CURRENT COMPATIBILITY INFORMATION)
www.havis.com ‱ 1-800-524-9900
Table of Contents
3
Specications
Parts Included
Port Replication Capability
Installation
Cable Management
Operation - Docking
Operation - Undocking
3
4
4
5
6
8
9
Specications
Power Supply Input 15.6V DC-In
Dimensions* 10.9” ( 27.7 cm) W x 11.1” ( 28.1 cm ) D x 3.25” ( 8.2 cm ) H
Weight* 3.8 lbs ( 1.7 kg )
Operating Environment -20° C to 60° C ( -4° F to 140°F )
Storage Environment -40° C to 70° C ( -40° F to 158° F )
* DS-PAN-211
‱ Do not place metal objects or containers of liquid on top of the Docking Station
‱ If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
‱ Use only the specied Power Supply with this Docking Station (Recommended Part # LPS-101)
‱ Do not store the Docking Station where water, moisture, steam, dust, etc. are present
‱ Do not connect cables into ports other than what they are specied for
‱ Do not leave the Docking Station in a high temperature environment (greater than 60°C, 140°F)
for a long period of time
Precautions
DECLARATION OF CONFORMITY FOR CE MARKING
Havis, Inc. declares that their DS-PAN-210 SERIES/DS-PAN-220 DOCKING STATIONS:
Are classied within the following EU Directives:
EU Electromagnetic Compatibility Directive 2004/108/EC
And further conform with the following EU Harmonized Standards:
EN 55022 (2006) + A1 2007, EN 55024 (1998) + A2: 2003
EN 50498: 2010
Clause 7.1 Broadband Radiated Disturbances - Quasi-Peak
Clause 7.2 Narrowband Radiated Disturbances - Average
Clause 7.3 Conducted Radiated Disturbances - Severity Level 2
Dated: August 19, 2010
Position of signatory: Chief Information OïŹƒcer / Chief Financial OïŹƒcer
Name of signatory: Steve Ferraro
Signed:
