HA<O>

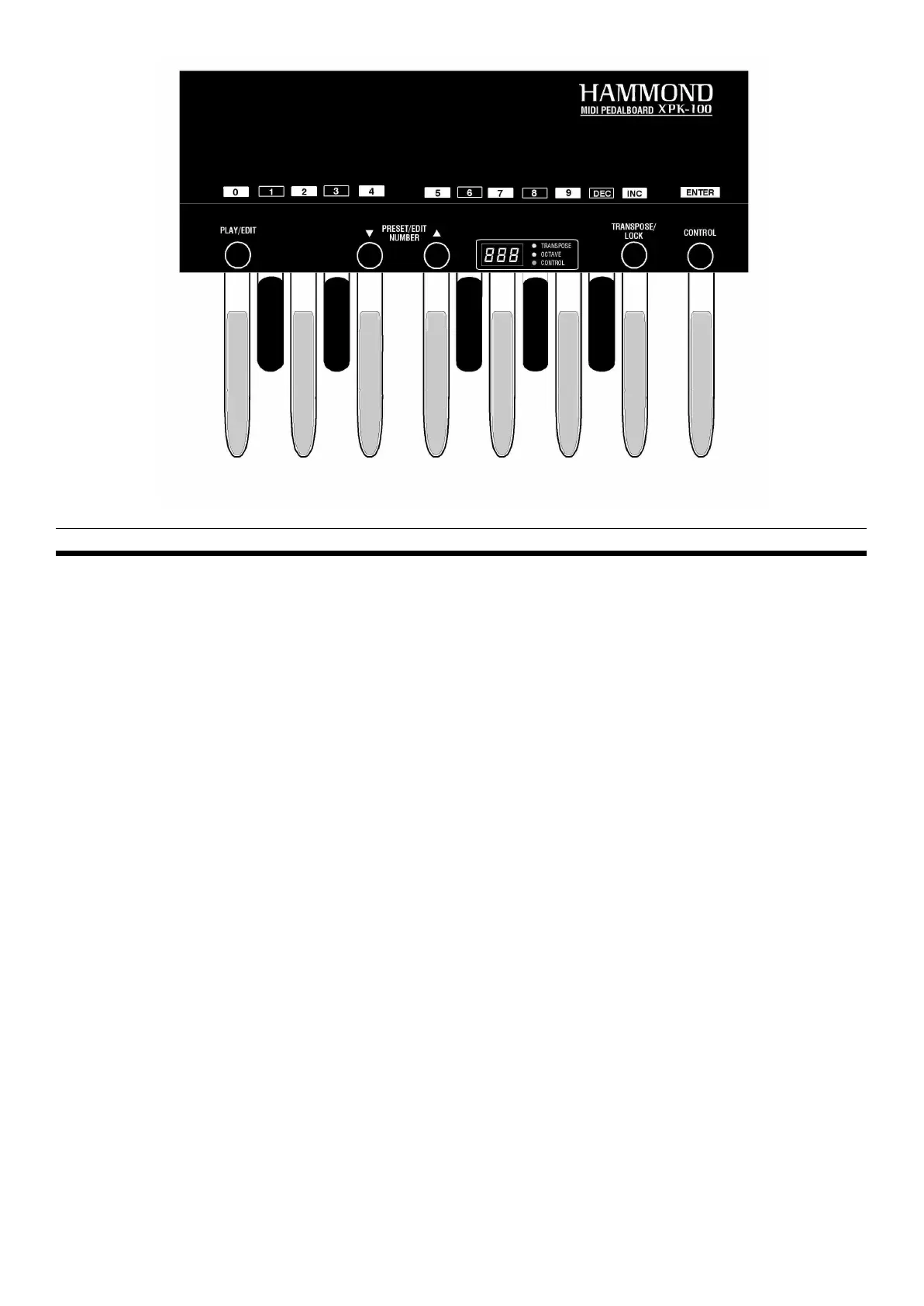

XPK-10 0
MIDI PEDALBOARD
Quick Features Guide
HAMMOND SUZUKI, LTD.
Hamamatsu, Japan
Hammond XPK-100 Quick Features Guide
IMPORTANT - READ THIS FIRST
Your Hammond XPK-100 MIDI Pedalboard is designed to interface with a great variety of keyboards, synthesizers and sound
modules to further enhance your playing and real-time performance. This Guide is designed to explain the operating features
of your Hammond XPK-100 as simply and graphically as possible.
Because we want to make this manual, as well as the XPK-100 itself, as easy to understand as possible, each feature is treated
as an explanation unto itself, and does not require you to already have prior working knowledge of some other feature. The
explanations are presented such that, if you follow the steps outlined, the message you see in the Information Center Display
screen will be identical to that shown in the manual at that stage of the explanation.
Do not be daunted by the number of steps required to perform each operation. Each step is simple. Simply bear these things
in mind:
1. Read each step carefully.
2. Don't skip any of the steps.
3. Don't perform the steps out of sequence.
With these guidelines, you are well on your way to mastering all of the many features of your Hammond XPK-100.
- Table of Contents -
INTRODUCTION 1
Basic Hook-Up ............................................................................... 1
A.C. Power ........................................................................... 1
MIDI Connections ..................................................................... 1
A Word About MIDI ............................................................ 1
Connecting the XPK-100 to a Hammond Drawbar Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connecting the XPK-100 to another keyboard instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
MIDI Merge - Connecting the XPK-100 to the Hammond XM-1 Drawbar Module . . . . . . . . . . . 3
Connecting the XPK-100 to a Hammond Drawbar Keyboard and another keyboard instrument
..................................................................... 3
Using a Sequencer with the XPK-100 and MIDI Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using a Sequencer with the XPK-100 and the Hammond XM-1 . . . . . . . . . . . . . . . . . . . . . . . . . 4
Basic Controls ............................................................................... 5
Switches ............................................................................. 5
PLAY/EDIT Switch .............................................................. 5
PRESET/EDIT NUMBER Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TRANSPOSE/LOCK Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONTROL Switch .............................................................. 5
Information Center Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PLAY Mode ................................................................... 6
EDIT Mode ................................................................... 7
ALL RESET ................................................................................... 7
ADVANCED FEATURES 8
Advanced Feature - E00 PK MIDI Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Advanced Feature - E01 Transpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Advanced Feature - E02 Octave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Advanced Feature - E03 Poly/Mono Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Advanced Feature - E04 PK Hold ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Advanced Feature - E05 PK Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Advanced Feature - E06 Fixed Vel. Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Advanced Feature - E07 Control Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Advanced Feature - E08 CONTROL Sw. Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Advanced Feature - E09 CONTROL Sw. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Advanced Feature - E10 Program Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Advanced Feature - E11 Bank No. MSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Advanced Feature - E12 Bank No. LSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Advanced Feature - LOCK Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PRESETS 33
Selecting a Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Saving to a Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
SPECIFICATIONS 35
Appendix A - EDIT Parameter List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Appendix B - Default Preset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Appendix C - MIDI Implementation Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
1
Introduction
Hammond XPK-100 Quick Features Guide
INTRODUCTION
Basic Hook-Up
All connections are found on the Accessory Panel on the back of the XPK-100.
Ë A.C. Power
To connect the XPK-100 to A.C. power:
1. Locate the A.C. Power Supply that came with your XPK-100.
2. Plug the female end of the Power Cord into the receptacle on the XPK-100 marked,
“DC IN.”
3. Plug the other end of the Power Supply into an A.C. power outlet.
Since the XPK-100 has no Power Switch, A.C. power will be applied as soon as the unit is
connected to an outlet.
NOTE: The XPK-100 is also outfitted with a clip next to the AC receptacle. This is used to secure the AC cord so that
it will not accidentally come unplugged.
Ë MIDI Connections
In order to use the XPK-100, the unit must be connected via MIDI to a keyboard or other MIDI-
compatible device.
A Word About MIDI
The letters MIDI stand for Musical Instrument Digital Interface. MIDI is an international standard for
allowing electronic musical instruments equipped with MIDI capability to exchange performance
information. For example, a synthesizer can be used to communicate with a drum machine, an
electronic piano can interf ace with a computer, and so forth. Additionally, since MIDI is an international
standard recognized and implemented by all musical instrument manufacturers worldwide, instruments
made by different manufacturers can communicate with each other via MIDI.
