Seite 1/4
1 6E 6354E
C
A B
1 3 5
2 4 6 8 10 12 14 16
D
11 13 157 9
L
N

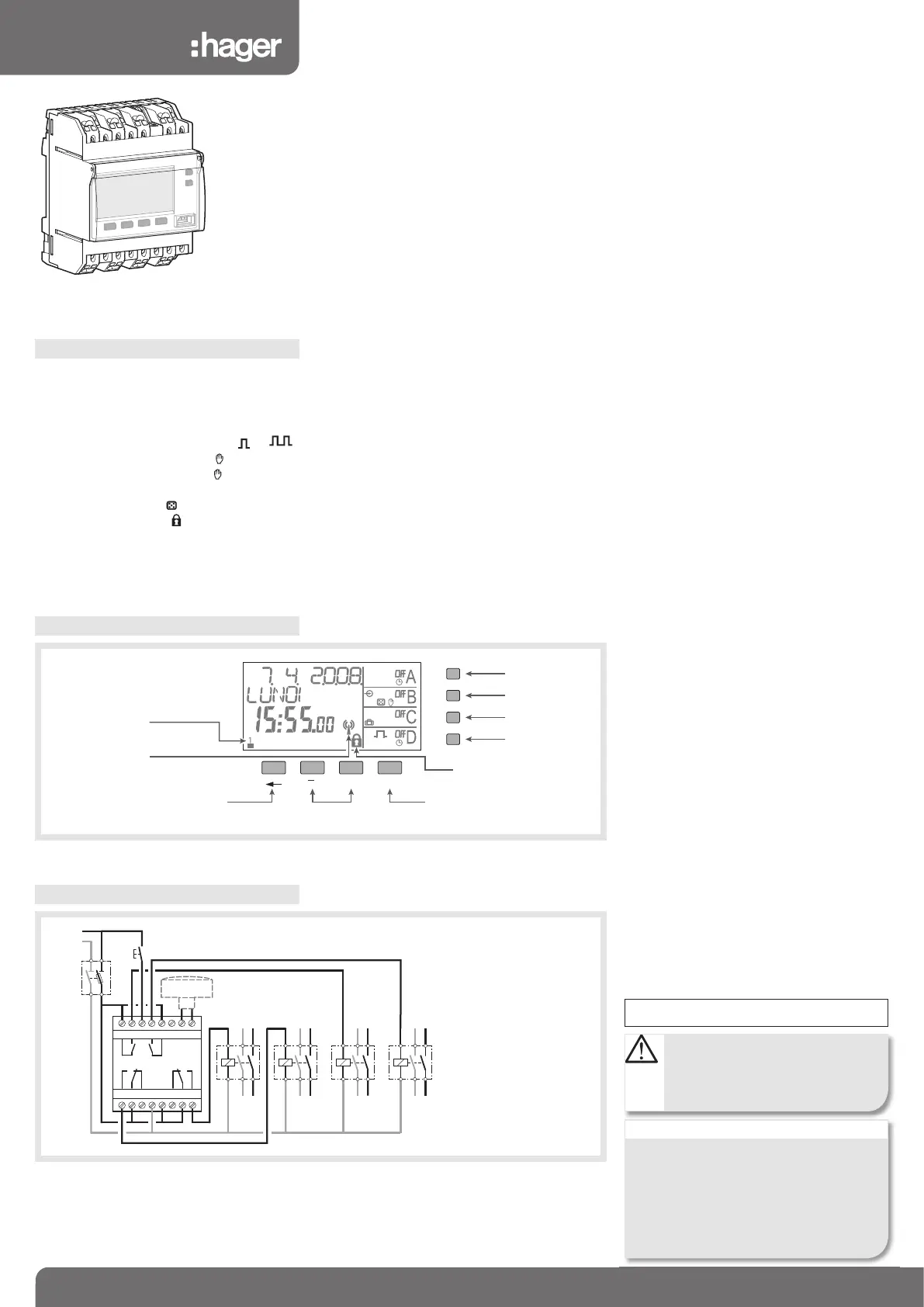

EG403E
➀
➀Input for external override
➁Option
Connection diagram
6E 6354E
§4 channel programmer
weekly cycle with
programming key
User instructions
Navigation &
value setting
Validation
Enter in PROGRAMME mode &
return to previous step
Selection of days of the week
1 = Monday, 2 = Tuesday
... 7 = Sunday.
Canal B command
Canal C command
Canal D command
Canal A command
DCF Antenna (option)
Keyboard locked by PIN code
menu +ok
EG403E
Product Presentation
Presentation
⦁Product delivered with current time and date set.
⦁Automatic change of summer/winter time.
⦁Programming key
-For permanent overrides
-For program copy or save
⦁300 programme steps ; ON, OFF, pulses or .
⦁Permanent overrides On or Off ( permanent light on).
⦁Temporary overrides On or Off ( flashing).
⦁Overrides (temporary, permanent or time delayed) remote activation possible.
⦁Simulation of presence .
⦁Keyboard lock function by PIN number.
⦁Counter of operating time on every output.
⦁Programmable with power off.
⦁Display with backlight.
Technical specifications
Electrical characteristics
• Supply voltage 230 V 10/-15%+
• Frequency 50/60 Hz
• Power consumption < 2 VA
• Output 2 changeover 2 NO contacts+
• Maximum load
AC1 µ 10A 250 V~
Incandescent lighting: 1500 W
Halogen lighting
Compensated fluorescent tubes //
(max. 45 µF) 400 W
Non compensated fluorescent tubes,
compensated in series 1000 W
Compact fluorescent lamps 400 W
• Minimum load
AC1 100 mA 250 V~
• Galvanic insulation between power supply and
output < 4 kV
•Rated impulse voltage 4 kV
Functional characteristics
• Programming capacity 300 steps
• Minimum time between 2 steps 1 minute
• Running accuracy ± 0,2 sec/ 24h
• Operating reserve lithium battery, total of 5
years autonomy (unlimited programme backup)
• The product is set into standby state (display
switched-off) after 1 minute with power off.
It switches back into automatic mode as soon
as power is back on or when pressing any key.
• Protection degree IP 20 / IK 04
•Action type 1B
•Degree of pollution 2
•Software class A
Environment
• Operating temperature -10 °C to 50 °C+
• Storage temperature -20 °C to 70 °C+
•Temperature for the ball pressure Test
75° to 125°C
Connection by quick-connect terminals
• Flexible 0,75 to 2,5 mm2
• Rigid 0,75 to 2,5 mm2
Standards
60730-1
60730-2-7
➁
EG001
§Warranty
NOT APPLICABLE FOR AUSTRALIA
A warranty period of 24 months is offered on hager
products, from date of manufacture, relating to any material
of manufacturing defect. If any product is found to be
defective it must be returned via the installer and supplier
(wholesaler). The warranty is withdrawn if:
- after inspection by hager quality control dept the device is
found to have been installed in a manner which is contrary
to IEE wiring regulations and accepted practice within the
industry at the time of installation.
- The procedure for the return of goods has not been
followed. Explanation of defect must be included when
returning goods.
This device must be installed only by
a qualified electrician according to the
installation standards in force in the
country.
Usable in all Europe
å
and in Switzerland
6E 6354E2
Creating the weekly programme:
CYCLE
CHANNEL D
FUNCTIONS
SETTINGS
CHANNEL C
CHANNEL B
HOLIDAYS
IMPULSE
OFF
NO
MONDAY
BACK
AUTO
DELETE
MODIFY
PROGRAM
COPY
PROGRAM
DELETE
PROGRAM
MODIFY
PROGRAM
READ
PROGRAM
CREATE
CHANNEL A
WEEKLY
PROGRAM
ON
YES
MONDAY
SUNDAY
SET
MINUTE
00:00
ON
07:00
CONTINUE
PROGRAM
SET
HOUR
00:00
menu
PROGRAM CREATE
PROGRAM
FUNCTIONS
SETTINGS
PROGRAM
menu
*
*The cycle
programme is only
possible if one or
several cycles have
been defined in the
FUNCTION/CYCLE
menu.
At any time, pressing the button menu allows you
to return to the previous choice level.
Menu
Press the button menu to access the programming/
setting mode.
All of the programming and adjustments are
based on the following principle:
- the 1st line and/or 2nd line of the display
indicate the requested setting,
- the buttons / allow navigation through the+-
menus and settings,
- the button allows validation.ok
Pressing the button menu allows you to access
the following settings:
PROGRAM SETTINGS FUNCTIONS
DATE-TIME
S/W TIME
LANGUAGE
FACTORY
SETTINGS
BACK AUTO
PROGRAM
CREATE
PROGRAM
READ
PROGRAM
MODIFY
PROGRAM
DELETE
PROGRAM
COPY
BACK AUTO
COUNTER
CYCLE
PIN CODE
INPUT
BACK AUTO
menu
When using for the first time, the following
settings must be done:
- select the language
- select the year, month, day
- select the hour and the minutes
- select the automatic change summer/winter.
Press the buttons / to set the display.+ –
Press to validate.OK
When the settings are finished, the clock goes to
automatic mode.
First commissioning
Pressing simultaneously the , , , keysmenu – + ok
allows you to réinitialize the product.
The program is kept in memory.
Reinitializing
Creating a holiday programme
The Holiday programme allows you to define one
period during which the output contact is on ON
or OFF.
This programme has the highest priority.
To define your Holiday programme:
To visualise a programme
To check the steps of the recorded programme
without risk of modifying or deleting.
PROGRAMME READ
HOLIDAYS
WEEKLY
BACK
AUTO
DELETE
MODIFY
HOLIDAYS
OFF
NOT
REPEATED
VARIABLE
DATE
HOLIDAYS
ON
FIX
DATE
14.07 - 03.08
HOLIDAYS
CONTINUE
PROGRAM
START
MONTH
01.07
START
DAY
14.07
END
MONTH
01. 08
END
DAY
03.08
Select:
- FIX DATE: if the programme must be repeated
every year at the same dates.
- VARIABLE DATE ( ) if the dates must be
recalculated every year according to the dates
of Easter.
- NOT REPEATED: if the programme is to be
activated once only.
Validate by .ok
FUNCTIONS
SETTINGS
PROGRAM
COPY
PROGRAM
DELETE
PROGRAM
MODIFY
PROGRAM
READ
PROGRAM
CREATE
PROGRAM
menu
The number of free program steps is displayed.
Press to validate.ok
The buttons and allow you to scroll the+ –
programme steps.
At the end of the visualisation, press .ok
3 www.hager.com 6E 6354E
Confirm the complete reset by .ok
At the end of the reset to zero, as for the first com-
missioning, the following settings must be done:
- language
- selection of date and time
- Automatic summer/winter change.
PROGRAMME DELETE
FUNCTIONS
The functions menu allows you to access the follo-
wing functions and information:
SETTINGS
CONTINUE
BACK
AUTO
YEAR
01.01.08
MONTH
01. .0804
DAY
30.04.08
30.04.08
HOUR
15:00
30.04.08
MINUTE
15:31
BACK
AUTO
FACTORY
SETTINGS
LANGUAGE
S/W TIME
DATE/TIME
The setting menu allows you to access the following
settings:
Press to go back to automatic mode.ok
For other settings (automatic changes summer/
winter, language, reset), press + and select
CONTINUE.
Select the type of summer/winter change required and
then validate by .ok
Types available:
When the USER type is chosen:
Define the month, then the week of the change of
summer time.
Define the month, then the week of the change of
winter time.
The change always happens between 2 and 3 am.
The change always happens on Sunday.
*default type
Reset to zero
To reset the product to the manufacturer’s
configuration, that is to say, erase all of the
programme as well as the settings made:
DATE-H
SUMMER/WINTER
LANGUAGE
Time and day setting
FACTORY SETTINGS
FUNCTIONS
SETTINGS
PROGRAM
menu
BACK
AUTO
FACTORY
SETTINGS
LANGUAGE
S/W TIME
DATE/TIME
BACK
AUTO
FACTORY
SETTINGS
LANGUAGE
S/W TIME
SETTINGS
DATE/TIME
Select the language required amongst the
following : FRANÇAIS, DEUTSCH, ENGLISH,
NEDERLANDS, PORTUGUES, ESPANOL,
ITALIANA.
Validate by .ok
FUNCTIONS
SETTINGS
PROGRAM
COPY
PROGRAM
DELETE
PROGRAM
MODIFY
PROGRAM
READ
PROGRAM
CREATE
PROGRAM
menu
Select the channel from which you wish to copy
the programme.
Select ( , then ) the program you wish to copy:+ – ok
WEEKLY, HOLIDAY.
Select the channel into which you wish to paste
the programme copied.
Validate by pressing .ok
The copy function allows you to copy a
programme from one channel to another.
PROGRAMME COPY
The menu delete allows you to erase:
- all of the programme contained in the clock.
- All of the programme on one channels.
- A programme step.
Everything deleted must be confirmed by pressing
the button .ok
FUNCTIONS
SETTINGS
PROGRAM
COPY
PROGRAM
DELETE
PROGRAM
MODIFY
PROGRAM
READ
PROGRAM
CREATE
PROGRAM
menu
To modify one or several programme steps.
PROGRAMME MODIFY
FUNCTIONS
SETTINGS
PROGRAM
COPY
PROGRAM
D ELETE
PROGRAM
MODIFY
PROGRAM
READ
PROGRAM
CREATE
PROGRAM
menu
The number of free program steps is displayed.
Press to validate.ok
The buttons and allow you to scroll the+ –
programme steps.
The button allows you to select theok
programme step to be modified.
Select CONTINUE, if you wish to copy more
programs.
Select BACK AUTO to go back to the automatic
mode.
Type
Start of
Summer
time
Start of
Winter
time
Zone of
application
EURO*
SUMMER/
WINTER
Last Sunday
in March
Last Sunday
in October
European
Union
USA
SUMMER/
WINTER
Second
Sunday
of March
First
Sunday in
November
North
America
AUSTRALIA
SUMMER/
WINTER
First Sunday
in October
First Sunday
in April Australia
USER
SUMMER/
WINTER
Date freely
programmed
Date freely
programmed
NO
SUMMER/
WINTER
No change No change

Produktspezifikationen

Marke: Hager
Kategorie: Nicht kategorisiert
Modell: EG403E

Brauchst du Hilfe?

Wenn Sie Hilfe mit Hager EG403E benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Nicht kategorisiert Hager

Hager

Hager VM206 Bedienungsanleitung

13 Oktober 2024
Hager

Hager NCN110A Bedienungsanleitung

11 Oktober 2024
Hager

Hager BD163T Bedienungsanleitung

9 Oktober 2024
Hager

Hager NCN303A Bedienungsanleitung

9 Oktober 2024
Hager

Hager VM202K Bedienungsanleitung

9 Oktober 2024
Hager

Hager JK116BA3 Bedienungsanleitung

4 Oktober 2024
Hager

Hager JK108BSH Bedienungsanleitung

4 Oktober 2024
Hager

Hager JKD188TM Bedienungsanleitung

27 September 2024
Hager

Hager JK104BF Bedienungsanleitung

23 September 2024
Hager

Hager VM118SPD Bedienungsanleitung

19 September 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024
Ferplast

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024
AEG

AEG MECK52 Bedienungsanleitung

16 Oktober 2024
Makita

Makita UR012G Bedienungsanleitung

16 Oktober 2024
Stihl

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024
Ernesto

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024
IFM

IFM AC901S Bedienungsanleitung

16 Oktober 2024
Nedis

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024
AEG

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024
ART

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
