Grace Design ALiX Bedienungsanleitung
Grace Design
Receiver
ALiX
Lesen Sie kostenlos die đ deutsche Bedienungsanleitung fĂźr Grace Design ALiX (16 Seiten) in der Kategorie Receiver. Dieser Bedienungsanleitung war fĂźr 3 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

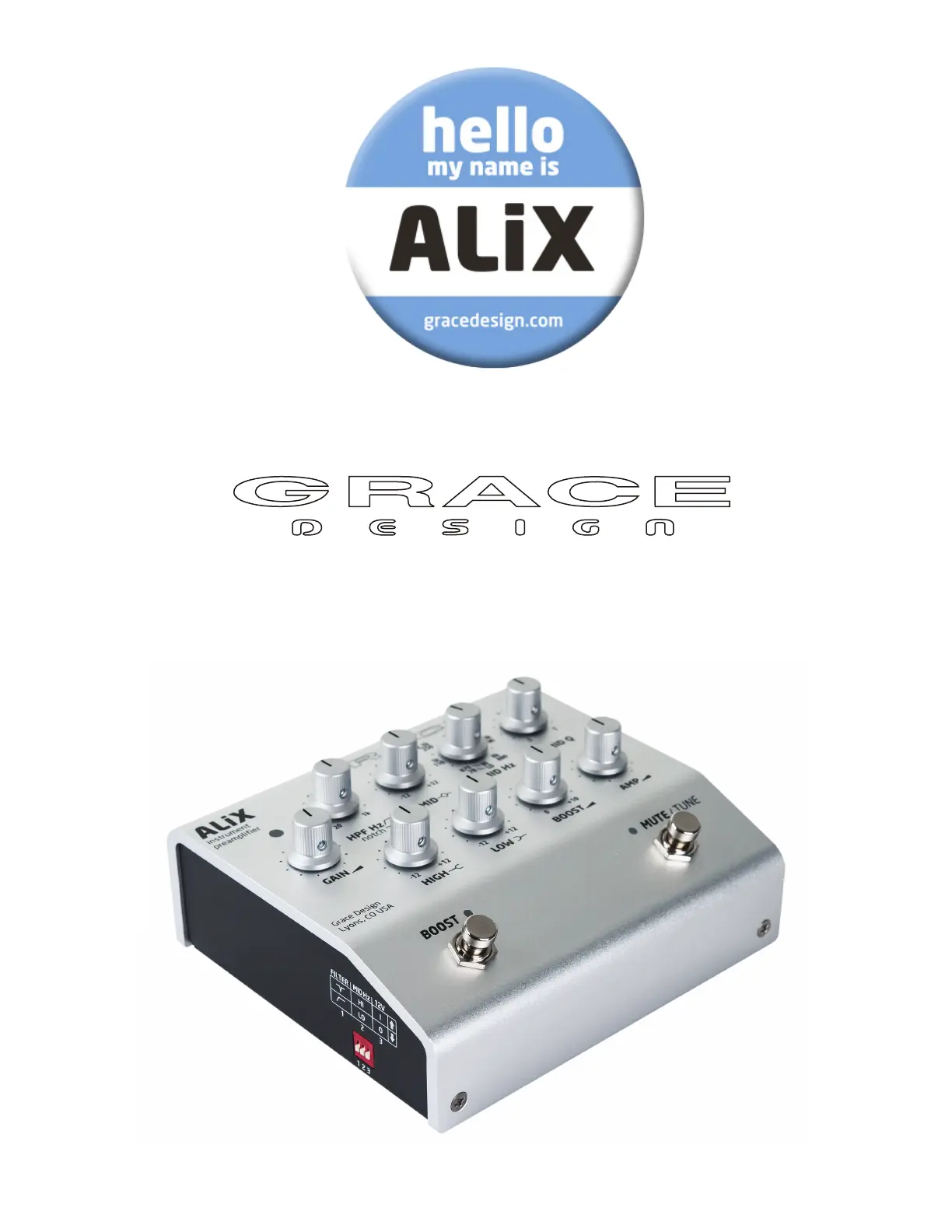

Seite 1/16
Instrument PreampliďŹer / EQ / DI
Ownerâs Manual Rev. D
Grace Design, 4689 Ute Highway, Lyons, CO 80503
303.823.8100 / info@gracedesign.com
www.gracedesign.com
2
1 Welcome
Like its big brother FELiX, the ALiX you hold in your hand is
designed to make you sound better, play better and have more
fun in the process. From Banjo, bass to bouzouki, if it has strings
and a pickup, ALiX will make its tone shine through.
While ALiX is not the most complicated piece of gear youâve
ever operated, it does aîord a good bit of îexibility and setup
options, which means we highly recommend you have a good
look at this ownerâs manual to familiarize yourself with its
îner points. Once you overcome the learning curve (easy, we
promise), youâll înd AliX to be intuitive and user friendly.
It is our sincere hope that our gear helps you do better work.
You are why we do this. Please drop us a line or a message and
let us know what you think.
And by all means if you ever have any questions about using
your ALiX or anything else we make, call us at 1-303-823-8100,
9-5 MST.
Have fun!
- The Grace Design Team
2 Safety Information
⢠Indoor use only
⢠Ordinary Protection: This equipment should not be
exposed to dripping or splashing.
⢠Avoid placing objects îlled with liquids, such as vases or
glasses, on this equipment.
⢠Class I Equipment (grounded type)
⢠Electrical rating: 100-240V~ 50-60Hz 10W
⢠Mains supply voltage îuctuations are not to exceed Âą10%
of the nominal supply voltage.
⢠Pollution Degree 2
⢠Installation (Over voltage) Category II for transient
overvoltages.
⢠Maximum Relative Humidity: <80%
⢠Operation temperature range: 10 °C to 40 °C
⢠Storage and transportation temperature
range â40 °C to 70 °C
⢠Maximum altitude: 3000m (9843 ft)
⢠Equipment suitable for continuous operation
⢠Weight: 2.2lbs
TABLE OF CONTENTS
1 Welcome 2
2 Safety Information 2
3 Safety Marking Symbols 3
4 Features 3
5 Top Panel Controls and Features 4
6 Back Panel Controls and Features 5
7 Side Panel Controls and Features 5
8 Connecting ALiX to Stuî 6
8.1 1/4â Instrument input 6
8.2 Insert (FX LOOP) 6
8.3 Amp Out 6
8.4 Tuner Output 6
8.5 DI Output 6
8.6 100-240VAC Power Input 6
8.7 9V @ 500mA DC POWER OUTPUT 6
9 Operation 6
9.1 Where to put ALiX? 6
9.2 Instrument / line input 6
9.3 Filtering and EQ 7
9.4 Output controls 8
9.5 Footswitch Controls 8
9.6 Side Panel Controls 8
10 Diagrams 9
10.1 Insert cable Wiring 9
10.2 Block Diagram 10
10.3 Connection Diagram 11
10.4 AdJusting Internal Jumpers 12
10.5 Internal Jumper Locations 13
11 Speciîcations 14
12 Cleaning and Maintenance 15
13 Warranty 15
14 Manual Revisions 16
3
3 Safety Marking Symbols
Caution: Read Accompanying Documents
This symbol, located on the equipment and in
this manual, refers to important instructions.
Read this manual thoroughly before operating
this equipment.
Warning: Electrical Shock Hazard
This symbol, located on the equipment and in
this manual, indicates the potential for electrical
shock hazard.
Service Information
The Grace Design ALiX contains no user serviceable
components. Contact Grace Design for repair and upgrade
information. In the event that your Grace Design Felix needs to
be returned to the factory, contact us for a return authorization
number.
4 Features
⢠Open, musical and detailed instrument preampliîcation for
discerning artists and engineers like yourself
⢠Ultra precision 0.5% thin îlm resistors used in the signal
path
⢠Careful power supply design and grounding for an ultra-
quiet signal path and professional level headroom and line
driving ability
⢠Fully ground isolated DI output with high quality, low
distortion, fully shielded transformer
⢠Super rugged 1/4â connectors with heavy duty metal
bushings
⢠Powerful, independent EQ â hi and low shelving and full
parametric midrange
⢠Mid frequency control has two ranges 70-880Hz / 670 -
8kHz
⢠20Hz-1kHz sweepable HPF on both channels, can also be
set as notch îlter
⢠Mute/ tune footswitch mutes all outputs except dedicated
tuner out and headphone output
⢠12V mic input power
⢠9VDC @ 500mA (2.1mm BOSS⢠standard center negative)
power output for powering other pedals from the ALiX
⢠Boost footswitch for variable 10dB level boost
⢠Dedicated level controlled stage amp output
⢠Dedicated tuner out, remains active when unit is muted
⢠Side panel switches for mid Hz range select, HPF/notch
select, 12V microphone power enable
⢠Phase reverse switch
⢠3 input impedance settings â 330KΊ, 1MEGΊ, 10MEGΊ
accommodating a wide range of pickup types
⢠TRS eîects insert jack
⢠Universal 100-240 AC power supply with standard IEC
cable â no wall wart - take ALiX anywhere in the world!
⢠Full 5 year transferable warranty / built for a long, happy
life on the road
⢠Designed and built by us in Lyons, CO, USA
