Seite 1/68

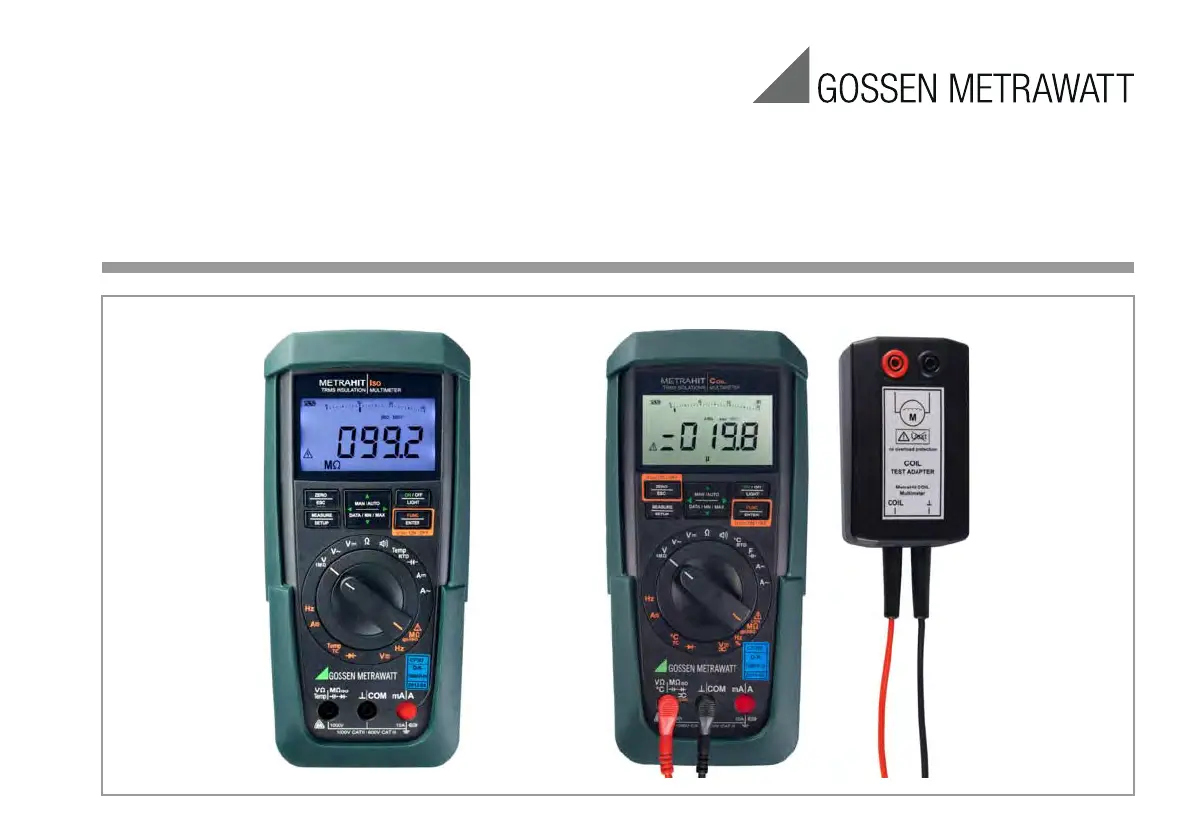

METRAHITISO and METRAHITCOIL
TRMS Multimeter with Insulation and Interturn Short-circuit Measurement (METRAHITC OIL only)
Operating Instructions
3-349-416-03
15/5.17
2 GMC-I Messtechnik GmbH
Standard Equipment Contact Persons
Standard Equipment METRAHIT ISO
1 Multimeter for isolation measurement
1 Protective rubber cover
1 KS17-2 cable set
1 DAkkS calibration certificate with calibration report
2 Batteries, 1.5 V, type AA, installed
1 Condensed operating instructions *
Standard Equipment METRAHIT COIL
1 Insulation multimeter
1 Protective rubber cover
1 KS17-2 cable set
1 DAkkS calibration certificate
2 Batteries 1.5 V, type AA, installed
1COIL TEST ADAPTER for interturn short-circuit measurement
1 Condensed operating instructions *
* Detailed operating instructions are available for download on the Internet
at www.gossenmetrawatt.com
1) For 15,000 measured values, sampling rate adjustable from 0.1 second to 9 hours
Function METRAHITISO METRAHIT COIL
V AC+DC TRMS (Ri = 1 M
)
 
V AC / Hz TRMS (Ri
9 M
)
Filter
Filter
V AC+DC TRMS (Ri
9 M
)
 
V DC (Ri 9 M ) 
Hz (V AC) ... 300 kHz ... 300 kHz
Bandwidth V AC 15 Hz ... 10 kHz 15 Hz ... 10 kHz
A AC / Hz TRMS 300 A
3/30/300 mA
3 A / 10 A
300 A
3/30/300 mA
3 A / 10 A
A AC+DC TRMS
A DC
Fuse 10 A/1000 V 10 A/1000 V
Transformation factor
mV/A, mA/A mV/A, mA/A
Hz (A AC) ... 30 kHz ... 30 kHz
Insulation Resistance MISO adjustable test voltage adjustable test voltage
Interturn short-circuit measurement
M
COIL
Duty cycle measurement %
Resistance  
Continuity  
Diode ... 5,1 V  
Temperature
TC (K)  
Temperature RTD
 
Capacitance  
MIN/MAX / data hold  
4 MBit memory 1)  
IR Interface  
Power pack adapter socket  
Protection IP54
Measuring category
1000 V CAT II, 600 V CAT III
IP54
1kHz
1kHz
4 GMC-I Messtechnik GmbH
Standard Equipment Contact Persons
Recalibration Service
We calibrate and recalibrate all instruments supplied by GMC-I
Messtechnik GmbH, as well as other manufacturers, at our ser-
vice center, for example after one year within the framework of
your test equipment monitoring program, as well as prior to use
etc. and offer you test equipment management free of charge.
See also chapter 9.6 on page 71.
Repair and Replacement Parts Service
Calibration Center* and Rental Instrument Service
If required please contact:
GMC-I Service GmbH
Service Center
Thomas-Mann-Str. 16-20
90471 Nuremberg, Germany
Phone: +49 911 817718-0
Fax: +49 911 817718-253
E-mail service@gossenmetrawatt.com
www.gmci-service.com
This address is only valid in Germany. Please contact our
representatives or subsidiaries for service in other countries.
* DAkkS Calibration Laboratory for Measured Electrical Quantities
D-K-15080-01-01 accredited per DIN EN ISO/IEC 17025
Accredited quantities: direct voltage, direct current value, direct current
resistance, alternating voltage, alternating current value, AC active
power, AC apparent power, DC power, capacitance, frequency,
temperature
