Cooling Mode
As soon as you energize your Room Thermostat, it will start working.
Your room thermostat takes the average room temperature of last 40
seconds as basis. If the ambient temperature rises above the
hysteresis positive temperature you set, your Room Thermostat will
start the cooling unit and if it drops below hysteresis negative
temperature value, will stop the cooling unit. Thus, it is ensured that
the ambient temperature remains within a certain range.
*External floor sensor is deactivated in the cooling mode.
ROOM THERMOSTAT HYSTERESIS NEGATIVE MENU
The hysteresis negative factory setting of your Room Thermostat is
-0.5°C. This value can be adjusted between “-0.1°C” and “-2.0°C”.
While the hysteresis negative value is -0.5°C, your Room Thermostat
will send a command to your heating unit when the room temperature
drops 0.5°C below the set temperature. For example, when we set the
Room Thermostat to 22.0°C, your heating unit will work when the
room temperature drops to 21.5°C. To change the hysteresis negative
setting
:While your device is off, press and hold the button for 3 seconds.
Press the button until the “ ” menu appears.
In the hysteresis negative menu, you can adjust the operating
sensitivity by turning the “ ” button to the right or left.
Press the button until the device turns off to save the settings and
exit.
The settings you have made have been saved. When you turn on
your device, it will work with the operating sensitivity you have set.
FLOOR SENSOR TEMPERATURE SETTING MENU
If a floor sensor is installed with Room Thermostat, only GENERAL
Life floor sensor should be installed. Otherwise, the product will be
out of warranty.
*In case of floor sensor connected, the following settings apply.
The factory temperature setting for floor sensor is 28°C. This value
can be adjusted between 23°C and 34°C. The floor sensor operating
sensitivity is 1°C. For example, when you set the floor sensor
temperature to 28°C, your Room Thermostat will stop the heating unit
from working when the floor temperature rises to 29°C. When the floor
temperature drops to 27°C, it starts the heating unit of the Room
Thermostat. To change the floor sensor temperature:
Press and hold the button for 3 seconds while your device is off.
Press the button until the “ ” menu appears.
Adjust the operating temperature by turning the “ ” button to the
right or left in the floor sensor temperature menu that appears.
Press the button until the device turns off to save the settings and
exit.
The settings you have made have been saved. When you turn on
your device, it will operate at the floor sensor temperature you have
set.
FACTORY RESET
You can reset the Room Thermostat to its factory default settings.
This action resets the calibration setting and hysteresis settings to
the factory setting. To factory reset your Room Thermostat:
While your device is off, press and hold the button for 3 seconds.
Press the button until the “ ” menu appears.
While in the “ ” menu, turn the button to the right or left, select the
“ ” option and press the button.
Your device will turn off and reset to factory settings.
ROOM THERMOSTAT WORKING PRINCIPLE
Heating Mode
As soon as you energize your Room Thermostat, it will start working.
Your room thermostat takes the average room temperature of last 40
seconds as basis. If the ambient temperature rises above the
hysteresis positive temperature you set, your Room Thermostat turns
off the heating unit, and if it drops below hysteresis negative
temperature value, it turns on the heating unit. Thus, it is ensured that
the ambient temperature remains within a certain range.
If the floor sensor measures temperature above 28°C, it turns off the
heating unit.*
*External floor sensor is only active when it is connected.

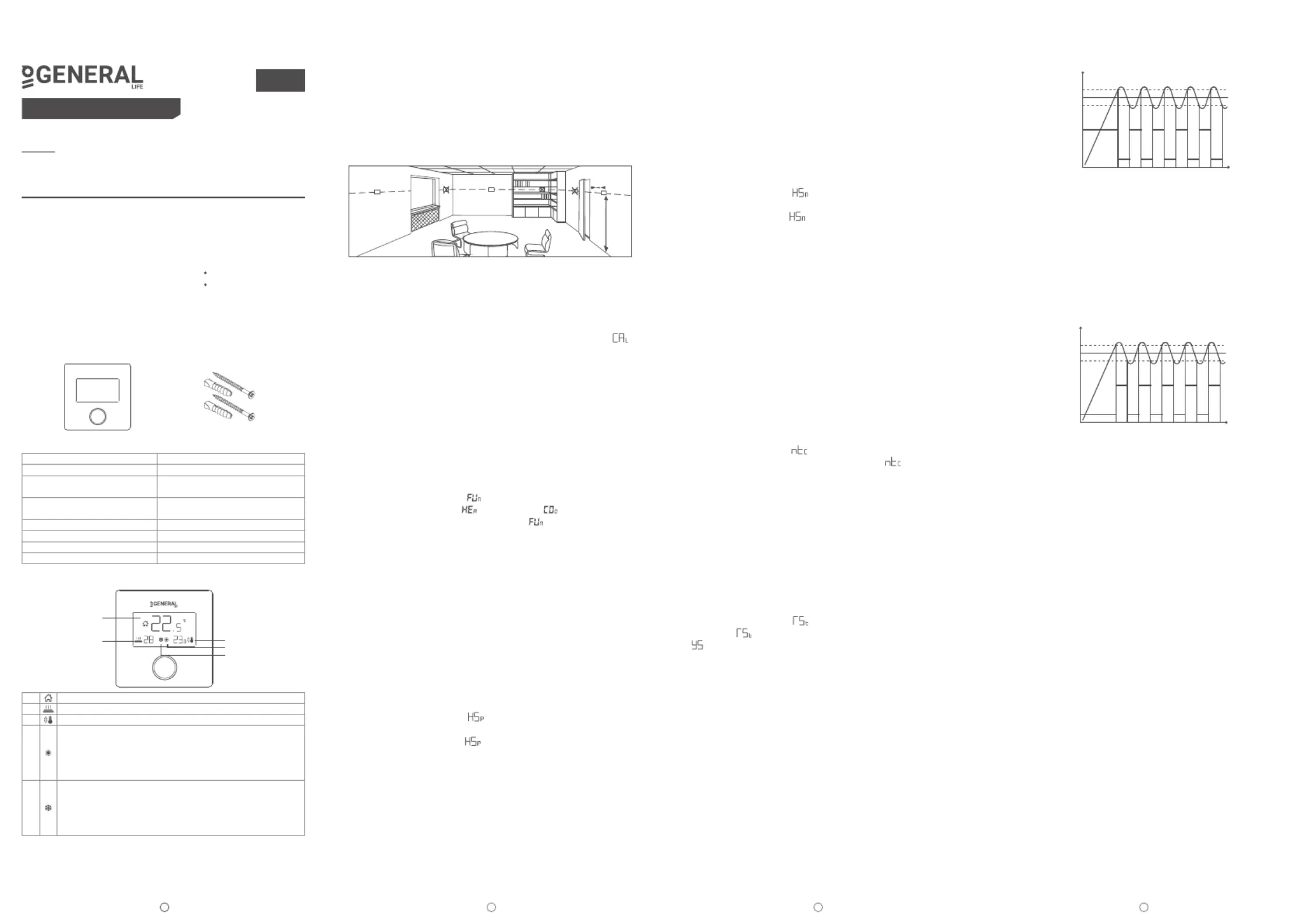

GENERAL SPECIFICATIONS
FH25/FH25S is a digital room thermostat designed for underfloor
heating and cooling system. The user can get more comfortable and
economic heating/cooling by adjusting the room thermostat with the
required temperature.
Sensitive Temperature Measurement Hysteresis Adjustment
Temperature Calibration ON/OFF Control
Wired connection
Floor sensor temperature setting
Heating/Cooling Modes
FH25/FH25S AND EQUIPMENTS
TECHNICAL DATA
ROOM THERMOSTAT
* External floor sensor is only active when it is connected.
1
Room Thermostat
85.7mm / 85.7mm / 33.5mm
230V AC
7A (240VAC – Resistive load)
10A (120VAC – Resistive load)
o
0.1 C
o o
(-2.0 C) – (+2.0 C)
o o
(5 C) – (30 C)
o o
(-10 C) – (+50 C)
o o
(-20 C) – (+60 C)
Dowels and
Screws
Dimensions ( H / L / W )
Operating Current
Relay NO Switching Current
Temperature Measurement
Accuracy
Operating Sensitivity
Operating Temperature Range
Operating Temperature
Storage Temperature
123
ENGLISH
generallife.com.tr
UNDERFLOOR HEATING THERMOSTAT
1
2
3
4
5
Room Temperature
Underfloor Heating Temperature*
Set Temperature
Heating Indicator
- If the Heating Indicator is blinking, the heating unit is
working.
- If the Heating Indicator lights up constantly, the heating
unit is not working.
Cooling Indicator
- If the Cooling Indicator is blinking, the cooling unit is
working.
- If the Cooling Indicator is steady, the cooling unit is not
working.
ROOM THERMOSTAT PLACEMENT
Place your Room Thermostat in a room you use frequently in your
living space. For example; like the hall or living room of your home.
Avoid installing the Room Thermostat in places where there is a lot of
air circulation, such as at the doorway or by the window. Also, do not
place it close to heating units (heater core, fireplace, etc.) and in direct
sunlight. We recommend that the room thermostat is placed at a
height of 150 cm from the floor.
ROOM THERMOSTAT TEMPERATURE CALIBRATION
Temperature sensors used in Room Thermostats are very sensitive.
Based on the temperature on the thermometers in your living space
you need to calibrate your Room Thermostat. For this:
While your device is off, press and hold the button for 3 seconds.
Press the button until you see the calibration menu that says “ ”
press it. The temperature difference you want from the calibration
menu, Adjust by turning the button to the right or left. This value can
be adjusted between “-8°C” and “+8°C”.
Press the button until the device turns off to save the settings and
exit.
o
Note: Recommended temperature calibration setting is “0.0 C”.
ROOM THERMOSTAT HEATING / COOLING MODES
Your Room Thermostat has heating and cooling modes. In order to
switch easily between heating and cooling modes:
While your device is turned off, press and hold the button for 3
seconds.
Press the button until the “ ” menu appears.
You can switch between “ ” (heating) and “ ” (cooling) modes
by turning the button to right or left in the “ ” menu.
To save the settings and exit, press the button until the device turns
off.
The settings you have made have been saved. Once you turned on
your device, it will operate with the changed settings.
ROOM THERMOSTAT HYSTERESIS POSITIVE MENU
The hysteresis positive factory setting of your Room Thermostat is
0.5°C. This value can be adjusted between “0.1°C” and “2.0°C”. While
the hysteresis positive value is 0.5°C, your Room Thermostat will
send a command to your heating unit when the room temperature
rises 0.5°C above the set temperature. For example, when we set the
Room Thermostat to 22.0°C, your heating unit will stop when the
room temperature rises to 22.5°C. To change the hysteresis positive
setting:
While your device is off, press and hold the button for 3 seconds.
“Press the button until the “ ” menu appears.
In the hysteresis positive menu, you can adjust the operating
sensitivity by turning the “ ” button to the right or left.
Press the button until the device turns off to save the settings and
exit.
The settings you have made have been saved. When you turn on
your device, it will work with the operating sensitivity you have set.
150 cm
min. 20 cm
Time
Heating
Unit Off
Heating
Unit On
Set
Temperature
Room
Temperature
o
22.0 C
o
22.5 C
o
21.5 C
Time
Cooling
Unit Off
Cooling
Unit On
Set
Temperature
Room
Temperature
o
22.0 C
o
22.5 C
o
21.5 C
4
1
23
4
5
FH25/FH25S USER MANUAL
SERIES:
MITRA, ADEN, ARUNA, CERES, GAIA, ILLONA, NORA, SENNA, TERRA,
THERMA

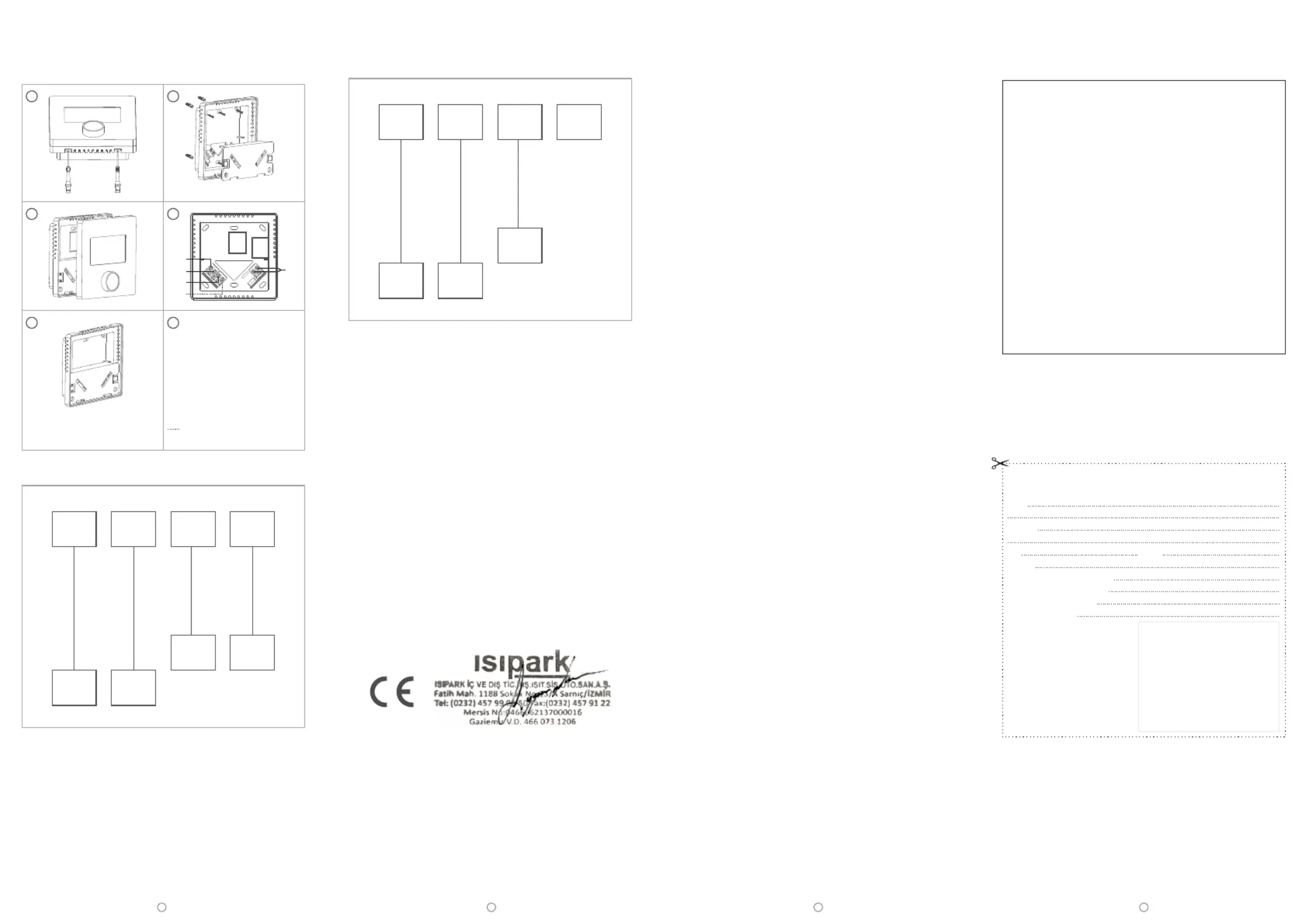

ROOM THERMOSTAT WIRING DIAGRAM
WIRING DIAGRAM FOR ACTUATORS
5 86 7
WIRING DIAGRAM FOR WIRING CENTER
WARNING!
Operating related to the control panel, heating / cooling unit or
electrical installation must be carried out by persons with
professional qualifications.
DECLARATION OF CONFORMITY
ISIPARK İÇ VE DIŞ TİC. İNŞ. ISITMA SİSTEMLERİ OTO. SAN.A.Ş.which
Head Office and production site is located on Fatih Mah. 1188
Sk.No:13/A Sarnıç - Gaziemir - İZMİR – TÜRKİYE confirms and
declares that the product marked with CE and its specifications below
is covered by the provisions of the mentioned directive.
Brand
Product Name
Product Type
Compatible Directives:
Electromagnetic Compatibility Regulation 2014/30/EU
(EN 61000-6-1:2019, EN 61000-6-3:2021)
Low Voltage Directive 2014/35/EU (IEC 60730-2-9)
Additional Information: The mentioned product can be used with
boilers with on / off output and compliance with the directives only
covers the product. ISIPARK is not responsible for the entire system's
compliance with the directives. This statement is not valid if changes
are made to the product without our approval.
: GENERAL Life
: FH25/FH25S
: Floor Heating Room Thermostat
ISIPARK reserves the rights of changing product specifications and
user manuals.
* For all changes, you may visit generallife.com.tr
Vendor
Title:
Address:
Tel: Fax:
E-Mail:
Invoice Date and Number:
Delivery Time and Place:
Authorized Signature:
Company Stamp:
Product
Type: Floor Heating Room Thermostat
Brand: GENERAL Life
Model: FH25/FH25S
STAMP
V-01.2023
WARRANTY CERTIFICATE
Manufacturer
Title: ISIPARK İÇ DIŞ TİC. A.Ş.
Address: Fatih Mah. 1188 Sk. No:13/A Sarnıç
Gaziemir İzmir-TÜRKİYE
Tel: +90 (232) 457 99 50
Fax: +90 (232) 457 91 22
E-mail: generallife@generallife.com.tr
Authorized Signature:
Company Stamp:
Product
Type: Floor Heating Room Thermostat
Brand: GENERAL Life
Model: FH25/FH25S
Warranty Period: 2 Years
Max. Time to Repair: 20 Days
Bandrol and Serial Number:
1 4
2
3 6
5
NTC
L
L1
N
N1
WARNING!
The assembly of product
should be done according to
the image above.
For electrical connection,
please see diagram 5.
Should not be used in case
the usage of a wiring center.
N L L1 N1
230V AC
ACTUATOR
N L L1 N1
230V AC
WIRING
CENTER
WARRANTY CONDITIONS
1- The warranty period starts from the invoice date and warranted against
manufacturing defects for 2 years.
2-Devices and apparatus are delivered to the customer in working condition in
our company. On-site commissioning is subject to a service fee.
3-The repair of the devices and apparatus covered by the warranty is carried
out in our company factory and should send by a contracted transportation
company. In on-site services, the transportation and accommodation
expenses of the service personnel belong to the customer. The shift fee during
transportation is added to the service fee and collected in advance.
4-The maintenance of devices and apparatus is done in our company. For the
maintenance of the devices and apparatus, the round travel fares belong to the
customer.
5-In case of malfunctioning of the devices and apparatus whose warranty
period continues, it is tested in our company whether the malfunction is
caused by a customer or manufacturer fault, and it is reported with a report
issued by our company.
6-In case of detection of manufacturer-induced errors of devices and
apparatus whose warranty period continues, the customer can request a
replacement or repair of the devices and apparatus at full expense by the
manufacturer, unless it's higher than the product's price.
7-In the event that the faults of the devices and apparatus whose warranty
period continues are determined as caused by the customer, all expenses
would belong to the customer.
8-Customers should be aware of damages (if there are any) of product and
warn manufacturer since the day warranty duration starts.If customer do not
warn manufacturer with knowledge of damage, customer loses the rights of
article 6.
9-Malfunctions resulting from the use of devices and apparatus contrary to the
matters stated in the User Manual are not covered by the warranty.
10-Devices and their apparatus are out of warranty if they are beaten, broken or
scratched by the customer.
11-Damages resulting from the use of devices and apparatus belonging to
other brands and models without the approval of the manufacturer are not
covered by the warranty.
12-Battery leakage and errors due to rust, oxidation, and liquid contact by
working in acidic/humid environments are not covered by the warranty.
13-When the product is not used for a long period (more than 15 days), remove
the batteries. Otherwise, malfunctions that will occur are out of warranty.
14-Damages that may occur during the transportation of devices and
apparatus are not covered by the warranty. Customers can take transportation
insurance.
15-Damages caused by mains voltage / faulty electrical installation are not
covered by the warranty.
16-Devices and apparatuses are out of warranty for malfunctions caused by
force majeure such as fire, flood, earthquake, etc.
17-All of the devices and apparatuses, including all their parts, are under the
warranty of our company.
18-In case of malfunction of the devices and apparatuses within the warranty
period, the time spent during repairment period is added to the warranty
period. The repair period of the product cannot exceed 20 working days. This
period starts from the date of notification to the service station of the
malfunction related to the product or, in the absence of a service station, to the
seller, dealer, agency, representative, importer or manufacturer of the product.
Consumer can report the problem by; phone, fax, e-mail, registered and reply
paid letter or a similar way. However,in case of a conflict , responsibility of
prove is belong to the customer. If the malfunction of the product is not
repaired within 20 working days, the manufacturer-producer or importer; has
to allocate another product with similar features to the use of the consumer
until the repair of the product is completed.
19-Although the consumer uses his/her repair rights,
-If the product breaks down for 4 times in a year or 6 times in warranty duration
and these problems effects main purpose of the product.
(starting from delivery time during warranty.)
- Exceeding the maximum time required for repair,
- In the event that the service station is not available, if it is determined that the
repair of the defect is not possible with the report prepared (in order) by one of
the seller, dealer, agency, representative, importer or manufacturer, a refund or
a price discount at the rate of defect can be requested.
20-The customer can make complaints and appeals to consumer courts or
consumer arbitration committees.
21-The warranty document must be kept by the customer during the warranty
period. If the document is lost, a second document will not be issued. In case
of loss, repair and replacement of devices and apparatus will be made for a fee.
Produktspezifikationen
| Marke: | GENERAL Life |
| Kategorie: | Thermostat |
| Modell: | FH25S |
Brauchst du Hilfe?
Wenn Sie Hilfe mit GENERAL Life FH25S benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Thermostat GENERAL Life
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
Bedienungsanleitung Thermostat
- Thermostat Basetech
- Thermostat Hama
- Thermostat Nedis
- Thermostat SilverCrest
- Thermostat Panasonic
- Thermostat Brennenstuhl
- Thermostat Cotech
- Thermostat Profile
- Thermostat Bosch
- Thermostat AEG
- Thermostat Siemens
- Thermostat ATAG
- Thermostat Taurus
- Thermostat Velleman
- Thermostat Devolo
- Thermostat Schwaiger
- Thermostat Alecto
- Thermostat Conrad
- Thermostat EMOS
- Thermostat Gira
- Thermostat HomeMatic
- Thermostat Renkforce
- Thermostat Technoline
- Thermostat TFA
- Thermostat Schneider
- Thermostat Corberó
- Thermostat GE
- Thermostat King
- Thermostat Avidsen
- Thermostat Elro
- Thermostat Gigaset
- Thermostat Tesla
- Thermostat Max
- Thermostat Perel
- Thermostat Nexa
- Thermostat Vasco
- Thermostat Fenix
- Thermostat Westfalia
- Thermostat Vaillant
- Thermostat Honeywell
- Thermostat Remko
- Thermostat Junkers
- Thermostat RADEMACHER
- Thermostat AVM
- Thermostat ELV
- Thermostat TP-Link
- Thermostat Zehnder
- Thermostat Lux
- Thermostat De Dietrich
- Thermostat Netatmo
- Thermostat Theben
- Thermostat Tado
- Thermostat Remeha
- Thermostat Saunier Duval
- Thermostat Stiebel Eltron
- Thermostat Truma
- Thermostat Viessmann
- Thermostat Xavax
- Thermostat Hager
- Thermostat Dimplex
- Thermostat Buderus
- Thermostat Noma
- Thermostat JUNG
- Thermostat Boneco
- Thermostat Hunter
- Thermostat Baxi
- Thermostat Wolf
- Thermostat Nest
- Thermostat Magnum
- Thermostat HQ
- Thermostat Itho Daalderop
- Thermostat Carrier
- Thermostat Tylö
- Thermostat Busch-Jaeger
- Thermostat SPC
- Thermostat Gree
- Thermostat Sygonix
- Thermostat Orbis
- Thermostat Econo-heat
- Thermostat EQ-3
- Thermostat RWE
- Thermostat Eberle
- Thermostat BTicino
- Thermostat Bulex
- Thermostat Danfoss
- Thermostat Delta Dore
- Thermostat Fantini Cosmi
- Thermostat Grässlin
- Thermostat Heimeier
- Thermostat IMIT
- Thermostat Klafs
- Thermostat Oventrop
- Thermostat Salus
- Thermostat Seitron
- Thermostat EVE
- Thermostat Ariston Thermo
- Thermostat Elektrobock
- Thermostat Intertechno
- Thermostat Mikoterm
- Thermostat Ferroli
- Thermostat Carel
- Thermostat Daikin
- Thermostat Vemer
- Thermostat EnerGenie
- Thermostat Oregon Scientific
- Thermostat Finder
- Thermostat Homematic IP
- Thermostat Levoit
- Thermostat EQ3
- Thermostat Google
- Thermostat Somfy
- Thermostat Berker
- Thermostat Elgato
- Thermostat Elco
- Thermostat Devi
- Thermostat Drayton
- Thermostat Drayton Erie
- Thermostat Easy Timer
- Thermostat EasyTemp
- Thermostat Eliwell
- Thermostat Emerson
- Thermostat Emmeti
- Thermostat Enda
- Thermostat Eneco
- Thermostat Eqiva
- Thermostat Essent
- Thermostat Etherma
- Thermostat Eurotronic
- Thermostat Extraflame
- Thermostat Frico
- Thermostat Go Green
- Thermostat Helios (Amfra)
- Thermostat Hornbach
- Thermostat Hugo Muller
- Thermostat ICY
- Thermostat IR-V
- Thermostat Itho
- Thermostat Johnson Control
- Thermostat Landis Gyr
- Thermostat Levica
- Thermostat Lowes
- Thermostat Muller
- Thermostat Nefit
- Thermostat Niko
- Thermostat Nobo
- Thermostat OJ ELECTRONICS
- Thermostat Otio
- Thermostat Plieger
- Thermostat Plugwise
- Thermostat Radson
- Thermostat THERMAFLEX
- Thermostat Thermy
- Thermostat ACV
- Thermostat Hive
- Thermostat ThermoSmart
- Thermostat UPM
- Thermostat VDH
- Thermostat Wachendorff
- Thermostat Watts
- Thermostat Webasto
- Thermostat Weishaupt
- Thermostat Worcester-Bosch
- Thermostat Yokis
- Thermostat Z-Wave
- Thermostat Vimar
- Thermostat TrickleStar
- Thermostat Horstmann
- Thermostat Computherm
- Thermostat Heatit
- Thermostat POER
- Thermostat H-Tronic
- Thermostat PECO
- Thermostat Chacon
- Thermostat Emko
- Thermostat Fibaro
- Thermostat Heatmiser
- Thermostat Crestron
- Thermostat ORNO
- Thermostat Optima
- Thermostat HomePilot
- Thermostat Krone
- Thermostat ChiliTec
- Thermostat Arnold Rak
- Thermostat Ouellet
- Thermostat Jumo
- Thermostat Wallair
- Thermostat Maico
- Thermostat Ecobee
- Thermostat Tellur
- Thermostat STI
- Thermostat Cepra
- Thermostat Tru Components
- Thermostat Qubino
- Thermostat Gewiss
- Thermostat Warmup
- Thermostat Sinustec
- Thermostat Rose LM
- Thermostat Agpo Ferroli
- Thermostat Amfra
- Thermostat Aube
- Thermostat AWB
- Thermostat Wattio
- Thermostat Brink
- Thermostat 2Heat
- Thermostat Bryant
- Thermostat Veria
- Thermostat Innogy
- Thermostat ELKO
- Thermostat MundoControl
- Thermostat Bearware
- Thermostat Oreg
Neueste Bedienungsanleitung für -Kategorien-
16 Oktober 2024
7 Oktober 2024
5 Oktober 2024
5 Oktober 2024
5 Oktober 2024
5 Oktober 2024
4 Oktober 2024
3 Oktober 2024
2 Oktober 2024
2 Oktober 2024
