FAN COIL THERMOSTAT PLACEMENT
In order to mount FC100 to the wall, separate the upper case from the
lower case with the help of a screwdriver from the places shown
below.
Fan Coil Thermostat needs to be placed in the room which is used
most frequently. For instance; living room or lounge.Placing the Fan
Coil Thermostat in a spot that have air circulation like entrance of a
room or side of window should be avoided. Also anywhere close to
heating units such as radiator, stove and spots which get direct sun
lights would not be suitable.Fan Coil Thermostat needs to be located
above the floor 150 cm height. Few trials may be made to find the
most convenient spot.

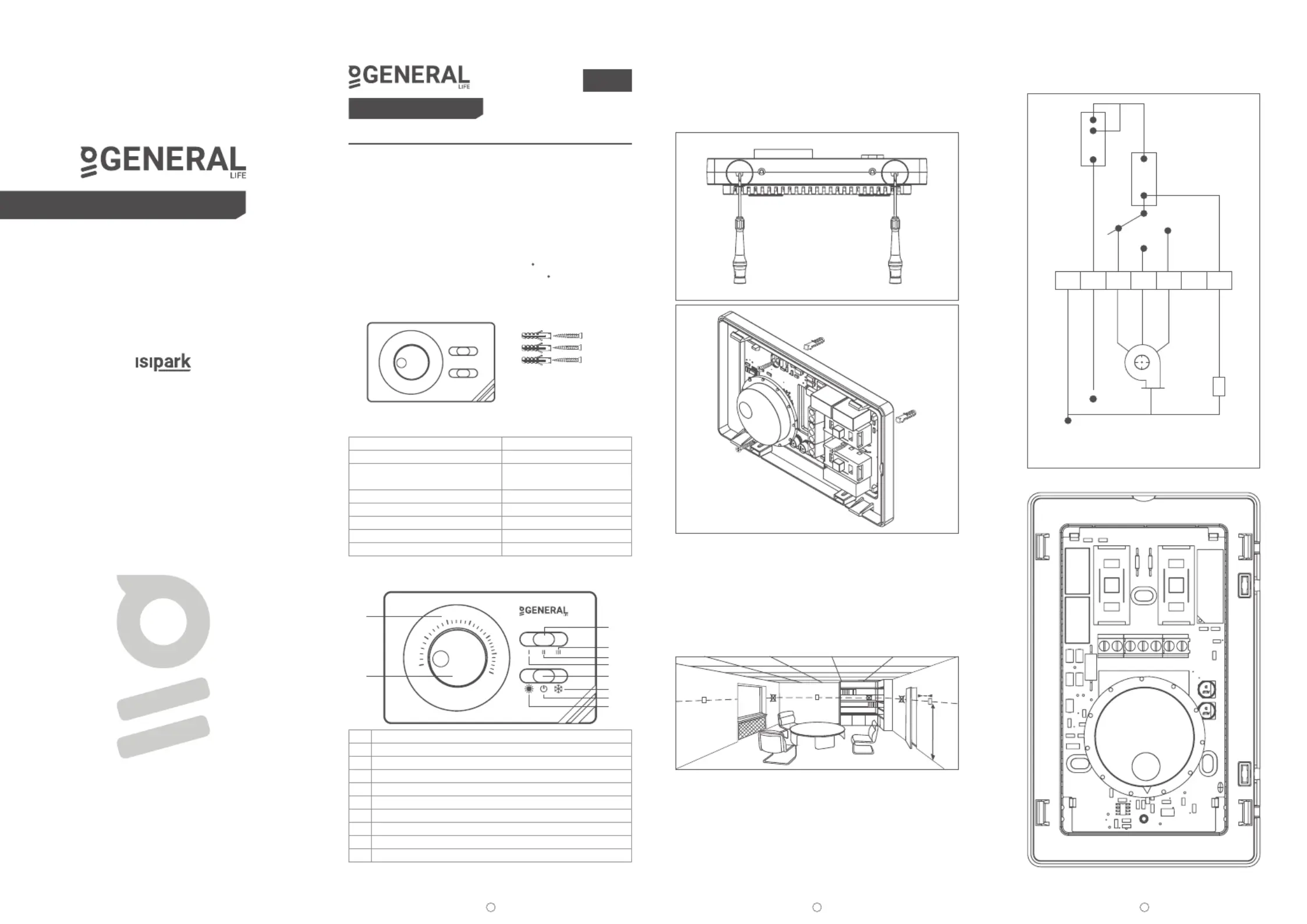

FAN COIL THERMOSTAT WIRING DIAGRAM
GENERAL SPECIFICATIONS
FC100 is a digital fan coil thermostat. The user can adjust the Fan Coil
Thermostat with the required temperature and fan speed to get more
comfortable and economic heating/cooling.
For 2 pipe fan coil systems User Friendly Interface
Manual heating and cooling option 3 Stage Fan Speed
FC100 AND EQUIPMENTS
TECHNICAL DATA
FAN COIL THERMOSTAT
1 3
90mm / 145mm / 29.8mm
110-220V AC 50/60 Hz
8A (250VAC – Resistive Load)
8A (30 VDC – Resistive Load)
o
0.1 C
o
0.5 C
o o
(5 C) – (35 C)
o o
(-10 C) – (+50 C)
o o
(-20 C) – (+60 C)
Dimensions
Operating Current
Relay NO Switching Current
Temperature Measurement Accuracy
Operating Sensivity
Operating Temperature Range
Operating Temperature
Storage Temperature
FC100 Fan Coil Thermostat Dowels and Screws
ENGLISH
FC100 USER MANUAL
generallife.com.tr
DIGITAL FAN COIL THERMOSTAT
150 cm
min.20 cm
2
Fan Speed Adjustment Button
High Fan Speed Symbol
Medium Fan Speed Symbol
Low Fan Speed Symbol
ON/OFF and Mode Select Button
Cooling Mode Symbol
Off Symbol
Heating Mode Symbol
Temperature Dial Line
Temperature Adjustment Knob
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
LOW
MED
HIGH
L
L
L
LL
N
AC 220V
VALVE
FAN
OFF
NO
1
2
3
4
5
6
7
generallife.com.tr
FC100
USER MANUAL
DIGITAL FAN COIL THERMOSTAT
5
10
15
20
25
30
35
9
10 5
3
2
4
8
7
6
1
DECLARATION OF CONFORMITY
ISIPARK İÇ VE DIŞ TİC. İNŞ. ISITMA SİSTEMLERİ OTO. SAN.A.Ş.which
Head Office and production site is located on Fatih Mah. 1188
Sk.No:13/A Sarnıç - Gaziemir - İZMİR – TÜRKİYE declares that the
product marked with CE and its specifications below is covered by the
provisions of the mentioned directive.
Brand
Product Name
Product Type
Compatible Directives:
Electromagnetic Compatibility Regulation 2014/30/EU
(EMC EN 61000-6-3: 2007 + A1: 2011, EN 61000-6-1: 2007)
Low Voltage Directive 2014/35/EU
(LVD EN 60730-2-9:2010, EN 60730-1:2011)
Additional Information: The mentioned product can be used with 2
pipe fan coil systems and compliance with the directives only covers
the product. ISIPARK is not responsible for the entire system's
compliance with the directives. This statement is not valid if changes
are made to the product without our approval.
WARRANTY CONDITIONS
1- The warranty period starts from the invoice date and warranted
against manufacturing defects for 5 years.
2-Devices and apparatuses are delivered to the customer in working
condition in our company. On-site commissioning is subject to a
service fee.
3-The repair of the devices and apparatuses are covered by the
warranty is carried out in our company factory and should send by
contracted transportation company. In on-site services, the
transportation and accommodation expenses of the service
personnel belong to the customer. The shift fee during transportation
is added to the service fee and collected in advance.
4-The maintenance of devices and apparatuses are done in our
company. For the maintenance of the devices and apparatuses, the
round travel fares belongs to the customer.
5-In case of malfunctioning of the devices and apparatuses whose
warranty period continues, it is tested in our company whether the
malfunction is caused by a customer or manufacturer fault, and it is
reported with a report issued by our company.
6-In case of detection of manufacturer-induced errors of devices and

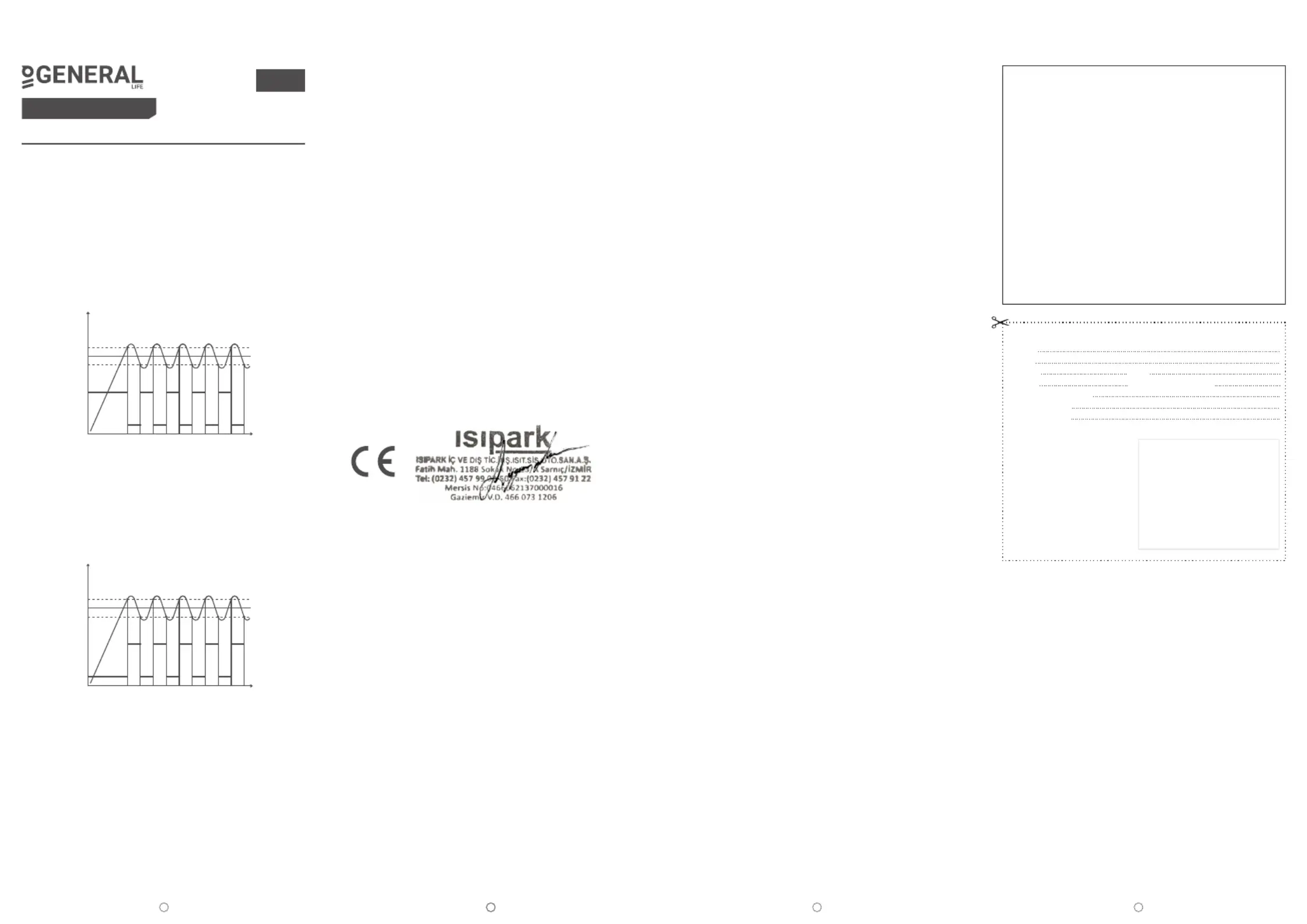

FAN COIL THERMOSTAT WORKING LOGIC
Heating Mode
Your Fan Coil Thermostat measures the temperature of its
environment every 5 seconds. If the ambient temperature rises 0.5
degrees above the temperature you have set, your Fan Coil
Thermostat will stop the operation of fan coil unit, if it falls below 0.5
degrees, it initiates the operation of fan coil unit. Thus, it ensures that
the ambient temperature remains within a certain range.
Cooling Mode
Your Fan Coil Thermostat measures the temperature of its
environment every 5 seconds. If the ambient temperature rises 0.5
degrees above the temperature you set, your Fan Coil Thermostat will
initiate the operation of fan coil unit, if it falls below 0,5 degrees,it
stops the operation of fan coil unit. Thus, it ensures that the ambient
temperature remains within a certain range.
Time
Heating
Unit Off
Heating
Unit On
Set
Temperature
Room
Temperature
o
22.0 C
o
22.5 C
o
21.5 C
: GENERAL Life
: FC100
: Digital Fan Coil Thermostat
apparatuses whose warranty period continues, the customer can
request a replacement or repair of the devices and apparatuses at full
expense by the manufacturer, unless it's higher than the product's
price
7-In the event that the faults of the devices and apparatuses whose
warranty period continues are determined as caused by the customer,
all expenses would be belong to the customer.
8-Customers should be aware of damages (if there is any) of product
and warn manufacturer since the day warranty duration starts.If
customer do not warn manufacturer with knowledge of damage,
customer lose the rights of article 6.
9-Malfunctions resulting from the use of devices and apparatuses
contrary to the matters stated in the User Manual are not covered by
the warranty.
10-Devices and their apparatuses are out of warranty if they are
beaten, broken or scratched by the customer.
11-Damages resulting from the use of devices and apparatuses
belonging to other brands and models without the approval of the
manufacturer are not covered by the warranty.
12-Errors that may occur due to rust, oxidation and liquid contact
working in acidic / humid environments are not covered by the
warranty.
13-Damages that may occur during the transportation of devices and
apparatuses are not covered by the warranty. Customers can take a
transportation insurance.
14-Damages caused by mains voltage / faulty electrical installation
are not covered by the warranty.
15-Devices and apparatuses are out of warranty for malfunctions
caused by force majeure such as fire, flood, earthquake etc.
16-All of the devices and apparatuses, including all their parts, are
under the warranty of our company.
17-In case of malfunction of the devices and apparatuses within the
warranty period, the time spent during repairment period is added to
the warranty period. The repair period of the product cannot exceed
20 working days. This period starts from the date of notification to the
service station of the malfunction related to the product or, in the
absence of a service station, to the seller, dealer, agency,
representative, importer or manufacturer of the product. Consumer
can report the problem by; phone, fax, e-mail, registered and reply paid
letter or a similar way. However,in case of a conflict , responsibility of
prove is belong to the customer. If the malfunction of the product is
not repaired within 20 working days, the manufacturer-producer or
importer; has to allocate another product with similar features to the
use of the consumer until the repair of the product is completed,
18- Although the consumer uses his/her repair rights,
-If the product breaks down for 4 times in a year or 6 times in warranty
duration and these problems effects main purpose of the product.
(starting from delivery time during warranty.)
- Exceeding the maximum time required for repair,
- In the event that the service station is not available, if it is determined
that the repair of the defect is not possible with the report prepared (in
order) by one of the seller, dealer, agency, representative, importer or
manufacturer, a refund or a price discount at the rate of defect can be
requested.
19-The customer can make complaints and appeals to consumer
courts or consumer arbitration committees.
20-The warranty document must be kept by the customer during the
warranty period. If the document is lost, a second document will not
be issued. In case of loss, repair and replacement of devices and
apparatuses will be made for a fee.
4 55 6 7
ISIPARK reserves the rights of changing product specifications and
user manuals.
*For all changes, you may visit generallife.com.tr
WARRANTY CERTIFICATE
Vendor
Title:
Adress:
Tel: Fax:
E-Mail: Invoice Date and Number:
Delivery Time and Place:
Authorised Signatory:
Company Stamp:
Product
Type: Digital Fan Coil Thermostat
Brand: GENERAL Life
Model: FC100
STAMP
Time
Cooling
Unit Off
Cooling
Unit On
Set
Temperature
Room
Temperature
o
22.0 C
o
22.5 C
o
21.5 C
ENGLISH
FC100 USER MANUAL
generallife.com.tr
DIGITAL FAN COIL THERMOSTAT
Manufacturer
Title: ISIPARK İÇ DIŞ TİC. A.Ş.
Adress: Fatih Mah. 1188 Sk. No:13/A Sarnıç
Gaziemir İzmir-TÜRKİYE
Tel: +90 (232) 457 99 50
Fax: +90 (232) 457 91 22
E-mail: generallife@generallife.com.tr
Authorised Signatory:
Company Stamp:
Product
Type: Digital Fan Coil Thermostat
Brand: GENERAL Life
Model: FC100
Guarantee Period: 5 Years
Max. Time to Repair: 20 Days
Banderole and Serial Number:
V-01.2021
Produktspezifikationen
| Marke: | GENERAL Life |
| Kategorie: | Thermostat |
| Modell: | FC220 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit GENERAL Life FC220 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Thermostat GENERAL Life
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
5 September 2024
Bedienungsanleitung Thermostat
- Thermostat Basetech
- Thermostat Hama
- Thermostat Nedis
- Thermostat SilverCrest
- Thermostat Panasonic
- Thermostat Cotech
- Thermostat Bosch
- Thermostat AEG
- Thermostat Siemens
- Thermostat ATAG
- Thermostat Taurus
- Thermostat Velleman
- Thermostat Devolo
- Thermostat Alecto
- Thermostat Conrad
- Thermostat EMOS
- Thermostat Gira
- Thermostat HomeMatic
- Thermostat Renkforce
- Thermostat Technoline
- Thermostat TFA
- Thermostat Schneider
- Thermostat Corberó
- Thermostat GE
- Thermostat King
- Thermostat Avidsen
- Thermostat Elro
- Thermostat Tesla
- Thermostat Max
- Thermostat Perel
- Thermostat Nexa
- Thermostat Vasco
- Thermostat Fenix
- Thermostat Westfalia
- Thermostat Vaillant
- Thermostat Honeywell
- Thermostat Remko
- Thermostat Junkers
- Thermostat RADEMACHER
- Thermostat AVM
- Thermostat ELV
- Thermostat TP-Link
- Thermostat Zehnder
- Thermostat Lux
- Thermostat De Dietrich
- Thermostat Netatmo
- Thermostat Theben
- Thermostat Tado
- Thermostat Remeha
- Thermostat Saunier Duval
- Thermostat Stiebel Eltron
- Thermostat Truma
- Thermostat Viessmann
- Thermostat Xavax
- Thermostat Hager
- Thermostat Dimplex
- Thermostat Buderus
- Thermostat Noma
- Thermostat JUNG
- Thermostat Boneco
- Thermostat Hunter
- Thermostat Baxi
- Thermostat Wolf
- Thermostat Nest
- Thermostat Magnum
- Thermostat HQ
- Thermostat Itho Daalderop
- Thermostat Carrier
- Thermostat Tylö
- Thermostat Busch-Jaeger
- Thermostat SPC
- Thermostat Gree
- Thermostat Sygonix
- Thermostat Orbis
- Thermostat Econo-heat
- Thermostat EQ-3
- Thermostat RWE
- Thermostat Eberle
- Thermostat BTicino
- Thermostat Bulex
- Thermostat Danfoss
- Thermostat Delta Dore
- Thermostat Fantini Cosmi
- Thermostat Grässlin
- Thermostat Heimeier
- Thermostat IMIT
- Thermostat Klafs
- Thermostat Oventrop
- Thermostat Salus
- Thermostat Seitron
- Thermostat EVE
- Thermostat Ariston Thermo
- Thermostat Elektrobock
- Thermostat Intertechno
- Thermostat Mikoterm
- Thermostat Ferroli
- Thermostat Carel
- Thermostat Daikin
- Thermostat Vemer
- Thermostat EnerGenie
- Thermostat Oregon Scientific
- Thermostat Finder
- Thermostat Homematic IP
- Thermostat Levoit
- Thermostat EQ3
- Thermostat Google
- Thermostat Somfy
- Thermostat Elgato
- Thermostat Elco
- Thermostat Devi
- Thermostat Drayton
- Thermostat Drayton Erie
- Thermostat Easy Timer
- Thermostat EasyTemp
- Thermostat Eliwell
- Thermostat Emerson
- Thermostat Emmeti
- Thermostat Enda
- Thermostat Eneco
- Thermostat Eqiva
- Thermostat Essent
- Thermostat Etherma
- Thermostat Eurotronic
- Thermostat Extraflame
- Thermostat Frico
- Thermostat Go Green
- Thermostat Helios (Amfra)
- Thermostat Hornbach
- Thermostat Hugo Muller
- Thermostat ICY
- Thermostat IR-V
- Thermostat Itho
- Thermostat Johnson Control
- Thermostat Landis Gyr
- Thermostat Levica
- Thermostat Lowes
- Thermostat Muller
- Thermostat Nefit
- Thermostat Niko
- Thermostat Nobo
- Thermostat OJ ELECTRONICS
- Thermostat Otio
- Thermostat Plieger
- Thermostat Plugwise
- Thermostat Radson
- Thermostat THERMAFLEX
- Thermostat Thermy
- Thermostat ACV
- Thermostat Hive
- Thermostat UPM
- Thermostat VDH
- Thermostat Wachendorff
- Thermostat Watts
- Thermostat Webasto
- Thermostat Weishaupt
- Thermostat Worcester-Bosch
- Thermostat Yokis
- Thermostat Z-Wave
- Thermostat Vimar
- Thermostat TrickleStar
- Thermostat Horstmann
- Thermostat Computherm
- Thermostat Heatit
- Thermostat POER
- Thermostat H-Tronic
- Thermostat PECO
- Thermostat Chacon
- Thermostat Emko
- Thermostat Fibaro
- Thermostat Heatmiser
- Thermostat Crestron
- Thermostat ORNO
- Thermostat Optima
- Thermostat HomePilot
- Thermostat Krone
- Thermostat ChiliTec
- Thermostat Arnold Rak
- Thermostat Ouellet
- Thermostat Jumo
- Thermostat Wallair
- Thermostat Maico
- Thermostat Ecobee
- Thermostat Tellur
- Thermostat STI
- Thermostat Cepra
- Thermostat Tru Components
- Thermostat Qubino
- Thermostat Gewiss
- Thermostat Warmup
- Thermostat Sinustec
- Thermostat Rose LM
- Thermostat Agpo Ferroli
- Thermostat Amfra
- Thermostat Aube
- Thermostat AWB
- Thermostat Wattio
- Thermostat Brink
- Thermostat 2Heat
- Thermostat Bryant
- Thermostat Veria
- Thermostat Innogy
- Thermostat ELKO
- Thermostat MundoControl
- Thermostat Bearware
- Thermostat Oreg
Neueste Bedienungsanleitung für -Kategorien-
16 Oktober 2024
7 Oktober 2024
5 Oktober 2024
5 Oktober 2024
5 Oktober 2024
5 Oktober 2024
4 Oktober 2024
3 Oktober 2024
2 Oktober 2024
2 Oktober 2024
