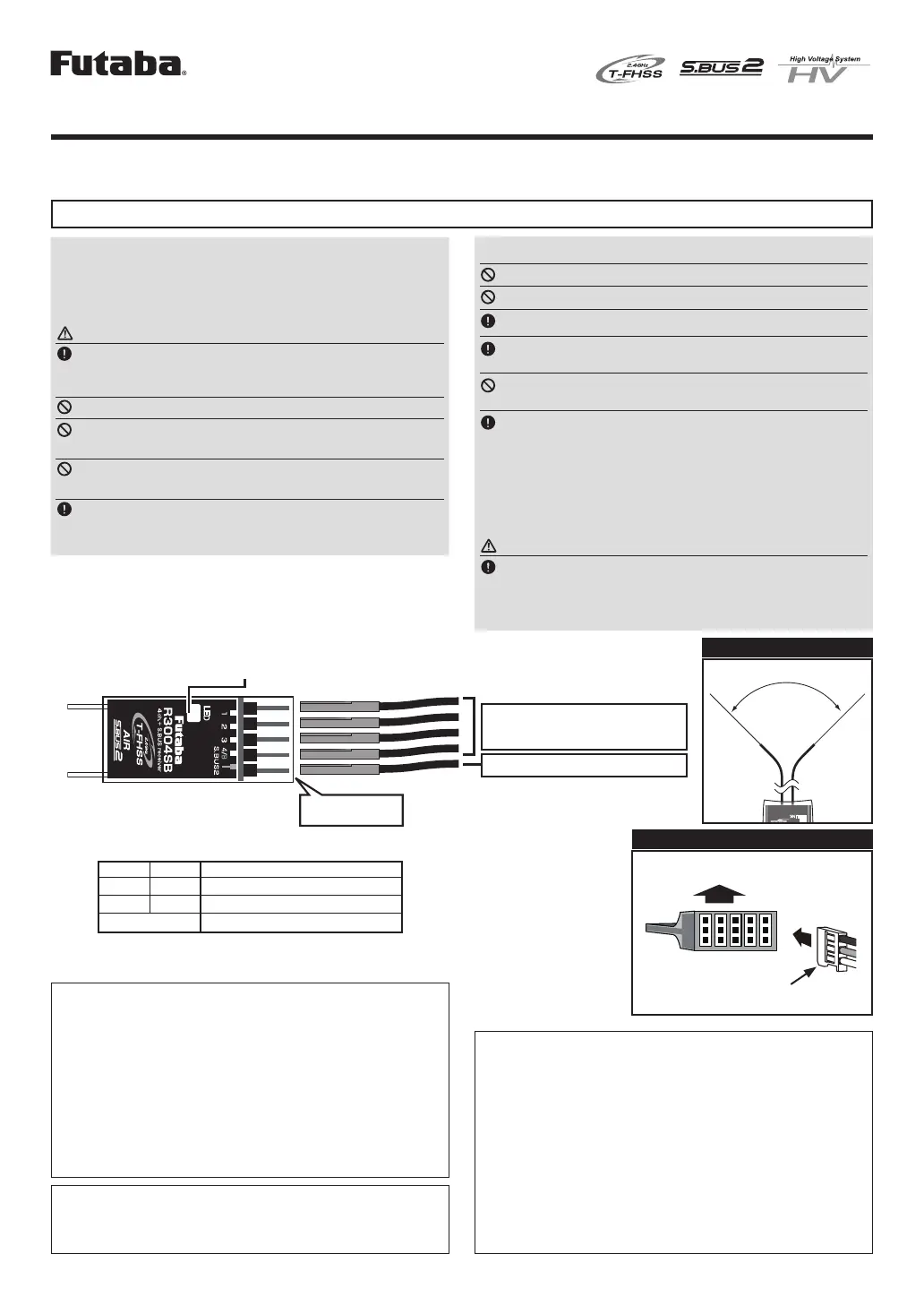

Applicable systems: Futaba T-FHSS Air 2.4GHz system

LED Indication

Green Red Status

Off Solid No signal reception

Solid Off Receiving signals

Alternate blink Unrecoverable error (Memory, etc.)

Antenna installation precaution

Do not cut or bundle the receiver antenna wire.

Do not bend the coaxial cable. It causes damage.

The antenna should not be pulled.

Keep the antenna as far away from the motor, ESC

and other noise sources as you possibly can.

Do not touch the antenna to metal, carbon, or other

conductive material.

Be sure that the two antennas are placed at 90 de-

grees to each other.

• The R3004SB has two antennas. In order to maximize signal recep-

tion and promote safe modeling Futaba has adopted a diversity an-

tenna system. This allows the receiver to obtain RF signals on both

antennas and ﬂy problem-free.

Antenna installation for carbon fuse

WARNING

The antenna portion of 30mm tip must be fully ex-

posed.

• Please make sure that the exposed portion won't slide back in the

fuse due to wind pressure or other force during the ﬂight session.

Usage precaution

• Futaba T-FHSS Air system does not work with current Futaba

FASST/FASSTest/S-FHSS/T-FHSS Car system. Futaba FASST/

FASSTest/S-FHSS/T-FHSS Car system and T-FHSS Air system

are not compatible to each other.

WARNING

Wrap the receiver with something soft, such as foam

rubber, to avoid vibration. Moreover, the receiver must

not get wet.

Do not short-circuit the connectors.

Do not expose the receiver to high temperatures.

• The shrink cover could become distorted.

Do not break the tube.

• Could cause a short circuit.

When inserting and removing a connector, hold the

receiver tightly.

• Be careful so that a tube doesn't come off.

Please refer the table below for

LED status vs receiver's condition.

1M23N34102

R3004SB

Antenna

S.BUS2 Port

CH1-CH4 output

conventional system Port

LED

S.BUS2 equipment

Direction of the connectors

90˚

Antenna installation

R3004SB T-FHSS Air 2.4GHz System

S.BUS2 port and 4 channels for conventional system

Small size, Light weight Receiver

Thank you for purchasing a Futaba R3004SB T-FHSS Air-2.4GHz compatible receiver. The R3004SB receiver features bi-

directional communication with a T-FHSS Air-2.4GHz Futaba transmitter using the port. Using the port an S.BUS2 S.BUS2

impressive array of telemetry sensors may be utilized.

The receiver power

supply can be

connected to any port.

Receiver

Tags are downwards

Upper Side (Label)

Declaration of Conformity (for EU)

Hereby, Futaba Corporation declares that the radio equipment type is R3004SB in compli-

ance with Directive 2014/53/EU. The full text of the EU declaration of conformity is avail-

able at the following internet address:

http://www.rc.futaba.co.jp/english/dl/declarations.html

Compliance Information Statement (for Canada)

This device complies with Industr y Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired

operation of the device. This equipment complies with IC radiation exposure limits set

forth for an uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

French: Cet appa reil radio est conforme au CNR-210 d’Indust rie Canada. L’utilisation

de ce disp ositifest aut ori sée seu lement aux deux co nditions suivante s : (1) il ne doit

pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout

brouillage radioélectrique reçu, même sice brouillage est susceptible de compromettre le

fonctionnement du dispositif. Cet équipement est conforme aux limites d’exposition aux

rayonnements IC établies pour un environnement non contrôlé.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un mini-

mum de 20 cm de distance entre la source de rayonnement et votre corps.

Compliance Information Statement (for U.S.A.)

This device, trade name Futaba Corporation, model number R3004SB, complies with

part15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

CAUTION: To assure continued FCC compliance

1. Any changes or modications not expressly approved by the grantee of this device

could void the user's authority to operate the equipment.

2. This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between

the radiator & your body.

The responsible party of this device compliance is:

Futaba Service Center

3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.

TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)

WARNING

Do not insert or remove the S.BUS2 connector while

the receiver power is ON.

Since the S.BUS2 servo switches the operation mode automatically

according to the type of signal (S.BUS2 signal/PWM signal) from the re-

ceiver, if the connector is inserted or removed while the power is ON, an

S.BUS2 connected servo will be erroneously recognized and may stop.

WARNING

Turn on the power on transmitter receiver in order. →

In addition, always check the operation of all the func-

tions before ﬂight.

e.g. Telemetry system

What is S.BUS2?

Different from conventional radio control systems, the

S.BUS2 system uses data communication to transmit control

signals from a receiver to a servo, gyro, or other S.BUS2

compatible devices. This data includes commands such as

“move the channel 3 servo to 15 degrees, move the channel 5

servo to 30 degrees” to multiple devices. The devices S.BUS2

execute only those commands for their own set channel. For

this reason, it can be used by connecting multiple servos to

the same signal line. devices can not be connected to S.BUS

S.BUS2 port.

Futaba Telemetry Sensor

HUB

Power supply

Battery

CH4

CH3

CH1

CH2

R3004SB Specications

T-FHSS Air 2.4GHz system/S.BUS2 port and 4 channels for

conventional system receiver

• Dual antenna diversity

• Size: 0.71 x 1.63 x 0.39 in. (18.0 x 41.4 x 9.9 mm)

• Weight: 0.17 oz. (4.8g)

• Power requirement: 4.8V to 7.4V

• Battery F/S Voltage: It sets up with a transmitter

• Frequency band: 2.4GHz band

• RF power output: 25mW EIRP

* Be sure that when using ESC's regulated output the current capac-

ity of the ESC meets your usage condition.

* S.BUS2 port: R3004SB can be used with up to 18 channels. How-

ever, it differs according to the transmitter. An unused channel is

a neutral signal. The F/S setting channel at F/S is F/S position

Another, it is Hold signal.

Link to the transmitter

Easy Link ID allows T-FHSS Air receivers to link to

compatible transmitter without pressing the link button on the

receiver.

1 Bring the transmitter and the receiver close to each

other, within 20 inches (half meter).

2 Turn on the transmitter. Place the transmitter into the

receiver linking mode.

3 Turn on the receiver.

4 The receiver will wait for the linking process to begin

for 3 seconds. Following that it will retur n to the

normal operation mode.

5 When the LED of the receiver changes from blinking

red to solid green, linking is completed.

(A link waiting state is ended in 3 second.)

* Refer to the transmitters operation manual for complete details on how

to place the transmitter into the linking mode.

WARNING

Do not perform the linking procedure while the mo-

tor's main wire connected or the engine is operating as it

may result in serious injury.

When the linking is complete, please cycle the receiv-

er power and ensure the receiver is properly linked to the

transmitter.

Please power up your system in this order. Transmit-

ter ﬁrst, followed by the receiver.

If the R3004SB receiver was previously linked to an-

other transmitter, make sure that transmitter is not oper-

ating while linking the receiver to the new transmitter.

* If there are many T-FHSS Air systems turned on in close proximity,

your receiver might have difﬁculty establishing a link to your transmit-

ter. This is a rare occurrence. However, should another T-FHSS Air

transmitter/receiver be linking at the same time, your receiver could

link to the wrong transmitter. This is very dangerous if you do not no-

tice this situation. In order to avoid the problem,we strongly recom-

mend you to double check whether your receiver is really under con-

trol by your transmitter.

* If the System Type of the transmitter is changed, the receiver will need

to be re-linked to the transmitter.

* Link is required when a new model is made from a model selection.

Battery

S.BUS2 Port

CH1-4：

Conventional Ports

R3004SB

Receiver

Hub

●Can also be used together with conventional servo.

S.BUS2

Servo

S.BUS2

Servo

S.BUS2

Servo

Conve-

ntional

Servo

Connection

by S.BUS2

system

Transmitter

with S.BUS

setting

S.BUS servo CH setting device

SBC-1 CIU-2/3or or

Drivers and Link programs

＂S-Link＂ must be installed.

(1-4 channels)

FUTABA CORPORATION

oak kandakajicho 8F 3-4 Kandakajicho, Chiyoda-ku, Tokyo 101-0045, Japan

TEL: +81-3-4316-4820, FAX: +81-3-4316-4823
