INSTALLATION AND USE

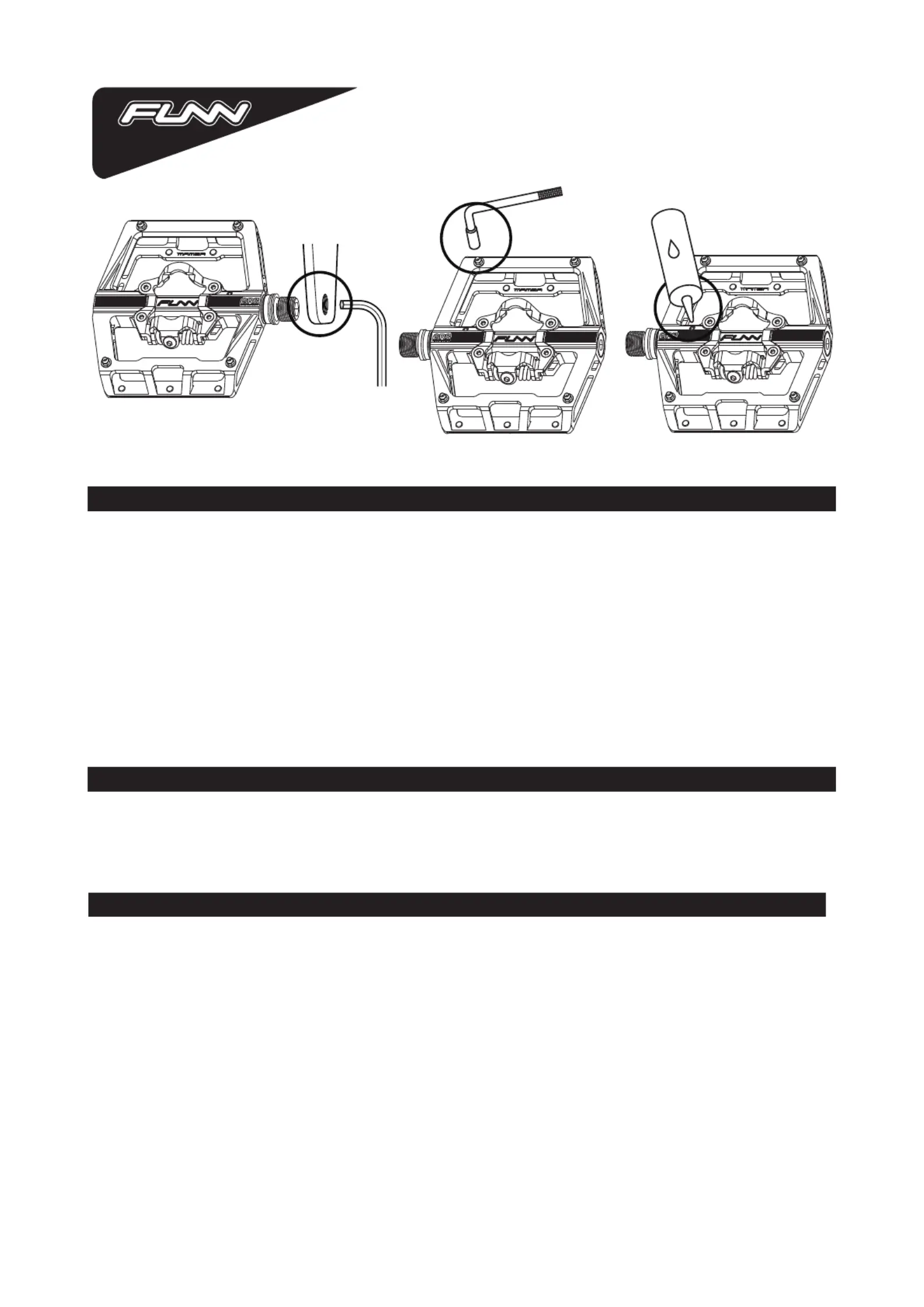

Pedals have 9/16" x 20T threaded axles. The right pedal is installed in a clockwise
direction. The left pedal is installed in a counter-clockwise direction.
1.Lightly lubricate axle threads with grease or oil.
2.Thread axle into the crank hole with your fingers. From the other side of the crank,
insert 8 mm Allen key into the recess of the axle. Screw pedal axles onto crank
arms.
3.Tighten to 34 Nm (300 lb-in) torque and avoid excessive force.
ATTACH PEDALS TO CRANKS
GRIP PINS
You can remove the pins on the pedals to fine tune the grip. Damaged or worn grip
pins can be replaced using 4 mm socket wrench.
8mm Hex Key
MAMBA features the GRS system for easily lubricating the bushing .
1.Use 2mm Allen key to remove the GRS screw.
2.Lubricate the bushing with a synergy and wipe of the excessive oil.
3.Tighten the screw back on to seal the GRS port.
GRS SYSTEM
SHOE/PEDAL USE

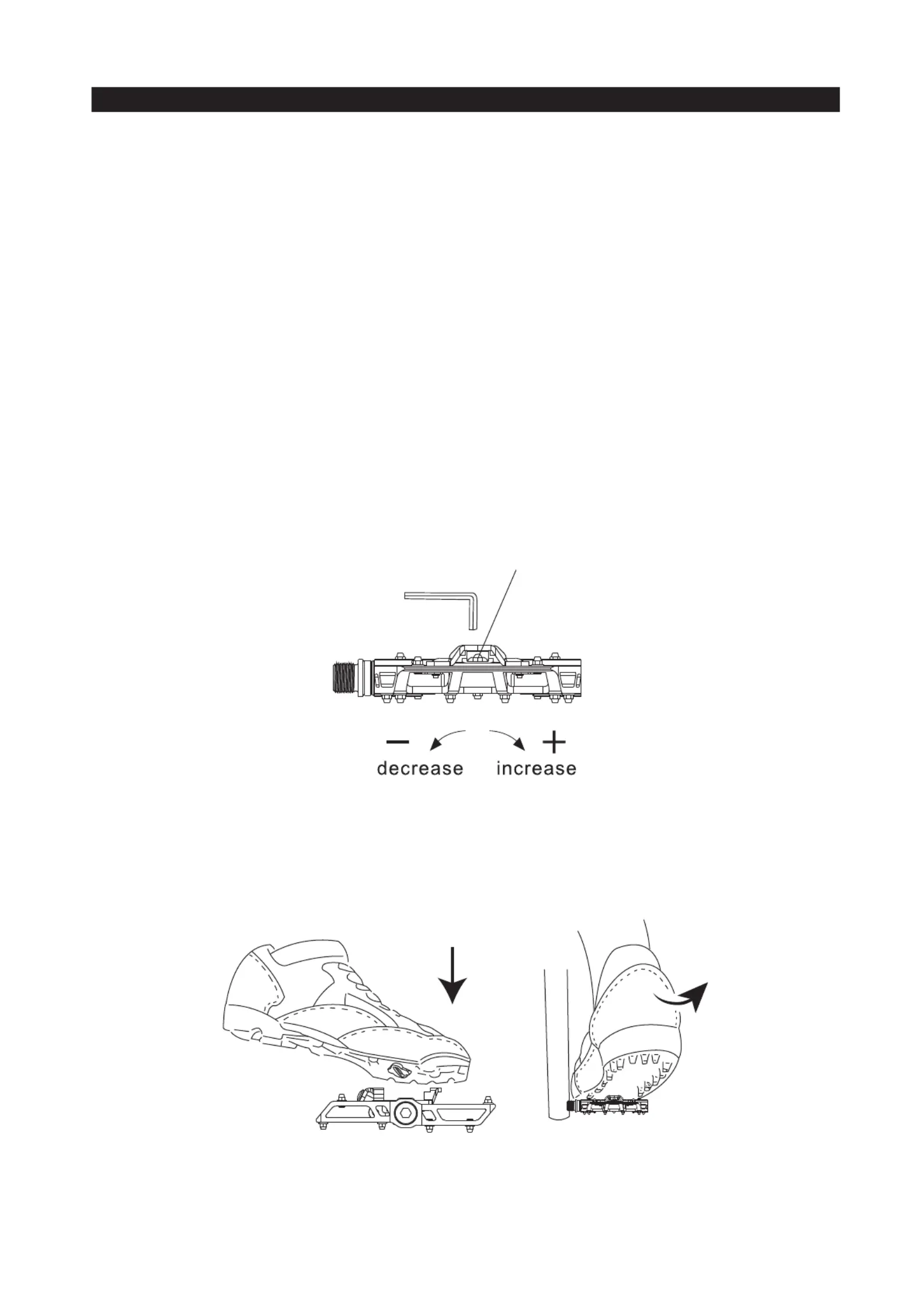

The tension adjuster is located on the rear binding. To adjust binding tension, use a
3 mm Allen key to turn tension adjuster.
1.Increase tension in a clockwise direction
(+) (for a more secure shoe/pedal bind, but more difficult engagement and
disengagement).
2.Decrease tension in a counter-clockwise direction
(-) (for less secure shoe/pedal bind, but easier engagement and disengagement).
Engage cleated shoes in pedals by aligning the cleat between front and rear
bindings while pushing down. Disengage by twisting heel outwards (away from
bicycle). Cleat will also release by twisting heel inwards if necessary (for emergency
situations only).
Binding adjustment range
8-14 Nm(69–121 lb-in)
Adjustable
rear binding
tension
3mm Hex Key

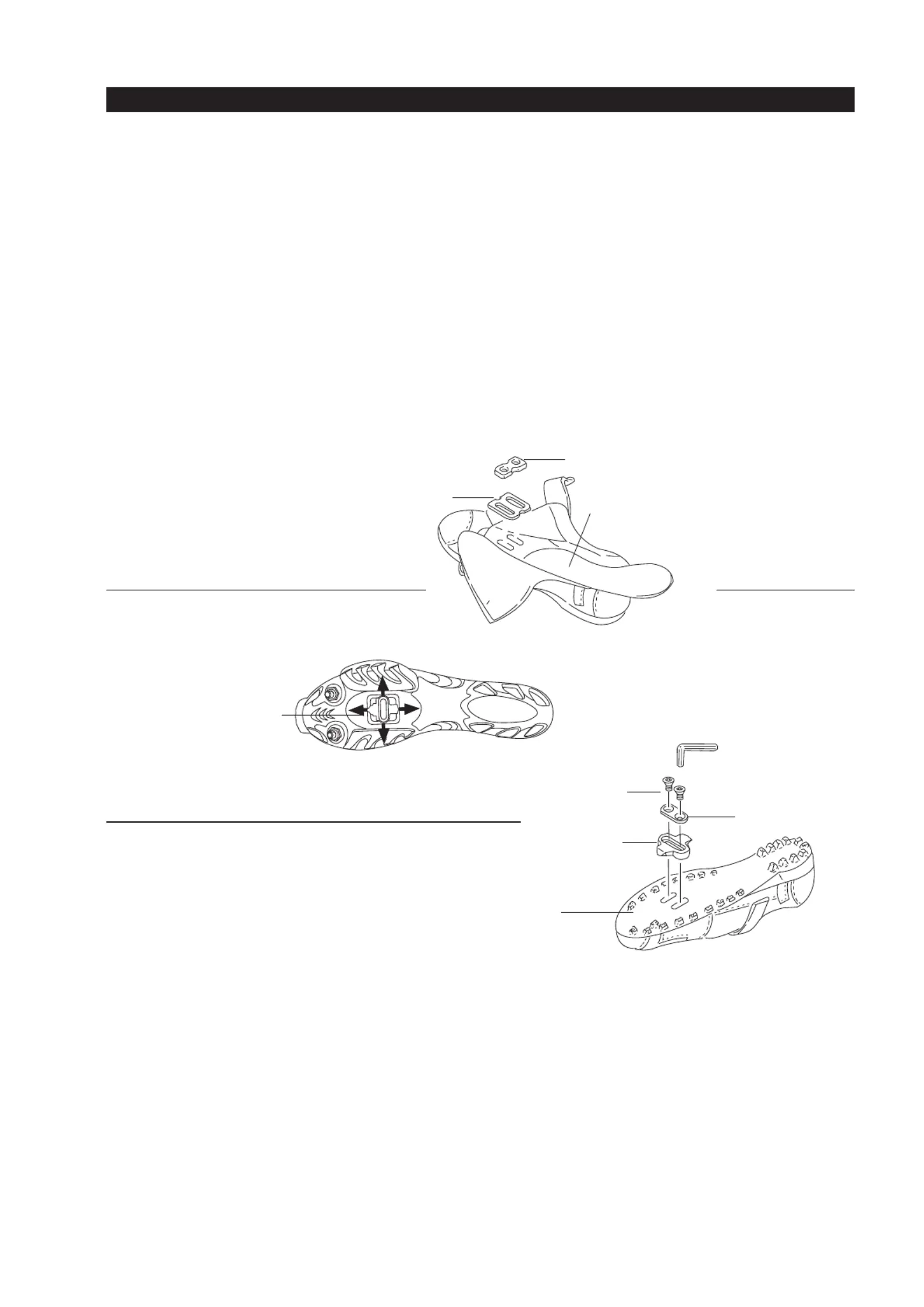

ATTACH CLEATS TO CYCLING SHOES
Left and right cleats are identical.
1.Lightly lubricate cleat bolt threads with oil.
2.Using the 4 mm Allen key to attach cleat bolts and cleat washers loosely to shoe
soles. The lateral center line of the cleat should be aligned with the center of the
ball of the shoe sole. Adjust vertically via slots in shoe sole. Adjust horizontally via
play between cleat washer and cleat.
3.Tighten the cleat to 5-8 Nm (44–70 lb-in) and avoid excessive force. Cleat position
can be fine-tuned to preference after trial rides. It may take several rides to find
your optimum cleat set-up.
Tightening torque
5-8 Nm(43–69 lb-in)
Insole
Flat nut
Insole
washer
Adjust cleat vertically
and horizontally 4 mm Allen key
Cleat
Cleat bolts
Cleat washers
( Remove rubber sole cover )
