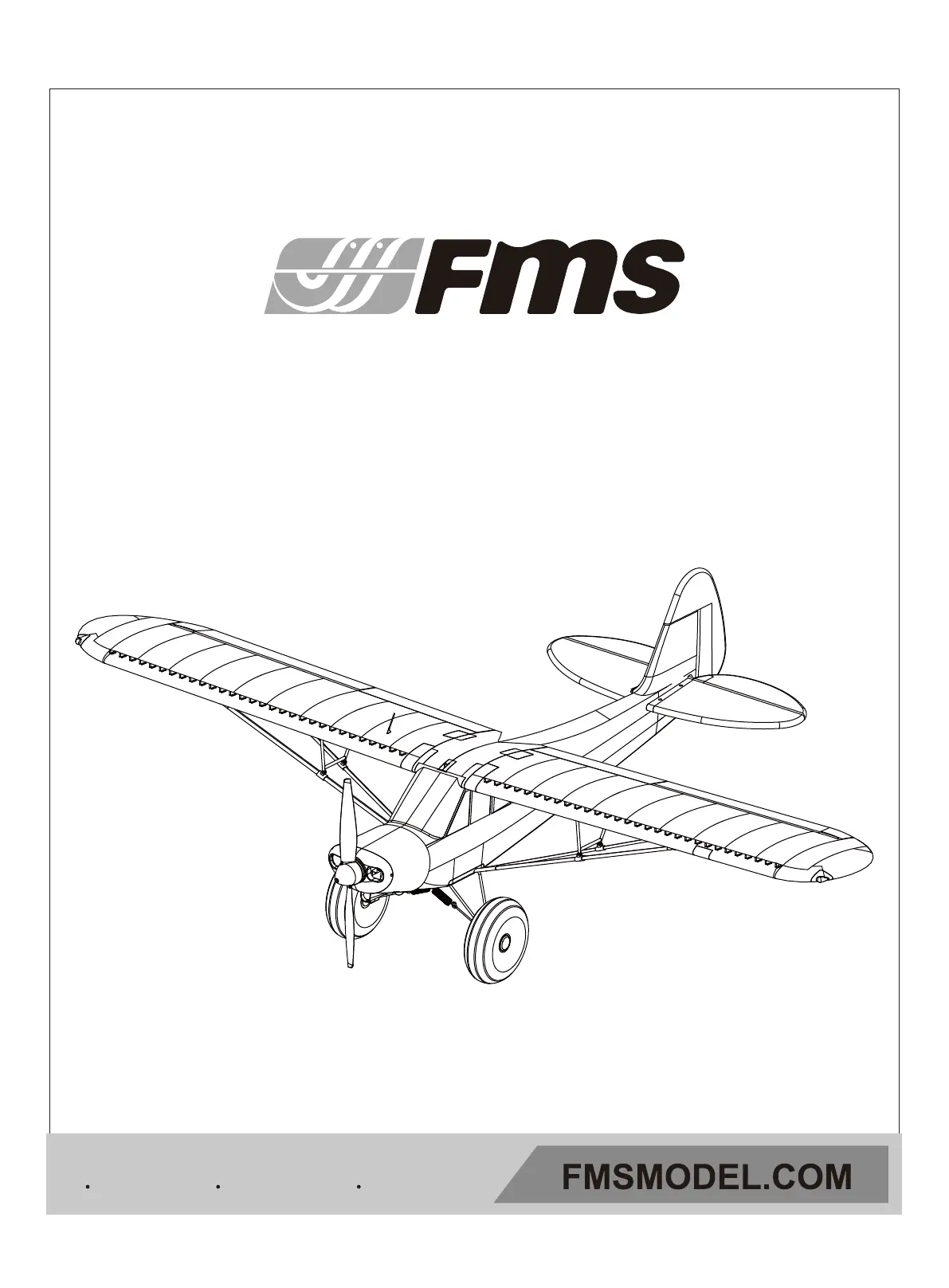

Seite 1/48
FLOAT
Optional float
RIGID
Strong durable EPO
STABLE
Smooth flying performance
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product,personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so
could result in injury or damage to the product or other property. This product is not intended for use by children without direct
adult supervision.
This manual contains instructions for safety operation and maintenance. It is essential to read and follow all the instructions and
warnings in the manual prior to assembly, setup or use, in order to operate and avoid damage or serious injury.
WARNING
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or
result in damage to the product or the property of others. This model is controlled by a radio signal subject to interference from
many sources outside your control. This interference can cause momentary loss of control so it is advisable to always keep a
safe distance in all directions around your model, as this margin will help avoid collisions or injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
·Never operate your model with low transmitter batteries.
·Always operate your model in an open area away from cars, traffic or people.
·Avoid operating your model in the street where injury or damage can occur.
·Never operate the model in populated areas for any reason.
·Carefully follow the directions and warnings for this and any optional support equipment you use (chargers,rechargeable
battery packs, etc.)
·Keep all chemicals, small parts and anything electrical out of the reach of children.
·Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this
purpose.
·Never lick or any place of any your model in your mouth as it could cause serious injury or even death.
Lithium Polymer (Li-Po) Battery Warning
CAUTION: Always follow the manufacturer’s instructions for safe use and disposal of batteries. Fire, property
damage, or serious injury can result from the mishandling of Li-Po batteries.
By handling, charging or using a Li-Po Battery you assume all risks associated with lithium batteries.
If at any time the batteries begin to swell or balloon, discontinue use immediately!
Always store the batteries at room temperature in a dry area to extend the life of the battery. Always transport
or temporarily store the battery in a temperature range of 40-120F. Do not store the battery or model in a car or in direct sunlight.
If stored in a hot car, the battery can be damaged or even catch fire.
Never use a Ni-Mh Charger to charge Li-Po Batteries. Failure to charge the battery with a Li-Po compatible charger
may cause fire resulting in personal injury and property damage.
Never discharge Li-Po Cells below 3V.
Never leave charging batteries unattended.
Never charge damaged batteries.
Charging the Flight Battery Warning
Use a battery charger that is designed to safely charge the Li-Po Battery. Read the charger instructions care
fully before use. When charging the battery, make certain the battery is on a heat resistant surface. It is also highly
recommended to place the Li-Po Battery inside a fire resistant charging bag readily available at hobby shops or
online.
p w
3
Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or
part number (refer to the spare parts list near the end of the
manual) then contact your local shop or email us: support
Kit contents
A: Fuselage
B: Main wing
C: tHorizon al stabilizer
D: Landing gear H: Wing/ Horizontal Stabilizer spar
I:F ts loa and accessoriesE: Propeller
F: Sc s rew and pushrods
G: Antenna
Introduction
Kit contents
Model assembly
Battery installation
Receiver diagram
Preflight check
Clevis installation
Control horn and servo arm settings
Center of gravity(CG)
Before flying the model
Flying course
Troubleshooting
Spare parts list content
Table of contents
·····························································
·····
3
·························································3
·······················································4
············································· ········ 7
·········································
··
········ 8
··································
·····
·····
·····
·····
8
····················································10
··························
·················
10
··············································· 10
··············································11
···························································11
······················································12
············································12
Introduction
The Piper PA-18 Super Cub is a two-seat, single-engine
monoplane. It was developed from the Piper PA-11. In close to
40 years of production, over 9,000 were built. Super Cubs are
commonly found in roles such as bush flying, banner towing and
glider towing.
As a relative of the popular 1400mm J-3 Cub, the 1700mm
PA-18 Super Cub retains great flight characteristics while
offering increased power and wingspan.
Thanks to its functional flaps, high-lift airfoil, rugged landing
gear and oversized balloon tires- the 1700mm PA-18 Super Cub
has impressive short take-off and landing (STOL) performance,
allowing it to operate from just about any terrain.
Utilizing the latest FMS hardware and design, the 1700mm
PA-18 Super Cub has pre-installed ball-link type pushrods,
integrated servo connectors in the wing structure and can be
assembled very easily using no glue at all.
For pilots wanting to get the genuine bush-plane experience, the
PA-18 Super Cub can be equipped with floats.
Versatile, fun and exceptionally relaxing to fly- the 1700mm
PA-18 Super Cub is a great addition to any fleet!
Wingspan: 1700mm(66.9in)
Overall length: 1136mm(44.7in)
Flying weight: ~ 2100g
Motor size: 3541-KV750
Wing load: 50g/dm²(0.11oz/in²)
Wing area: 42dm²(651sq.in)
ESC: 45A
Servo: 17g Servo x 6
Recommended battery: 14.8V 2200-2600mAh 35C
Specifications
@fmsmodel.com.
Features:
• Powerful 3541- KV750 Outrunner motor with Predator 45A
ESC provides adequate thrust for any situation
• CNC metal landing gear structure for less-than-perfect landings
• 6.25-inch oversized balloon tires for all-terrain operations
• STOL capable (Takes off in less than 3m/10ft)
• Pre-installed navigation and landing lights
• Two-piece wing and horizontal stabilizer for easy transportation
• Integrated servo connectors
• Screw-together assembly
• Large battery bay
• Ball-linked pushrods for increased precision
• Tough two bladed Nylon propellers
• Functional flaps
• Optional floats and stainless-steel wing struts
A.
B. C.
F.
G. H.
D. E.
I.
