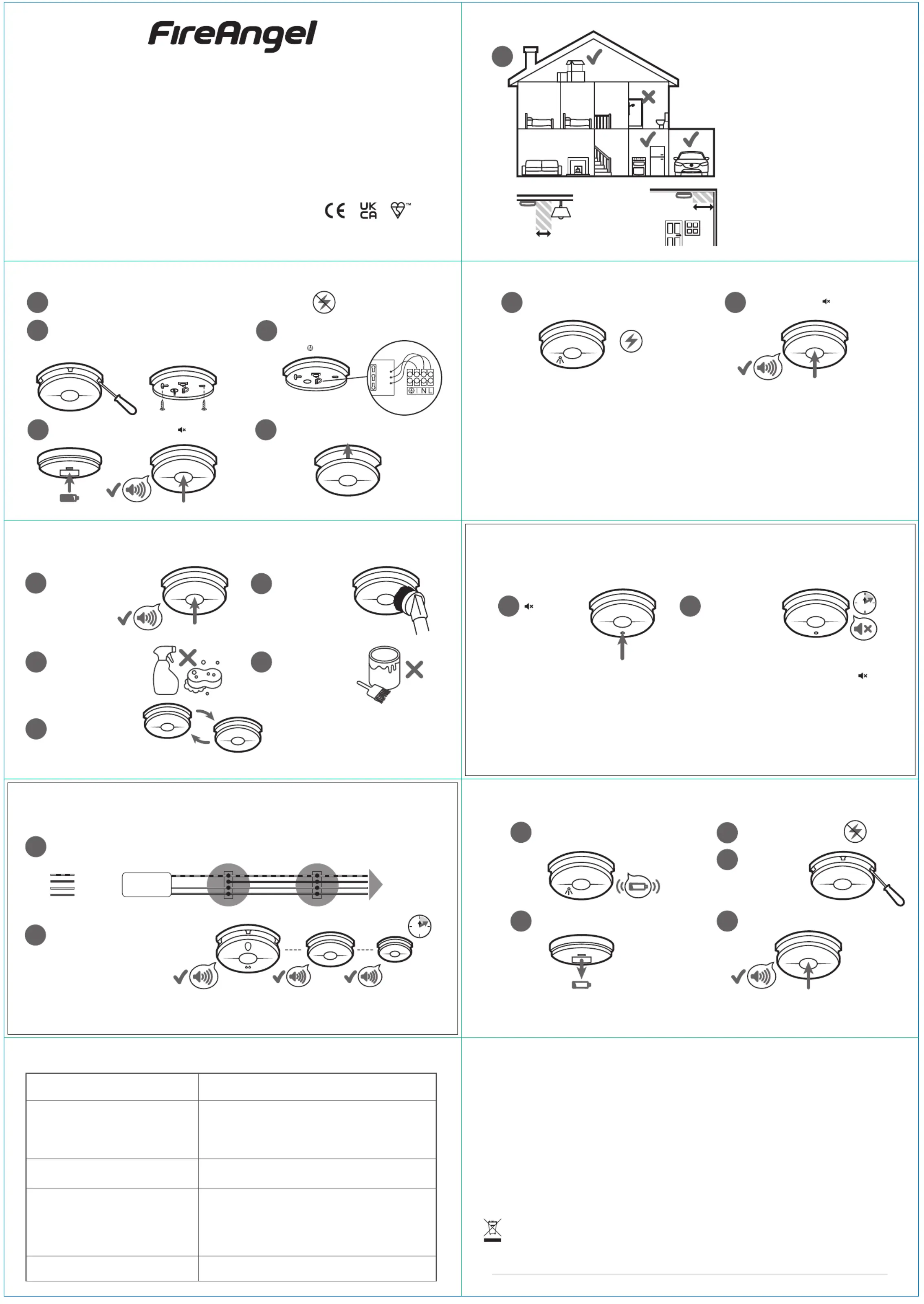

300mm

1. POSITIONING

Your heat alarm is suitable for the kitchen,

garage and loft.

Heat alarms should be sited at least 300mm

from light fittings and walls. Ideally as central

as possible in the room. Do not install heat

alarms on a wall.

Install your heat alarm at a distance no

greater than 5.3m from the farthest wall, no

greater than 5.3m from a door to any room in

which a fire might start and no greater than

5.3m from the next heat or smoke alarm.

If there is fluorescent lighting, heat alarms

should be installed at least 1500mm from

these fittings and wiring. Keep any wiring at

least 1000mm from fluorescent lighting.

Do not use circuits containing fluorescent

light fittings or dimmer switches.

If there is fluorescent lighting, heat alarms

should be installed at least 1500mm from

these fittings and wiring. Keep any wiring at

least 1000mm from fluorescent lighting.

Do not use circuits containing fluorescent

light fittings or dimmer switches.

Locations of alarms must be compliant with

either BS 5839: Part 6 or relevant Building

Regulations if in any doubt.

3. MAINTENANCE

3a Test the alarm every month.

Press the test button for 5

seconds. The alarm will sound.

3b Vacuum your alarm

every 3 months.

5a For multiple alarm installations use a ‘three core and earth’ style cable between all the alarms to be interconnected.

Connect the interconnect cable between each alarm’s 'I' terminal.

5b Test each alarm and ensure every connected alarm

sounds within 10 seconds.

3c Do not use cleaners or solvents. 3d Do not paint the alarm.

TROUBLESHOOTING GUIDE WARRANTY AND DISPOSAL

In a known false alarm, the alarm can be silenced temporarily.

4. SILENCE FEATURE

Up to 12 FireAngel mains smoke (SW1), heat (HW1) or carbon monoxide alarms

(CW1) can be interconnected on a single network.

5. OPTIONAL INTERCONNECTING FEATURE

HW1-PF MAINS POWERED HEAT ALARM

WITH 9V BATTERY BACK-UP

USER MANUAL

Replace the alarm every

10 years.

3e Do not use any other test method except

the process described in this manual.

Your alarm features ‘Silence’ technology. In the event of a known false alarm you can temporarily silence it by pressing the

button. After 10 minutes your alarm will automatically sound 2 chirps and return to full sensitivity.

The red LED on the front of the alarm will ﬂash once every 8 seconds to show that it is in Silence mode.

The alarm will sound continuously and the red LED will ﬂash every second when the alarm senses dangerous heat levels. NEVER

IGNORE ANY ALARM. If an alarm is sounding, it is warning you of a potentially hazardous situation. Do not ignore it. Ignoring the

alarm may result in injury or death. If your heat alarm activates and you are not absolutely certain of the source of the problem,

get everyone out of the house immediately.

4a Press and hold the

button for 5

seconds.

The alarm will silence for

10 minutes.

FireAngel Safety Technology Limited warrants to the original purchaser that its enclosed heat alarm be free from defects in materials and

workmanship under normal residential use and service for a period of 5 (ﬁve) years from the date of purchase (not including the replaceable

battery). Provided product is sent back to FireAngel Safety Technology Limited with proof and date of purchase, FireAngel Safety Technology

Limited hereby warrants that during the 5 (ﬁve) year period commencing from the date of purchase FireAngel Safety Technology Limited, at its

discretion, agrees to replace the unit free of charge. The warranty on any replacement HW1 alarm, will last for the remainder of the period of the

original warranty in respect of the alarm originally purchased – that is from the date of original purchase and not from the date of receipt of the

replacement product. FireAngel Safety Technology Limited reserves the right to offer an alternative product similar to that being replaced if the

original model is no longer available or in stock. This warranty applies to the original retail purchaser from the date of original retail purchase and

is not transferable. Proof of purchase is required.

This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or

applications not in accordance with the user manual. It does not cover events and conditions outside of FireAngel Safety Technology Limited’s

control, such as Acts of God (ﬁre, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. FireAngel

Safety Technology Limited will not recognise any changes to this warranty by third parties.

FireAngel Safety Technology Limited shall not be liable for any incidental or consequential damages caused by the breach of any expressed or

implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or ﬁtness for a particular purpose is

limited in duration for 5 (ﬁve) years.

This warranty does not affect your statutory rights. Except for death or personal injury, FireAngel Safety Technology Limited shall not be liable

for any loss of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by

you or any other user of this product.

DISPOSAL

Waste electrical products should not be disposed of with your other household waste. The alarm is ideally suited for disposal within the

waste electronic and electrical equipment (WEEE) recycling scheme.

Please recycle where facilities exist. Check with your local authority, retailer or contact our Technical Support team for recycling/disposal

advice as regional variations apply.

Once the batteries are removed, the low battery warning chirp will stop. The batteries should always be removed before disposal.

Do not attempt to open. Do not burn.

6. LOW BATTERY WARNING

Your alarm requires 1 x 9V (PP3) battery. Under normal use, the battery should last approximately one year.

Use of a battery other than those recommended here may have a detrimental effect on the alarm performance:

Duracell MN1604, Gold Peak: GP1604S, Raymax: 6F22.

6a When the alarm battery is low, the alarm will ‘chirp’

and the LED will ﬂash once every 32 seconds.

6c Using a screwdriver,

gently open the 3

clips on the base to

remove the alarm.

6d Replace the batteries and re-install.

(See 'Installation') 6e Always test the alarm after replacing

the batteries.

On an interconnected network, only the alarm that senses the ﬁre will sound and ﬂash its LED. Other connected alarms will sound a warning but

will not ﬂash their LED. Do not connect more than 11 other devices.

IMPORTANT: The interconnect wire (minimum 0.75 mm2 cable) must be treated as Live, it should be insulated and sheathed.

Mains 230V AC

Power Supply

WIRING KEY

= Live

= Interconnect

= Neutral

= Earth

To other alarms

if ﬁtted

Switch off electricity supply.

• Check that your heat alarm is connected to the power

supply and that the battery is correctly installed.

• Check the location of your heat alarm.

• Clean the heat alarm.

• Check the location of your heat alarm.

• Clean the heat alarm.

• Check that your alarm is connected to the power supply and that the

battery is installed correctly.

• If testing after installation, allow a few seconds for the alarm to settle.

• Push and hold the centre of the test button ﬁrmly for 5 seconds.

• Check that the alarm is properly connected to the mains power.

• Check the location of your heat alarm.

• Check that your heat alarm is deﬁnitely the source of the chirping; make

sure the noise isn’t coming from another alarm.

• If the alarm ‘chirps’ every 32 seconds and the red LED ﬂashes at the

same time - replace the battery.

• If the alarm ‘chirps’ every 32 seconds without a red LED ﬂash, a fault is

indicated - contact Techincal Support.

If the green LED does not light when the alarm

is connected to power:

If your heat alarm does not sound during

testing:

If your heat alarm activates and it is a deﬁnite

false alarm:

If your heat alarm sounds unusual or ‘chirps’

intermittently:

If you experience frequent unwanted alarms:

GN5062R7

Switch off electricity supply.

Ensure a permanent connection to the house wiring is made in a suitable junction box.

Using a screwdriver, gently open the 3 clips on the base

to remove the base plate.

Fit the base to ceiling using the screws provided. Feed the

wiring through the hole in the base plate or via YT2

trunking knock-outs at the side.

Connect the wiring to the connector terminals.

Ensure that the house wiring ‘Earth’ is only

terminated in the terminal

marked ‘ ’ as indicated.

Unwrap battery. Insert battery into battery compartment

(match ‘+’ to ‘+’). Press and hold the test / button for

5 seconds. The alarm will sound.

2. INSTALLATION

Turn the electricity supply back on and check

that the green LED is on.

IMPORTANT: The circuit used to Power the alarm must be a 24 hour voltage circuit that cannot be turned off by a switch.

In accordance with BS 5839: Part 6, we recommend: For mains powered alarms, each with an integral standby supply, the mains

electricity supply should take the form of either a) an independent circuit at the dwelling’s main circuit board, in which case no

other electrical equipment should be connected to this circuit (other than a dedicated monitoring device installed to indicate

failure of the mains electricity supply to the alarms); or b) a separately electrically protected, regularly used local lighting circuit.

Check with local building and ﬁre regulations for your property, to ensure compliance.

Ensure dust cover is removed before operation.

The red LED on the front of the alarm should ﬂash once every 32 seconds (approx.) to show that the alarm sensor is actively

monitoring for smoke. When the test button is pressed, the alarm will ﬂash once every 8 seconds for 8 minutes.

If desired, the alarm can be interconnected with up to 11 other smoke (SW1), heat (HW1) or carbon monoxide (CW1) alarms from

the FireAngel range via the 'I' connector. (See Optional Interconnecting Feature).

IMPORTANT: Align arrows on the side of the alarm and

the side of the base. Gently push alarm onto base.

ALARM TEST:

Press and hold the test / button for

5 seconds. The alarm will sound.

FireAngel Safety Technology Limited. Email: (UK) technicalsupport@ﬁreangeltech.com, (DE) technik@ﬁreangeltech.com,

(FR) supporttechnique@ﬁreangeltech.com, (NL) klantenservice@ﬁreangeltech.com, (INT) Internationalsupport@ﬁreangeltech.com

220-240 V AC 50-60 Hz mains powered heat alarm. 9V battery back-up.

WARNING: Wiring should be installed by a qualiﬁed electrician in accordance with local building

standards. The wiring must conform to current regulations for electrical installations. Check with local

building and ﬁre regulations for your property, to ensure compliance.

For the best protection, heat alarms should always be installed as part of a complete ﬁre protection

system that includes smoke alarms.

Class A2 detection. This heat alarm will sound a warning when the ambient temperature in a room is

between 54°C and 70°C.

This heat alarm is not intended for any non-residential, commercial or industrial application, nor for any

other purpose than described above.

WARNING: Experience has shown that children may not be woken by ﬁre alarm tones. It is important

that children are never left alone in a house. Families should have a ﬁre escape plan that is rehearsed, so

that everyone knows how to escape when ﬁre occurs. The immediate priority when ﬁre occurs is to

ensure that any sleeping children are woken from sleep and are immediately taken to a place of safety

outside the property, along with all other occupants. The ﬁre and rescue service should always be called

without delay, no matter how small the ﬁre. BS 5446-2: 2003

Licence No: KM694292

Vanguard Centre, Coventry CV4 7EZ, UK

www.ﬁreangeltech.com

Technical Support

Online: www.ﬁreangeltech.com/support

E-mail: technicalsupport@ﬁreangeltech.com

Phone: 0330 094 5830

Fire & Rescue Customers: 0800 141 2561

Note: This user manual is also available in large text and other formats. Please email: technicalsupport@ﬁreangeltech.com or call 0330 094 5830 for further information.
