Seite 1/40
fellowes com

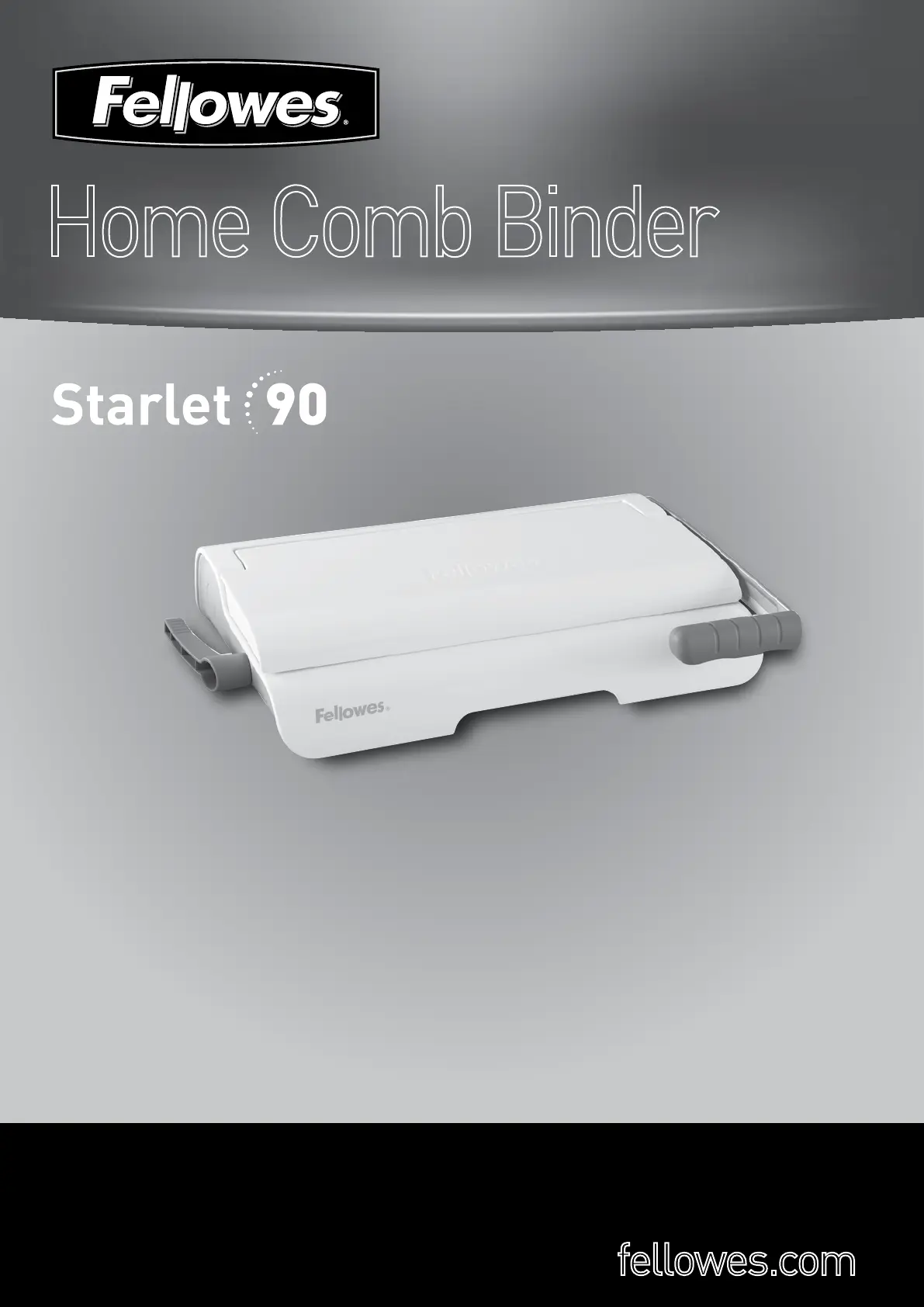

Home Comb Binder
Please read these instructions before use.
Veuillez lire ces instructions avant utilisation.
Lea estas instrucciones antes del uso.
Bitte lesen Sie diese Anleitungen sorgfältig, bevor Sie das Gerät benutzen.
Prima dell’uso, si raccomanda di leggere questo manuale di istruzioni.
Gelieve deze instructies te lezen vóór gebruik.
Läs dessa instruktioner före användningen.
Læs venligst denne vejledning før anvendelse.
Lue nämä ohjeet ennen käyttöä.
Vennligst les nøye igjennom denne bruksanvisningen før bruk.
Przed użyciem proszę przeczytać instrukcje.
Перед началом эксплуатации обязательно прочите данную инструкцию.
Παρακαλείσθε να διαβάσετε αυτές τις οδηγίες πριυ χρησιμοποιήσετε το προϊόν.
Kullanmadan önce lütfen bu talimatlari okuyun.
Před použitím si pročtĕte tyto pokyny.
Pred použitím si prečítajte tieto pokyny.
Használat előtt kérjük, olvassa el az alábbi utasításokat.
Leia estas instruções antes da utilização.
mm inch number of pages
6mm 1/4” 2-20
8mm 5/16” 21-40
10mm 3/8” 41-55
12mm 1/2” 56-90
ENGLISH
CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
COMB DIAMETER & DOCUMENT SIZES
2
Punching Capacity
Paper sheets
70-80g / 20lb 7 sheets
Transparent covers
100-200 micron / 4-8 mil 2 sheet
200+ micron / 8+ mil 1 sheet
Other standard covers
160-270g / 40-60 lb 2 sheet
270+g / 60+ lb 1 sheet
Binding Capacity
Max comb size 12mm / 1/2”
Max document (80g / 20lb) 90 sheet
Technical Data
Paper dimensions A4
Punching slots 21
Slot pitch 14.28mm / 9/16”
Adjustable edge guide yes- rotary
Waste tray capacity c.600 sheets
Net weight 4 kg / 8.8lb
Dimensions (LxDxH) 450 x 250 x 80mm / 17.7” x 9.8” x 3.1”
Please keep for future reference.
Comb diameter sizes
Read Before Using!
Need Help?
Customer Service…
www.fellowes.com
Let our experts help you
with a solution.
Always call Fellowes
before contacting
your place of purchase.
Comb storage and Document measure
Waste tray
Waste tray
Comb storage
and Document
measure
Document
support (lid)
Punch handle
Comb
opening
lever
Wheel
to adjust
edge guide
Carry handle
Paper entry
Adjustable
edge guide
Window
1
CORRECTING A BOUND DOCUMENT REMOVAL OF WASTE CLIPPINGS
WARRANTY
Fellowes warrants all parts of the binder to be free of defects in material and workmanship for 2 years from the date of purchase by the original
consumer. If any part is found to be defective during warranty period, your sale and exclusive remedy will be repair or replacement, at Fellowes’
option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling or unauthorised repair. Any implied
warranty, including that of merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate warranty period set
forth above. In no event shall Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal
rights. You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide,
except where different limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this
warranty, please contact Fellowes or your dealer. 3
SET UP
TROUBLESHOOTING
Problem
Punched holes are not central
Machine will not punch
Punch holes are not parallel to edge.
Partial holes
Damaged hole edges
Waste tray leaks
Cause
Edge guide not set
Blockage
Debris is stuck below dies.
Sheets not correctly aligned to punch pattern.
Possibly overloading the machine
Waste tray is not correctly inserted or ‘burst feature’ has activated
Solution
Adjust edge guide until hole pattern is correct
Check waste tray is empty. Check for blockage to paper entry.
Take stiff cardboard and slide into the paper entry. Move the cardboard sideways
to release any stray clippings into the waste tray.
Adjust edge guide and test punch scrap sheets until correct
Punch plastic covers with paper sheets. Reduce number of sheets being punched.
Check waste tray is empty and ‘burst feature’ is closed.
1. Ensure the machine is on a
stable surface.
2. Check waste tray is empty and
correctly fitted.
3. Lift the lid. Ensure the comb-
opening lever is pushed backwards.
4. Lift the punch handle to its
upright position.
BEFORE YOU BIND
1. Select the correct comb diameter. 2. Insert the plastic comb into
the mechanism.
3. Pull comb-opening lever
forward to open the comb.
4. Test punch scrap sheets to check
edge guide setting.
STEPS TO BIND
1. Punch front and back covers first. 2. Punch sheets in small batches
that do not overload the machine
or the user.
3. Load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are loaded
onto the comb, push the comb lever
backwards to close the comb and
remove the bound document.
3 4
2 3 4
21 3 4
Additional sheets may be included or removed at any time by opening and
then closing the comb as previously described.
The waste tray is located under the machine and is accessed from the right side. For
best results empty the tray regularly.
STORAGE
Lower the punch handle to the horizontal position. Lower the lid. The Starlet comb binder is designed to be stored horizontally or vertically.
There are feet that enable them to stand upright.
Front
Cover
Back
Cover
2
30
Max
7
(80gsm/20lbs)
