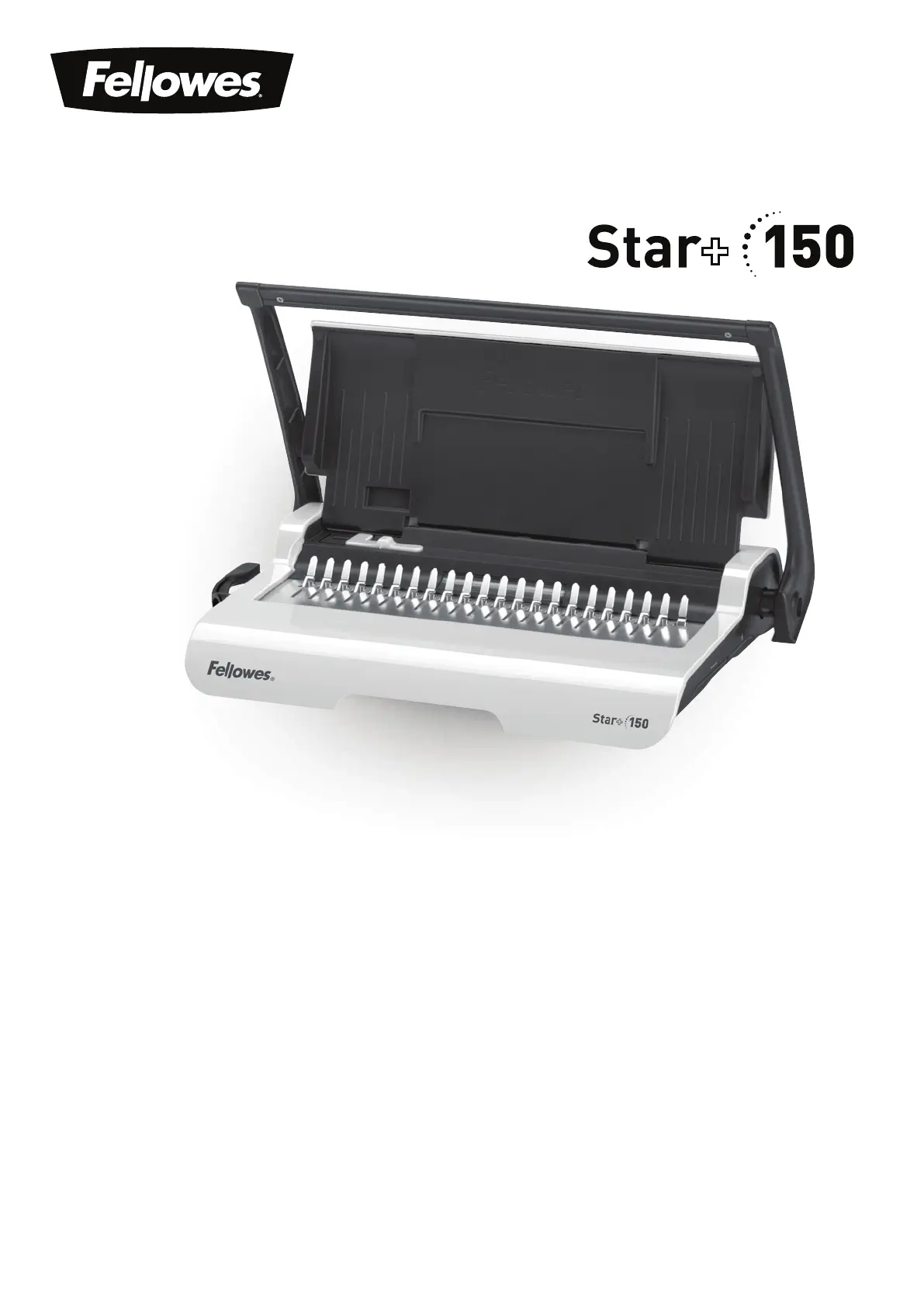

Small Office Comb Binder
Please read these instructions before use.
Do not discard: keep for future reference.
Lire ces instructions avant utilisation.
Ne pas jeter : conserver pour référence ultérieure.
Lea estas instrucciones antes de usarlo.
No las deseche: guárdelas para
tenerlas como referencia.
Diese Anleitungen vor Gebrauch genau
durchlesen.
Bitte nicht entsorgen: zur späteren
Bezugnahme aufheben
Prima dell’uso, si raccomanda di leggere
questo manuale di istruzioni. Conservare il
manuale per consultarlo secondo le necessità.
Dese instructies voor gebruik lezen. Niet
weggooien, maar bewaren om
later te kunnen raadplegen.
Läs dessa anvisningar innan du använder
apparaten.
Släng inte bort, behåll för framtida bruk.
Læs venligst denne vejledning før anvendelse.
Bør ikke bortskaffes. Behold for
fremtidig henvisning.
Lue nämä ohjeet ennen käyttöä.
Älä hävitä: säilytä myöhempää käyttöä varten.
Vennligst les nøye igjennom denne
bruksanvisningen før bruk.
Ikke kast den: Ta vare på den for senere referanse.
Przed użyciem proszę zapoznać się z tą
instrukcją.
Nie wyrzucać - zachować jako źródło
informacji na przyszłość
Перед началом эксплуатации обязательно
прочтите данную инструкцию.
Не выбрасывайте данную
инструкцию: сохраните ее для
последующего использования.
Παρακαλείσθε να διαβάσετε αυτές τις οδηγίες
πριν χρησιμοποιήσετε το προϊόν.
Μην τις απορρίψετε: κρατήστε
τις για μελλοντική αναφορ
Kullanmadan önce lütfen bu talimatları okuyun.
Atmayın: ileride başvurmak üzere saklayın.
Před použitím si pročtěte tyto pokyny.
Nelikvidujte: uschovejte pro budoucí použití.
Pred použitím si prečítajte tieto pokyny.
Nezahadzujte: odložte pre budúce použitie.
Kérjük, hogy használat előtt olvassa el az
utasításokat!
Az utasításokat ne dobja ki; tartsa meg
referenciaanyagként való jövőbeni használatra.
Leia estas instruções antes da utilização.
Não as deite fora: conserve-as para consulta futura.
Pročitajte ove upute prije upotrebe.
Nemojte baciti: sačuvajte za buduću upotrebu.
Molimo da ova uputstva pročitate pre upotrebe.
Nemojte ih baciti: sačuvajte ih za ubuduće.
Моля, прочетете тези инструкции преди
употреба.
Не изхвърляйте: пазете за справки в бъдеще.
Vă rugăm să citiţi aceste instrucţiuni înainte de
utilizare.
Nu aruncaţi: păstraţi pentru o consultare ulterioară.
Pred uporabo preberite ta navodila.
Ne zavrzite: shranite za poznejšo uporabo
TM
2
ENGLISH
Waste tray
Comb storage
and Document
measure
mm inch number of pages
6mm 1/4” 2-20
8mm 5/16” 21-40
10mm 3/8” 41-55
12mm 1/2” 56-90
16mm 5/8” 91-120
18mm 1 1/16” 121-150
CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
COMB DIAMETER & DOCUMENT SIZES
Punching Capacity
Paper sheets
80g / 20lb 15 sheets
Transparent covers
100-200 micron / 4-8 mil 2 sheets
200+ micron / 8+ mil 2 sheets
Other standard covers
160-270g / 40-60 lb 3 sheets
270+g / 60+ lb 2 sheets
Binding Capacity
Max comb size 11/16” (18mm)
Max document (80g / 20lb) 150 sheets
Technical Data
Paper dimensions A4
Punching slots 21
Slot pitch 14.28mm / 9/16”
Adjustable edge guide yes
Waste tray capacity 600 sheets
Net weight 4.5 kg / 10lb
Dimensions (HxWxD) 80 x 450 x 250mm / 3.1” x 17.7” x 9.8”
Please keep for future reference.
Comb diameter sizes
Read Before Using!
Need Help?
Customer Service…
www.fellowes.com
Let our experts help you
with a solution.
Always call Fellowes
before contacting
your place of purchase.
Comb storage and Document measure
Document
support (lid)
Punch handle
Comb
opening
lever
Paper entry
Waste tray
Carry handle
Window
Adjustable
edge guide
3
1
CORRECTING A BOUND DOCUMENT REMOVAL OF WASTE CLIPPINGS
WARRANTY
Fellowes warrants all parts of the binder to be free of defects in material and workmanship for 2 years from the date of
purchase by the original consumer. If any part is found to be defective during warranty period, your sale and exclusive
remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not apply
in cases of abuse, mishandling or unauthorised repair. Any implied warranty, including that of merchantability or fitness
for particular purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall
Fellowes be liable for any consequential damages attributable to this product. This warranty gives you specific legal rights.
You may have other legal rights that vary from this warranty. The duration, terms and conditions of this warranty are valid
worldwide, except where different limitations, restrictions or conditions may be required by local law. For more details or to
obtain services under this warranty, please contact Fellowes or your dealer.
SET UP
TROUBLESHOOTING
Problem
Punched holes are not central
Machine will not punch
Punch holes are not parallel to edge.
Partial holes
Damaged hole edges
Waste tray leaks
Cause
Edge guide not set
Blockage
Debris is stuck below dies.
Sheets not correctly aligned to punch pattern.
Possibly overloading the machine
Waste tray is not correctly inserted or ‘burst feature’ has activated
Solution
Adjust edge guide until hole pattern is correct
Check waste tray is empty. Check for blockage to paper entry.
Take stiff cardboard and slide into the paper entry. Move the cardboard sideways
to release any stray clippings into the waste tray.
Adjust edge guide and test punch scrap sheets until correct
Punch plastic covers with paper sheets. Reduce number of sheets being punched.
Check waste tray is empty and ‘burst feature’ is closed.
1. Ensure the machine is on a
stable surface.
2. Check waste tray is empty and
correctly fitted.
3. Lift the lid. Ensure the comb-
opening lever is pushed backwards.
4. Lift the punch handle to its
upright position.
BEFORE YOU BIND
1. Select the correct comb diameter
using the comb storage tray.
2. Insert the plastic comb into
the mechanism.
3. Pull comb-opening lever
forward to open the comb.
4. Test punch scrap sheets to check
edge guide setting.
STEPS TO BIND
1. Ensure edge guide is set to the
proper document size. Punch front
and back covers first.
2. Punch sheets in small batches
that do not overload the machine
or the user. Adjust edge guide, if
necessary.
3. Load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are loaded
onto the comb, push the comb lever
backwards to close the comb and
remove the bound document.
234
234
21 3 4
Additional sheets may be included or removed at any time by opening and
then closing the comb as previously described.
The waste tray is located under the machine and is accessed from the right side. For
best results empty the tray regularly.
STORAGE
Lower the punch handle to the horizontal position. Lower the lid. The Star+ comb binder is designed to be stored horizontally or vertically.
There are feet that enable them to stand upright.
Front
Cover
Back
Cover
Max
15
(80gsm/20lbs)
