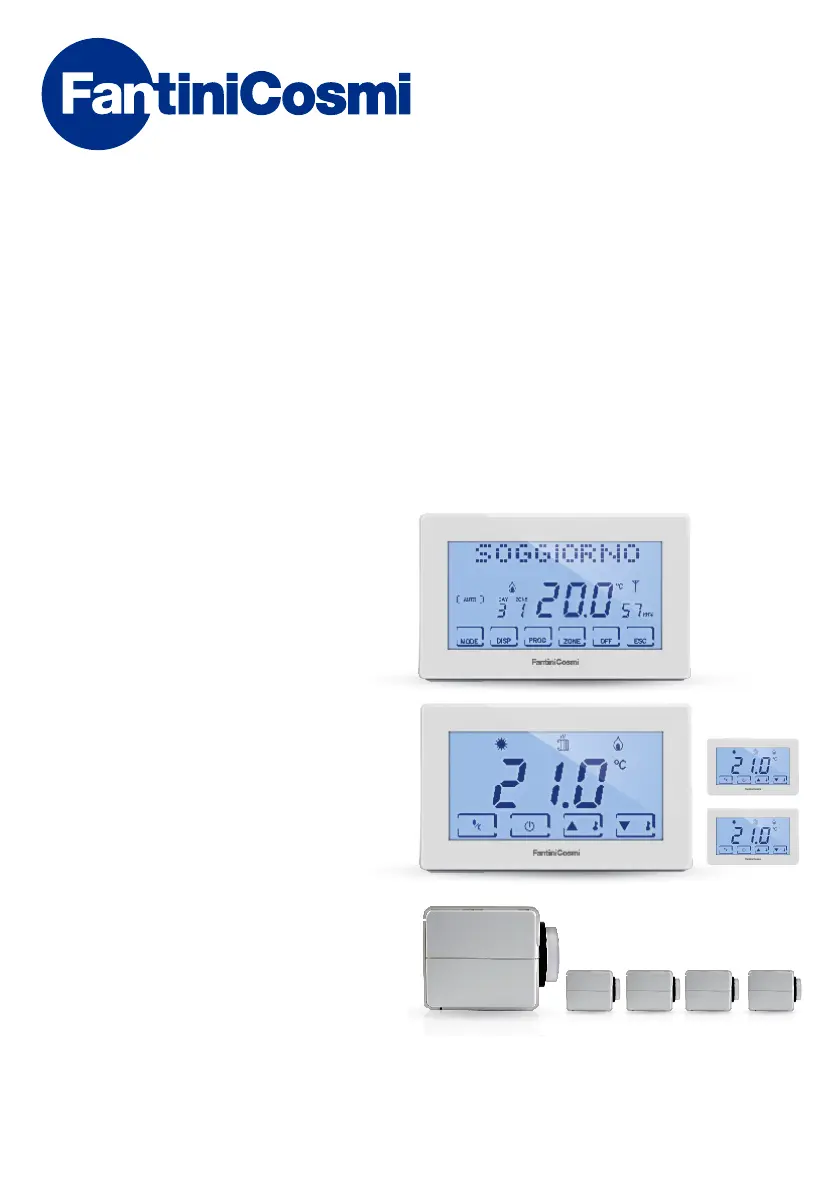

CH180T3K5
WIRELESS TEMPERATURE CONTROL KIT
4 TEMPERATURE AREAS
INSTRUCTIONS FOR USE
FANTINI COSMI S.p.A.
Via dellâOsio, 6 20090 Caleppio di Settala, Milan â ITALY
Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it
www.fantinicosmi.it
2
4 TEMPERATURE AREA WIRELESS TEMPERATURE CONTROL KIT
CH180T3K5
Thank you for purchasing a FANTINI COSMI S.p.A. product
Please read this instruction manual carefully and always keep it handy should you need to consult it for any
reason.
The documentation reïŹects the characteristics of the product. However, for regulatory or commercial
developments, customers should verify the availability of updates relating to this documentation on the
FANTINI COSMI S.p.A. website: pdf.fantinicosmi.it
OPERATION
The pre-conïŹgured CH180RFWIFI programmable thermostat acts as a supervisor for the Intellicomfort+ wireless
multi-zone system by controlling the 4 areas of the home, interacting with the CH120RF room thermostats and
O60RF wireless radiator actuators. The components, which are already preconïŹgured, are divided as follows:
â area 1 = 1 CH180RFWIFI + 2 O60RF;
â area 2 = 1 CH120RF + 1 O60RF;
â area 3 = 1 CH120RF + 1 O60RF;
â area 4 = 1 CH120RF + 1 O60RF.
The CH180RFWIFI âMASTERâ programmable thermostat directly controls the O60RF radiator actuators of area 1;
In other areas, it sends the time proïŹles to the associated CH120RF thermostats. The thermostats, based
on the detected room temperature, send the commands to the O60RF actuators on the radiators.
CONTENTS OF PACKAGE
â no. 1 wireless weekly programmable thermostat with WiFi connection, code CH180RFWIFI
â no. 3 wireless room thermostats, code CH120RF
â no. 5 wireless radiator actuators, code O60RF
â no. 1 user instruction sheet
Area 1
Area 3 Area 4
Area 2
O60RF
(PR2)
O60RF
(PR1)
O60RF
(PR1)
O60RF
(PR1)
O60RF
(PR1)
CH120RF CH120RF
CH120RF
CH180RFWIFI
3
4 TEMPERATURE AREA WIRELESS TEMPERATURE CONTROL KIT
CH180T3K5
START-UP
ATTENTION!
Installation must be done by qualiïŹed personnel in compliance with the requirements
concerning installation of electrical equipment. Installation operations must be performed
with the systemâs power disconnected.
Install the programmable thermostat in area 1
Install the thermostats, , in areas 2, 3 and 4without batteries
1
2
The CH180RFWIFI programmable thermostat must be installed on the wall or on a ïŹush mounting box,
in 3 units or round, at a height of about 1.5m from the ïŹoor, in a suitable position to detect the room
temperature correctly.
For installation, refer to the contained in the programmable thermostat package QUICK GUIDE
CH180RFWIFI.
The CH120RF thermostats must be installed on the wall or on a ïŹush mounting box, in 3 units or round,
at a height of about 1.5m from the ïŹoor, in a suitable position to detect the room temperature correctly.
For installation, refer to the contained in the CH120RF thermostat package.QUICK GUIDE
Install the O60RF actuators, on the radiators, as indicated in the instruction sheet without batteries,
contained in their packaging.
Be sure to position each O60RF in the correct area (as indicated in the label on the product).
EXAMPLE
Actuator to be installed in area 2
Thermostat to be installed in area 2
Z : _
2
3
Be sure to position each CH120RF in the correct area (as indicated in the label on the product).
EXAMPLE
Z : _
2
