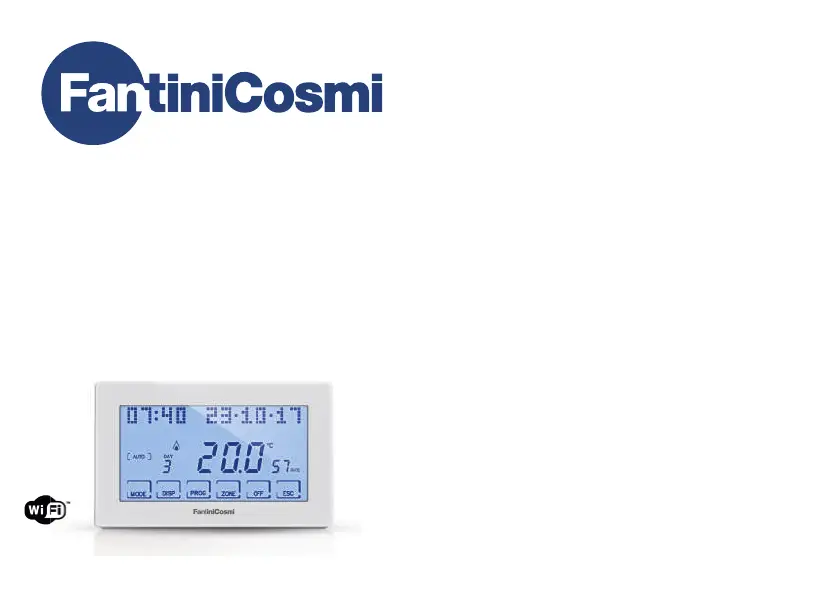

CH180RFWIFI
WIRELESS TOUCHSCREEN
PROGRAMMABLE THERMOSTAT
WITH WIFI CONNECTION
INSTRUCTIONS FOR USE
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY
Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it
www.fantinicosmi.it
2
WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180RFWIFI
Thank you for purchasing a FANTINI COSMI S.p.A. product.
Read this instructions manual carefully and always keep it handy for any consultation.
This documentation reflects the specific product features; however, due to regulatory or commercial
developments, customers are advised to check for the availability of updates to this documentation on the website
FANTINI COSMI S.p.A. : pdf.fantinicosmi.it
OPERATION
The CH180RFWIFI is a programmable thermostat with WiFi connection for direct control or control through APP
Intelliclima + for Smartphones and Tablets of the wireless multi-zone temperature control system.
It monitors the various zones in the home, communicating with the CH120RF room thermostats and the O60RF wireless
radiator actuators, with the CH175 boiler actuators or zone solenoid valve.
This system uses a program that allows you to set and edit as needed the temperature, humidity and time profiles for
each zone.
It is equipped with a room temperature and humidity sensor, also performing the function of a zone heating, cooling and
humidity control, commanding the O60RF and CH175 actuators.
It can also manage an auxiliary electrical device (for example an irrigation, ventilation, curtain, etc. system) with ON/OFF
control through an outside CH175.
It has an internal configurable relay and users can view the energy consumption of the entire system via the intuitive
graphics on its white backlit, positive LCD touchscreen.
CH180RFWIFI can communicate directly with 15 wireless devices (thermostats, actuators) and can manage up to 8 zones.
In total, the network can be connected to a maximum of 114 devices.
NOTE: wireless transmission toward other devices occurs maximum within 2 minutes.
MULTI-ZONE SYSTEM
The multi-zone system allows users to manage different temperature and humidity levels within the same home.
The values of each zone are set on the master CH180RFWIFI and modified locally by one or more devices installed inside
the rooms. Communication between all the devices occurs via radio waves.
Zona 4...8
Zona 2
Zona 1
Zona 3
CH180RFWIFI Master
O60RFCH120RF
CH175
O60RF
O60RF
O60RFCH120RF
3
WIRELESS TOUCHSCREEN PROGRAMMABLE THERMOSTAT WITH WIFI CONNECTION
CH180RFWIFI
DESCRIPTION OF DISPLAY KEYS
1 Day of the week
2 Activation status: heating, cooling or dehumidification
3 Bar graph for viewing messages and daily programming
4 Measured room temperature (Celsius/Fahrenheit)
5 Measured humidity
6 Multi-function touch icons
7 Zone
8 Operating mode
9 Various faults icon
The function of the multi-function keys varies depending on the situation and is described by the symbol which appears
on the display near the key itself.
The first press of any touch button allows you to activate the
functions of the buttons themselves and to light up the display.
Once powered, the “MASTER” CH180RFWIFI must be included in the Intellicomfort+ system wireless network. This
operation requires use of the configurator (code 1590880) which provides the operating instructions through its display.
When requested by the message on the display, you must move the tip of the configurator toward the point indicated on
the device to be configured to perform touch recognition.
For further details, please see the Intellicomfort+ system installation manual.
23.0
136
DAY
[ MAN ]
MODE DISP PROG ZONE OFF ESC
RH%
1
ZONE
[ JOLLY ]
[ HOLIDAY ]
[ AUTO ]
[ OFF ]
OK COPY
8
2
3
4
5
6
7
1
9
CH180RF
CH120RF
CH160RF CH120RF
1590880
