Seite 1/20
2
Inserting and replacing the batteries .................9
CH172DRF self-learning procedure ..................9
Thermostat confi guration .................................10
Technical features of the thermostat ......................13
DIN bar CH172DRF actuator .................................13
Application and use .........................................13
Fastening and connecting ...............................14
Operation .........................................................14
Operation check ..............................................15
Technical features of the actuator ..........................16
TABLE OF CONTENTS
Introduction ..............................................................3
Controls and signals ................................................4
Controls .............................................................4
Signals ...............................................................4
User’s manual .........................................................5
“Summer / Winter” selection ..............................5
Operating modes ...............................................6
“Comfort” operating mode .................................6
“Economy” operating mode ...............................6
“OFF” function (OFF) .........................................7
Fan speed selection ..........................................7
Maintenance ............................................................7
Installation ...............................................................7
Fastening the socket .........................................8
Electric connections ..........................................8
Fastening the thermostat onto the socket .........9
3
Introduction

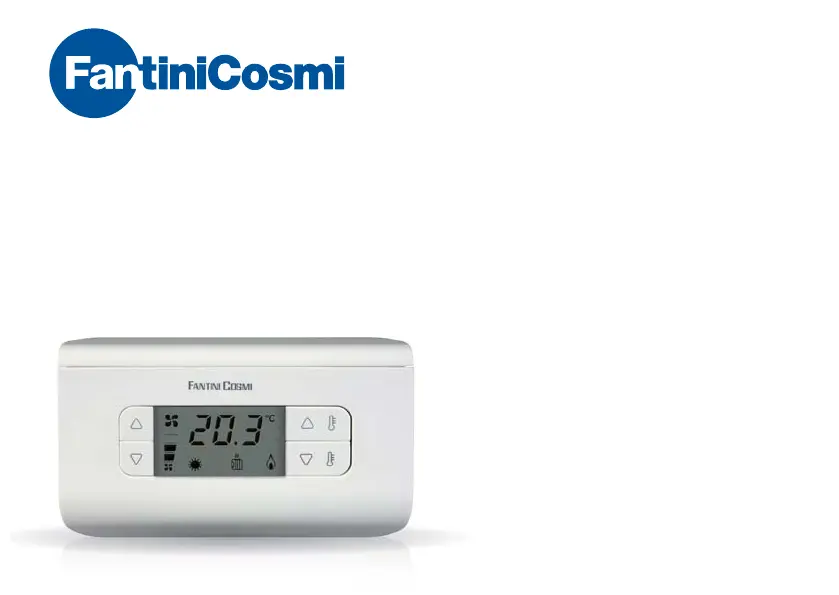

This fan-coil thermostat control kit CH130RFR
is made up of a CH130RF thermostat and a
DIN bar CH172DRF actuator.
The CH130RF model is a fan-coil 4- or 2-pipe
thermostat that allows you to control the ambi-
ent temperature both in the heating and cooling
mode. These controls are sent to a CH172DRF
actuator that communicates with the CH130RF
through radio frequencies.
The CH130RF is powered by two AA-size bat-
teries (1.5 V). It is able to drive two valves and
control a 3-speed fan-coil motor, in manual
mode.
The thermostat measures the ambient tem-
perature either through an internal probe or an
external sensor. It keeps the set-point by act-
ing on the ventilation speed.
The wide display shows the measured tem-
perature, the fan speed, the program being run
and the selected season.
The settings and data are stored in a perma-
nent memory capable of keeping the same
even when the batteries are not inserted.
