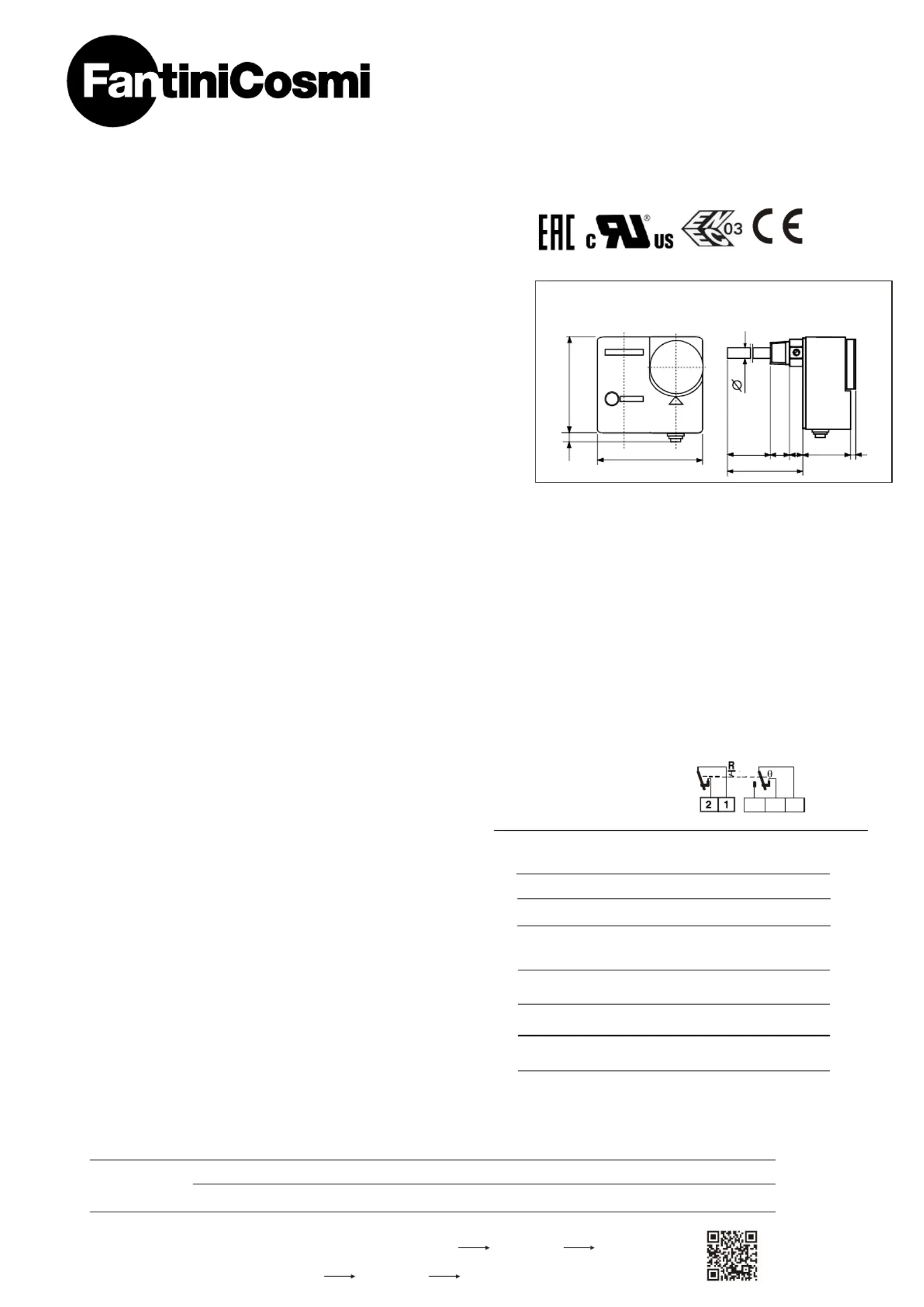

CARATTERISTICHE COSTRUTTIVE
GENERAL FEATURES
-Bitermostato automatico di regolazione e di blocco a sicurezza positiva, per caldaie
ed impianti di riscaldamento.
- Control and positive safety dual/thermostat suitable for boilers and heating
installation.
- Il termostato di regolazione regola la temperatura per valori compresi tra 10 e 90°C;
se l’impianto raggiunge la temperatura limite, il termostato di blocco interrompe il
circuito e per riattivarlo è necessario intervenire sul riarmo manuale (dopo che la
temperatura si è abbassata di ~25°C). Il termostato di blocco dispone anche della
funzione “sicurezza positiva”, cioè in caso di rottura dell’elemento sensibile il circuito
elettrico si interrompe e non è più possibile riattivare l’impianto (è necessario
sostituire il termostato).
- Control thermostat keeps the set temperature within the range of 10 and 90°C; when
the set temperature limit is reached, the limit thermostat will shutdown the elettrical
circuit; to restart it is necessary to operate the manual reset button (after a
temperature drop of 25°C). In the case of sensing element failure o breakage, the
thermostat wiil shutdown the eletrical circuit and the installation cannot be restarted
(thermostat replacement is necessary).
- Funzionamento a dilatazione di liquido;
- Liquid expansion sensing element;
-Elemento sensibile con membrane in acciaio inossidabile;
-Stainless steel membrane sensor.
-Bulbo e capillare in rame.
-Copper bulbe and capillary tube.
-Guaina in rame con attacco Gc 1/2” - PN 10 bar.
-Immersion well with gas tapared 1/2” BSP connection. PN 10bar
-Basetta, coperchio e manopola in materiale termoplastico antiurto e autoestinguente
V0 1.6mm.
-Base, cover and knob made of shock-proof self-extinguishing thermoplastic V0.
-Uscita dei collegamenti elettrici con passacavo in PVC.
-PVC cable bushing entry
BITERMOSTATO DI REGOLAZIONE E DI BLOCCO A SICUREZZA POSITIVA TIPO C07A3M (C06A3M+C03A3)
VIA DELL’OSIO, 6 20090 CALEPPIO DI SETTALA MI
Tel. 02956821 fax 0295307006
E-mail: info@fantinicosmi.it http://www.fantinicosmi.it
Supporto tecnico: supportotecnico@fantinicosmi.it
5679385F 10/17
SAFETY DUAL THERMOSTAT TYPE C07A3M
TIPO
TYPE
C07A3M 10÷90 ±3 6±1 130
Tolleranza d intervento’
Differential accuracy
°C
Differeziale
Differential
K
Temp.Max Bulbo
Max bulb temp.
°C
QUOTE D'INGOMBRO/DIMENSIONS
110
85
80
708
15 10 37 4
16
1
4 2
Scala
Range
°C
100 0 / -6 -- 130
Tensione nominale d’isolamento
Nominal insulation tension
Corrente nominale di impiego Ie:
Continuous duty normal current:
Carico resistivo
Carico induttivo
Inductive load
Corrente continua
Direct current
220V- 250V~ 380V~
Corrente nominale di impiego Ie:
Operating nominal current Ie:
Ui 380~
Ith 15A
Resistive load
AC-12 - 15A 10A
AC-15 - 2,5A 1,5A
DC-13 0,2A - -
Grado d’inquinamento 2
CARATTERISTICHE TECNICHE SECONDO EN/UL/CSA 60730-1, Pollution degree 2
EN/UL/CSA 60730-2-9: Tensione impulsiva nominale 2.5kV
TECHNICAL FEATURES ACCORDING TO EN/UL/CSA 60730-1, Nominal impulse voltage 2.5kV
EN/UL/CSA 60730-2-9:
Portata contatti 15(6)A 250V~ 50Hz Azione tipo 1 (C03A3)/ tipo 2 (C06A3M)
Contact rating 15(6)A 250V~ 50Hz Type 1 action (C03A32) / Type 2 action C06A3M
15A carico resistivo, 6A FLA/36LRA 240Vac 50/60Hz Dispositivo di comando previsto per essere fornito esclusivamente
ai costruttori dell'apparecchiatura
15A resistive load, 6A FLA/36LRA 240Vac 50/60Hz
Control device to be supplied to the product manufacturers only
Categoria di resistenza al calore e al fuoco, categoria D
Heatproof and fireproof category, D category
All’aumento della temperatura:
Grado di protezione IP40
Protection degree IP40
Mezzo di connessione (conduttori esterni), morsetti a vite
Wire connection (external wires), screw terminals
Conduttori speciali connessi ai terminali per conduttori interni:
conduttori idoneii alle temperature resistenti al calore
Special wires (joint to screw terminals for internal wires): wires
suitable to the temperature, heatproof wires CARATTERISTICHE TECNICHE SECONDO EN 60947-5-1:
Temperatura massima dei morsetti per conduttori interni 130°C TECHNICAL FEATURES ACCORDING TO EN 60947-5-1:
Maximum temperature of the terminals for internal wires 130°C
Limiti di temperatura della testa T85°C
Maximum head temperature T85°C
Classe d’isolamento I
Insulation class I
Microdisconnessione tipo 1B (C03A3)/ 2B (C06A3M)
Micro/disconnection type 1B (C03A3)/ 2B (C06A3M)
PTI dei materiali usati per l’isolamento PTI 175V
Material PTI used for insulation PTI 175V
Metodo di montaggio, da incorporare
Mounting way, to be included (incorporated control)
Temperatura di trasporto e immagazzinaggio -35T60°C
Storage and transport temperature -35T60°C
Periodo di sollecitazione elettrica delle parti isolanti, periodo lungo
Period of electrical stress of the insulating parts, long period
-
-
-
-
- -
- -
- -
-
-
-Microinterruttore in commutazione a scatto rapido -
-con contatti in AgCdO, dorati. -
-SPDT microswitch, with silver and gold plated contacts -
-
-apre 1-2 chniude 1-4
-
-Rising temperature:
-
-Opens1-2 closes 1-4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(C06A3M+C03A3)
C06A3M C03A3
0497
A richiesta:
On request:
-Pressacavo G ½ per uscita collegamenti in termoplastico antiurto.
-Anti-shock thermoplastic G 1/2 sealed gland for cable entry.
Scarica la Dichiarazione di ConformitĂ CE e il Certificato PED di questo prodotto direttamente
dal nostro sito internet: www.fantinicosmi.it Prodotti Modulistica Certificazioni
Download the CE declaration and the PED certificate for this product from our web site
www.fantinicosmi.it Prodotti Modulistica Certificazioni
