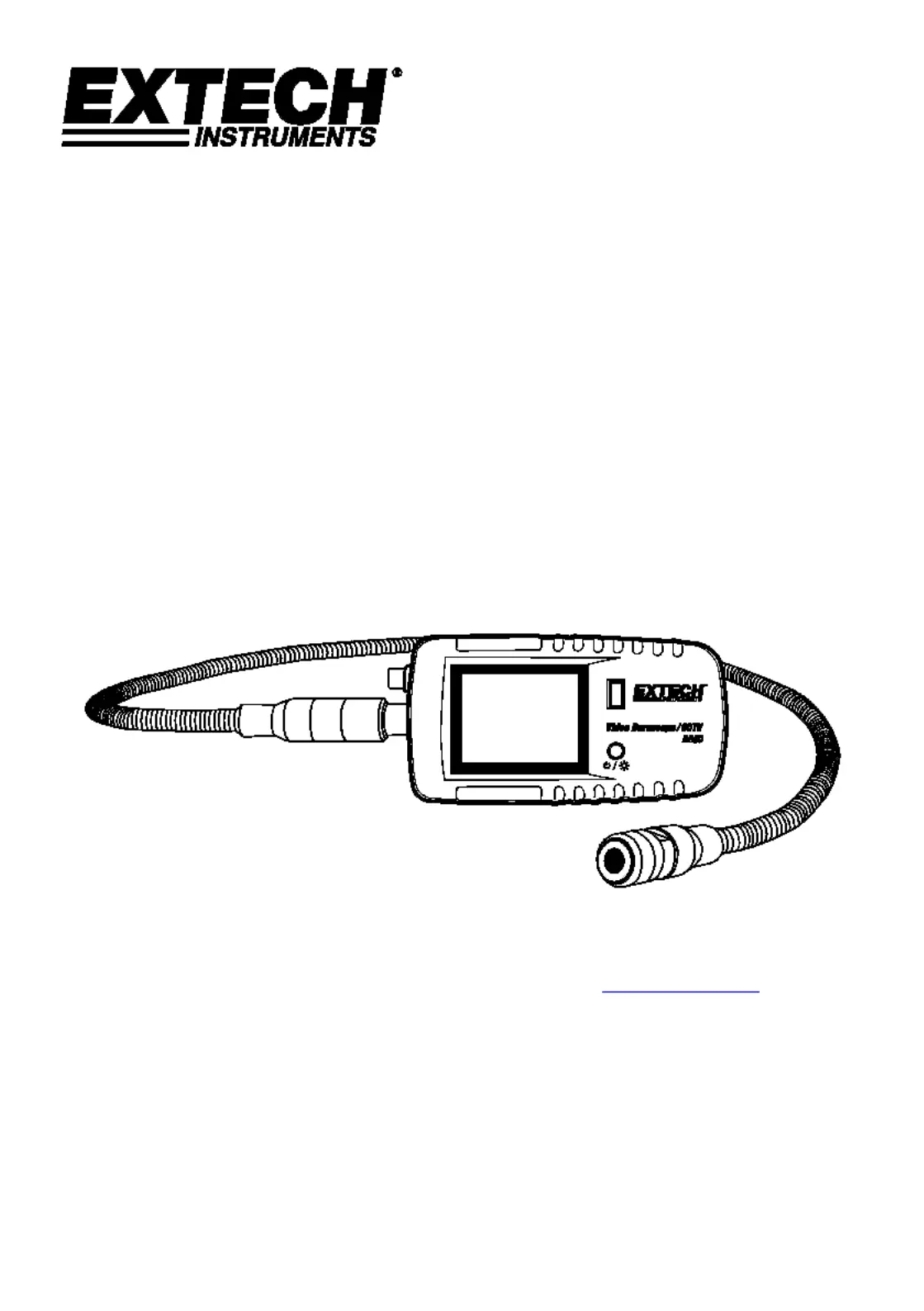

User Manual
Video Borescope and CCTV Tester
Model BR50
Additional User Manual Translations available at www.extech.com
BR50- - 3 en GB_v1.2 /17
2
Introduction
Congratulations on your purchase of the Extech BR50 Video Borescope. This instrument was
designed for use as a remote inspection device and a CCTV camera alignment/inspection tool. Typical
applications include HVAC inspection, automotive inspection, and cable routing. The BR50 is also
useful for automotive, boat, and aircraft inspection. This meter is shipped fully tested and, with proper
use, will provide years of reliable service.
Features
Real time video inspection
Supports closed circuit TV input
Bright LEDs to illuminate the area to be inspected
-in rechargeable lithium battery, with AC charging USB charging Built or
Supports NTSC and PAL formats
Safety
Before using please read all safety and specication information carefully the instrument,
Dangerous electrical voltages may exist behind walls and inside machinery. Be careful not
to make contact with electrical cables, wires, and circuits with the gooseneck; electrical
shock could result.
Double insulation in accordance with CE standards
1. The meter should only be opened and serviced by qualied and authorized personnel
2. Do not handle the meter in a rough or careless manner. The meter houses sensitive
instrumentation and should not be dropped or impacted in any way
3. -proof; however - The camera is water the scope body is not water proof. Do not expose the
instrument to or wet areas, and do not operate the meter in moist locations. rainy
4. Do not aim the camera directly toward the sun from an indoor or an outdoor perspective. Do
not operate the unit under a spotlight or other unusually strong light.
5. Ope temperature, rate the camera under the specied humidity and power supply conditions
only.
BR50- - 3 en GB_v1.2 /17
3
Meter Description
1. Camera connection jack
2. External AV input jack
3. LCD Display
4. Status LED
5. Power / Brightness button
6. Charging cable connector
7. Flexible Gooseneck
8. Camera connection plug
9. Camera and LED lights
10. System reset button (rear view)
11. ousing screws (rear view) Four (4) h
