Stand: September 2010 Z314 engl.

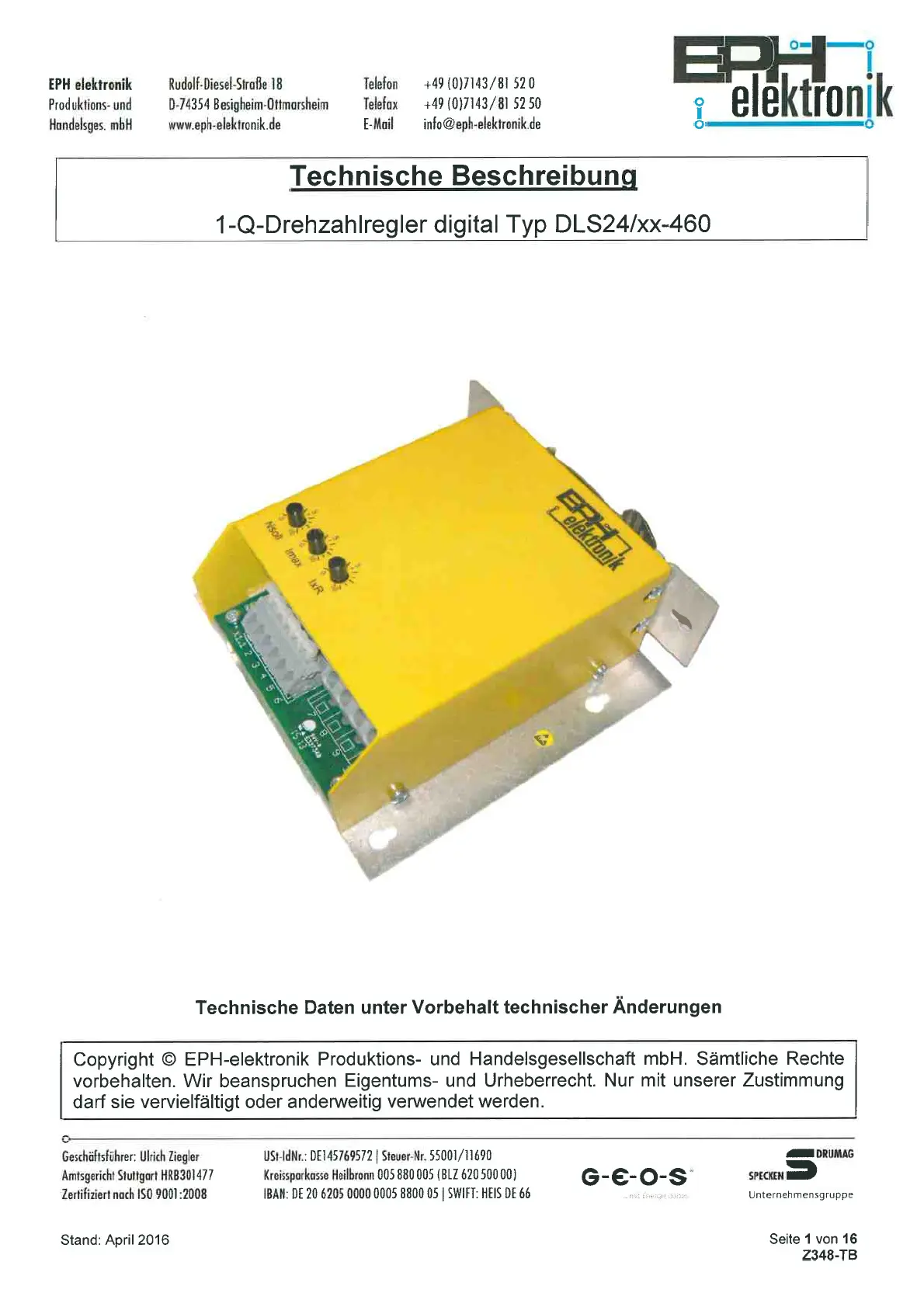

Technical specification
1-Q motor control unit digital type DLS 24/xx - 460
Table of contents
1. Brief instruction DLS/xx-460 with 6/4-pin spring clamp terminal
2. General information
2.1 Technical features
2.2 Accessories
3. Technical data
4. Connection
4.1 Control connections
4.2 Connection plan
5. Setting parameters
6. Scale drawings
6.1 DLS 24/xx/P
6.2 DLS 24/xx/M
6.3 DLS24/xx/G
7. Notes and recommendations on using EPH motor control cards
7.1 Delivery
7.2 Installation, launch and safety measures
7.3 EMC measures
7.4 Low voltage directive 73/23 EEC
7.5 Motors with capacity fault clearance
8. Manufacturer’s declaration
Copyright © EPH-Elektronik GmbH. All rights reserved. We claim property rights and
copyright. It may be duplicated or used in any other way with our express confirmation
only.
Stand: September 2010 Z314 engl.
1. Brief instruction DLS/xx-460 with 6/4-pin spring clamp terminals
1. Select modes:
• put jumper 1 on 1-2 for internal reference value (potentiometer 1) or on 2-
3 for external reference.
• put jumper 2 on 1-2 for 12V motor or on 2-3 for 24V motor.
• put jumper 3 on 1-2 for reference value max. 5V or on 2-3 for 10V target
value input.
• put jumper 4 on 1-2 for internal controller enable or 2-3 for external
controller enable (terminal 4).
2. Turn potentiometer 2 (Imax) for current limitation to the right position.
3. Potentiometer 3 (IxR) compensation to left position.
4. Connection of the control wires see Connection plan, page 5.
5. Connect DC motor to terminals 7 and 8.
6. Connect power supply to terminal 9 GND, to terminal 10 plus (approx. 12 – 36 V DC).
7. Now turn on power supply.
8. LED green (power on) illuminates on the pcb.
9. With potentiometer 1 (n ref) the target value for motor speed can be adjust from 0
to 100%, if jumper 1 was put on 1-2.
Stand: September 2010 Z314 engl.
2. General information / function
The digital, load-independent 1-Q motor speed controllers of the DLS 24 /xx-460
series are cost-effective compact devices with the dimensions of 120 x 117 x 52
mm for stepless speed control for any type of brushed DC motors in the low
voltage range up to a maximum of 20 A motor power. The input voltage range is
from 12 to 36V DC, this allows direct battery or on-board power supply. A DC
power supply of the SNT 24/xx series can also be used. Stepless speed control can
be realized either via an internal/external potentiometer or an external reference
voltage 0...10 V DC (via jumper 1 pre-selectable). The motor power can be
steplessly limited using an internal potentiometer as overload protection. Customer-
specific programming is possible as special function.
2.1. Technical features
• Power supply 12 VDC - 36VDC
• High clock rate f>20 kHz, this results in low-noise operation
• electric connection via spring clamp terminals
• high level of effectiveness by using Power Mosfets
• Mounting: mounted with screws or on a 35 mm mounting rail
2.1. Accessories
• Suppressor diodes via supply voltage (e.g. at automotive applications) for high
inductions peaks
• Ref. value potentiometer: 1 gear or 10 gears. (10kOhm)
• Power supply SNT 24/ 05: Primary: 230 V / 50 Hz
Secondary: 24VDC / 5A
Dimensions: L/W/H 100x65.5x125
• Power supply SNT 24/ 10: Primary: 230 V / 50 Hz.
Secondary: 24VDC / 10A
Dimensions: L/W/H 125.5x100x125
• Power supply SNT 24/ 20: Primary: 230 V / 50 Hz.
Secondary: 24VDC / 20A
Dimensions: L/W/H 227x100x125
