8PX60- -B Datasheet 12
For latest version visit:
www.enttec.com
8 February 2019 M-file ID 4902755 1 Page|
8PX60-12-B
12 V 60 PIXEL/METER BLACK STRIP
Features
• RGB, 3 in 1 full colour LED pixel strip.
• Individually addressable led pixels, suitable
for stage, entertainment and architectural
applications
• 60 Pixels/meter density
• Designed for use with ENTTEC Pixel products
• Maximum 8.5 Watts/Metre
• WS2815 chips built into 5050 RGB LEDs
• 256 grayscale
• 120-degree illumination without dark area
• 3M adhesive double side tape at the back
• Built-in data signal reshaping circuit
• 12V DC input supply voltage
• Flexible construction material
• Small LED pitch
• Can be joined together
• Can be cut into a smaller length
• IP20 Indoor use only
• Back up data line BI/BO (In/Out)

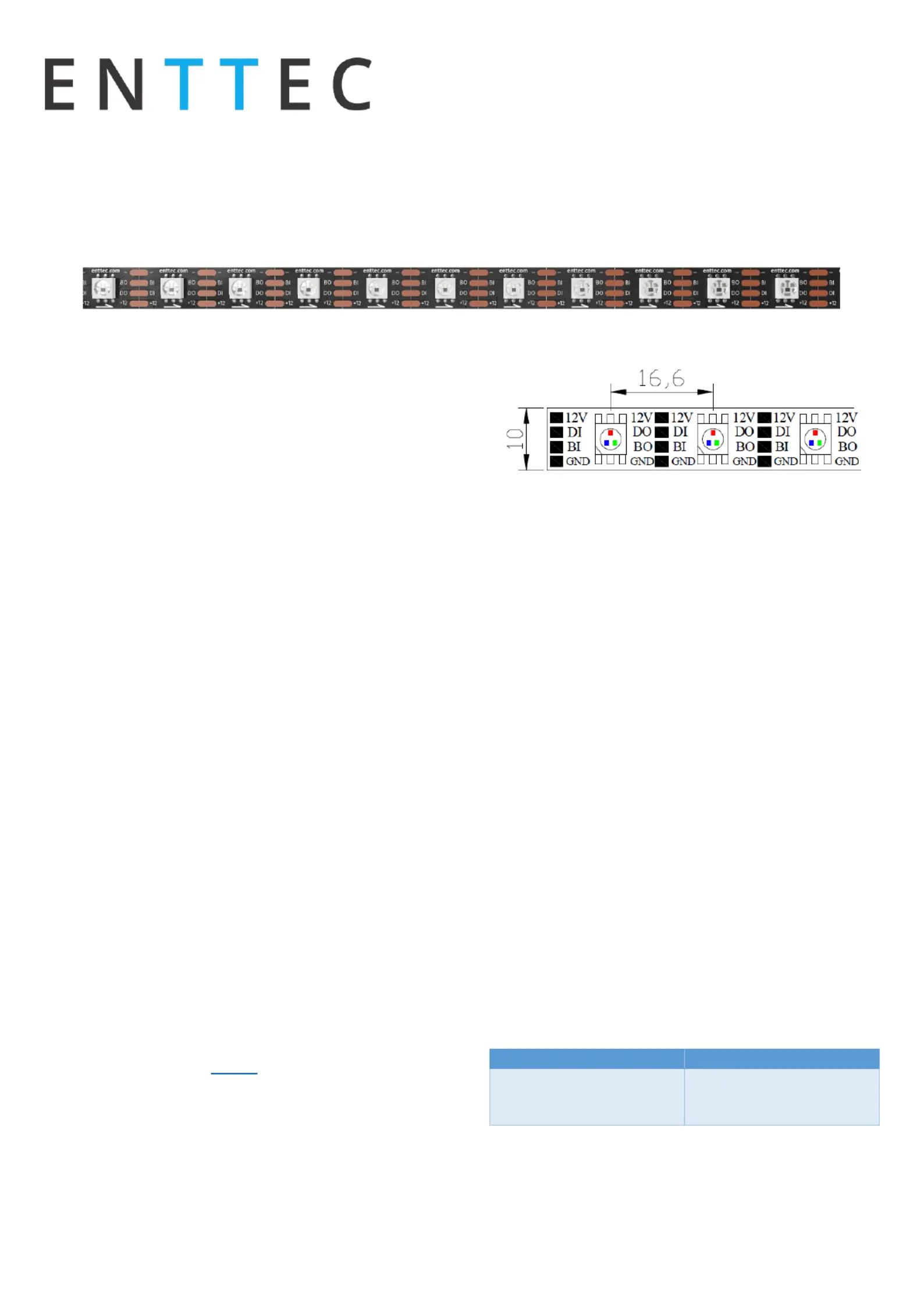

Physical Dimensions
Note
All dimensions are in mm
Safety
• Do not expose this pixel strip to rain
• Do not allow liquid to build up around the pixel
strip.
• Do not exceed the rated V DC power supply. 12
• Please adhere to installation instruction sheet
• This unit is intended for indoor use only, use of
this product outdoors voids all warranties.
• Do not put excess pressure on the pixel strip,
as it can damage the LED s.
• Pixel strips produce heat; ensure proper
thermal management with the use of
extrusions
Ordering Information
Part Number
Description
8PX60- -B 12
RGB PIXEL STRIP 60
LEDs/METER 12V –
5meter roll BLACK
8PX60- -B Datasheet 12
For latest version visit:
www.enttec.com
8 February 2019 M-file ID 4902755 2 Page|

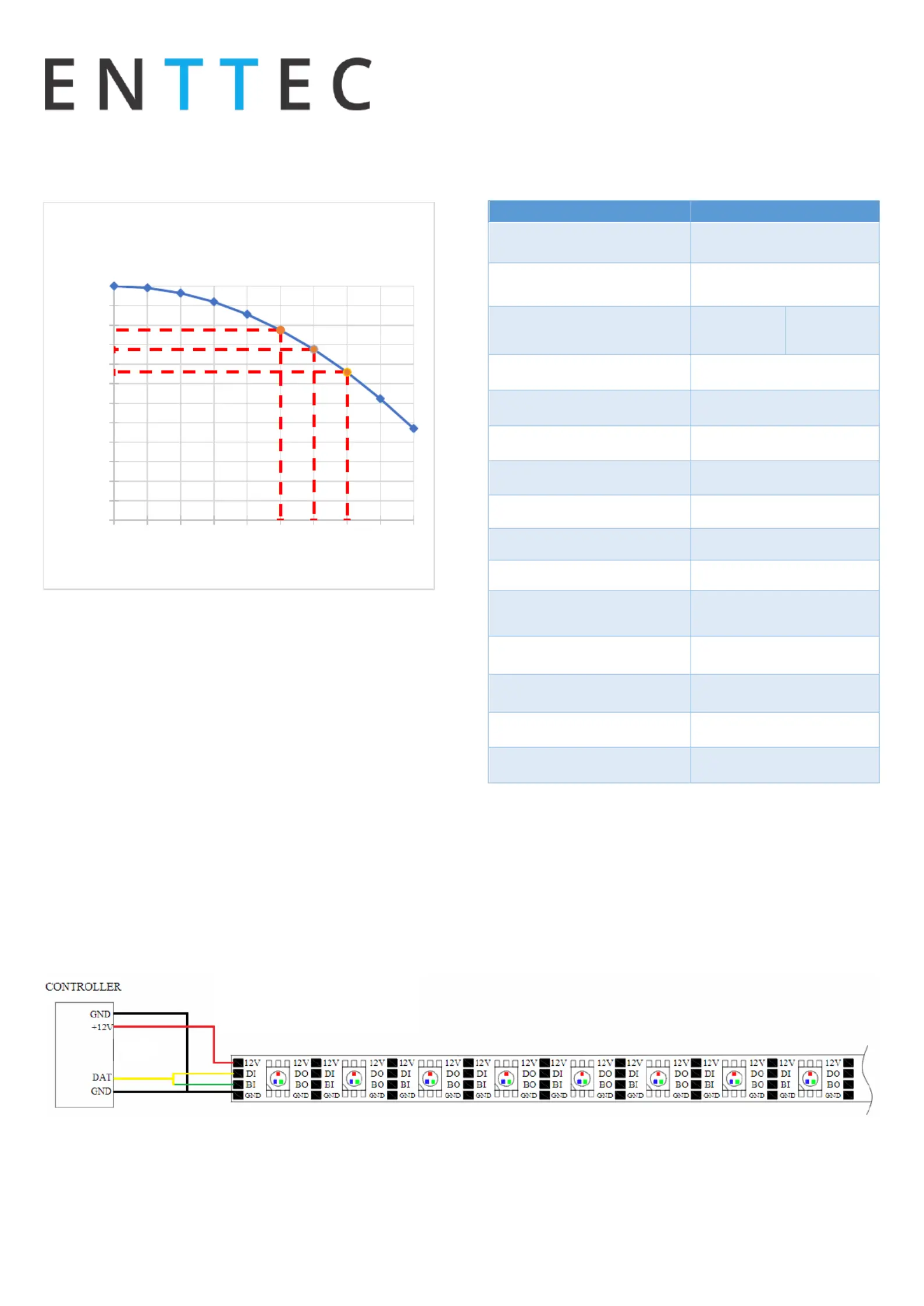

Voltage Drop of Pixel Strip
• The graph shows the voltage drop for each
meter of pixel strip when all pixels are white
(RGB channels fully on)
• The pixel strip had single injection as shown in
the wiring diagram below
• For more information on maximum run length
refer to the installation sheet
Specifications
Note
Power measurements calculated using 1m pixel strip
driven at 12V
Due to continuous improvements and innovations of all
ENTTEC products, specifications and features are
subject to change without notice.
Wiring Diagrams
20%
30%
40%
0
1
2
3
4
5
6
7
8
9
10
11
12
0123456789
Voltage (V)
Meters of Pixel Strip powered on (m)
Voltage Drop for each Meter of
Pixel Strip (All Pixels White)
Item
8PX60- -B12
Input Voltage
+ V ~ + .2VDC 11.7 12
Data line Voltage
-0.5V ~ VCC+0.5V
Watts/meter (max)
All (RGB)
8.5
Lumens/meter
RGB: 1 22
Efficacy (Lm/Watt)
14.9
DMX Channels/LED
3
Beam angle
120 °
Control protocol
WS2815
Connector
JST SM connectors
Weight (5m roll)
115 g
Operating
temperature
-20°C to 55 °C
Pixel Mapping
Order
GRB
Front polymer
encapsulation seal
No
IP Rating
20
PCB Colour
Black
8PX60- -B Datasheet 12
For latest version visit:
www.enttec.com
8 February 2019 M-file ID 4902755 3 Page|

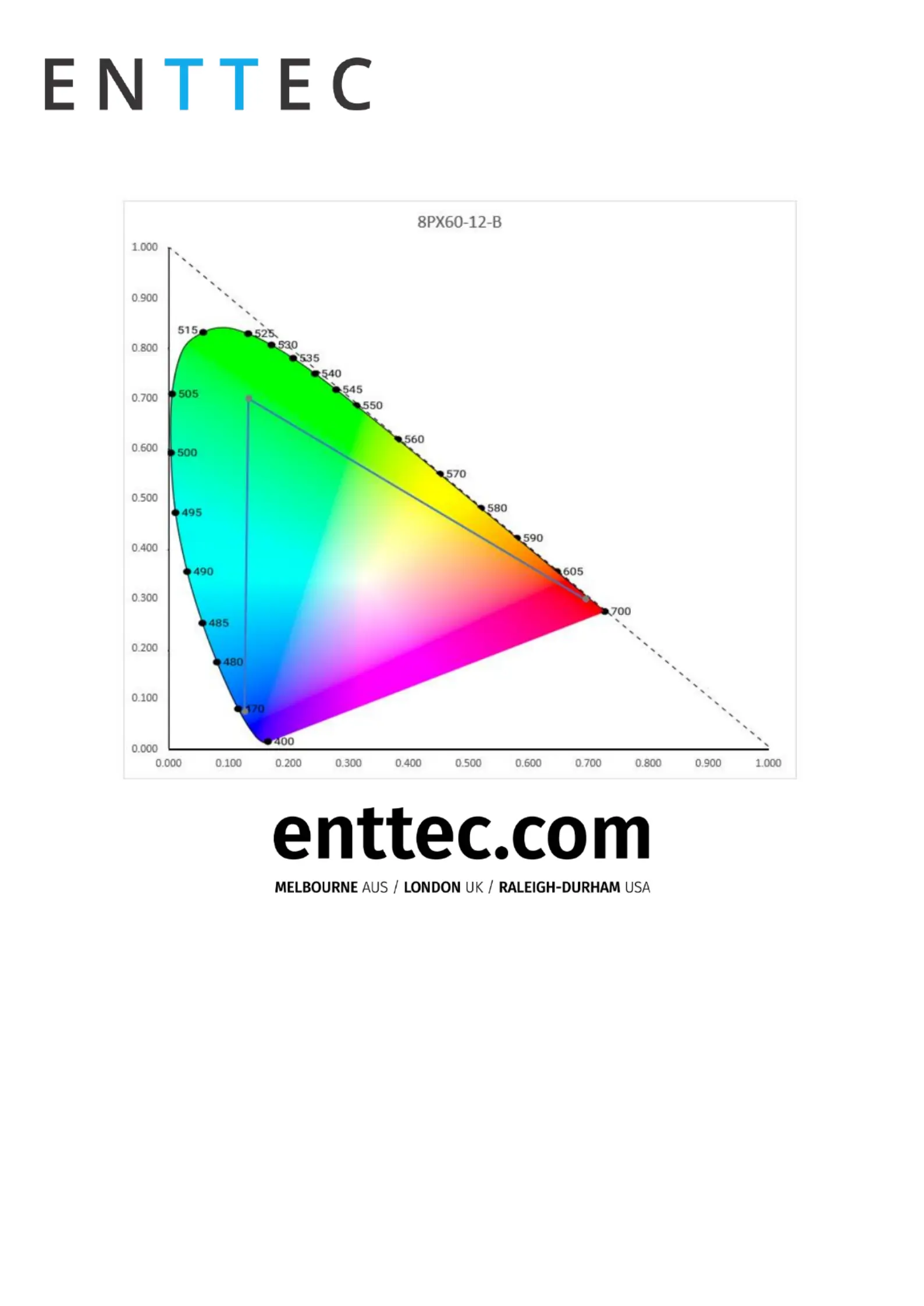

Color Gamut Chart
