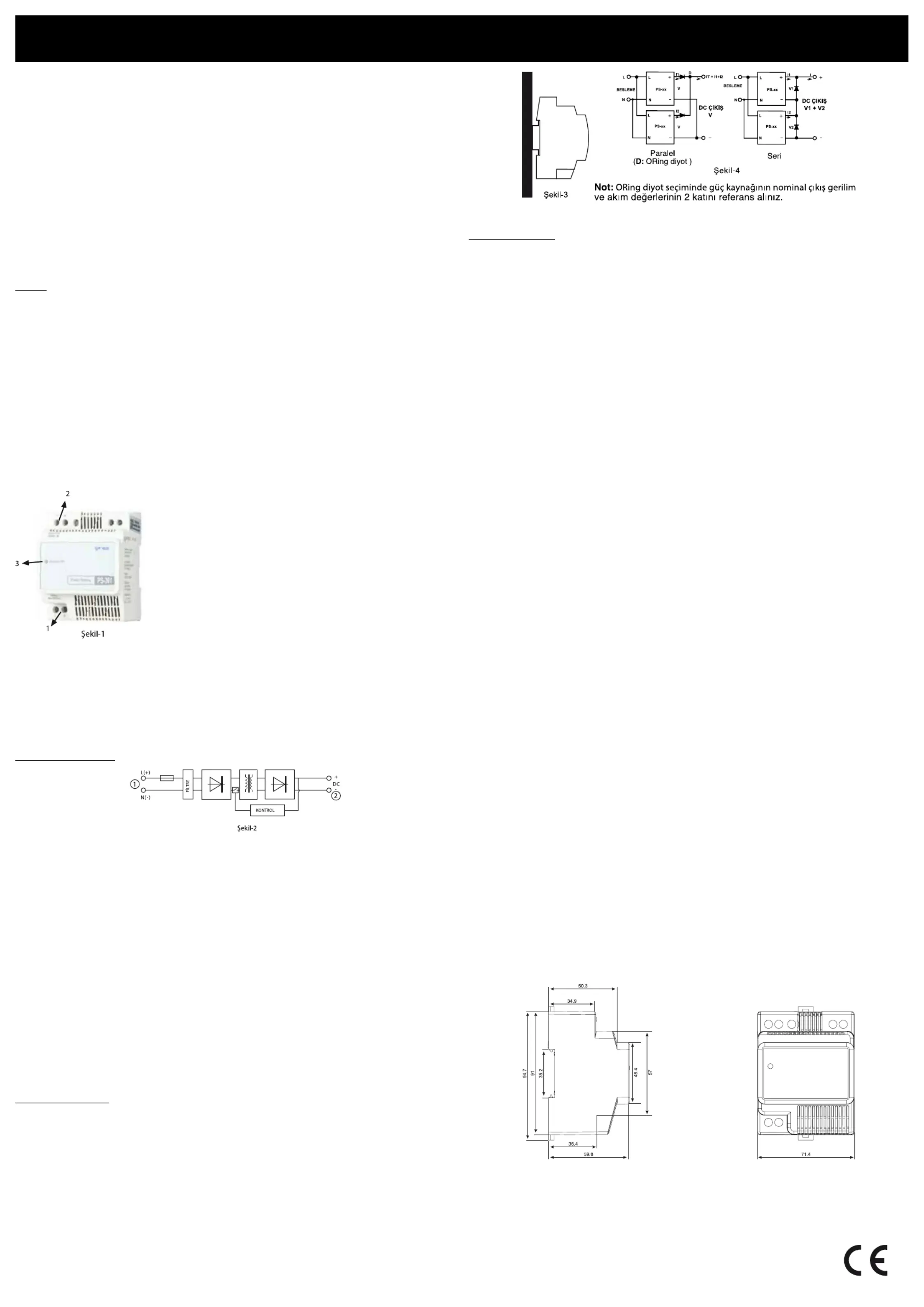

Seite 1/3
4- Teknik Özellikler:
Giriş
Anma giriş gerilimi 100-240 VAC/ 130-320 VDC
Giriş gerilim aralığı 85-265V AC / 110-350V DC
Frekans 45-65 Hz / 0 Hz
Akım üretimi (@36W) 0.4-0.9A AC (±%10)
Ani kalkış akımı <15 A
Dahili sigorta 1.6 A
Anma gerilimi verildikten
sonra tahmini açılış süresi <1 s (@220V AC - 36W)
Mains butering >20 ms (@220V AC - 36W)
Transient surge
voltage protection varistor
Hat regülasyonu <%1 (@24V DC)
Çıkış
Anma çıkış gerilimi 12V DC (± %0,5 )
Anma çıkış akımı 3A DC (<55°C)
Maksimum çıkış akımı 5A DC
Verim >82% @85V AC, >85% @265V AC
Residual dalgalanma <50 mV (nominal yükte)
Aşırı yük koruma max. 6A (@25°C)
Kısa devre koruması Histerisis kapanma
Termal koruma >55°C (@1.7A DC)(nominal yükte)
Seri bağlantı Evet
Paralel bağlantı Evet (ORing diyot bağlanarak )
Yük regülasyonu < %1
Göstergeler
Output OK Cihaz çalışıyor - Sarı LED
Genel Bilgiler
Çalışma sıcaklığı -20°C...+55°C
Nem <95% (@25°C)
Montaj Tip Ray montaj (EN 50022)
Raya montaj aralığı Yatay 1 cm, dikey 5 cm (diğer cihazlarla arasındaki mesafe)
Bağlantı Yıldız Tornavida sıkmalı sabit vidalı klemens
Bağlantı kablosu maks. 12 AWG (4mm2) tek damarlı kablo, 14 AWG(2.5mm2)
çok damarlı kablo
Koruma sınıfı IP20
Kirlilik derecesi Sınıf 2
Aşırı gerilim koruma sınıfı 3
Boyut DIN4 (72*95*60) mm
Kutu Naylon 6
Ağırlık 250 gr
Ürün Standartları
Ürün standartı EN61204-1, EN61204-3, EN61204-4, EN61204-7
SMPS trafo standartı EN61558-1
Elektrik güvenliği EN60950, EN61558-2-17
İzolasyon gerilimi (giriş/çıkış) 4 kV
İzolasyon direnci >5 MW (giriş,çıkış arası)
Surge gerilimi 3 kV Kriter A EN61000-4-5
Burst gerilimi 4 kV Kriter B EN61000-4-4
ESD
Hava boşalması 8 kV Kriter A EN61000-4-2
Temas boşalma 4 kV Kriter A EN61000-4-2
Giriş geriliminde çöküntü (@220V AC)
0% 20ms Kriter A EN61000-4-11
70% 500ms Kriter A EN61000-4-11
Diğer EN61000 3-2, EN61000 6-2, EN55011, EN55022
Şekil-5
12V 36W Güç Kaynağı
PS-361
! DİKKAT
Bu kılavuz cihazın güvenli ve fonksiyonlarının doğru çalışması için gerekli bilgileri içerir. Lütfen montaj öncesi
kullanma kılavuzunu dikkatli okuyunuz ve ikazlara dikkat ediniz.
Güvenlik ve Uyarılar
! DİKKAT Cihazın içini hiçbir şekilde açmayınız, açılan cihaz garanti kapsamı dışındadır.
! DİKKAT Cihaz sadece kaliye kişilerce, elektrik çarpmasına karşı önlem alınarak bağlanmalıdır. Yanlış
bağlantı, kişiler ve çevre için tehlikeli sonuçlar doğurabilir. Yanlış bağlantı cihazın performansında kalıcı
hasara neden olabilir.
- Cihazı beslemeye bağlarken veya bağlantıyı keserken beslemenin gücünü kesiniz.
- Cihazın besleme girişi EN 60950 standartlarına uygun bir şekilde blanmalıdır.
! Cihaza 265V AC den fazla gerilim vermek cihazda patlamaya veya kullanıcıya zarar verme durumlarına
sebep verebilir.
- Cihaz beslemesi yeterli güç kapasitesinde olmalı ve güvenlik standartlarına uygun olmalıdır.
- Cihaz çıkışları PS-361’in verebileceği maksimum akım için uygun olmalıdır.
- Cihaz bağlantısı yapıldıktan sonra, bağlantı noktaları kazayla temasa karşı korumaya alınmalıdır.
- Cihazın montajı, AC besleme girişi alt tarafta, DC çıkışı üst tarafta kalacak şekilde, şekil 1’deki gibi dik
olarak yapılmalıdır.
1- Gir
1.1 Uygulamalar : PS-361 Endüstriyel uygulamalar ve bina otomasyonlarında güvenle kullanabileceğiniz,
panellerde montaj kolaylığı için DIN kutu standartlarına re tasarlanmış yüksek verimli 36W lık anahtarlama
modlu güç kaynağıdır.
1.2 Genel Özellikler :
- Geniş giriş gerilimi aralığı 85-265 VAC (50-60 Hz) / 110-350 VDC
- 36 W lık çıkış gücü (3 ADC @12 VDC)
- Durumsterge ledi (sarı)
- >85% ile yüksek verimli çalışma
- Alçak/Yüksek giriş gerilimi koruma
- Kısa devre, aşırı yük koruma
- Termal koruma
- Sınıf 2 cihaz, toprak bağlantısı gerektirmez
- DIN4 kutu
- IP20 koruma sınıfı
- CE, EN 60950,EN 61204
1-Besleme Girişi
2- DC Çıkış
3- Cihaz Çalışıyor LED
1.3 Kullanım : Şekil 1’de gösterilen cihazda, 1 numaralı kısım PS-361’in giriş gerilimi bağlantı noktasıdır, cihaz
vdesinde L(Line) ve N(Neutral), ile sterilmektedir. Bu noktalara besleme gerilimini bağlayınız. Şekil 1’de 2
ile sterilen kısım PS-361’in DC çıkış kısmıdır, DC çıkışın polaritesi, + ve - ile vde üzerinde sterilmektedir.
PS-361 e besleme verildiğinde Şekil 1’de 3 numara ile gösterilen sarı LED yanacaktır. Bu LED’in yanma
PS-361’in çalıştığını ve çıkış gerilimi ürettiğini göstermektedir.
Aşırı yüklenme, ısınma veya çıkışın kısa devre olma gibi durumlarda cihaz kendini korumaya alarak
kapanacaktır. Arıza durumunun ortadan kalkması ile birlikte cihaz otomatik olarak kendini tekrar devreye
alacaktır.
2- Cihaz Yapısı (Şekil 2)
2.1 Giriş (1)
- Şekil 2’de 1 ile sterilen kısım PS-361in Line (Hat) ve Neutral (Nötr) besleme girişidir.
- 100-240 VAC giriş gerilimi, L ve N uçları kullanarak bağlanabilir.
- 110-350 VDC giriş gerilimi, L ve N uçları kullanarak bağlanabilir.
- Cihaz, içerisinde bulunan dahili bir sigorta ile koruma altındadır. Ancak DC giriş gerilimi uygulanacak ise
uygun harici bir sigortada kullanılabilir.
2.2 Çıkış (2)
- Şekil 2’de 2 ile sterilen kısım PS-361in DC gerilim çıkışıdır.
- DC çıkışın pozitif ve negatif kısımları (+) ve (-) ile sterilmiştir.
- Çıkış gerilimi 12 VDC dir.
- Cihaz çıkışı kısa devreye karşı korumalıdır.
- Çıkışı kısa devre olduğunda cihaz tamamen kapanır ve kısa devre durumu geçince kendiliğinden tekrar çalışır.
- Cihaz +55⁰C ortam sıcaklığına kadar çalışabilir.
PS-361 de LED göstergesi bulunur. (Şekil 1 de 3 numaralı kısım)
- Enerji yokken : Output OK Ledi sönüktür.
- Normal çalışma modu : Output OK Ledi yanmaktadır.
- Kısa devre : Output OK Ledi sönüktür. Kısa devre durumu geçerse cihaz tekrar çalışmaya başlar.
- ırı yük : Normal sıcaklıkta cihazdan aşırı yük çekilirse Output OK Ledi söner. Cihaz aşör yapar. Yük
durumu normale geldiğinde tekrar çalışmaya devam eder.
- Aşırı çıkış gerilimi : Output OK Ledi yanıp söner.
3- Bağlantı ve Montaj
3.1 Elektrik Bağlantısı
- AC Giriş (1): PS-361 nominal yükte en fazla 0.9A AC, en az 0.4A AC akım çeker. Kablo kalınlığı buna göre
seçilmelidir. Giriş klemensine maksimum 14 AWG çok damarlı (2.5mm2) kablo ,12 AWG tek damarlı (4mm2)
kablo bağlanabilir.
- DC çıkışı (2): Çıkış akımı 3A DC dir. Kablo kalınlığı buna göre seçilmelidir. Çıkış klemensine maksimum 14
AWG çok damarlı (2.5mm2) kablo ,12 AWG tek damarlı (4mm2) kablo bağlanabilir.
- Standartlara uygunluk açısından 75⁰C de çalışabilecek uygun bakır kablo kullanınız.
3.2 Montaj (Şekil 3) ve Paralel - Seri Bağlantı (Şekil 4)
- PS-361 EN50022 standartlarına uygun DIN raylara kolayca monte edilebilir.
-Cihazı dik olarak monte ediniz. Cihaz monte edilirken DC çıkış kısmının üst tarafa gelecek şekilde monte
edilmesi tavsiye edilir.
- Cihazın havalandırılmasına dikkat ederek monte ediniz. Monte edildikten sonra PS-361 ile yanındaki cihazlar
arasında 1’er cm boşluk bırakılması önerilir.
ENTES Elektronik Cihazlar Imalat ve Ticaret A.S.
Adr: Dudullu OSB; 1. Cadde; No:23 34776
Ümraniye - İSTANBUL / RKİYE
Tel: +90 216 313 01 10 Fax: +90 216 314 16 15
E-mail: iletisim@entes.com.tr - contact@entes.eu
Web: www.entes.com.tr - www.entes.eu
Call Center Technical Support: 0850 888 84 25
4- Technical Properties:
Input
Nominal input voltage 100-240 VAC / 130-320 VDC
Input voltage range 85-265V AC / 110-350V DC
Frequency 45-65 Hz / 0 Hz
Generated current (@36W) 0.4-0.9A AC (±10%)
Starting current <15A
Internal fuse 1.6A
Estimated opening time after
nominal voltage is supplied <1 s (@220V AC - 36W)
Mains butering >20 ms (@220V AC - 36W)
Transient surge
Voltage protection Varistor
Line ragulation <1% (@24V DC)
Output
Nominal output voltage 12V DC (± %0,5 )
Nominal output current 3A DC (<55°C)
Maximum output current 5A DC
Eciency >82% @85V AC
>85% @265V AC
Residual uctuation <50 mV (under nominal load)
Overload protection max. 6A (@25°C)
Short circuit protection Hysteresis turn o
Thermal protection >55°C (@1.7A DC)(under nominal load)
Series connection Yes
Parallel connection Yes (by connecting ORing diode)
Load regulation < 1%
Indicators
Output OK Yellow LED
General Information
Operating Temperature -20°C...+55°C
Humidity <95% (@25°C)
Mounting Type Rail mount (EN 50022)
Rail mounting spaces 1 cm horizontally, 5 cm vertically
(spacing between other devices)
Connection Terminals with xed screws
compatible with Phillips screw drives
Connection wire max. 12 AWG (4mm2)solid wire,
14 AWG(2.5mm2) stranded wire
Protection class IP20
Pollution Degree Class 2
Overvoltage protection class 3
Dimensions DIN4 (72*95*60) mm
Casing Nylon 6
Weight 250 gr
Product Standards
Product standard EN61204-1, EN61204-3,
EN61204-4, EN61204-7
SMPS transformer standard EN61558-1
Electric safety EN60950, EN61558-2-17
Insulation voltage (input/output) 4 kV
Insulation resistance >5 MW (between input-output)
Surge voltage 3 kV Criterion A EN61000-4-5
Burst voltage 4 kV Criterion B EN61000-4-4
ESD
Air discharge 8 kV Criterion A EN61000-4-2
Contact discharge 4 kV Criterion A EN61000-4-2
Sag in input voltage (@220 VAC)
0% 20ms Criterion A EN61000-4-11
70% 500ms Criterion A EN61000-4-11
Other EN61000 3-2, EN61000 6-2, EN55011, EN55022
12V 36W Power Supply
PS-361
! ATTENTION
This user manual contains information necessary for the safe and correct operation of the device. Before
mounting the device, please read this user manual carefully and pay attention to warnings.
Safety and Warnings
! ATTENTION
Do not open the device under any circumstances. An opened devices warranty will become void.
! ATTENTION The device must be mounted only by qualied personnel with necessary precautions against
electric shock in place. Incorrect connection may create dangerous result for people and environment.
Incorrect connection may result in permanent damage to the performance of the device.
- Before you energize the device or remove the device from mains, make sure that the supply cable isn’t
connected to mains.
- Supply input of the device must be connected according to EN60950 standards.
! A supply voltage greater than 265V AC may result in an explosion in the device or in damages to the user.
- Device supply must be at a sucient power capacity and must comply with security standards.
-
Cables connected to the outputs of PS-361 must be suitable for the maximum current that PS-361 can provide.
- After device connection is nished, connection points must be protected against accidental contacts.
- Mounting of the device must be done vertically as shown in Figure-1, with AC supply input at the bottom
side and the DC output at the top side.
1- Introduction
1.1 Applications : PS-361 is a 36W high eciency SMPS which was designed according to DIN case
standards for easy installation in panels. It can be safely used in industrial and building automation
applications.
1.2 General Features :
- Wide input voltage range 85-265V AC (50-60 Hz) / 110-350V DC
- 36 W output power (3A DC @12V DC)
- Status notication LED (yellow)
- High eciency operation at >85%
- Low/High input voltage protection
- Short circuit, overload protection
- Thermal protection
- Class 2 device, no earth connection is necessary
- DIN4 case
- IP20 Protection class
- CE, EN 60950,EN 61204
1- Input Voltage
2- DC Output
3- Output OK LED
1.3 Operation : The part of the device which is numbered as 1 in Figure-1 is the input voltage connection
point of PS-361 and it is shown with L (Line) and N (Neutral) on the device body. Connect the supply voltage
to these points. The part of the device which is numbered as 2 in Figure-1 is the DC output connection point
of PS-361 and its polarity is shown with + and - on the device body. When supply voltage is applied to PS-
361, the yellow LED which is numbered as 3 in Figure-1 will light up. When this is LED is lit, it indicates that
PS-361 is working and it generates an output voltage. The device will turn itself o to protect itself during
cases of overload, overheating and shortcircuit at the output contacts. When the error state is resolved, it will
activate itself
automatically.
2- Block Diagram
2.1 Input (1)
- The part which is numbered as 1 in Figure-2 is the Line and Neutral supply inputs of PS-361.
- 100-240V AC input voltage can be connected by using the L and N terminals.
- 110-350V DC input voltage can be connected by using the L and N terminals.
- The device will turn itself o to protect itself during cases of overload, overheating and shortcircuit at the
output contacts. When the error state is resolved, it will activate itself automatically.
2.2 Output (2)
- The part which is numbered as 1 in Figure-2 is the DC voltage output of PS-361.
- Positive and negative parts of the output voltage are shown with (+) and (-).
- Output voltage is 12V DC.
- Device output is protected against short circuit.
- When the output is shorted circuited, device turns o completely and turns on again after the short circuit
condition is resolved.
- The device can operate up to an ambient temperature of +55oC.
PS-361 has LED indicator (Parts 3 in Figure-1).
- When theres no energy : Output OK LED is o.
- Normal operation mode : Output OK LED is on.
- Short circuit : Output OK LED is o. If short circuit situation is resolved, the device starts to work again.
- Overvoltage on Output : Output OK LED blinks.
3- Connection and Mounting
3.1 Wire Connection
- AC Input (1): Under nominal load, PS-361 draws maximum 0.9A AC and minimum 0.4A AC. Wire thickness
must be selected according to these values. Maximum 14 AWG stranded wire (2.5 mm 2) or 12 AWG solid wire
(4 mm2) can be connected to the input terminal.
- DC output (2): Output current is 3A DC. Wire thickness must be selected according to this value. Maximum
14 AWG stranded wire (2.5 mm2) or 12 AWG solid wire (4 mm2) can be connected to the output terminal.
- In terms of complying with standards, use copper wires that can operate at 75oC.
Mounting (Figure 2)
- PS-361 can be mounted on DIN rails which comply with EN50022 standards.
-Mount the device vertically. When mounting the device, it is recommended that the DC output side stays
on top side.
- Mind the device’s ventilation when mounting the device. After the mounting, it is recommended to leave a
1 cm space between PS-361 and devices next to it.
Figure-5
Technische Daten:
Eingang
Nenneingangspannung 100-240 VAC/ 130-320 VDC
Eingangsspannungsbereich 85-265V AC / 110-350V DC
Frequenz 45-65 Hz / 0 Hz
Stromproduktion (@36W) 0.4-0.9A AC (±%10)
Einschaltstrom <15 A
interne Sicherung 1.6 A
Önungszeit nach
Anlegen der Nennspannung <1 s (@220V AC - 36W)
Netzpuerung >20 ms (@220V AC - 36W)
Transienter
Überspannungsschutz varistor
Zeilenregulierung <%1 (@24V DC)
Ausgang
Nennausgangsspannung 12V DC (± %0,5 )
Nennausgangsstrom 3A DC (<55°C)
Maximaler Ausgangsstrom 5A DC
Ertrag >82% @85V AC, >85% @265V AC
Reststoß <50 mV (bei Nennlast)
Überspannungschutz max. 6A (@25°C)
Kurzschlussschutz Hysterese-Abschaltung
Wärmeschutz >55°C (@1.7A DC)(nominal yükte)
Serielle Verbindung Evet
parallele Verbindung Ja (durch Anschluss einer ORing-Diode)
Ladungsregulierung < %1
Indikatoren
usgabe in Ordnung Gerät funktioniert - Gelbe LED
Allgemeine Informationen
Betriebstemperatur -20°C...+55°C
Feuchtigkeit <95% (@25°C)
Montagetyp Schienenmontage (EN 50022)
Schienenmontagebereich Horizontal 1 cm, vertikal 5 cm (Abstand zu anderen Geräten)
Anschluss Feste Schraubklemme mit Kreuzschlitzschraubendreher-Klemmung
Verbindungskabel max. 12 AWG (4 mm2) Massivdraht, 14 AWG (2,5 mm)
mehradriges Kabel
Schutzklasse IP20
Verschmutzungsgrad Klasse 2
Überspannungsschutzklasse 3
Abmessungen DIN4 (72*95*60) mm
Kasten Nylon 6
Gewicht 250 gr
Produktnormen
Produktstandard EN61204-1, EN61204-3, EN61204-4, EN61204-7
SMPS Transformatorstandard EN61558-1
elektrische Sicherheit EN60950, EN61558-2-17
Isolationsspannung (Ein/aus) 4 kV
Isolationswiderstand >5 MW (zwischen Ein- und Ausstieg)
Stoßspannung 3 kV Kriterium A EN61000-4-5
Berstspannung 4 kV Kriterium B EN61000-4-4
ESD
Luftentladung 8 kV Kriterium A EN61000-4-2
Kontaktentladung 4 kV Kriterium A EN61000-4-2
Senkung der Eingangsspannung (@220V AC)
0% 20ms Kriterium A EN61000-4-11
70% 500ms Kriterium A EN61000-4-11
Andere EN61000 3-2, EN61000 6-2, EN55011, EN55022
Abbildung -5
Stromversorgung
PS-361
! ACHTUNG
Dieses Handbuch enthält Informationen, die für die sichere und korrekte Funktion des Geräts erforderlich sind.
Bitte lesen Sie die Bedienungsanleitung vor der Installation sorgfältig durch und beachten Sie die Warnhinweise.
Sicher und Warnungen
! ACHTUNG Önen Sie das Gerät auf keinen Fall, geönete Geräte unterliegen nicht der Garantie.
! ACHTUNG Das Gerät sollte nur von qualizierten Personen angeschlossen werden, die Vorsichtsmaßnahmen
gegen elektrischen Schlag treen. Falsche Anschluss kann gefährliche Folgen für Personen und Umwelt haben.
Die Falsche Verbindung kann zu Schäden bei der Geräteleistung verursachen.
-
Schalten Sie die Stromversorgung aus, wenn Sie das Gerät an die Stromversorgung anschließen oder davon trennen.
- Der Versorgungseingang des Geräts muss gemäß den Normen EN 60950 angeschlossen werden.
! Das Anlegen von mehr als 265 V Wechselstrom an das Gerät kann zu Explosionen oder Schäden für den
Benutzer verursachen.
- Die Geräteversorgung muss ausreichend leistungsfähig sein und den Sicherheitsnormen entsprechen.
- Geräteausgänge müssen für den maximalen Strom geeignet sein, den PS-361 abgeben kann.
- Nach dem Anschließen des Gerätes ssen die Anschlüsse gegen unbeabsichtigtes Berühren geschützt werden.
- Die Installation des Geräts erfolgt vertikal wie in Abbildung 1, mit dem AC-Versorgungseingang unten und dem
DC-Ausgang oben, sollte so gemacht werden.
1- Einleitung
1.1 Anwendungen: PS-361 können Sie bedenkenlos in Industrieanwendungen und Gebäudeautomation
einsetzen, Hocheziente 36-W-Schaltanlage, die gemäß DIN-Box-Standards für eine einfache Installation in
Schaltschränken ausgelegt ist, ist Modus Stromversorgung.
1.2 Allgemeine Merkmale:
- Großer Eingangsspannungsbereich 85-265 VAC (50-60 Hz) / 110-350 VDC
- 36 W Ausgangsleistung (3 ADC @ 12 VDC)
- Statusanzeige-LED (gelb)
- Hochezienter Betrieb mit >85 %
- Schutz vor niedriger/hoher Eingangsspannung
- Kurzschluss-, Überlastschutz
- Wärmeschutz
- Gerät der Klasse 2, kein Erdungsanschluss erforderlich
- DIN4-Box
- Schutzart IP20
- CE, EN 60950, EN 61204
1-Versorgung -Eingang
2- DC-Ausgang
3- Betriebs-LED des Geräts
1.3 Verwendung: In dem in Abbildung 1 gezeigten Gerät ist Teil 1 der Eingangsspannungsanschluss von PS-361,
das Gerät ist gekennzeichnet durch L (Linie) und N (Neutral) auf dem Körper. Schließen Sie an diesen Punkten die
Versorgungsspannung an. 2 in Abbildung 1 der mit gekennzeichnete Teil ist der DC-Ausgangsteil des PS-361, die
Polarität des DC-Ausgangs ist auf dem Gehäuse mit + und - gekennzeichnet. Wenn das PS-361 mit Strom versorgt
wird, leuchtet die gelbe LED 3 in Abbildung 1 auf. Wenn diese LED leuchtet zeigt es, dass PS-361 arbeitet und
Ausgangsspannung erzeugt. In Fällen wie Überlastung, Erwärmung oder Kurzschluss des Ausgangs schützt sich
das Gerät und schließt sich selbst. Mit dem Verschwinden des Fehlerzustands startet das Gerät automatisch neu.
2- Gerätestruktur (Abbildung 2)
2.1 Einführung (1)
- Der in Abbildung 2 mit 1 gekennzeichnete Teil ist der Netz und Nullleiter-Versorgungseingang des PS-361.
- Über die L- und N-Klemmen kann eine Eingangsspannung von 100–240 VAC angeschlossen werden und
N-Klemmen angeschlossen werden.
- 110-350 VDC Eingangsspannung kann über L und N-Klemmen angeschlossen werden.
- Das Gerät ist durch eine interne Sicherung geschützt. Wenn jedoch DC-Eingangsspannung angelegt werden
soll, kann in eine geeignete externe Sicherung eingesetzt werden.
2.2 Ausgang (2)
- Der in Abbildung 2 mit 2 gekennzeichnete Teil ist der Gleichspannungsausgang des PS-361.
- Die positiven und negativen Teile des DC-Ausgangs werden durch (+) und (-) angezeigt.
- Die Ausgangsspannung beträgt 12 VDC.
- Geräteausgang ist gegen Kurzschluss geschützt.
- Bei Kurzschluss des Ausgangs schaltet das Gerät vollständig ab und startet nach Beendigung des
Kurzschlusszustandes selbstständig neu.
- Das Gerät kann bis zu einer Umgebungstemperatur von +55C betrieben werden.
Das PS-361 hat eine LED-Anzeige. (Abschnitt 3 in Abbildung 1)
- Wenn kein Strom vorhanden ist: Die Ausgangs-OK-LED ist aus.
- Normaler Betriebsmodus: LED Ausgang OK leuchtet.
- Kurzschluss: Ausgang OK Led ist aus. Wenn der Kurzschlusszustand vorüber ist, beginnt das Gerät wieder zu
arbeiten.
- Überlast: Ausgang OK LED erlischt, wenn das Gerät bei normaler Temperatur überlastet wird. Das Gerät
blinkt. Belastung Wenn sich der Zustand wieder normalisiert, funktioniert es wieder weiter.
- Über Ausgangsspannung: Ausgang OK LED blinkt.
3- Anschluss und Montage
3.1 Elektrischer Anschluss
- Wechselstromeingang (1): PS-361 zieht maximal 0,9 A Wechselstrom und mindestens 0,4 A Wechselstrom bei
Nennlast. Kabelstärke entsprechend ausgewählt werden soll. Maximal 14 AWG mehradrig (2,5 mm2) Draht
zum Eingangsanschluss, 12 AWG einadrig (4 mm2) Kabel angeschlossen werden kann.
- DC-Ausgang (2): Der Ausgangsstrom beträgt 3 A DC. Die Kabelstärke sollte entsprechend gewählt werden.
Maximal 14 an Ausgangsklemme AWG mehradriges (2,5 mm2) Kabel, 12 AWG einadriges (4 mm2) Kabel kann
angeschlossen werden.
- Zur Einhaltung der Normen geeignetes Kupferkabel verwenden, das bei 75C betrieben werden kann.
3.2 Installation (Abbildung 3) und Parallel-Serielle Verbindung (Abbildung 4)
- PS-361 kann einfach auf DIN-Schienen montiert werden, die den Normen EN50022 entsprechen.
- Installieren Sie das Gerät senkrecht. Bei der Montage muss das Gerät so montiert werden, dass der DC-
Ausgangsteil oben ist empfohlen.
- Bei der Installation auf die Belüftung des Gerätes achten. Nach der Montage, PS-361 und benachbarte Geräte
Es wird empfohlen, zwischen ihnen einen Abstand von 1 cm zu lassen.
ENTES Elektronik Cihazlar Imalat ve Ticaret A.S.
Adr: Dudullu OSB; 1. Cadde; No:23 34776
Ümraniye - İSTANBUL / TÜRKİYE
Tel: +90 216 313 01 10 Fax: +90 216 314 16 15
E-mail: iletisim@entes.com.tr - contact@entes.eu
Web: www.entes.com.tr - www.entes.eu
Call Center Technical Support: 0850 888 84 25 A6505/Rev.4

Produktspezifikationen

Marke: Entes
Kategorie: niet gecategoriseerd
Modell: PS-361

Brauchst du Hilfe?

Wenn Sie Hilfe mit Entes PS-361 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung niet gecategoriseerd Entes

Bedienungsanleitung niet gecategoriseerd

Neueste Bedienungsanleitung für -Kategorien-
