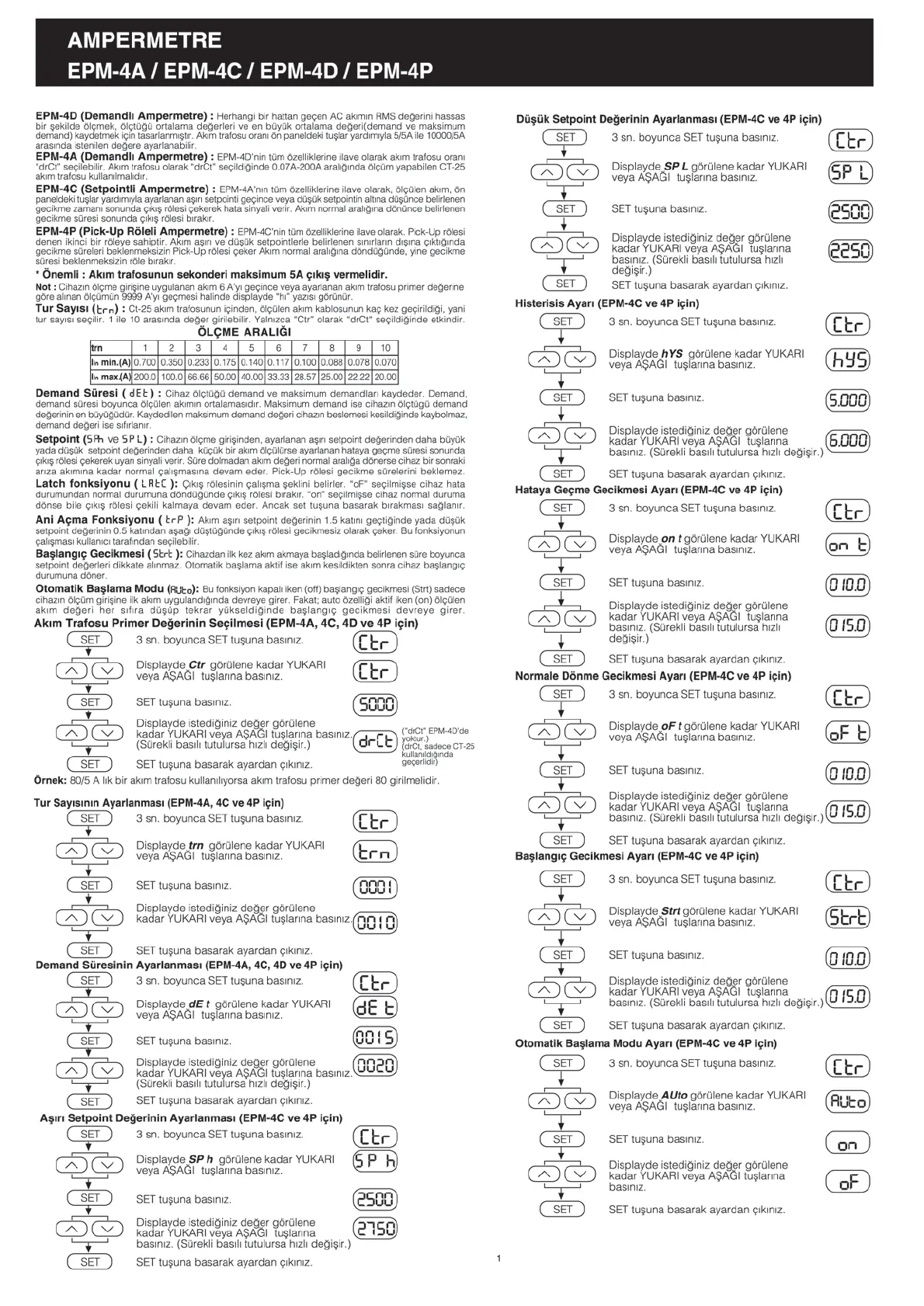

Selection of Current Transformer Primary Value (For EPM-4A, 4C, 4D and 4P)
AMMETER
EPM-4A / EPM-4C / EPM-4D / EPM-4P
EPM-4A (Ammeter with Demand) : With additional features to EPM-4D, current transformer ratio is selected
as îš“drCtîš”, CT-25 current transformer which can measure between 0,07 A - 200 A must be used.
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN Ctr
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
5000
Setting of Demand Time (For EPM-4A, 4C, 4D
and 4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN dE t
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
0015
0020
Setting of High Setpoint Value (For EPM-4C
and 4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN SP h
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
2500
2750
Setting of Low Setpoint Value (For EPM-4C
and 4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN SP L
displayed.
Press SET button.
Press SET button to save.
2500
2 502
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Setting of Hysteresis Value (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN hYS
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
5.000
6.000
Setting of On Time Value (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN o n t
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
Setting of Off Time Value (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN oF t
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
Setting of Start Time Value (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN Strt
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed. (If buttons are pressed
continuously, displayed value is changed
quickly).
Press SET button to save.
Setting of Auto Start Mode (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN AUto
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed.
Press SET button to save.
Setting Instant Tripping Function (For EPM-4Cof
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN trP
displayed.
Press SET button.
Press button untilUP or DOWN
requested value is displayed.
Press SET button to save.
.
Setting of Turn Number (For EPM-4A, 4C and 4P)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN trn
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed.
Press SET button to save.
0001
0010
MEASUREMENT RANGES
EPM-4D (Ammeter with Demand) : EPM-4D is designed to measure RMS value of AC current which flows
from the line and saving the instant and average demands. The current transformer ratio can be set between 5/5A
and 10000/5A by the buttons on the panel.
(îš“drCtîš” is not
available for
EPM-4D.)
(drCt valid when
CT-25 is used)
1
EPM-4C (Ammeter with Setpoint) : EPM-4C measures the RMS value of AC current which flows from the
line. If the measured AC current is over the high setpoint or it is under the low setpoint, output relay is switched
on at the end of adjusted time delay. Also, it includes all functions of EPM-4A.
EPM-4P (Ammeter with Pick-Up) : In addition to EPM-4C, it also has Pick-Up relay. If the measured AC
current is over the high setpoint or it is under the low setpoint, Pick-Up relay is switched on without delay. If current
value returns within preset limits before the end of programmed delay time, Pick-Up relay is switched off without
delay.
* Important Notice: The secondary value of current transformer must be limited at 5A.
Turn ( ) : Turn number of cable, which passes inside of CT-25 is selected in this menu. This number can
be selected between 1 and 10. If only îš“drCtîš” is selected under îš“Ctrîš” menu, turn number will be activated.
Demand Time ( ) : Device records measured demand and maximum demand values. Demand is the
average current value measured in demand time. Maximum demand is the maximum average current value
measured in demand time. Maximum demand value remains stored, even if the power supply is off and demand
value becomes îš“0îš” (zero).
Setpoint (s p s p v e ): When the AC current which flows through the device is over the high setpoint
value or it is under the low setpoint value, the output relay is switched on in order to generate an error signal at
the end of programmed delay time. If the AC current value returns within preset limits, before the end of the delay
time, the relay resets itself and no tripping occurs.
Latch Function ( ) : Latch function is used to select the output relay operation mode. Either îš“oFîš”
or îš“onîš” position may be selected.
At position îš“oFîš”: If the current value returns to preset limits, output relay is switched off.
At position îš“onîš”: Even if the current value returns to preset limits, output relay remains switched on and
switches off only by pressing the îš“Setîš” button.
Instant Tripping ( ) : If the AC current value is over the1,5 times of setting value or it is under the 0,5
times of setting value, the output relay is switched on without any delay time. This function is user-selectable.
Start Time Delay ( ): When the current starts to flow initially, the setpoint values are ignored for the
determined time. If auto start mode is activated, after the AC current is cutted, the device returns into its initial
state.
Automatic Start Mode ( ): If this function is disabled (off), start-up delay (Strt) is activated only when
initial current is applied to the measurement input of device. However, when this function is enabled (on), if
measured current value decreases to îš“0îš” (zero) value and increases again, start-up delay is activated.
Note : If the current on the measurement input of the device is over 6 A or measurement according to entered
primary value of current transformer is over 9999 A, there will be hý on the display.
Example: If a current transformer which has a ratio of 80/5 A is used,
current transformer primary value is entered as îš“80îš”.
* Please check the device label for proper value.
* Different supply voltages are adjustable upon request.
A3921/Rev.5
AMMETER
EPM-4A / EPM-4C / EPM-4D / EPM-4P
Pcs per Package : 16 Pcs (for PR 18)
Package Weight : 5 kg
Pcs per Package : 12 Pcs (for PR 25)
Package Weight : 4,2 kg
Pcs per Package : 20 Pcs (for PR 20)
Package Weight : 5.5 kg
Packaging Information
Programming of Contact Situation (For EPM-4C
and
4P
)
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN oUt
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed.
Press SET button to save.
Dimensions
c
SET
Precautions For Installation and Safe Use
Failure to follow below instructions will result in death or serious injury.
Disconnect all power before working on equipment.
When the device is connected to the network, do not remove the front panel.
Do not try to clean the device with solvent or the like. Only clean the device with a
dried cloth.
Verify correct terminal connections when wiring.
Electrical equipment should be serviced only by your compedent seller. No responsibility
is assured by the manufacturer or any of its subsidiaries for any consequences arising
out of the use of this material.
Only for rack panel mounting.
Warning :
a) A switch or circuit breaker must be connected between the network and the auxiliary
supply input of device.
b) Connected switch or circuit breaker must be in close proximity to the device.
c) Connected switch or circuit breaker must be marked as the disconnecting device
for the equipment.
d) The type of the used fuse must be FF type and the current of the used fuse must be 1A.
e) No need of a vantilator in the installation area
f) Practical user manuel must be put on the panel.
Connection Diagrams
Deleting the Demand Values
(For EPM-4A,
4C, 4D
and 4P)
Press buttons at the same timeUP and DOWN
Displaying of Max. Demand (For EPM-4A,
4C, 4D
and 4P)
Press and hold the button to seeUP
the max. demand value
Display Demand (For EPM-4Aing of
, 4C, 4D
and 4P)
Press and hold the button to seeDOWN
the demand value.
Escaping the Set Menu (For EPM-4A, 4C, 4D
and
4P)
SET
If you do not request to change any
adjustment in the menu;
Press button until isUP or DOWN ESC
displayed.
Press SET button.
Setting of Latch Function (For EPM-4C
and
4P
)
SET
SET
SET
Press SET button for 3 sec.
Press button until isUP or DOWN LAtC
displayed.
Press SET button.
Press button until requestedUP or DOWN
value is displayed.
Press SET button to save.
76
1A
43
0,5m
CT-25
k l
K L
lin
EPM-4A
5
Un
Factory Settings :
Ctr = 0005
trn = 0001
dE t = 0015
SP h = 4.000
SPL = 0.250
hYS = 0.100
on t = 010.0
trP = oF
LAtC= oF
oUt = no
oF t = 010.0
Strt = 006.0
AUto= oF
Technical Data
Operating Voltage (Un),*
Operating Range ( U) : Please look at labels on the device.D
Operating Frequency (f) : 45-65 Hz
Accuracy : 1% ±1 digit [(10%-100%) full scale]
Measuring Input (Iin) : 0,05-5,5 A
0,07-200 A (with CT-25 (for EPM-4A, 4C and 4P))
Measuring Range : 0,05 -10.000 A (with X5 CT)
0,07-200 A (with CT-25 (for EPM-4A, 4C and 4P))
Current Transformer Ratio (Ct) : 5...10000 / 5 A and drCt (for EPM-4A, 4C and 4P)
Power Consumption(Pcons) : <4 VA
Burden : <1 VA
Output Contact : 5 A, 250 V, 1250 VA (Resistive)
(for EPM-4C and 4P)
Pick-Up Contact : 5 A, 250 V, 1250 VA (Resistive)
(for EPM-4P)
Ins. Tripping : >1,5 x SP H or <0,5 x SP L
(for EPM-4C and 4P)
Hysteresis : 0-0,5 x Full scale (for EPM-4C, 4P)
Delay Times : 0,0 - 999,9 sec. (for EPM-4C, 4P)
Demand Time (Average) :1-60 min.
Enclosure : Non-flammable
Equipment Protection : Double Insulation ( ),
Measuring Category III
Ambient Temperature : -5 OC; +50 OC
Degree of Protection : IP 40 (Front Panel)
Wire Thickness : 2,5mm2 (for terminal block)
16 mm
2
(Measuring Input Wire Thickness
for CT-25)
Installations : Flush mounting with rear terminals
Dimensions : Type PR 18, PR 25, PR 20
Weight : 0,31 kg (for PR 18)
: 0,35 kg (for PR 25)
: 0,28 kg (for PR 20)
The Area Measurements on The Control Panel
Control Panel Cut Out
65.5mm
82.5mm
75mm
50mm
TYPE PR 18
WALL
42mm
66mm
66mm
TYPE PR 18 (72x72)
91mm
91mm
TYPE PR 25 (96x96)
TYPE PR 25 (96x96)
96mm
96mm
WALL
90mm
46mm
40mm
50mm
TYPE PR 25
TYPE PR 18 (72x72)
72mm
72mm
48mm
96mm
TYPE PR 20 (48x96)
TYPE PR 20 (48x96)
91mm
44mm
43mm
63mm
54 mm
50mm
TYPE PR 20
WALL
1A
0,5m
k l
K L
l
in
EPM-4A
76
1A
53
0,5m
Output
Contact
k l
K L
l
in
EPM-4C
CT-25 CT-25
41 27653 4
Un Un
1A
k l
K L
l
in
EPM-4D
7653
Un
98
1A
75
0,5m
Output
Contact
k l
K L
l
in
EPM-4C
CT-25
63 4
Un
98
1A
75
0,5m
Output
Contact
k l
K L
l
in
EPM-4P
CT-25
63 4
Un
1 2
Pick-up
98
1A
75
k l
K L
l
in
EPM-4D
Un
76
1A
43
0,5m
CT-25
k l
K L
lin
EPM-4C
5
89
Output
Contact
Un
76
1A
43
0,5m
CT-25
k l
K L
lin
EPM-4P
Pick-Up
1 2 5
89
Output
Contact
Un
76
1A
3
k l
K L
l
in
EPM-4D
5
Un
2
PR 25
(96x96) PR 25
(96x96)
PR 25
(96x96)
PR 25
(96x96)
PR 18
(72x72)
PR 20
(48x96)
PR 18
(72x72)
PR 18
(72x72)
PR 20
(48x96)
PR 20
(48x96)
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(I
in )
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(Iin)
If current
transformer is
selected as
0005-A000
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(I
in )
If current
transformer is
selected as
0005-A000
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(Iin
)
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(Iin
)
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(I
in
)
If current
transformer is
selected as îš“drCtîš”
If current
transformer is
selected as
0005-A000
Mesaurement
Input
(I
in)
If current
transformer is
selected as
0005-A000
43mm
16mm
15.5mm
500mm
2x0,35mm
2
44.5mm
43mm
CT-25
Produktspezifikationen
| Marke: | Entes |
| Kategorie: | Messgeräte |
| Modell: | EPM-4C-72 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Entes EPM-4C-72 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Messgeräte Entes
28 August 2024
28 August 2024
28 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
25 August 2024
Bedienungsanleitung Messgeräte
- Messgeräte Basetech
- Messgeräte Hama
- Messgeräte LogiLink
- Messgeräte Nedis
- Messgeräte Panasonic
- Messgeräte Voltcraft
- Messgeräte Bosch
- Messgeräte Flex
- Messgeräte Laserliner
- Messgeräte Vonroc
- Messgeräte Velleman
- Messgeräte Powerfix
- Messgeräte Alecto
- Messgeräte Bresser
- Messgeräte Techno Line
- Messgeräte Technoline
- Messgeräte TFA
- Messgeräte Cocraft
- Messgeräte Skil
- Messgeräte Trotec
- Messgeräte Hema
- Messgeräte Einhell
- Messgeräte Pyle
- Messgeräte Mitsubishi
- Messgeräte Topcom
- Messgeräte Pioneer
- Messgeräte Megasat
- Messgeräte Continental Edison
- Messgeräte Hazet
- Messgeräte Güde
- Messgeräte Perel
- Messgeräte Probuilder
- Messgeräte Wago
- Messgeräte Workzone
- Messgeräte ProfiCare
- Messgeräte Homedics
- Messgeräte Lanaform
- Messgeräte Soehnle
- Messgeräte Bushnell
- Messgeräte Fysic
- Messgeräte Laica
- Messgeräte Amprobe
- Messgeräte Metrix
- Messgeräte Goobay
- Messgeräte IHealth
- Messgeräte Ansmann
- Messgeräte Westfalia
- Messgeräte Honeywell
- Messgeräte Profitec
- Messgeräte Reely
- Messgeräte Holzmann
- Messgeräte MSW
- Messgeräte Midland
- Messgeräte Leica
- Messgeräte Brandson
- Messgeräte Toolland
- Messgeräte Grohe
- Messgeräte ABB
- Messgeräte AS Schwabe
- Messgeräte Kopp
- Messgeräte Hager
- Messgeräte Omnitronic
- Messgeräte Kyoritsu
- Messgeräte GW Instek
- Messgeräte Monacor
- Messgeräte KERN
- Messgeräte Brüder Mannesmann
- Messgeräte Milwaukee
- Messgeräte Aktobis
- Messgeräte Testo
- Messgeräte Elma
- Messgeräte Albrecht
- Messgeräte Kogan
- Messgeräte Peak
- Messgeräte IDEAL
- Messgeräte TrueLife
- Messgeräte Carrier
- Messgeräte VDO
- Messgeräte Digitus
- Messgeräte Eberle
- Messgeräte Testboy
- Messgeräte Fantini Cosmi
- Messgeräte Greenlee
- Messgeräte Multimetrix
- Messgeräte IFM
- Messgeräte Cablexpert
- Messgeräte Extech
- Messgeräte BENNING
- Messgeräte Metrel
- Messgeräte Fluke
- Messgeräte Soler & Palau
- Messgeräte FLIR
- Messgeräte Vemer
- Messgeräte Oregon Scientific
- Messgeräte Finder
- Messgeräte Shimano
- Messgeräte Stabila
- Messgeräte Elgato
- Messgeräte Hikmicro
- Messgeräte Duro Pro
- Messgeräte Enda
- Messgeräte GMC Instruments
- Messgeräte Gossen Metrawatt
- Messgeräte Hameg
- Messgeräte Ideal Networks
- Messgeräte Joy-it
- Messgeräte LaCie
- Messgeräte Maximum
- Messgeräte Megger
- Messgeräte Mercury
- Messgeräte Myoton
- Messgeräte Nieaf-Smitt
- Messgeräte PCE Instruments
- Messgeräte PICO
- Messgeräte Psiber
- Messgeräte RK Technology
- Messgeräte Sanwa
- Messgeräte Sekonic
- Messgeräte Skandia
- Messgeräte Sonel
- Messgeräte Uni-T
- Messgeräte Uni-Trend
- Messgeräte Wachendorff
- Messgeräte TFA Dostmann
- Messgeräte Vimar
- Messgeräte Owon
- Messgeräte PeakTech
- Messgeräte Siig
- Messgeräte Comark
- Messgeräte Eltako
- Messgeräte H-Tronic
- Messgeräte Beha-Amprobe
- Messgeräte Chauvin Arnoux
- Messgeräte Electronics International
- Messgeräte Eastron
- Messgeräte Arya
- Messgeräte Emko
- Messgeräte Pancontrol
- Messgeräte Wentronic
- Messgeräte X-Rite
- Messgeräte CESYS
- Messgeräte Trumeter
- Messgeräte Etymotic
- Messgeräte ORNO
- Messgeräte Ebro
- Messgeräte TDE Instruments
- Messgeräte Zircon
- Messgeräte Apollo Ultrasonic
- Messgeräte BJZ
- Messgeräte Adwa
- Messgeräte Greisinger
- Messgeräte Clean Air Optima
- Messgeräte Motrona
- Messgeräte Atmel
- Messgeräte Tru Components
- Messgeräte Qubino
- Messgeräte Janitza
- Messgeräte CEM
- Messgeräte Klein Tools
- Messgeräte J.P. Instruments
- Messgeräte AREXX
- Messgeräte Tempo
- Messgeräte CIRCUTOR
- Messgeräte Camille Bauer
- Messgeräte Seaward
- Messgeräte Dostmann Electronic
- Messgeräte ClimeMET
- Messgeräte Cliff
- Messgeräte Water-i.d.
- Messgeräte Tektronix
- Messgeräte AkYtec
- Messgeräte Aeros
- Messgeräte Aqua Master Tools
- Messgeräte Hanna
- Messgeräte Qualita
- Messgeräte MGL Avionics
- Messgeräte Aerospace Logic
- Messgeräte Johnson Level
- Messgeräte GMW
- Messgeräte SOEKS
- Messgeräte Softing
- Messgeräte Weltron
- Messgeräte Oscium
- Messgeräte Lascar Electronics
- Messgeräte INFICON
- Messgeräte Blebox
- Messgeräte HOZO Design
- Messgeräte Corentium
- Messgeräte GQ
- Messgeräte Murideo
- Messgeräte SecuTech
- Messgeräte NetPeppers
- Messgeräte SensoProtect
- Messgeräte ZKETECH
- Messgeräte LabNation
- Messgeräte MASIMO
- Messgeräte Milesight
- Messgeräte Ermenrich
- Messgeräte Siglent
- Messgeräte Noyafa
- Messgeräte Stamos
Neueste Bedienungsanleitung fĂĽr -Kategorien-
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
16 Oktober 2024
