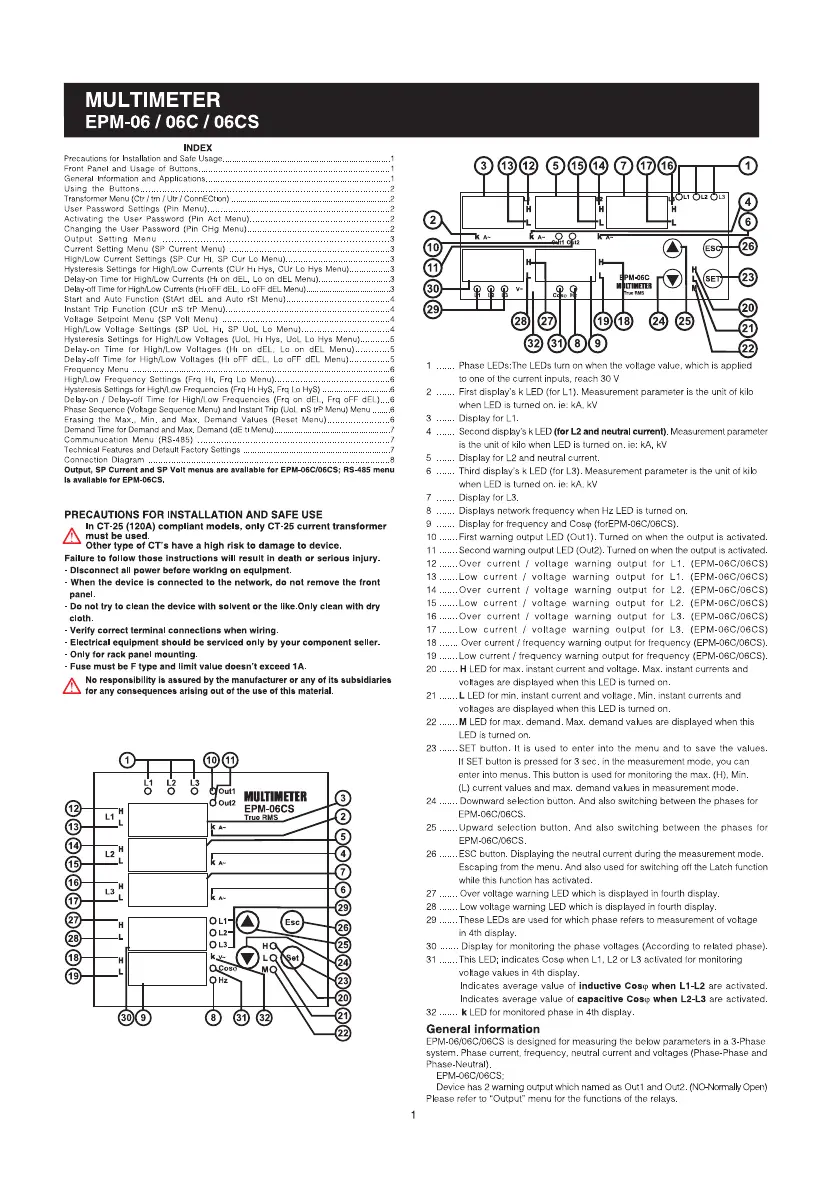

Seite 1/4

MULTIMETER

EPM-06 / 06C / 06CS

INDEX

Precautions for Installation and Safe Usage.........................................................................1

Front Panel and Usage of Buttons.............................................................................1

General Information and Applications.............................................................................1

Using the Buttons............................................................................................2

Transformer Menu (Ctr / trn / Utr / ConnECtýon) ........................................................................2

User Password Settings (Pin Menu).......................................................................2

Act ivat ing the User Password (Pin Act Menu)......................................................2

Changing the User Password (Pin CHg Menu).........................................................2

Output Setting Menu ..............................................................................3

Current Setting Menu (SP Current Menu) ................................................................3

High/Low Current Settings (SP Cur Hý, SP Cur Lo Menu)..........................................3

Hysteresis Settings for High/Low Currents (CUr Hý Hys, CUr Lo Hys Menu).................3

Delay-on Time for High/Low Currents (Hý on dEL, Lo on dEL Menu)..............................3

Delay-off Time for High/Low Currents (Hý oFF dEL, Lo oFF dEL Menu).......................................3

Start and Auto Function (StArt dEL and Auto rSt Menu).........................................4

Instant Trip Function (CUr ýnS trP Menu).................................................................4

Voltage Setpoint Menu (SP Volt Menu) ..................................................................4

High/Low Voltage Set tings (SP UoL Hý, SP UoL Lo Menu)..................................4

Hysteresis Settings for High/Low Voltages (UoL Hý Hys, UoL Lo Hys Menu)............5

Delay-on Time f or High/Low Volt ages (Hý on dEL, Lo on dEL Menu).............5

Delay-of f Time for High/Low Voltages (Hý oFF dEL, Lo oFF dEL Menu)................5

Frequency Menu .........................................................................................................6

High/Low Frequency Set tings (Frq Hý, Frq Lo Menu).............................................6

Hysteresis Settings for High/Low Frequencies (Frq Hý HyS, Frq Lo HyS) ..............................6

Delay-on / Delay-off Time for High/Low Frequencies (Frq on dEL, Frq oFF dEL)....6

Phase Sequence (Voltage Sequence Menu) and Instant Trip (UoL ýnS trP Menu) Menu ........6

Erasing the Max., Min. and Max. Demand Values (Reset Menu)........................6

Demand Time for Demand and Max. Demand (dE tý Menu)....................................................7

Communucation Menu (RS-485) .........................................................................7

Technical Features and Default Factory Settings ................................................................7

Connection Diagram ................................................................................................8

Output, SP Current and SP Volt menus are available for EPM-06C/06CS; RS-485 menu

is available for EPM-06CS.

Dimensions

Connection Diagram

MULTIMETER

EPM-06 / 06C / 06CS

A3794 / Rev.5

Available only for EPM-06C/06CS

Available only for EPM-06CS

Panel Cut-out

91mm

Type PR 19 (96x96)

70mm

Wall 79.3mm

90mm

Tip 19

50mm

1 .......

Phase LEDs:The LEDs turn on when the voltage value, which is applied

to one of the current inputs, reach 30 V

2 ....... First displays k LED (for L1). Measurement parameter is the unit of kilo

when LED is turned on. ie: kA, kV

3 ....... Display for

L1.

4 ....... Second displays k LED . Measurement parameter(for L2 and neutral current)

is the unit of kilo when LED is turned on. ie: kA, kV

5 ....... Display for

L2 and neutral current.

6 ....... Third displays k LED (for L3). Measurement parameter is the unit of kilo

when LED is turned on. ie: kA, kV

7 ....... Display for

L3.

8 ....... Displays network frequency when Hz LED is turned on.

9 ....... Display for frequency and Cos (forEPM-06C/06CS).j

10 .......First warning output LED (Out1). Turned on when the output is activated.

11 .......Second warning output LED (Out2). Turned on when the output is activated.

12 .......Over current / voltag e warning output for L1. (EPM-06C/06CS)

13 .......Low current / voltag e warning output f or L1. (EPM-06C/06CS)

14 .......Over current / voltag e warning output for L2. (EPM-06C/06CS)

15 .......Low current / voltag e warning output f or L2. (EPM-06C/06CS)

16 .......Over current / voltag e warning output for L3. (EPM-06C/06CS)

17 .......Low current / voltag e warning output f or L3. (EPM-06C/06CS)

18 ....... Over current / frequency warning output for frequency (EPM-06C/06CS).

19 .......Low current / frequency warning output for frequency (EPM-06C/06CS).

20 ....... LED for max. instant current and voltage. Max. instant currents and H

voltages are displayed when this LED is turned on.

21 ....... LED for min. instant current and voltage. Min. instant currents and L

voltages are displayed when this LED is turned on.

22 ....... LED for max. demand. Max. demand values are displayed when this M

LED is turned on.

23 .......SET button. It is used to enter into the menu and to save the values.

If SET button is pressed for 3 sec. in the measurement mode, you can

enter into menus. This button is used for monitoring the max. (H), Min.

(L) current values and max. demand values in measurement mode.

24 ....... Downward selection button. And also switching between the phases for

EPM-06C/06CS.

25 .......Upward selection button. And also switching between the phases for

EPM-06C/06CS.

26 .......

ESC button. Displaying the neutral current during the measurement mode.

Escaping from the menu. And also used for switching off the Latch function

while this function has activated.

27 ....... Over voltage warning LED which is

displayed

in fourth display.

28 ....... Low voltage warning LED which is

displayed

in fourth display.

29 .......These LEDs are used for which phase refers to measurement of voltage

in 4th display.

30 ....... Display for monitoring the phase voltages (According to related phase).

31 .......This LED; indicates Cos when L1, L2 or L3 activated for monitoring j

voltage values in 4th display.

Indicates average value of are activated.inductive Cos when L1-L2j

Indicates average value of are activated.capacitive Cos when L2-L3j

32 ....... LED for monitored phase in 4th display.k

Out 2 Out 1

PK-26

k l

K L

k l

K L

k l

K L

L1 L2 L3 N

GND A B TR

PR-19

K L

k l

K L

IL1 IL2 IL3

Out 1 Out 2 GND B A TR

70mm

79.3mm

90mm

Type PR 19 (96x96)

96mm

60.6

106.0

10.8 30.1 7.6 9.5

26.5 21.5

53.0

58.0

10.0

8.5

14.0

45.0

90.0

Type PK 26

30 9

1 10 11

19 23

8 31 32

112 14 163 5 7

28 27

24 25 21

931 8

19 18

15 1713

General information

EPM-06/06C/06CS is designed for measuring the below parameters in a 3-Phase

system. Phase current, frequency, neutral current and voltages (Phase-Phase and

Phase-Neutral).

EPM-06C/06CS;

Device has 2 warning

output

which named as Out1 and Out2. (NO-Normally Open)

Please refer to Output menu for the functions of the relays.

Note: For CT-25 models:

Summary of the Contact Operations

Voltage

Frequency

Current

Phase Seq.

Voltage

Frequency

Current

Under

Over

ALTERNATIVE 2 (H-L)

Current

Voltage

Frequency

Phase Seq.

Under/Over

ALTERNATIVE 1 (U-I)

Out 1

Out 2

-->

Failure to follow those instructions will result in death or serious injury.

- Disconnect all power before working on equipment.

- When the device is connected to the network, do not remove the front

panel.

- Do not try to clean the device with solvent or the like.Only clean with dry

cloth.

- Verify correct terminal connections when wiring.

- Electrical equipment should be serviced only by your component seller.

- Only for rack panel mounting.

- Fuse must be F type and limit value doesnt exceed 1A.

In CT-25 (120A) compliant models, only CT-25 current transformer

must be used.

Other type of CTs have a high risk to damage to device.

PRECAUTIONS FOR INSTALLATION AND SAFE USE

Valid for EPM-06C/06CS

No responsibility is assured by the manufacturer or any of its subsidiaries

for any consequences arising out of the use of this material.

17 18 19 20

RS485

System

1 A

Current Measurement Inputs

Auxiliary

Supply

1 2 3 4 5 6

11 12

Output Relay

13 14 1 165

Choose according to

contactor current

7 8 9 10

Voltage Measurement Inputs

k: When CT-25 is used, Red cable is connected to k terminal.

l: When CT-25 is used, Black cable is connected to l terminal.

Current Measurement

Inputs

Auxiliary

Supply

Relay utput

System

Choose according to

contactor current

Voltage Measurement

Inputs

RS485

User Password Setup:

In this menu user password is defined and activated.

You must define and activate a 4 digit user password for preventing device

settings from the illegal usage.

There are 2 sub menu in the Pýn menu.

ESC

SET

Press ESC button one by

one until SAU E SEt yES

is displayed.

Press SET button. When

SAU E SEt yES is

displayed (If you press

ESC button or choose no option instead of yES then new data will

be cancelled and previous value will be activated).

This menu is used for activating the user password.

After the user password is activated for entering to the menus;

if the button is pressed for sec., while the instant values3

are observed, user password is required. If the user password

is entered wrong device does not latch.

Note: Factory default value of user password is 0000

Activating the user password :

Find the Pýn menu by scrolling UP/DOWN buttons.

Press SE T button (Pýn ACt IUA tE is displayed.)

SET

S ET

MULTIMETER

EPM-06 / 06C / 06CS

Using the Buttons:

Some buttons and button groups are used for the below special function

when device is in the measurement mode (Without selecting a menu).

: Switching between neutral current and phase current in measurement

mode. Switching to the previous menu and escaping the programming

menu without saving the changes.

If the Latch function is turned on (EPM-06C/06CS); output will be

released when current(s) of system is exceed the defined values.

When the systems current turns back to normal values then output

doesnt react. Output can be trigged by the ESC button.

Switching between the phase-phase voltages in fourth display.

Used for changing the menu settings and parameters in programming

mode.

ESC

Commissioning and menu setting

(for EPM-06/06C/06CS)

Energize the device after implementing the connections respected to the

user manual.

Enter the proper menu settings in order to correct measurements and

applications.

Current Transformer Ratio Setup:

In this menu, current transformer ratio is set between 1 - 2000.

(This menu is not available in the devices which are adapted

with CT-25.)

Note: If the current transformer is not used between the system

and device, current transformer ratio is entered as 1.

Example: If a current transformer which has a ratio of 30/5A is

used between the system and device;

Curren t transformer ratio is entered as = 30/5 = 6.

SET : Used for monitoring min. / max. currents and voltages or max. demand

values. Switching to the programming mode if it pressed for 3 sec. In

programming mode; it is used for switching to the menu and saving

changes for the parameters.

SET

ESC

SET

Press SET button; trA Fo Ctr menu is displayed (In CT-25 adapted

devices, trA Fo trn is displayed instead.)

( trA Fo Utr or Con nEC týo n menu can be displayed by scrollingNot:

the UP/DOWN buttons.)

Press SET button. Blinking the first digit of displayed value appears.

(trA Fo Utr or Con nEC týo n menu can be

programmed similarly.)

Enter the blinking digit value by scrolling

UP/DOWN buttons. Switch to the other

digits by using SET button, use ESC button

to go to previous digit. After you entered

the last digit press SET button, trA Fo Ctr

is displayed.

(Data is entered but is not

activated yet. For activating the new data

please follow the below steps).

SET

Press SET button for 3 sec. (trA Fo menu is displayed)

Voltage Transformer Ratio:

In this menu, voltage transformer ratio is set between 0000,1 - 4000,0.

Note: If the voltage transformer is not used between the system and

EPM-06, voltage transformer ratio is entered as 1.

Example: If a voltage transformer which has a ratio of 34.5KV/100V

is used between the system and device; Voltage transformer ratio

is entered as 345. (34500/100)

Selecting the Connection Type :

Connection can be selected as Star or Delta in this menu.

Phase-Neutral voltage monitoring can be implemented if the Star

connection is selected.

Phase-Phase voltage monitoring can be implemented if the Delta

connection is selected.

NOTE: When the Delta connection is selected, neutral current

monitoring can not be implemented even if it is activated and

displaying function of ESC button will be disabled also.

SET

Press ESC button one by one until

SAU E SEt yES is displayed.

Press SET button. When SAU E

SEt yES is displayed (If you

press ESC button or choose no

option instead of yES then new

data will be cancelled and

previous value will be activated).

Press SET button. Blinking the first digit of displayed value appears.

Enter the blinking digit value by scrolling

UP/DOWN buttons. Switch to the other

digits by using SET button, use ESC button

to go to previous digit. After you entered

the last digit press SET button, Pýn ACt

oF is displayed.on can be selected by

scrolling UP/DOWN buttons.

(Data is

entered but is not activated yet. For

activating the new data please follow the

below steps).

SET

Programming the Turn Number:

This menu is available for CT-25 adapted devices. User defines the

turn number, which is the number of how many tour the current

cable has rounded into the CT-25. Numbers can be selected

between 1-20. Greater the number of turn means greater the

sensivity.

Find the Pýn menu

by scrolling

UP/DOWN buttons.

Press SET butt on

(Pýn ACt IUA tE is

displayed.)

SET

Find the Pýn CHA n9E menu by scrolling UP/DOWN buttons.

Changing of User Password:

This menu is used for changing the user password.

Note: Factory default value for user password is 0000

Press ESC button one by

one until SAU E SEt

yES is displayed.

ESC

SET

MULTIMETER

EPM-06 / 06C / 06CS

Serial Communication (for EPM-06CS)

EPM-06CS have MODBUS RTU communication protocol which is

optical isolated. All measured parameters can be transfer to the

computer.Transformer ratios and communication parameters can be

set. Saved values can be reset.

Programmed parameter for communication explained below.

Press SET button 3 sec.

(trA Fo menu is displayed.)

Find RS-485 menu by

scrolling UP/DOWN

buttons.

Press SET button (Adr ESS menu is

displayed.)

Enter the parameter values by scrolling UP/DOWN buttons

(001...247 / 2400...38400 /no, EUEn, odd).

Press SET button, Adr ESS / bAU d / PArýty is displayed.

(Data is

entered but is not activated yet. For activating the new data please

follow the below steps)

Press ESC button one by one until SAU E SEt yES is displayed.

Press SET button. When SAU E SEt yES is displayed (If you press

ESC button or choose no option instead of yES then new data will

be cancelled and previous value will be activated).

Find 

Adr ESS / bAU d / PArýty

by scrolling UP-DOWN buttons.

SET

ESC

SET

03H READ HOLD REGISTERS

06H PRESET SINGLE REGISTER

10H PRESET MULTIPLE REGISTERS

MODBUS RTU PROTOCOL

(

Available only for

EPM-06CS)

Standart MODBUS RTU message is shown below.

TADDRESS

8 BIT

FUNCTION

8 BIT

DATA

NX8BIT CRCH CRCL T

The T times corresponds to a time in which data must not be exchanged on the

communication bus to allow the connected devices to recognize the end of one

message and the beginning of another. This time must be at least 3.5 characters

at the selected baud rate. Adress range (1-247 ) is address of the connected

device. The data field contains data sent to the slave by master or data sent to

master by slave.

CRC is a error check method by using MODBUS RTU protocol and consists of 2

bytes.

Available Modbus Function:

Read Hold (03) function is used for reading measured values and set value. If any

request of reading of a register, excepted mentioned in register table, device will

send an error message.

For example to read phase1 voltage by sending a message to the device.

01 03 00 00 00 02 XX XX

Device address

Function

MSB address

LSB address

02 Register number LSB

XX CRC MSB

XX CRC LSB

Preset Multiple Register(10H) is used to set more then one register at same time.

i.e. Setting CT as 100, Ut as 20.0;

01 10 80 00 00 02 04 00 C8 00 64 XX XX

01 Device Address

10 Function

80 MSB address

00 LSB address

00 Register number MSB

02 Register number LSB

04 Byte count

00 Data MSB

C8 Data LSB

00 Data MSB

64 Data LSB

XX CRC MSB

XX CRC LSB

Preset Single Register (06) function is used for writting the setting values, erasing

the energy counter or resetti ng the mi n., max., max. demand values.

Current transformers ratio can be set 0-2000, voltage transformer ratio can be set

1-40000.

i.e. Setting CT as 100;

01 06 80 02 00 64 XX XX

01 Device address

06 Function

80 MSB address

02 LSB address

00 Data MSB

64 Data LSB

XX CRC MSB

XX CRC LSB

Default Settings

Press SET button. When

SAU E SEt yES is

displayed (If you press

ESC button or choose

no option instead of yES then new data will be cancelled and

previous value will be activated).

Technical Features

Rated Voltage (Un) Please look at back side of the device.:

Operating frequency (f) : 45-65 Hz

Auxiliary Supply Power Consumption : < 4 VA

Measuring Input Power Consumption : < 1 VA

Measurement range

: 0.05-5.5A~Current

: 2 - 120 A~ for CT-25

: 10-300 V AC (Phase - Neutral)Voltage

10-500 V AC (Phase - Phase)

Class : 1±1% digit [(10%-100%) x full scale]

Current Transformer Ratio : 1 ... 2000

Turn number for CT-25 adapted models : 1 .... 20

Voltage Transformer Ratio : 1 ... 4000

Max. Ctr x Vtr : 40.000

Communications (for EPM-06CS) : MODBUS RTU (RS 485)

Optic isolated, programmable

Baud Rate (for EPM-06CS) : 2400-38400 bps

Address (for EPM-06CS) : 1-247

Parity (for EPM-06CS) : No, Odd, Even, 8 Data Bits, 2 Stop Bits

Output Relays : 2 NO, 5A 1250 VA(for EPM-06C/06CS)

Ambiant Temperature : -5°C; +50°C

Display : Red LED display

Dimensions : PR-19, PK-26

Equipment Protection Class : Double Insulation - Class II ( )

Box Protection Class : IP 40

Terminal Protection Class

: IP 00

Box Material : Nonflamable

Mounting Panel Mounted: (PR-19)

Rail Mounted (PK-26)

Wire Crossection (for terminals) : 2.5 mm 2

Weight : 0.56 kg (PR-19)

0.52 kg (PK-26)

Mounting Category : Class III

Panel Size : 91x91 mm (PR-19)

46x107 mm (PK-26)

Below measurement and application can be implemented with

EPM-06/06C/06CS.

1) Phase curre nts ( L), Ne utral current ( N), frequency and CosI I j

(EPM-06C/06CS); Phase-Phase and Phase-Neutral voltages can be measured.

Existence of live phases can be observed by L1-L2-L3 LEDs on the device.

3) Min. and max. values for measured currents and voltages can be monitored

with only one button.

4) Max. demand values for measured current can be monitored, demand

time can be defined in dE tý menu.

A 4 digit password can be defined from pin menu in order to prevent the

change of settings by unauthorized person.

6) Current transformer ratio is programmable. (1 .... 2000)

Current transformer ratio can be programmed in term of turn number

between 1.....20 (for CT-25 adapted devices).

Voltage transformer ratio is programmable. (0.1 .... 4000)

7) A user defined measurement range is used for monitoring the voltages

and currents; and Out1 & Out2 outputs are used for warning the user and

disconnecting the device in case of exceeding the limits of measurement

range.

8) In case of using the device for measuring the current values of motors etc.,

start delay (AUto rSt) function can be used for preventing the equipment

against the improper tripping, which is because of the demurrage current.

9) When a failure has occured use the Latch function, in order to keep the

device with saving its position (Latched), even if the failure conditions are

removed.

7th, 8th and 9th subjects are valid for EPM-06C/06CS.

Press SET button (001 / 9600 /no menu

is displayed.)

EPM-06CS COMPUTER CONNECTION

31 DEVICES CAN BE CONNECTED AT THE SAME LINE

GNDTR B A GNDTR B AGNDTR B A

GND

RS485/RS232

CONVERTER

...

EPM-06CS-1EPM-06CS-2EPM-06CS-31

MAX. 1200 mt.

M A X . 2 4 7 D E V I C E S C A N B E C O N N E C T E D AT S A M E L I N E B Y U S I N G R E P E AT E R .

GNDTR B A

...

EPM-

06CS

-247

GND

RS485/RS232

CONVERTER

...

EPM-

06CS

-1EPM-

06CS

-2EPM-

06CS

-31REPEATER

MAX. 1200 mt. MAX. 1200 mt.

2.00

120

1.00

60.0

0.66

40.0

0.50

30.0

0.40

24.0

0.33

20.0

0.28

17.1

0.24

15.0

0.22

13.3

0.20

12.0

0.18

10.9

0.16

10.0

0.15

9.23

0.14

8.57

0.13

8.00

0.12

7.50

0.11

7.05

0.11

6.66

0.10

6.31

0.10

6.00

Ctr - 0001

Utr - 0001

trn - 01

ConnEC - StAr

Frq Hý - 63

Frq Hý HyS - 01.00

Frq Lo - 47

Frq Lo HyS - 01.00

Frq on dEL - 003.0

Frq oFF dEL - 003.0

bAUd - 9600

AddrES - 001

PArty - no

CUr Hý L-1 - 5.000

CUr Hý L-2 - 5.000

CUr Hý L-3 - 5.000

CUr Hý L-n - 5.000

CUr Hý HyS - 0.100

Hý on dEL - 010.0

Hý oFF dEL - 010.0

CUr Lo L-1 - 0.000

Pin Act - oF

Pin - 0000

dt - 15

Out relay - U-I

Latch - oFF

Out Inverse - oFF

CUr Lo L-2 - 0.000

CUr Lo L-3 - 0.000

CUr Lo L-n - 0.000

CUr Lo HyS - 0.200

Lo on dEL - 010.0

Lo oFF dEL - 010.0

Str Art dEL - 0.000

Auto reset - oFF

Cur ýns trp - oFF

UoL Hý L-1 - 250

UoL Hý L-2 - 250

UoL Hý L-3 - 250

UoL Hý HyS - 10

Hý on dEL - 003.0

Hý oFF dEL - 003.0

UoL Lo L-1 - 180

UoL Lo L-2 - 180

UoL Lo L-3 - 180

UoL Lo HyS - 010.0

Lo on dEL - 003.0

Lo oFF dEL - 003.0

UoL PHS SEq - oFF

UoL ýnS trP - oFF

CUr Hý L-1 - 100.0

CUr Hý L-2 - 100.0

CUr Hý L-3 - 100.0

CUr Hý L-n - 100.0

CUr Hý HyS - 2.000

Hý on dEL - 010.0

Hý oFF dEL - 010.0

CUr Lo L-1 - 0.000

CUr Lo L-2 - 0.000

CUr Lo L-3 - 0.000

CUr Lo L-n - 0.000

CUr Lo HyS - 2.000

Lo on dEL - 010.0

Lo oFF dEL - 010.0

Str Art dEL - 0.000

Auto reset - oFF

Cur ýns trp - oFF

CT-25 type

.../5A type

To activate the user password; in measurement mode

Press SET button for 3 sec. (trA Fo menu is displayed)

To change the user password; in measurement mode

Press SET button for 3 sec. (trA Fo menu is displayed)

MULTIMETER

EPM-06 / 06C / 06CS

Enter the new password by scrolling

UP/DOWN/SET buttons.

Enter the new password again by

scrolling UP/DOWN/SET buttons.

Press ESC button one by one until SAU E SEt yES is displayed.

Press SET button. When SAU E SEt yES is displayed (If you press

ESC button or choose no option instead of yES then new data will

be cancelled and previous value will be activated).

SET

ESC

SET

Enter the old password by scrolling

UP/DOWN/SET buttons.

SET

Output menu (only for EPM-06C/06CS) :

In this menu, using of

oUt PUt

function is explained with details below.

Out Relay function:

In this menu high-low or voltage-current monitoring is

determined for Out1 and Out2

outputs

Note: When (voltage-current) is selected; Out2 isU-I

monitoring according to high or low voltage, frequency

values and phase sequence, Out1 is monitoring according

to high or low-current value.

When (high-low) is selected; Out2 is monitoringH-L

according to high values for voltage, frequency and low-

current, Out1 is monitoring according to low values for

voltage or current.

Please refer to page 8 for a summary of the contact

operations.

SET

ESC

SET

Press SET button, oUt rEL AY is displayed.

(Data is entered but is not

activated yet. Activating

the new data, please

follow the below steps)

Press ESC button one by

one until SAU E SEt

yES is displayed.

Press SET button. When SAU E SEt yES is displayed (If you press

ESC button or choose no option instead of yES then new data will be

cancelled and previous value will be activated).

Press SET button for 3 secs. (trA Fo menu is displayed).

Find menu by scrolling UP-DOWN buttons. oUt PUt

Press SET but ton oUt rEL AY / oUt LAt CH / oUT ýnU ErS

are displayed.

Press SET button, U-I blinks in 4th display. (oFF blinks for oUt LAt CH

and oUT ýnU ErS)

Select U-I or H-L by scrolling UP/DOWN buttons. (Select or foron oFF

oUt LAt CH and oUT ýnU ErS)

SET

Out Latch function:

If the Latch function is turned ;on

OUT1-OUT2 , which are released when a failure hasoutputs

occured, keep remained at its position even if the failure is

over. Press button in order to triggering the relay when

the failure situation is removed.

If the Latch function is turned ;off

Released outputs triggered at the end of delay off time when

the failure situation is removed.

ESC

Out inverse function:

If oUt ýnU ErS function is selected ;off

Device is started with closed output contacts (out1, out2) in

the normal network conditions according to settings.

Otherwise devices started with open position of the contacts.

Default setting is .off

In this menu, max. current value for

IL1 is programmed.

The current value can be programmed between;

0,001....5,000 A (Ctr = 1);

000,1....120,0 A (for CT-25 adapted device trn=1).

If the value is set to zero (0), the high current warning

is disabled (

CUr Hý L-2 and CUr Hý L-3 are programmed

similarly).

Refer

SP Cur Hý for details.

In this menu, min. current value for

IL1 is programmed.

The current value can be programmed between;

0,001....5,000 A (Ctr = 1);

000,1....120,0 A (for CT-25 adapted device trn=1).

If the value is set to zero (0), the low current warning

is disabled (

CUr Lo L-2 and CUr Lo L-3 are

programmed similarly).

Refer

SP Cur Lo for details.

Note: Low Current values are programmed for

IL1, L2, L3I I

and NI

separately but CUr Lo HyS (hysteresis), Lo on dEL

(delay on time) and Lo oFF dEL (delay o time) values areff

common and they have same value for s

IL1, L2, L3 and NI I I

Delay time for activating the output for high current

warning. It is common for all currents (

IL1, L2, L3I I

and NI

)

The value can be programmed between 000,0 and

999,9 in terms of seconds.

(

Refer

SP Cur Hý for details.)

In this menu, required hysteresis current for high

current warning is programmed.

(same for L1, L2,I I

IL3 and N.)I

The current value can be programmed between;

0,001....2,500 A (Ctr = 1)

000,1....60,00 A (for CT-25 adapted device trn=1)

Refer

SP Cur Hý for details.

In this menu, required hysteresis current for low current

warning is programmed.

(same for L1, L2, L3 andI I I

IN.)

The current value can be programmed between;

0,001....2,500 A (Ctr = 1)

000,1....60,00 A (for CT-25 adapted device trn=1)

Refer

SP Cur Lo for details.

Press SET button, Pýn CHA n9E is displayed.

(Data is entered but is not activated yet. For activating the new data

please follow the below steps)

(Refer to Page-5)

MULTIMETER

EPM-06 / 06C / 06CS

In this menu, values of min., max., max. demand are erased. It

saves the instantaneously measured min. and max. values of the

device into its memory. Please kindly look at to the section of

functions of buttons for min. and max. values.

Note:

Measured electrical parameters which are saved to the

memory are not affected from the electric interruptions.

In the rES Et HL or rES Et dE menu; when you choose yES and

quit from all menus, if you confirm the changes, min., max. and

max. demand values of all parameters are erased at the same

time.

Press SET button for 3

sec. (trA Fo menu is

displayed.)

Find

rES Et

menu by

scrolling UP-DOWN

buttons.

Press SET button

(rES Et HL menu is displayed.)

Press SET button, rES Et dE / rES Et HL is displayed.

(Data is entered

but is not activated yet. Activating the new data, please

follow the below steps)

By using the UP-DOWN buttons, other

parameters can be selected. If you want to delete the value, choose yES,

if not choose no.

SET

Find

rES Et dE / rES Et HL

menu by

scrolling UP-DOWN buttons.

Press SET button (rES Et dE no

/ rES Et HL no is displayed.)

SET

Press ESC button one by one until SAU E SEt yES is displayed.

Press SET button. When SAU E SEt yES is displayed (If you press

ESC button or choose no option instead of yES then new data will

be cancelled and previous value will be activated).

SET

Max. Demand time can be defined between 01-60 minute in this

menu.

Press SET button for 3 sec.

(trA Fo menu is displayed.)

Find

dE tý

menu by scrolling UP-DOWN

buttons.

Press SET button. Blinking the first digit of

displayed value appears.

SET

ESC

SET

Setpoints for Frequency :

In this menu, Frequency range can be defiend

according to High and Low values of Frequency

measurement.

If the frequency of the system decreases the Frq Hý

value; output is switched and LED is turned .on on

(Refer to Output menu) and H LED for frequency is

turned .off

If the frequency of the system exceeds the high set

value, H LED relating to frequency blinks, output

switched at the end of defined time (Frq on dEL),off

LED turned (Refer to Output menu) and H LEDoff

for frequency is turned continuously.on

If the frequency of system are under the high set value

(Frq Hý) as a hysteresis , output is turned(Frq Hý HyS)

on at the end of defined time (Frq oFF dEL), LED is

turned and H LED is turned off. at the end of theon

adjusted time (Frq oFF dEL), output1 LED turns on

and Hý LEDs turn .off

If the frequency of the system is over the low set value

(Frq Lo), output is turned , LED is turned L LEDon on

is turned .off

If the frequency of the system decreases the low set

value (Frq Lo), L LED blinks; output is turned atoff

the end of defined time (Frq ond), LED is turned off

and L LED is turned continuously.on

If the frequency of the system is over the low set value

(Frq Lo HyS) as a hysteresis (Frq Hys), output is turned

on at the end of defined time (Frq oFF dEL), LED is

turned and L LED is turned .on off

Note: System frequency is measured for L1.

T h e r e a r e 6 s ubme n u s .

Frq Hý, Frq Lo, Frq Hý HyS, Frq Lo HyS, Frq on dEL,

Frq oFF dEL.

Max. value for system frequency, this value

can be defined between 0...70.00 Hz.

If the value is set to zero (0), the high

frequency warning is disabled.

Min. value for system frequency, this value

can be defined between 0...70.00 Hz.

If the value is set to zero (0), the low

frequency warning is disabled.

Note: Attention for common using of output

and relay LED for voltage.

In this menu, required hysteresis value can

be defined between 0...20.00 Hz. in order

to switching the high frequencyoff

warning.

Delay-on time for activation of alarm for high

and low frequency value.

This value c an be defined between

000.0..999.9 in term of second..

Phase sequence can be turned in this menu.on/off

Inversed phase voltage which is applied to the

measurement inputs (L1-L2-L3), can be monitored.

Default setting is . In order to let the device to warnoff

user in case of inversed phase situation please change

the position as in UoL PHS SEq menu. Phaseoff on

sequence function is disabled if the selection is

selected .off

L1, L2 and L3 LEDs blink and output output released

immediately when UoL PHS SEq is turned andon

phase sequence is inverted with any reason.

Note: Output 2 is used if U-I is selected and Output1

is used if H-L is selected in Output menu for the

Phase Sequence monitoring.

Press SET button. Blinking

the first digit of displayed

value appears.

Press ESC button one by one until SAU

E SEt yES is displayed.

Press SET button. When SAU E SEt yES is displayed (If you press

ESC button or choose no option instead of yES then new data will

be cancelled and previous value will be activated).

SET

ESC

SET

Press SET button, [(Hý on dEL / Hý oFF dEL

/ Lo on dEL / Lo oFF dEL) / (Hý on dEL / Hý

oFF dEL / Lo on dEL / Lo oFF dEL)] are

displayed.

(Data is entered but is not activated

yet. For activating the new data please follow

the below steps)

Enter the blinking digit value by scrolling UP/DOWN buttons. Switch

to the other digits by using SET button, use ESC button to go to

previous digit. After you entered the last digit press SET button, dE

tý is displayed.

(Data is entered but is not activated yet. For activating

the new data please follow the below steps).

SET

In this menu, high current values are programmed.set points for

Hý values for

IL1, L2, L3 and NI I I

can be entered one by one.

If all the current values are under the Hý value; Out1 output is

switched on, LED of Output1 turned and LED of H turnedon

off.

If any current (

IL1, L2, L3 and N)I I I

exceeds the high set value,

H LED blinks. Output 1 output switches off at the end of the

defined time (

Hý on dEL

), Output 1 LED turned and H LEDoff

turned continuously.on

If all currents (

I I I IL1, L2, L3 and N)

are below the high set value

(Hý) as a hysteresis current (

CUr Hý HyS

), output 1 output switches

on at the end of the defined time (Hý oFF dEL), output 1 LED turned

on and H LED turned .off

This menu has 7 sub menus.

CUr Hý L-1, CUr Hý L-2, CUr Hý L-3, CUr Hý L-n, CUr Hý HyS,

Hý on dEL, Hý oFF dEL

Note: High Current values are programmed for

IL1, L2, L3I I

and NI

separately but CUr Hý HyS (hysteresis), Hý on dEL

(delay on time) and Hý oFF dEL (delay o time) values areff

common and they have same value for s

IL1, L2, L3 and NI I I

In this menu, low current values are programmed.set points for

Lo values for

I I I IL1, L2, L3 and N

can be entered one by one.

If all the current values are over the Lo value; Out1 output is

switched on, LED of Output1 turned and LED of L turnedon

off.

If any current (

IL1, L2, L3 and N)I I I

exceeds the low set value,

L LED blinks and Output 1 output switches off at the end of the

defined time (

Lo on dEL

), Output 1 LED turned and L LEDoff

turned continuously.on

If all currents (

IL1, L2, L3 and N)I I I

are over the low set value (Lo)

as a hysteresis current (

CUr Lo HyS

), output 1 output switches on

at the end of the defined time (Lo oFF dEL), output 1 LED turned

on off and L LED turned .

This menu has 7 sub menus.

CUr Lo L-1, CUr Lo L-2, CUr Lo L-3, CUr Lo L-n, CUr Lo HyS,

Lo on dEL, Lo oFF dEL

Delay time for activating the output for low current

warning. It is common for all currents (

IL1, L2, L3I I

and NI

)

The value can be programmed between 000,0 and

999,9 in terms of seconds.

(

Refer

SP Cur Lo for details.)

Delay time for releasing the output for high current

warning. It is common for all currents (

IL1, L2, L3I I

and NI

)

The value can be programmed between 000,0 and

999,9 in terms of seconds.

(

Refer

SP Cur Hý for details.)

Delay time for releasing the output for low current

warning. It is common for all currents (

IL1, L2, L3I I

and NI

)

The value can be programmed between 000,0 and

999,9 in terms of seconds.

(

Refer

SP Cur Lo for details.)

Enter the value by scrolling

UP/DOWN buttons and

confirm it by SET button. Press ESC

button for switching the previous menu.

In this menu, required hysteresis value can

be defined between 0...20.00 Hz. in order

to switching the low frequency warning.off

Delay-off time for disactivation of alarm for

high and low frequency value.

This value c an be defined between

000.0..999.9 in term of second..

Reset function.

Demand Time.

In case of using the device for measuring the current values

of motors etc., start delay (AUto rSt) function can be used for

preventing the equipment against the improper tripping, which

is because of the demurrage current. If the system current

decreases 50mAxCtr then start-up delay is resetted and related

output detect the system automatically. This feature must be

observed in case of using this function.

Programming SP CUr rnt :

Using purposes of submenus of SP CUr rnt explained below

with details.

Instant Tripping Function.

At position , if any values exceeds 1.5ON V / VL-L L-N

times of high voltages

(UoL Hý L-1/L-2/L-3)

values;

the voltage output switches instantly, outputOFF

LED turned and H LED, for related voltage, isOFF

turned . (Please refer to .)ON Output

If any phase voltage decrease 0.5 times low voltages

(UoL L-1/L-2/L-3)

; the voltage output switches OFF

instantly, output LED turned and Lo LED, forOFF

related voltage, is turned .ON

(Refer to Page-4 for CUr ýnS trP, AUt o rSt and

UoL ýnS trP)

Produktspezifikationen

Marke:	Entes
Kategorie:	Messgeräte
Modell:	EPM-06CS-96

Brauchst du Hilfe?

Wenn Sie Hilfe mit Entes EPM-06CS-96 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Messgeräte Entes

Entes MPR-16S-21-M3607 Bedienungsanleitung

28 August 2024

Entes EMM-04CS Bedienungsanleitung

28 August 2024

Entes MPR-14S-M3609 Bedienungsanleitung

28 August 2024

Entes MPR-47S-96 Bedienungsanleitung

25 August 2024

Entes EPM-06-96 Bedienungsanleitung

25 August 2024

Entes EVM-3C-48 Bedienungsanleitung

25 August 2024

Entes MPR-45-96 Bedienungsanleitung

25 August 2024

Entes EVM-3-96 Bedienungsanleitung

25 August 2024

Entes EPM-06C-96 Bedienungsanleitung

25 August 2024

Entes EPM-04-96 Bedienungsanleitung

25 August 2024

Bedienungsanleitung Messgeräte

Neueste Bedienungsanleitung für -Kategorien-

Stamos S-LS-41 Bedienungsanleitung

16 Oktober 2024

Stamos S-LS-58 Bedienungsanleitung

16 Oktober 2024

PCE Instruments LTS-20 Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-313A Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-320 Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-032-LED Bedienungsanleitung

16 Oktober 2024

PCE Instruments FME Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-2500N Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-2550 Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-2600N Bedienungsanleitung

16 Oktober 2024
