Seite 1/29
www.entes.com.tr
EPC-12 User Manual
1 2
PULSE CONCENTRATOR User Manual
EPC-12
WARNING
Ignoring the instructions in this manual may result in serious injuries or death.
îš– Disconnect all power supply inputs before connecting the device.
îš– Do not remove the front panel when device is connected to the mains.
îš– Do not clean the device with solvents alike. Only clean with dry cloth.
îš– Verify correct terminal connections before energizing the device.
îš– Contact your authorized reseller in case problems occur with your device.
îš– Device is only for rail mounting.
îš– An F Type Fuse must be used and its current limit must be 1 A.
No responsibility is assured by manufacturer or any of its subsidiaries for any
consequences arising out of disregard the above precautions.
SECURITY
Read the User Manual entirely before using the device.
Warnings
îš– Connect a button or a circuit breaker between mains and the device.
îš– Connected button or circuit breaker must be in close proximity of the device.
îš– Connected button or circuit breaker must be marked to indicate that it disconnects the device from
the mains.
 Battery life is 5 years at +45°C storing temperature. It is between 8 and 10 years for typical
applications. The battery can only be replaced by ENTES A.Þ. The battery is used to keep the
internal real time clock in case of power outages.
îš– During power outages, the device will not count incoming pulses.
Standards Applied to the Device
EN 61010-1, EN 62053-31, EN 62054-21
WARRANTY
The device has a 2 (two) year warranty. In case of a fault, the device must only be serviced by
manufacturing company. Otherwise, the warranty of the device will be void.
3 4
1. INTRODUCTION
1.1. APPLICATIONS
EPC-12, is a microprocessor-based device that can separately collect incoming pulses from various
meters (electricity, water, gas, etc.) connected to its 12 inputs according to 8 tariffs based on time,
record them in real time with its internal clock chip and flash memory and transmit data via RS-485
line with Modbus RTU protocol.
1.2. GENERAL FEATURES
Device Features
1) Total counter indexes of 12 pulse inputs with tariff and unit information, date and time information
and alarm states can be displayed on the 2x12 characters LCD screen automatically with intervals of
5 seconds or manually by pressing up and down buttons,
2) Enabling the backlight for 20 seconds by pressing any button to provide easy reading on the screen,
3) Data communication with a PC via RS-485 output,
4) Storing the contents of each pulse input with tariff information in 1-60 minutes intervals on the 2 MB
permanent memory of the device with date and time information,
5) Preventing changes to settings by unauthorized users by defining a 4-digit user password.
EPC-12 Configuration Software Features
1) Transferring stored parameters to a PC and reviewing them,
2) Entering different multiplier and denominator coefficients for each pulse input,
3) Defining different units for each pulse input,
4) Changing date and time settings,
5) Changing communication settings,
2.2.
SETTINGS THAT ARE CHANGED FROM THE PC
..........................
2.2.1. RS-485 SETTINGS..................................................................
2.2.2. GENERAL SETTINGS...............................................................
2.2.3. COUNTER SETTINGS...............................................................
2.2.4. DATE - TIME SETTINGS....................................................
2.2.5. TARIFF SETTINGS..................................................................
2.2.6. DEVICE INFORMATION............................................................
2.2.7. TOTAL COUNTER INDEXES..............................................
2.2.8. COUNTER INDEXES WITH TARIFF.............................................
2.2.9 DEVICE STATUS....................................................................
2.3. MEMORY - LOGGING FEATURES.................................................
3.

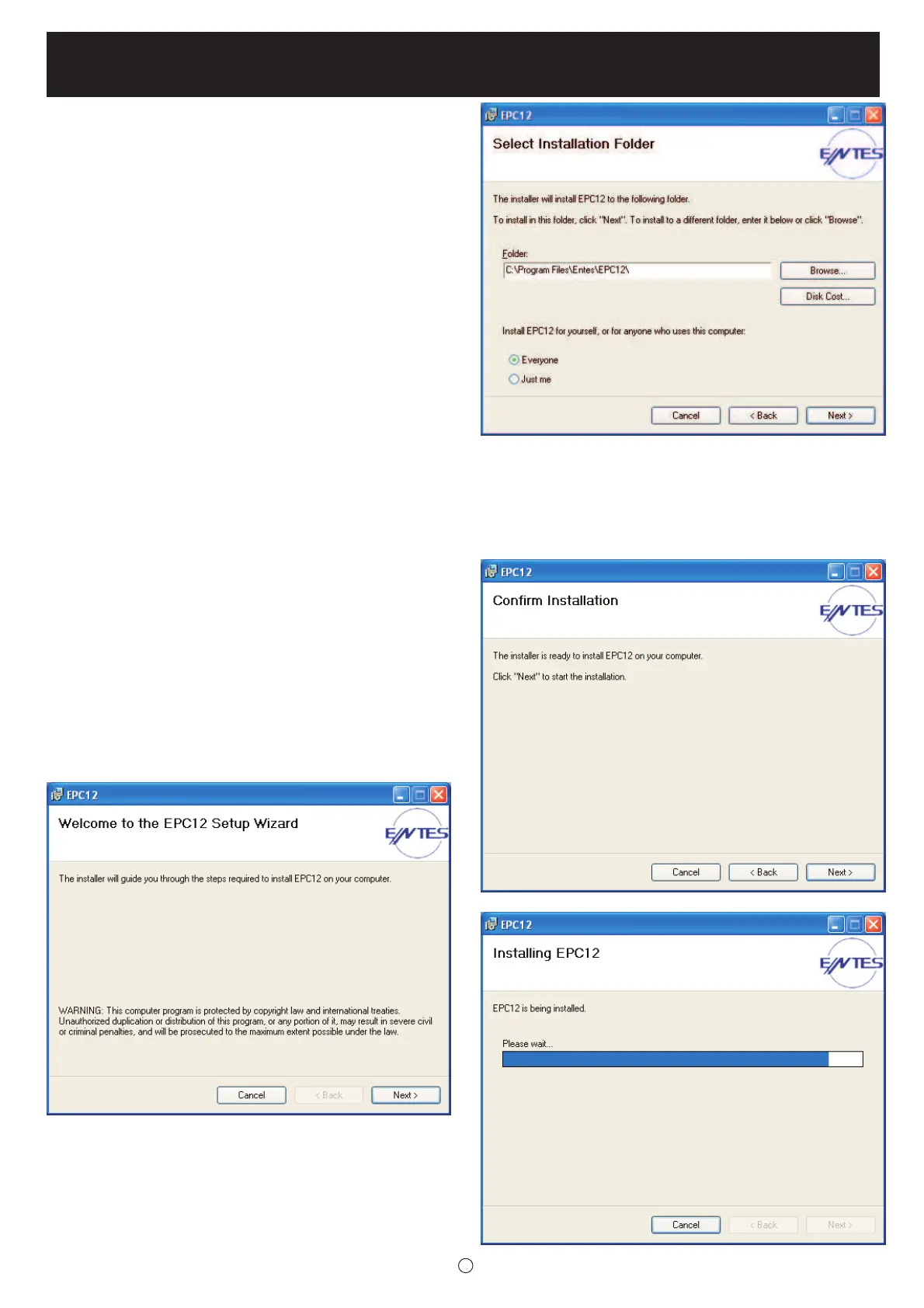

EPC-12 CONFIGURATION (INTERFACE) SOFTWARE
........................
4. DIMENSIONS..............................................................................................
4.1. CONNECTION DIAGRAM........................................................................
5. TECHNICAL DATA..............................................................................
1. INTRODUCTION............................................................................................
1.1. APPLICATIONS...................................................................
1.2. GENERAL FEATURES............................................................
1.3. FRONT PANEL............................................................................
1.4. HARDWARE FEATURES......................................................
2. UTILIZATION OF DEVICE.....................................................................
2.1. SETTINGS THAT ARE CHANGED FROM THE DEVICE...........
2.1.1. RS-485 (Information for communicating with a PC) MENU.......
2.1.2. PASSWORD MENU..................................................
2.1.3. ESCAPE MENU........................................................
Index
4
4
4
5
6
7
7
10
13
17
18
18
19
19
22
23
32
32
36
46
48
48
49
50
55
