GEISTâ„¢ SWITCH IRA
AIRFLOW MANAGEMENT DEVICE
Quick Installation Guide
VM1175/590-2227-501A 1
Models:
SA1-01001NB
Switch Type:
Side air intake-front (port) exhaust
switch
CAUTION: Ensure the required
airflow for safe operation of
equipment is not compromised
when installing the Geist SwitchAir
device.
WARNING: Take precaution to
avoid interference with the switch’s
input power cords when installing
behind a live switch.
1. Installing the adjustable
rails
Using customer-provided
hardware, insert cage nuts into
the front two holes as well as
the rear extension tab hole of
each adjustable rail.
Select a 1U space in the rack
and hold one of the rails
between the front and rear rack
uprights. Lengthen or shorten
the adjustable rail by adjusting
the rear extension tab, loosely
fitting the rail between the
insides of the rack uprights.
Attach the front of the
adjustable rail to the front
upright using only the top hole
of the 1U space. Leave the
bottom front hole open for
later use.
Attach the rear rail extension
tab to the rear rack upright. Use
the center hole of the 1U space
for this attachment.
2. Installing the wipers
Attach the SwitchAir wipers
using the provided screws.
Orient the wipers with the tab
facing away from the centerline
of the device.
3. Installing the switch
Slide the network switch into the
rails. Using customer-provided

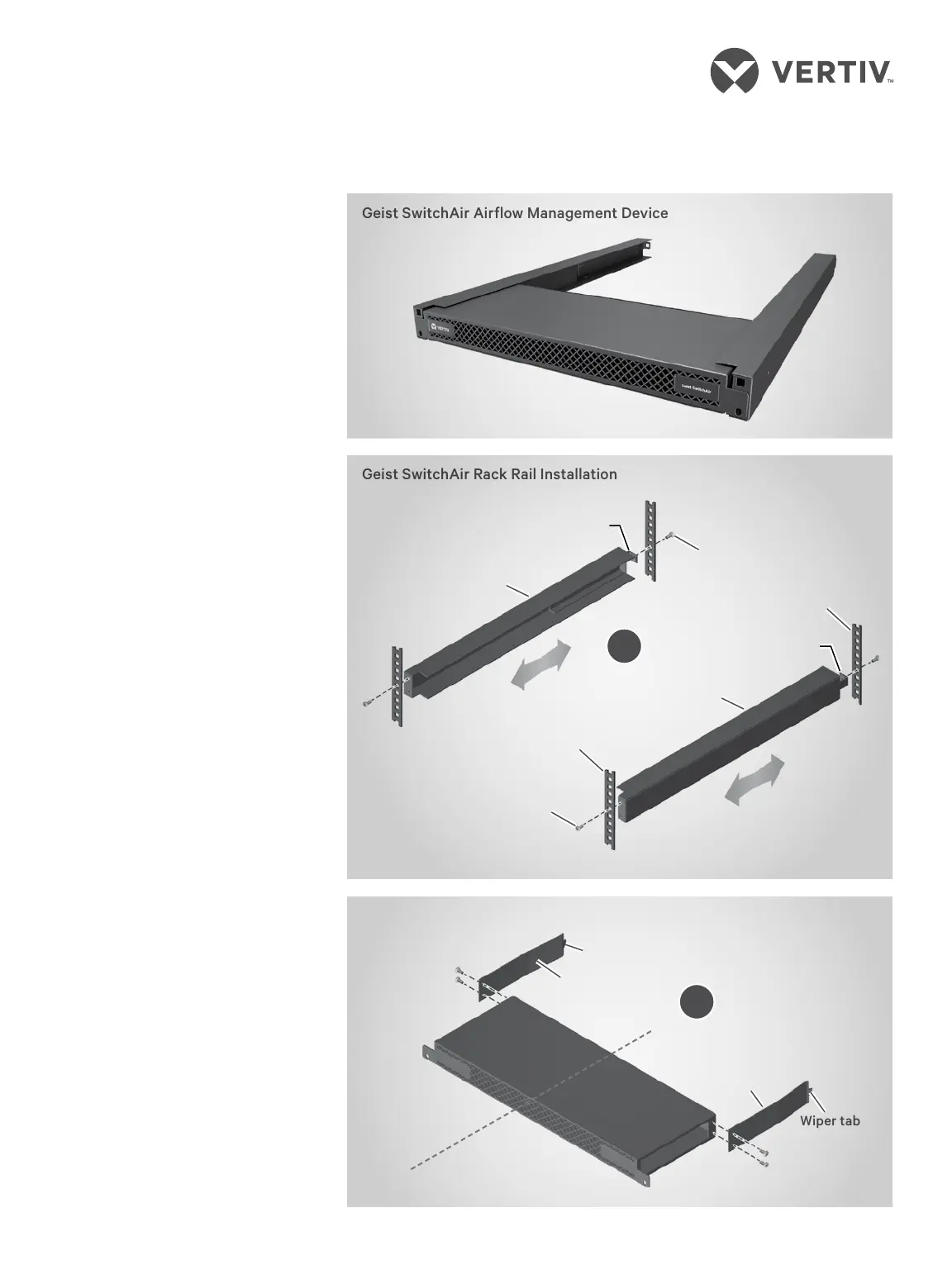

Geist SwitchAir Airflow Management Device
Geist SwitchAir Rack Rail Installation
Rack uprights
Adjustable rail
Rack uprights
U-space top screw
U-space middle screw
Adjustable rail
Extension tab
Extension tab
Wiper tab
Geist SwitchAir Wiper Installation
1
2
Wiper
Wiper
Wiper tab
CENTERLINE
OF DEVICE
To contact Vertiv Technical Support: visit www.VertivCo.com
© 2019 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names,
trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no
responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.
GEISTâ„¢ SWITCHAIR AIRFLOW MANAGEMENT DEVICE
Quick Installation Guide
2 VM1175/590-2227-501A
cage nuts and screws, mount
the switch to the rear rack
uprights using the 1U space’s
top and bottom holes.
4. Installing the device into
the rack
Insert the SwitchAir device into
the open rack space at the
switch’s U-height.
As the SwitchAir device is
inserted into the space, the
wipers make contact with the
rear corners of the switch.
The wiper tabs act as a guide to
deflect the wipers past the
switch’s corners and along it’s
sides.
Once the SwitchAir device is
fully seated against the
uprights, install the U-space
bottom screws on both sides.
Airflow
Airflow
SwitchAir
Switch
3
4
Geist SwitchAir Rack Installation Complete
Geist SwitchAir and Network Switch Installation
Bottom hole
location
Top and bottom
hole locations
