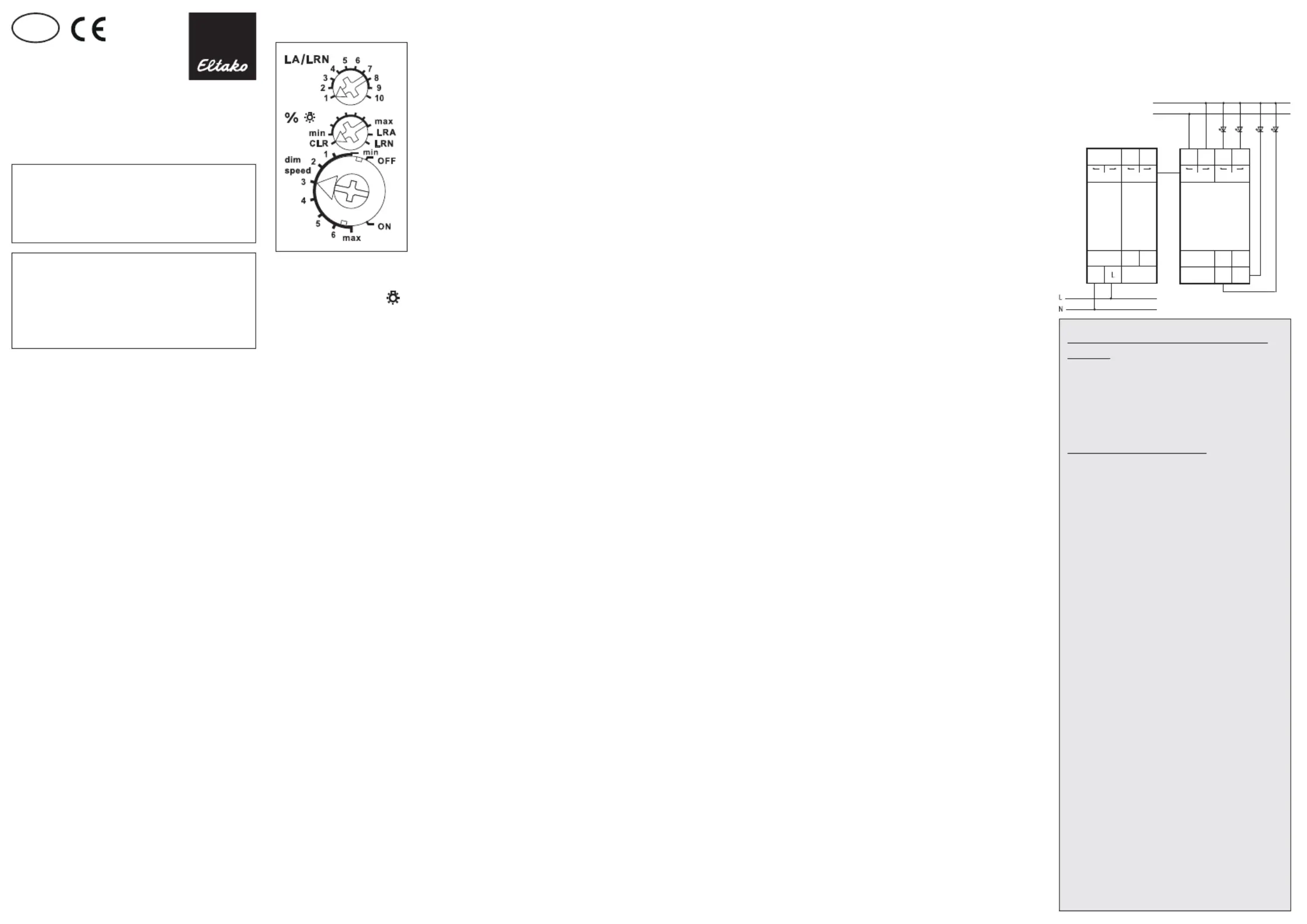

Wireless actuator

PWM dimmer switch for LED

FRGBW14

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

30 014 068 - 1

Only skilled electricians may install this

electrical equipment otherwise there is

the risk of  re or electric shock!

PWM dimmer switch with 4 channels for

LED 12-24 V DC, each up to 4 A. Adjustable

minimum brightness and dimming speed.

With snooze function and light alarm circuit.

Additionally with light scene control via

PC or with wireless pushbuttons.

Standby loss only 0.1 watt.

Modular device for DIN-EN 60715 TH35 rail

mounting. 2 modules = 36 mm wide, 58 mm

deep.

Connection to the Eltako-RS485 bus. Bus

cross wiring and power supply with jumper.

The set brightness level remains stored

when switched off (memory).

In case of a power failure, the switch position

and brightness level are saved and switched

on when the power supply is restored.

Automatic electronic overload protection and

overtemperature shutdown.

The upper rotary switch is only required

for teach-in.

Use the middle % rotary switch to set

the minimum brightness (fully dimmed).

Use the lower dimming speed rotary

switch to set the dimming speed.

The pushbuttons can either be taught in

as direction pushbuttons or universal

pushbuttons: as direction pushbutton,

one side is 'switch on and dim up'; the other

side is 'switch off and dim down'. A double-

click on the switch-on side triggers the auto-

matic dimming up to full brightness at dim-

speed. Doubleclick on the switch-off side to

trigger the snooze function.

As universal pushbutton, change the

direc-

tion by briefly releasing the pushbutton.

FBH wireless motion/brightness sensors

can be taught in as master or slave.

FAH wireless brightness sensors can be

taught in for switch-off dependent on

brightness or as a twilight switch.

Pushbutton 'central off' for 1 channel:

switches off.

Pushbutton 'central ON' for channel 1:

switches on with the memory value.

Pushbutton 'central off' for all 4 channels:

saves the current lighting scene and swit-

ches off.

Pushbutton 'central ON' for all 4 channels:

switches on with the light scene where cen-

tral was switched off most recently. After a

power failure, the memory values are swit-

ched on.

Rotary switch: Press the middle of the rotary

knob to switch on with the memory value and

to switch off and save the current dimming

value. Turn to the right (clockwise) to dim up.

The turning speed determines the dim-up

speed. If the dimming actuator was turned to

the right when it was switched off, the dimmer

will switch on at minimum brightness and

then continue to dim up. If the rotary knob is

turned jerkily – and the actuator was previously

switched on or off – dimup is rapid to full

brightness.

Turn to the left (anticlockwise) to dim-down

to the minimum brightness which is adjusted

on the dimming actuator.

The turning speed

determines the dim-down

speed. If the rotary

knob is turned to the left

jerkily, dim-down is rapid to the minimum

brightness which is adjusted on the dimming

actuator.

A rotary switch acting as intensity control

must be taught-in in all channels: Press or

turn to switch on. To dim up, turn to the

right and to dim down, turn to the left. Press

to switch off

A rotary switch acting as colour control

must be taught-in in all channels: Turn to

the right or left to switch on and change the

colour. Press to switch to white and press

again to change back to colour mode.

Colour and intensity double-rocker pushbut-

tons must be taught-in in all channels: Press

top part of right rocker to switch on and dim

up; press bottom part of right rocker to switch

off and dim down. Press top or bottom part of

left rocker to change the colour; press twice to

switch to white; press long to switch back to

colour mode.

Switching for light alarm clocks: An appro-

priately taught-in timer wireless signal starts

the wake-up function by switching on the

lighting at lowest brightness and slowly

dimming up to maximum brightness over a

period of 30 minutes (or light scene 5).

The dimming process is stopped by tapping

briefly, e.g. on the hand-held transmitter.

Snooze function (Univeral or direction push-

buttons must be taught-in in all channels):

With a double impulse the lighting is dimmed

down from the current dimming position to

the minimum brightness level and switched off.

The current dimming position as well as the

adjustable minimum brightness level determine

the dimming time (max. = 30 minutes) which

can be reduced as required. It can be switched

off at any time by short-time control com-

mands during the lighting is dimmed down.

Light scenes on the PC are set and retrieved

using the Wireless Visualisation and Control

Software GFVS. One or several FRGBW14

devices must be taught in on the PC as dim-

ming switches with percentage brightness

values or high-definition brightness values.

FBH as Master: When an FBH wireless motion

detector and brightness sensor is taught in,

the switching threshold at which the lighting

is switched on at the brightness values of

light scene 6 is defined during teach-in

using the lower rotary switch. The switching

threshold is dependent on the brightness in

addition to motion (from approx. 30 lux in

position OFF to approx. 300 lux in max position.

When the FBH in taught-in in the ON position,

it is only evaluated as a motion detector.

A time delay of 1 minute is a fixed setting in

the FBH.

By switching-off or dimming with pushbutton

the FBH is deactivated.

Central pushbutton, scene pusbhbutton and

'dimming value' by PC also lead to deactivation.

A short press on the switchon side of the

direction pushbutton, the FBH is reactivated.

FBH as Slave: The FBH is only evaluated as

motion detector.

FAH as Master: When a wireless brightness

sensor FAH is taught-in, the switching

threshold is defined by the lower rotary

switch during teach-in. The switching

threshold switches the lighting off depending

on the brightness. Switch-on is only possible

by pressing the pushbutton.

FAH as twilight switch: When an FAH wire-

less brightness sensor is taught in, the

switching threshold at which the lighting is

switched on at the brightness values of light

scene 6 is defined during teach-in using the

lower rotary switch. The switching threshold

is dependent on the brightness (from approx.

0 lux in position OFF to approx. 50 lux in max

position.

Switch-off takes place at a brightness of

> 200 Lux.

The red LED accompanies the teach-in

process and indicates control commands in

operation by flashing briefly.

Typical connection

BUS BUS

Hold

FAM14

BUSBUS

230V AC

FSNT14

+12VGND

R G

+B W

12-24V DC

Teaching-in wireless sensors in

wireless actuators

All sensors must be taught-in in the

actuators so that they can detect and

execute commands.

Teaching-in actuator FRGBW14

The teach-in memory is empty on delivery

from the factory. To make sure that

nothing has already been taught-in, clear

the memory content completely:

Set the middle rotary switch to CLR.

The LED  ashes at a high rate. Within the

next 10 seconds, turn the upper rotary

switch three times to the right stop (turn

clockwise) and then turn back away from

the stop. The LED stops  ashing and

goes out after 2 seconds. All taught-in

sensors are cleared.

Clear individual taught-in sensors in the

same way as in the teach-in procedure,

except that you set the middle rotary

switch to CLR instead of LRN, and operate

the sensor. The LED previously flashing

at a high rate goes out.

Teaching-in sensors:

A total of 116 memory locations are

available.

1. Set the top rotary switch to the

required teach-in function.

1 = timer as wake-up light;

Teach-in FAH or FBH as Master

2 = 'central off';

Teach-in second FBH as slave

3 = universal switch;

Teach-in third FBH as slave;

4 = 'central on';

Teach-in fourth FBH as slave

5 = Teach in direction pushbutton;

Direction pushbutton are automatically

taught-in fully when pressed. Depending

on where the button is pressed, the

functions for switch-on and dim-up are

defined on one side and switchoff and

dim-down on the other side.

6 = teach in sequential light scene push-

button, a pushbutton or half of a double

pushbutton is assigned automatically.

7 = Teach in 4-way direct light scene

pushbuttons (a complete pushbutton

with double rocker is assigned automa-

tically). Turn the lower rotary switch to

the following position:

Function rotary switches

1 = light scene pushbutton for scenes 1-4

5 = light scene pushbutton for scenes 5-8

8 = Teach in FAH as twilight switch;

teach-in operating mode pushbutton;

teach in intensity rotary wheel

9 = Teach in GFVS and FFD with high

resolution dimming values; teach in

colour rotary wheel

10 =

Teach in rotary switch and GFVS;

during teach-in the actuator automatically

sends a confirmation telegram.

Teach in

dimming values of FFD; teach in colour

and intensity double rocker pushbutton;

Turn the lower rotary switch to the required

channel for universal pushbuttons, direction

pushbuttons and central control push-

buttons.

min = all 4 channels

1 = channel 1 (red),

2 = channel 2 (green),

3 = channel 3 (blue),

4 = channel 4 (white)

5 = multicolour pushbutton, a complete

pushbutton with double rocker is pro-

grammed automatically;

as universal pushbutton: top left =

channel 1 red, top right = channel 2

green, bottom left = channel 3 blue,

bottom right = channel 4 white;

as direction pushbutton left = channel 1

red, right = channel 2 green.

6 = multicolour pushbutton, a complete

pushbutton with double rocker is pro-

grammed automatically;

as direction pushbutton left = channel 3

blue, right = channel 4 white.

Set the middle rotary switch to LRN.

The LED flashes at a low rate.

3. Operate the sensor to be taught-in.

The LED goes out

To prevent unintentional teach-in, turn the

rotary switch back to LRN for every teachin

process. The LED flashes at a slow rate.

Saving light scenes

Up to four brightness values retrievable

with a direct light scene pushbutton can be

saved.

1. Adjust the required brightness level with a

previously taught-in universal or direction

switch (separate for each channel if neces-

sary).

2. Within 60 seconds, press one of the four

rocker ends of the previously taught-in

direct light scene pushbutton for longer

than 3 seconds but less than 10 seconds

to save the brightness value.

3. Repeat from point 1 to save further light

scenes.

Retrieving light scenes

Up to 8 light scenes can be retrieved:

Direct light scene pushbutton 1-4 (pushbutton

with double rocker, top left = light scene 1,

top right = light scene 2, bottom left = light

scene 3 and bottom right = light scene 4).

Direct light scene pushbutton 5-8 (pushbutton

with double rocker, top left = light scene 5,

top right = light scene 6, bottom left = light

scene 7 and bottom right = light scene 8) and/

or with a sequential light scene pushbutton

(pushbutton or half a double pushbutton,

press top = next light scene, press bottom =

previous light scene).

Special modes:

The PCT14 can be used to change the

dimmer switch operating mode.

When special mode is activated (e.g. light

scene switch-through), the dimmer switch

is only switched on with Central ON, Central

OFF, FBH or FAH.

Operating modes:

■ 'Rotary switch' (factory setting)

■ 'Simple light scene switch-through':

Light scenes are activated (dimmed) in

the set sequence and time period. 8 light

scenes can be defined here.

Various effects can be generated using

the dimming speed and time setting.

LS1-LS2-LS3-LS4-LS5-LS6-LS7-LS8-

LS1…

■ 'Light scene switch-through with switch-

off': Light scenes and OFF are activated

(dimmed) alternately in the set time period.

LS1-AUS-LS2-AUS-LS3-AUS-LS4-AUS-

LS5-AUS-LS6-AUS-LS7-AUS-LS8-AUS-

LS1…

■ 'Light scenes in random sequence':

Light scenes are selected and activated

in random sequence in the set time period.

■ 'Random light scenes': Random events

are triggered in the set sequence.

An event may be a dim-up or dim-down

operation or a light scene.

Function of the operating mode pushbutton:

Press up:

normal mode ('rotary switch')

Press down:

special operating mode active

Assign device address for the FRGBW14:

The rotary switch on the FAM14 is set to

position 1, its lower LED ashes red.

The middle rotary switch of the FRGBW14 is

set to LRN, the LED ashes smothly. After

the address of the FAM14 was assigned, its

lower LED ashes green for 5 seconds and

the LED of the FRGBW14 goes out.

The FRGBW14 needs 6 device addresses.

4 device addresses for the feedback of the

% dimming values for channels 1-4.

Then the 2 device addresses follow for the

feedback for the button telegram (on/off)

and the high-resolution dimming value tele-

gram (both can be activated with PCT14).

Delete device con guration:

Set the middle rotary switch to CLR.

The LED ashes nervously.

Then turn the upper rotary switch within

10 seconds 3 times to the leftmost stop

(anticlockwise) and turn it back again.

The LED stops ashing and goes out after 5

seconds. The factory settings are restored.

Delete device con guration and device

address:

Set the middle rotary switch to CLR.

The LED ashes nervously.

Then turn the upper rotary switch within 10

seconds 6 times to the leftmost stop (anti-

clockwise) and turn it back again.

The LED stops ashing and goes out after 5

seconds. The factory settings are restored

and the device address deleted.

Configure FRGBW14:

The following points can be configured

using the PC PCT14 tool:

■ Teach in pushbuttons with single or

double click.

■ Behaviour after power failure

■ Minimum brightness

■ Brightness for light scenes

■ Preselect colour of light scenes

■ Operating mode

■ Time for special operating mode

■ Send dimming value in % : or OFFON

■ Send pushbutton telegram ON (0x70) and

OFF (0x50): OFF or ON

■ Confirmation telegrams

■ Confirmation flickering when scenes are

saved

■ PWM frequency (250Hz, 500Hz, 1kHz,

2kHz, 4kHz)

■ Dimming speeds

■

Dim-down delay for motion detector

■ Light alarm time period

■ Snooze function time period

■ Add or change sensors

Technical data

Supply voltage for LED 12-24V DC

Max current at PWM frequency

250Hz and 500Hz 4x 4A

1kHz 4x 3,2A

2kHz 4x 2,4A

4kHz 4x 1,6A

When an actuator is ready for

teach-in (the LED  ashes at a low

rate), the very next incoming signal

is taught-in. Therefore, make

absolutely sure that you do not

activate any other sensors during

the teach-in phase.

Eltako GmbH

D-70736 Fellbach

Technical Support English:

+49 711 94350025

technical-support@eltako.de

eltako.com

30/2022 Subject to change without notice.

Must be kept for later use!

We recommend the housing for

operating instructions GBA14.

Manuals and documents in further

languages

http://eltako.com/redirect/FRGBW14

1. App 2. 3.

www.

Produktspezifikationen

Marke:	Eltako
Kategorie:	Nicht kategorisiert
Modell:	FRGBW14

Brauchst du Hilfe?

Wenn Sie Hilfe mit Eltako FRGBW14 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Eltako

Eltako MS Bedienungsanleitung

1 September 2024

Eltako FUD61NP-230V Bedienungsanleitung

30 August 2024

Eltako FT4F-rw Bedienungsanleitung

30 August 2024

Eltako FT4F-wg Bedienungsanleitung

30 August 2024

Eltako DL-PD-300W-RLC-HS Bedienungsanleitung

30 August 2024

Eltako DSZ15DM-3x80A Bedienungsanleitung

30 August 2024

Eltako FTN14 Bedienungsanleitung

30 August 2024

Eltako FT55R Bedienungsanleitung

30 August 2024

Eltako FUD71L Bedienungsanleitung

30 August 2024

Eltako FTS14EM T Bedienungsanleitung

30 August 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
