The Elo 2270L 22-inch Full HD touchscreen monitor delivers a commercial-grade interactive

solution with a minimalistic design to ﬁt any space. Backed by a three-year warranty, the

compact 2270L offers a durable, energy efﬁcient TouchPro® PCAP touchscreen with clear or

anti-glare scratch resistant glass surface options, increased viewing comfort with low blue

light and ﬂicker free features, dual built-in speakers, VGA, DP and HDMI video connectors.

With a clean design aesthetic available in black and white and ﬂexible mounting options,

the 2270L touchscreen is well-suited for POS, interactive digital signage, self-service,

document signing and more.

Product Overview Flexible stand - from 20 to 70°, place

the display at the angle you want or

collapse for VESA mounting.

Durable IK07 design with scratch

resistant surface

Up to 70% reduction in bezel width

compared to similar models

Narrow border touchscreen

with edge-to-edge glass

Low blue light &

Flicker free

Energy Star 8.0 certiﬁed

power efﬁciency

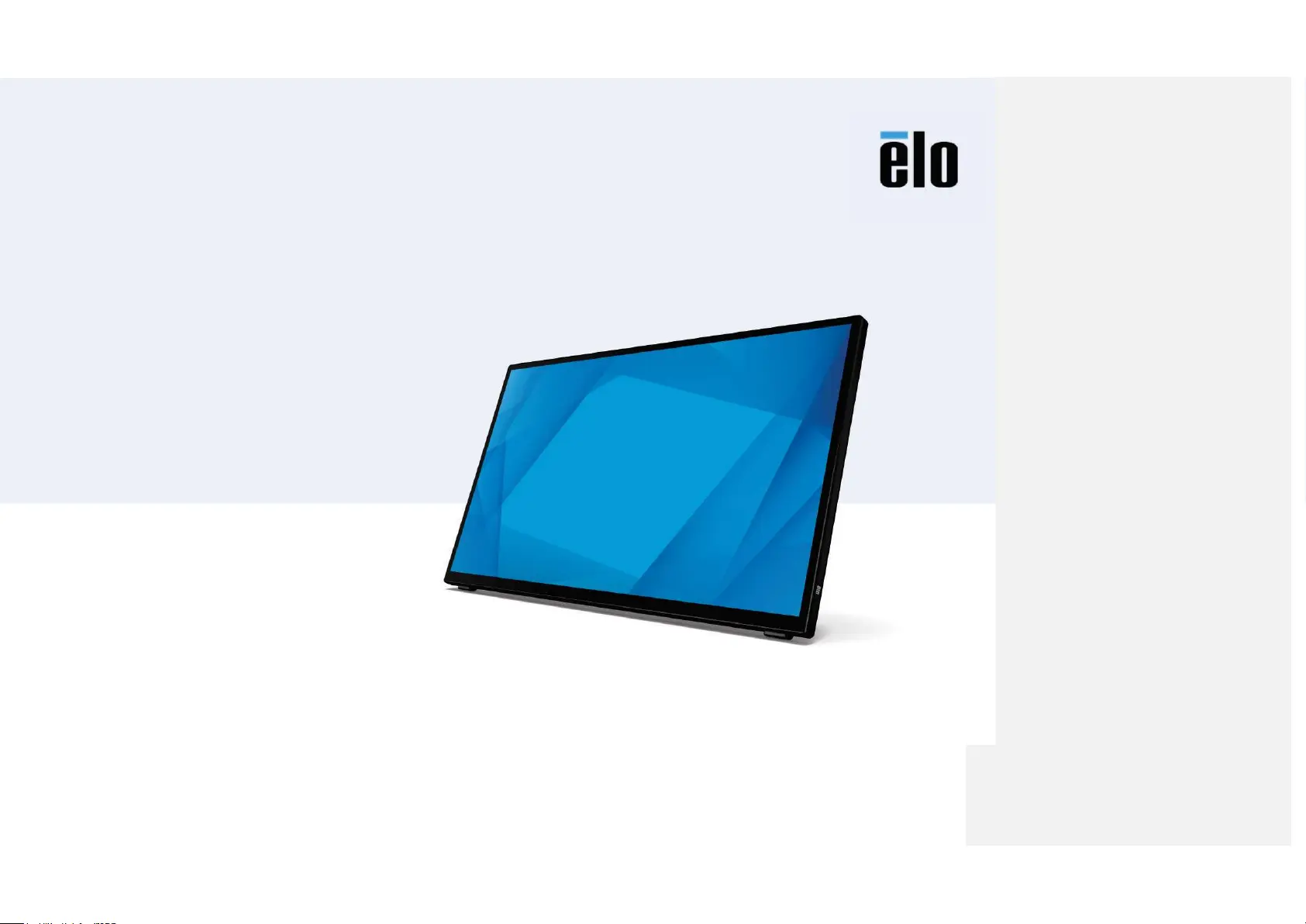

2270L

22-inch LCD

Touchscreen Monitor

Elo reserves the right to change or update, without notice, any information contained herein; to change, without notice, the design, construction,

materials, processing or speciﬁcations of any product s; and to discontinue or limit production or distribution of any products. Elo, the Elo logo and

TouchPro are either trademarks or registered trademarks of Elo Touch Solutions, Inc. All other trademarks are the property of their respective owners.

Speciﬁcations

Color Black

Diagonal Size 21.5" / 546.1 mm

Active Touch Area 18.74" x 10.54" / 476.06 mm x 267.79 mm

LCD Technology Active matrix TFT LCD

Touch Technology TouchPro PCAP

Number of Touches 10 Touches

Aspect Ratio 16:9

Native Resolution 1920 x 1080

Preset Video Timings 640 x 400 70Hz, 640 x 480 60Hz, 720 x 400 70Hz, 800 x 500 60Hz, 800 x 600 56Hz, 60Hz, 1024 x 768 60Hz, 1280 x 720 @ 58Hz, 60Hz, 1280 x 800 60Hz,

1280 x 1024 60Hz, 1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB, 1920 x 1080 50Hz, 60Hz

Number of Colors 16.7M

Brightness (typical) Panel: 250 nits; with TouchPro PCAP: 225 nits

Response Time (Tr + Tf) (typical) 14 msec

Viewing Angle (typical) Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total

Contrast Ratio (typical) 1000:1

On-Screen Display (OSD)

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute,

Audio Source Select, Line-in/Headphone Out, OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/

OFF, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simpliﬁed Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

I/O Ports AC Input (IEC60320 C6), Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A

Video

VGA (Female DB-15 connector), HDMI (receptable type A), DisplayPort

Input Video Horizontal Sync frequency range: 30 – 82KHz

Input Video Vertical Sync (frame rate) frequency range:50 - 75Hz

Speakers 2 x 2W internal speakers

Power

AC power input connector: (IEC 60320 C6), AC input voltage range: 100-240VAC, 50/60Hz

Power Consumption (typical): only display and touch function available - ON (Default 80% Brightness): 12.2 W, ON (100% Brightness): 13.8 W

SLEEP: 0.5 W, OFF: 0.16 W

Dimensions (H x W x D) 19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm

Shipping Dimensions (H x W x D) 23.19" x 5.35" x 15.55" / 589 mm x 136 mm x 395 mm

Weight 9.04 lbs / 4.1 kg

Shipping Weight 14.11 lbs / 6.4 kg

Mounting Options VESA 4-hole 100mm mounting interface on rear of unit

Kick stand Adjustable angle (20-70 degree)

Temperature Operating: 0° C to 40° C / 32°F to 104°F, Storage: -20° C to 60° C / -4°F to 140°F

Humidity (non-condensing) Operating: 20% - 80% / Storage: 10% - 95%; 38.7° max wet bulb temperature

Regulatory approvals and declarations Argentina AR certiﬁcate; Canada CUL, IC; China CCC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI, PSE; International CB;

Australia RCM; Russia EAC; Mexico CoC; RoHS, China RoHS, WEEE, REACH; United Kingdom UKCA

Impact Protection IK07

Other Features Energy Star 8.0, TUV Rheinland (Flicker Free), TUV Rheinland (Low Blue Light), Power collection function via DDCCI

Warranty 3 years

Extended Warranty Option

4 year warranty coverage - Elo P/N: E898247

5 year warranty coverage - Elo P/N: E898449

3 year warranty coverage + AUR - Elo P/N: E898648

4 year warranty coverage + AUR - Elo P/N: E894921

5 year warranty coverage + AUR - Elo P/N: E895125

MTBF 50,000 hours demonstrated

What’s in the Box 2270L Touchmonitor, Quick Install Guide, HDMI cable, Touch USB cable, NA Power cable, EU Power cable, EEI Label (EU), 2x EEI Label (UK)

2x Replace foot cover, 5x Cable tie

2270L 22-inch LCD Touchscreen Monitor
