Seite 1/6

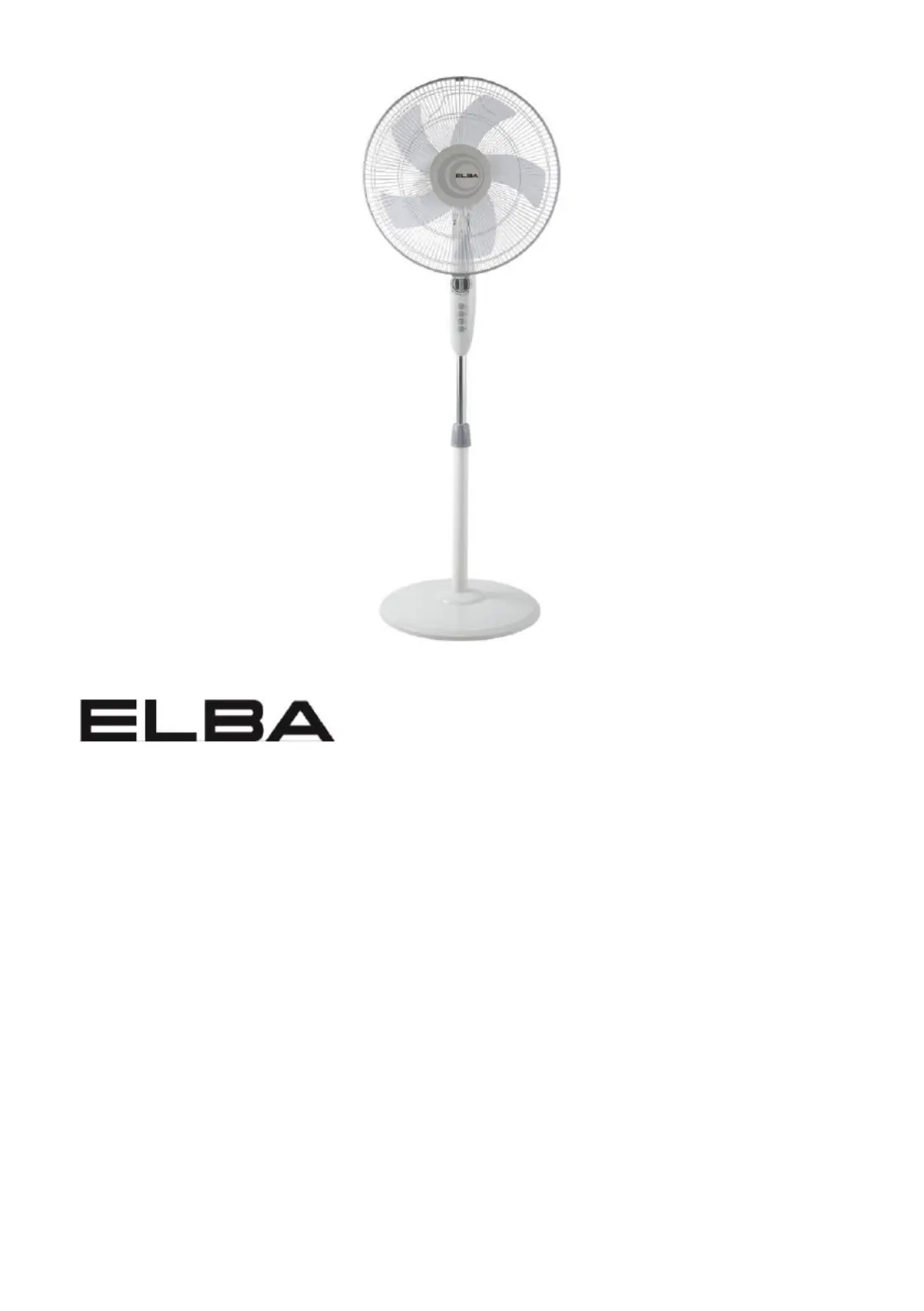

STAND FAN
MODEL: ESF-E1639TM (GR)
Owner’s Manual
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set
and quote this information to your
dealer when you require service.
REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT.
THIS APPLIANCE MUST BE NSTALLED ON A FLAT SURFACE. PLEASE ENSURE
THE ELECTRIC SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE
INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them operate the
appliances without supervision.
2. To protect against the risk of electrical shock, do not immerse the product, cord or
plug into water or any other liquid.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their
safety.
5. If the power cord or plug is damaged, it must be replaced by the service center or
a qualified service technician to avoid hazard.
WARNING - to reduce the risk of fire, electrical shock or injury to persons or property,
please read and follow below instructions carefully.
Always operate the product from a power source of the same voltage, frequency
and rating as indicated on the product identification marking.
Do not operate this product if it has malfunctioned, damaged cord or plug or
appears damaged in any way. Return the complete product to the place of
purchase for inspection, repair or replacement.
This product should not be used in the immediate vicinity of water, such as bathtub,
washbowls, swimming pool etc, where the likelihood of immersion or splashing
could occur.
Always switch off and unplug the plug from outlet when not in use, before
assembling or disassembling parts and before cleaning. Fully assemble the fan
before operating.
Avoid contacting with moving parts. Do not insert any object through the guard
when the fan is operating.
Do not cover the guard or operate in close proximity to curtains, etc.
Always disconnect the fan when moving it from one location to another.

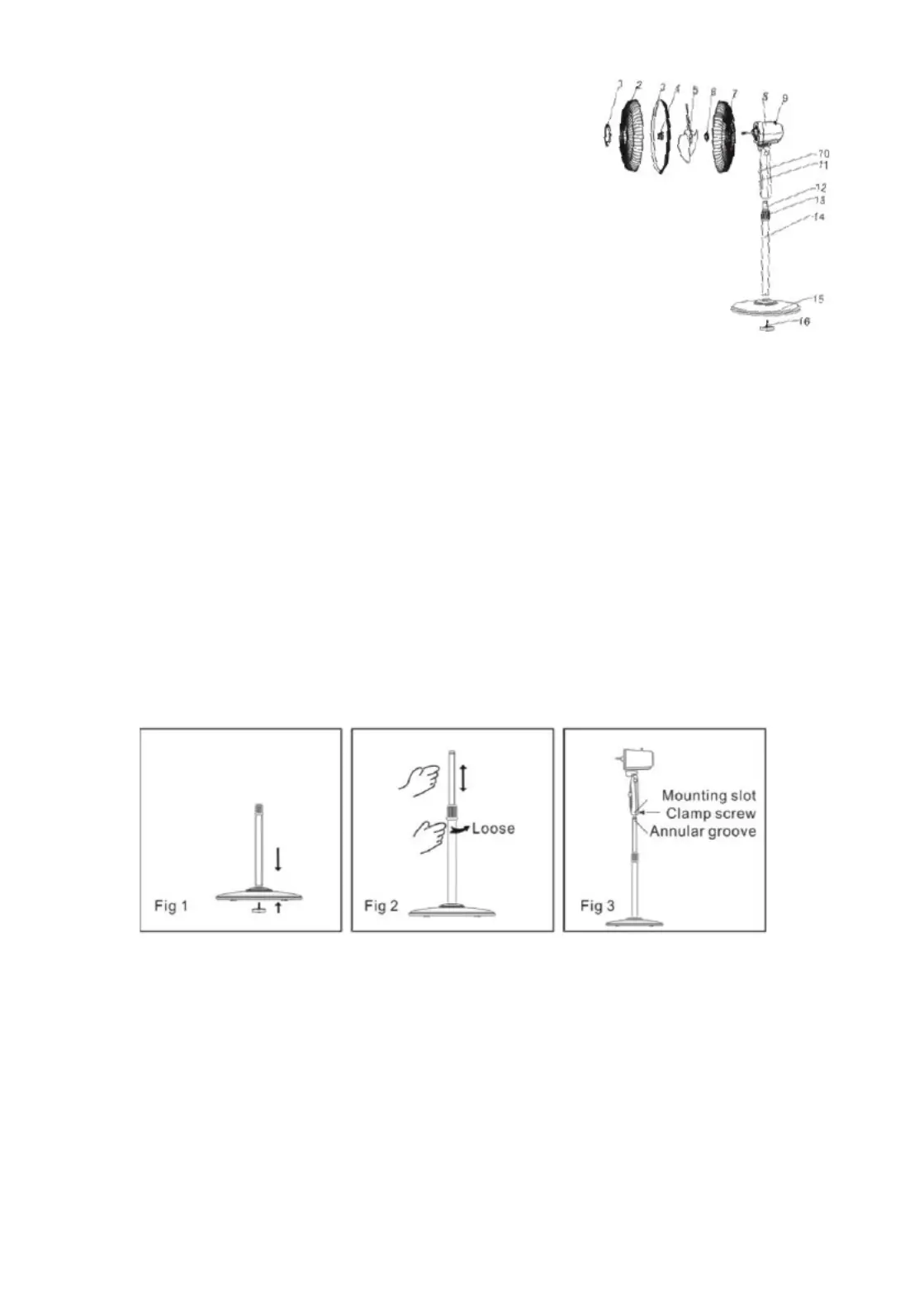

PRODUCT DESCRIPTIONS
1. Centre ring
2. Front guard
3. Guard ring
4. Spinner
5. Fan Blade
6. Guard nut
7. Rear guard
8. Motor
9. OSC knob
10. Timer switch
11. Speed switch
12. Internal pole
13. Height adjustment ring
14. Extension pole
15. Round Base
16. Base screw
ASSEMBLY INSTRUCTIONS
1. Open the gift box and check the parts by referring to the product description
drawing.
2. Insert the extension pole into the base and fasten the base screw. (Fig 1)
3. Loosen the height adjustment ring and adjust the internal pole to the desired
height. (Note: If you can’t see the internal pole, it may slide inside the standing
pole. You can pull it out. (Fig 2)
4. Loosen the thumb screw on the back of the fan body and attach it to the internal
pole.
5. Fasten the thumb screw in alignment with the groove on the internal pole. (Fig 3)
