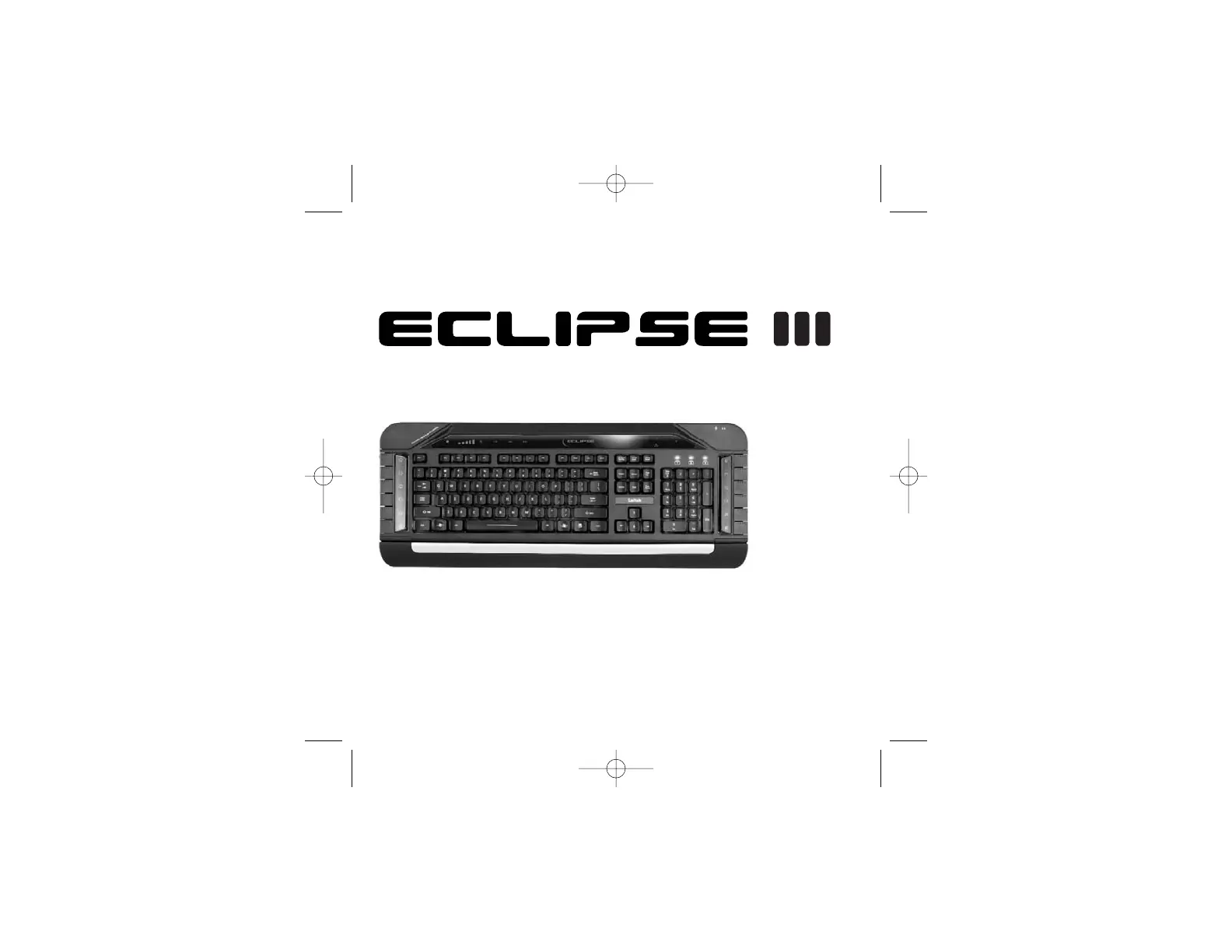

Backlit Multimedia Keyboard
USER MANUAL
BEDIENUNGSANLEITUNG
GUIDE D’UTILISATION
MANUALE D’USO
MANUAL DEL USUARIO
Saitek
®
TM
Eclipse_III_KB.qxd 31/07/2008 10:35 Page 1
To change the color of the key backlighting, first press the color selector control (b) and then “-” (c)
or “+” (d) to scroll through the backlighting colors.
Press the backlighting on/off control (e)
to switch the keyboard backlighting on
or off. To increase or decrease the
volume of your PC’s media player,
press the “-” or “+” on the volume control (f). The mute control (g) temporarily mutes all sound
from your PC and play/pause (h), previous track (i) and next track (j) control the tracks playing on
your PC media player.
The Eclipse III has six buttons at each side of the keyboard which control various Windows and
Office functions.
Sleep function
Your Eclipse III keyboard features a sleep button which is operated by pressing for three seconds.
Please note that for Vista users, the sleep button may have a different function depending on your
PC settings. To check that the sleep button will make your PC sleep, go to Windows Start, Control
panel, Power options. Click on the “Choose what the power buttons do" link on the left hand side of
the window, under “When I press the sleep button on my computer”, select “Sleep” from the drag
down menu.
ECLIPSE III BACKLIT MULTIMEDIA KEYBOARD
Congratulations on buying your Eclipse III Backlit Keyboard. The keyboard features a sleek design,
touch-sensitive lighting and volume controls, and a range of Windows Office and multimedia keys.
Features
• Adjustable, multi-color backlighting
• Touch sensitive control panel
• Two stage height adjustment and removable wrist rest
• Pass through headphone and microphone audio ports
• Time-saving Windows and Internet shortcut keys
• USB plug and play
• Color and keyboard settings remain even after system reboot
• Laser-etched, soft-touch, durable keys
System compatibility
PC running Windows XP/XP64/Vista
Installation for all platforms
1 First plug plug the USB connector of the keyboard into one of your
computer's USB ports.
2 Follow the device installation wizard to complete the installation of the
new USB device to the system.
3 If you intend to use headphones, speakers, headset or microphone, also plug the pink and
green mini jackplugs into the corresponding audio in and out sockets of your
PC. Now plug your headset, speaker cables etc into the pink audio in (k) and
green audio out (l) sockets at the rear right side of your keyboard.
4 Go to http://www.saitek.com/uk/down/drivers.htm to download the Eclipse III
software driver. The Eclipse III keyboard’s volume indicators will not illuminate
unless you install a driver.
5 Your keyboard is now ready to use.
Touch sensitive panel controls
The panel at the top of your Eclipse III keyboard controls backlighting
color and intensity, as well as your PC’s media player. To change the
brightness of your keyboard backlighting, press the brightness control
(a) and then “-” (c) or “+” (d) to decrease or increase brightness.
a
b
cd
efghij
Internet home
Internet browser forward
Internet browser back
New tab
Internet page reload
Open favorites
Sleep (press for 3 seconds to operate)
My computer
Search
Open Outlook
Open media player
Open calculator
kl
Eclipse_III_KB.qxd 31/07/2008 10:35 Page 2
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected;
• Consult the dealer or an experienced radio/TV technician for help.
Mad Catz, Inc, 7480 Mission Valley Rd, Suite 101, San Diego, CA 92108-4406
Canada ICES-003
Operation is subject to the following two conditions:
1. This device may not cause interference, and;
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Conditions of Warranty
1 Warranty period is 2 years from date of purchase with proof of purchase submitted.
2 Operating instructions must be followed.
3 Specifically excludes any damages associated with leakage of batteries.
Note: Batteries can leak when left unused in a product for a period of time, so it is advisable to
inspect batteries regularly.
4 Product must not have been damaged as a result of defacement, misuse, abuse, neglect,
accident, destruction or alteration of the serial number, improper electrical voltages or currents,
repair, alteration or maintenance by any person or party other than our own service facility or
an authorized service center, use or installation of non-Saitek replacement parts in the product
or the modification of this product in any way, or the incorporation of this product into any other
Important notice
In certain circumstances, using a keyboard may cause injury to hands, wrists, arms, back or neck.
If you do experience pain, numbness or weakness in these areas during or after using the
keyboard, seek help from a qualified medical professional.
The following guidelines will minimise the risk of injury:
- Adjust your chair height and distance from the keyboard so your wrists are straight.
- Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse
so you don't have to reach.
- Take frequent breaks to rest your hands and arms. Leave your computer and walk around at
least twice an hour and try to vary what you do during the day.
- Avoid resting your wrists on sharp edges and if you have a wrist or palm rest, don't use it while
typing.
Technical Support
Can't get started - don't worry, we're here to help you!
Nearly all the products that are returned to us as faulty are not faulty at all - they have just not
been installed properly.
If you experience any difficulty with this product, please first visit our website www.saitek.com. The
technical support area will provide you with all the information you need to get the most out of your
product and should solve any problems you might have.
If you do not have access to the internet, or if the website cannot answer your question, please
contact your local Saitek Technical Support Team. We aim to offer quick, comprehensive and
thorough technical support to all our users so, before you call, please make sure you have all the
relevant information at hand.
To find your local Saitek Technical Support Center, please see the separate Technical Support
Center sheet that came packaged with this product.
Information for Customers in the United States
FCC Compliance and Advisory Statement
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1 This device may not cause harmful interference, and;
2 This device must accept any interference received, including interference that may cause
undesired operation.
Eclipse_III_KB.qxd 31/07/2008 10:35 Page 4
