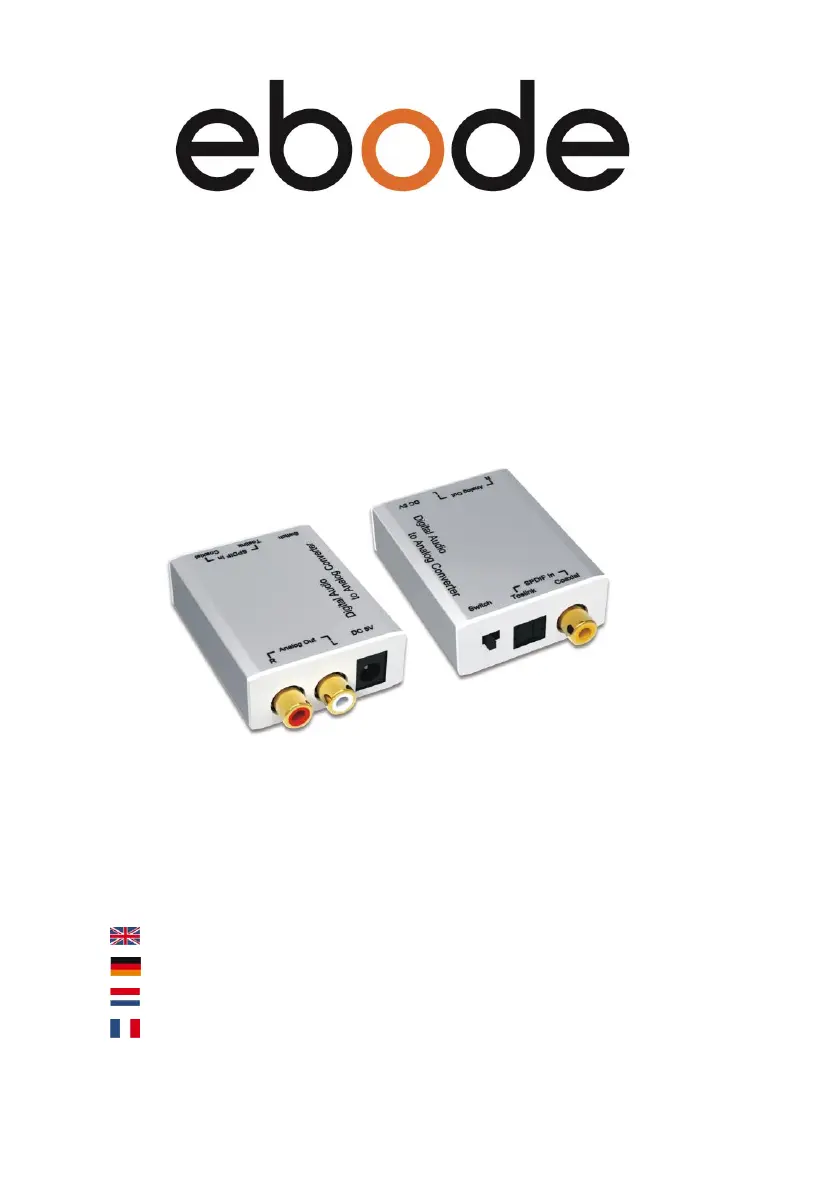

Seite 1/20
www.ebodeelectronics.eu
Audio to Analog Converter
CV30RL
User guide 2
Bedienungsanleitung 5
Gebruikershandleiding 8
Guide utilisateur 11
Before using our product, please read this document carefully.
23-5-2013 2 ebode CV30RL
User guide
Contents
1. CONFORMITY OF USE
2. INTRODUCTION
3. SPECIFICATIONS
4. AUDIO SPEC
5. SET CONTENT
6. ADVANTAGES
7. PRODUCT OVERVIEW
8. OPERATION
9. RNING WA
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information
carefully and follow the instructions. The unit is registered as a device that does not
cause or suffer from radio-frequency interference. It is CE approved and it conforms with
the Low Voltage Directory. The safety and installation instructions must be observed.
Technical manipulation of the product, or any changes to the product, are forbidden, due
to security and approval issues. Please take care to set up the device correctly - consult
your user guide. Young children should use the device only under adult supervision. No
guarantee or liability will be accepted for any damage caused due to incorrect use of the
equipment supplied, other than indicated in this owner’s manual.
Safety warnings
ï‚· To prevent short circuits, this product (except if specified for outdoor usage) should
only be used inside and only in dry spaces. Do not expose the components to rain or
humidity.
ï‚· Only connect the power cord to the mains after checking whether the mains voltage
is the same as the values on the rating labels. Never connect a power cord when it is
damaged. In that case, contact your supplier. If there is any danger of a thunderstorm,
it is a good precaution to unplug the power supply from the mains network in order to
protect it from lightning. The same applies if the system is to be out of action for any
length of time.
ï‚· Avoid strong mechanical tear and wear, extreme ambient temperatures, strong
vibrations and atmospheric humidity.
ï‚· Do not disassemble any part of the product: the device contains live parts and no
user-serviceable parts are inside. The product should only be repaired or serviced by
qualified and authorized service personnel. Defected pieces must be replaced by original
(spare) parts.
In case of improper usage or if you have opened, altered and repaired the product
yourself, all guarantees expire. The supplier does not accept responsibility in the case of
improper usage of the product or when the product is used for purposes other than
specified. The supplier does not accept responsibility for additional damage other than
covered by the legal product responsibility.
23-5-2013 3 ebode CV30RL
2. Introduction
Thank you for purchasing the ebode CV30RL. The CV30RL offers a solution for
connecting digital and analogue audio sources. With the CV30RL you can listen to your
modern digital TV with digital output, your analog sound system with analogue input. on
It converts S/PDIF or TOSLINK digital audio to L/R analogue audio with a digital
interpolation filter and digital to analogue converter. A perfect solution that supports up
to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital with raw audio with
auto sample rate of 32, 44.1, 48 KHz and 24-bit incoming Bitstream on the left and right
channels.
3 Specifications .
1. Power input: 1.2A DC 5V
2. Power consumption: <2W
4. Audio Spec
24bit audio digital signal processor (DSP) 96 KHZ/24bit D/A converter (DAC)
Signal to Noise: ≥90db
Degree of separation: 80db (1KHz)
Response Frequency: 20HZ-20KHZ±0.5db
Analog output audio level (1KHZ@0DBFS) : 1V
THD: ≤0.03%
5 Set Contents.
ï‚· Digital Audio to Analog Converter
ï‚· Power Supply
ï‚· User Manual
6 Advantages .
CV30RL a digital audio decoder with special audio DSP, that support PCM and others is a
audio formats.
7 Product overview .
Figure 1.1
