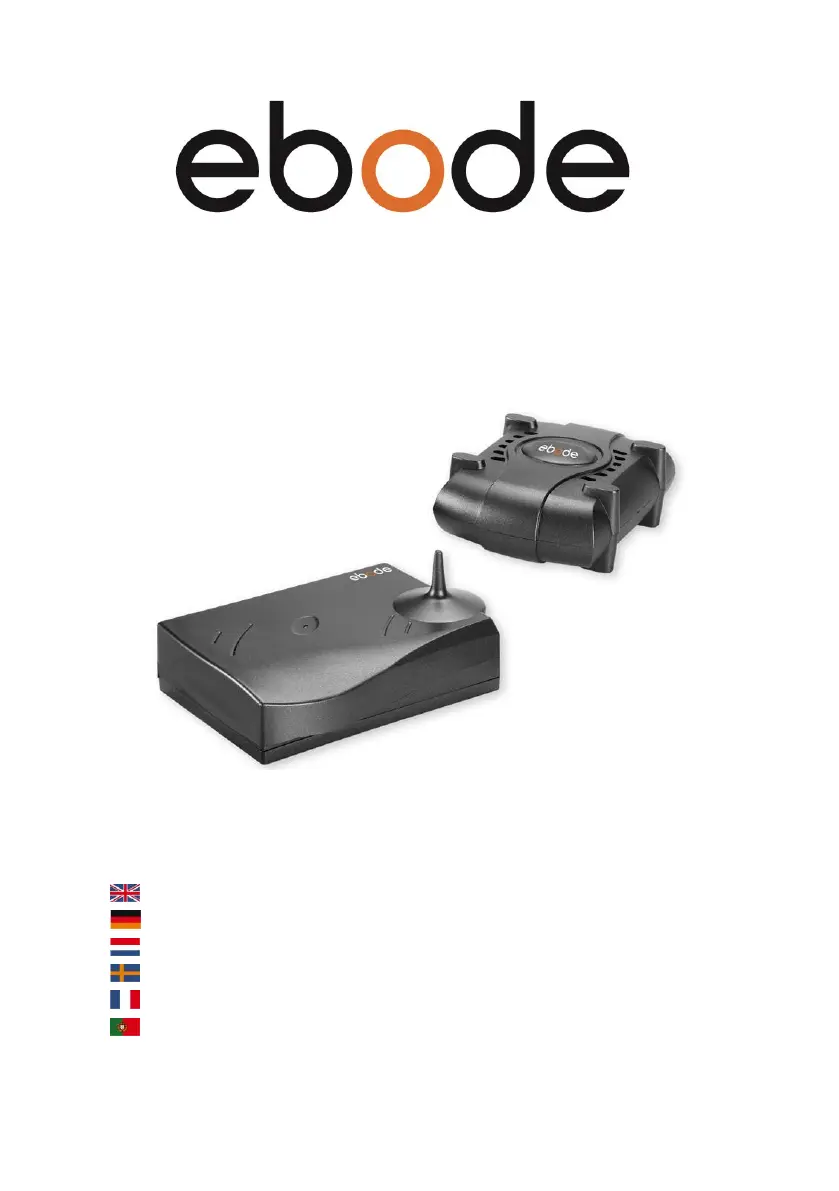

Audio Link Digital Surround

ALDS58

User guide 2

Bedienungsanleitung 9

Gebruiksaanwijzing 16

Användarmanual 23

Guide utilisateur 30

Manual do utilizador 37

Before using our product, please read this documents carefully.

25-3-2013 2 ebode ALDS58

User guide

Contents

1. CONFORMITY OF USE

2. INTRODUCTION

3. CONTENTS OF THE KIT

4. TECHNICAL SPECIFICATIONS

5. CONNECTING THE TRANSMITTER

6. CONNECTING THE RECEIVER

7. PLACING THE TRANSMITTER AND RECEIVER

8. OPERATING THE TRANSMITTER

9. OPERATING THE RECEIVER

10. FREQUENTLY ASKED QUESTIONS

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information

carefully and follow the instructions. The unit is registered as a device that does not cause

or suffer from radio-frequency interference. It is CE approved and it conforms with the

Low Voltage Directory. The safety and installation instructions must be observed.

Technical manipulation of the product or any changes to the product are forbidden, due to

security and approval issues. Please take care to set up the device correctly - consult your

user guide. Young children should use the device only under adult supervision. No

guarantee or liability will be accepted for any damage caused due to incorrect use of the

equipment supplied, other than indicated in this owner’s manual.

SAFETY WARNINGS

 To prevent short circuits, this product (except if specified for outdoor usage) should

only be used inside and only in dry spaces. Do not expose the components to rain or

humidity.

 Avoid strong mechanical tear and wear, extreme ambient temperatures, strong

vibrations and atmospheric humidity.

 Do not disassemble any part of the product: no user-serviceable parts are inside.

The product should only be repaired or serviced by qualified and authorized service

personnel. Defected pieces must be replaced by original (spare) parts.

 Batteries: keep batteries out of the reach of children. Dispose of batteries as

chemical waste. Never use old and new batteries or different types of batteries together.

Remove the batteries when you are not using the system for a longer period of time.

When inserting batteries be sure the polarity is respected. Make sure that the batteries

are not short circuited and are not disposed in fire (danger of explosion).

In case of improper usage or if you have opened, altered and repaired the product

yourself, all guarantees expire. The supplier does not accept responsibility in the case of

improper usage of the product or when the product is used for purposes other than

specified. The supplier does not accept responsibility for additional damage other than

covered by the legal product responsibility.

25-3-2013 3 ebode ALDS58

Thank you for purchasing th ebode product. is

2. Introduction

Make your speakers wireless with the ALDS58 and eliminate long speaker cables to your

rear speakers. The wireless amplifier receives a 5.8GHz signal which is transmitted in a

digital format up to 30 meters away from the transmitter. Wireless Digital Audio at full CD

quality due to uncompressed technique. Volume can be adjusted with your existing remote

and on both transmitter and receiver to guarantee a perfect sound between your front and

rear speaker. Stereo Amplifier with 2x40 Watts RMS Output power per channel.

3 Contents of the kit .

 1x 5.8 GHz Digital Audio transmitter,

 1x 5.8 GHz Digital Audio receiver,

 1x 9V DC 300mA Power Supply

 1x 24V DC 1500mA Power Supply

 2x short speaker cables.

4 Technical Specifications.

Transmitter:

 Audio transmission method: Digital

 Transmitter frequency: 5.8 GHz

 Error correction: 1/2 rate FEC

 Audio sampling method: 128 times oversampling

 Transmitted data rate: >3 Mbps

 Transmitter operating range:

max. 100 ft. line of sight, max. 30 ft. through walls and ceilings

Receiver:

 Output power: 2 * 18 W (RMS)

 Frequency response: 2 Hz … 20 kHz

 Signal- -noise ratio: 91 dB (Transmitter / Receiver, A-weighted) to

 Total harmonic distortion: typ. 0.04 % @ 20 W

 Overall audio latency: < 1 ms

 Power efficiency: 90 %

 Channel separation: typ. 75 dB

 Automatic receiver power down feature

Produktspezifikationen

Marke:	Ebode
Kategorie:	AV extender
Modell:	Audio Link Digital Surround
