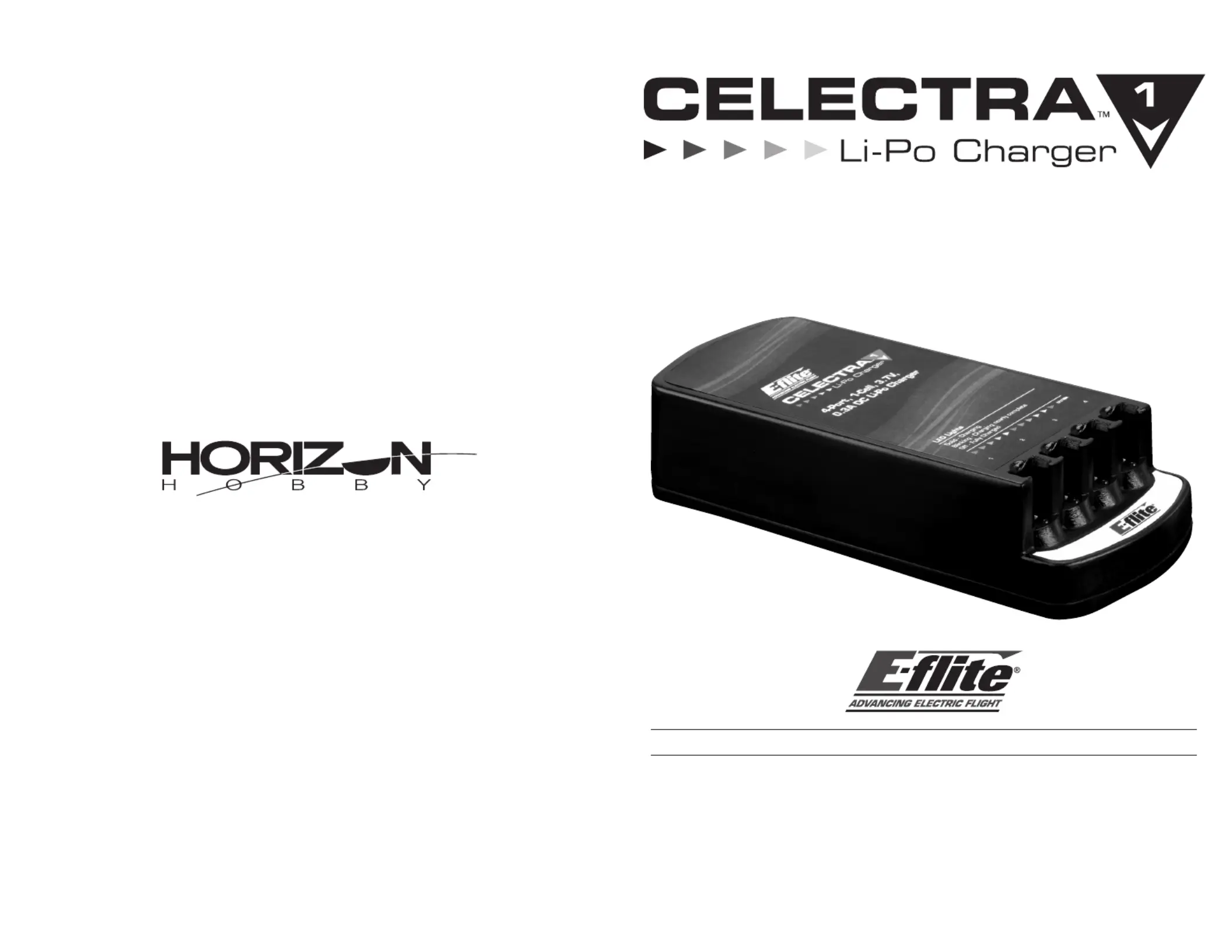

4-Port DC Li-Po Charger EFLC1004
E-flite® products are distributed exclusively by
Horizon Hobby, Inc.
4105 Fieldstone Road
Champaign, IL 61822
© 2009 Horizon Hobby, Inc.
www.E-fliteRC.com
15325 Printed 2/09
Features
• 4 independently functioning charging circuits to reliably charge your single-cell
Li-Po battery.
• Charges E-ite and ParkZone single-cell Li-Po batteries for ultra-micro yers.
• Use all 4 ports simultaneously or one at a time.
• Uses four high-capacity D-size batteries (not included) to provide many charges and
maximum portability.
• Optional AC/DC 6V power supply available (EFLC1005).
2
3
Battery Charging
LED functions under normal operation:
• Solid – Charging
• Blinking – Charging nearly complete
• Off – Fully Charged
Replace D-size batteries when:
• LED remains solid for over 60 minutes when charging (70mAh–110mAh)
Li-Po batteries
• LED remains solid after removing single-cell Li-Po batteries from individual ports.
• LED remains off after inserting discharged single-cell Li-Po batteries in
individual ports.
It is important that you only charge E-ite and ParkZone 1-Cell 3.7V Li-Po Batteries, used
in our ultra-micro yers, with the Celectra 4-Port 1-Cell 3.7V 0.3A DC Li-Po Charger
(EFLC1004). Please familiarize yourself thoroughly with the Battery Warnings and Guide-
lines section before continuing.
Please follow these steps to charge your single-cell Li-Po battery with the Celectra 4-Port
Li-Po Charger.
• Remove the cover on the bottom of the charger and install four D-size batteries,
noting proper polarity. Replace the cover after the D-size batteries are installed.
Introduction
The Celectra 4-Port DC Li-Po Charger (EFLC1004} offers E-ite® and ParkZone® single-cell
Li-Po users, for ultra-micro yers, the convenience of charging multiple or individual single-
cell Li-Po batteries simultaneously. Pilots can also charge without the need for D-size bat-
teries with the optional E-ite 6V AC/DC Power supply (EFLC1005), specically designed
for use with your 4-port charger.
Battery Warnings and Guidelines
While the Celectra 4-Port 1-Cell 3.7V 0.3A DC Li-Po Charger has been specically
designed to safely charge the E-ite and ParkZone single-cell 3.7V Lithium Polymer
Batteries such as EFLB1101S and PKZ3001, you MUST read the following safety
instructions and warnings before handling, charging or using the Li-Po battery.
Note: Lithium Polymer batteries are signicantly more volatile than the alkaline,
Ni-Cd or Ni-MH batteries used in RC applications. All instructions and warnings
must be followed exactly. Mishandling of Li-Po batteries can result in re.
By handling, charging or using the included Li-Po battery, you assume all risks associated
with lithium batteries. If you do not agree with these conditions, return your complete
Celectra 4-Port 1-Cell 3.7V 0.3A DC Li-Po Charger (EFLC1004), in unused condition to
the place of purchase immediately.
• You must charge 1-cell 3.7V Li-Po batteries in a safe area away from
flammable materials.
• Never charge the battery unattended. When charging the battery you should always
remain in constant observation to monitor the charging process and react to
potential problems that may occur.
• After ight, the Li-Po batteries must be cooled to the ambient temperature
before charging.
• If at any time during the charge or discharge process the battery begins to balloon
or swell, discontinue charging or discharging immediately. Quickly and safely
disconnect the battery, then place it in a safe, open area away from ammable
materials to observe it for at least 15 minutes. Continuing to charge or discharge a
battery that has begun to balloon or swell can result in a re. A battery that has
ballooned or swollen even a small amount must be removed from service
completely.
4
5
• Slide the battery into any open slot on the charger. The end-cap of the battery has
been specically designed to allow the battery to be slid into one of the slots easily
one way (usually with the label on the battery facing outward) to prevent reverse
polarity connection. However, please be sure to check for proper alignment and
polarity before proceeding to the next step.
• Gently press the battery and its connector into one of the charge jack/connectors
located at the bottom of the slots on the charger. Again, be sure to check for and to
achieve proper polarity before making the connection. DO NOT FORCE THE BATTERY
INTO THE SLOT.
• After you make the connection successfully, the LED light on the charger port being
used will turn solid red, indicating that charging has begun.
• It will take approximately 30–40 minutes to charge a fully discharged (not
overdischarged) 70mAh–110mAh battery. As the battery nears full charge, the LED
light will begin to blink. When the battery is fully charged the LED light will blink
approximately every 20 seconds or will go out entirely.
Note: Do not leave charged Li-Po batteries connected in any of the charge ports for
long periods of time.
Using the optional 6V, 1.5-Amp AC/DC Power Supply (EFLC1005)
The Celectra 4-Port 1-Cell 3.7V 0.3A DC Li-Po Charger was designed to be compatible
with the E-ite 6V, 1.5-Amp AC/DC Power Supply.
NEVER attempt to power the charger from an AC outlet without the use of a proper AC to
DC adapter/power supply.
Note: When using the AC to DC adapter/power supply, the Celectra 4-Port Charger
is designed to bypass the D-size battery circuitry to prevent damage. It is still
highly recommended that you remove D-size batteries when connecting your
charger to a compatible AC/DC adapter/power supply. Do not insert charged
or discharged Li-Po batteries in any of the charge ports if the power supply is
connected to the 4-port charger while power supply is not connected to a power
source.
NEVER LEAVE THE ADAPTER/POWER SUPPLY OR CHARGER PLUGGED IN UNNATTENDED.
Celectra 4-Port Li-Po Charger Warning
Lithium Polymer (Li-Po) batteries are signicantly more volatile than other rechargeable
batteries used in RC applications. Failure to read and follow these instructions and safety
precautions may result in re, personal injury and damage to property.
E-flite, Horizon Hobby, Inc., its retailers, and any other representatives, assume
absolutely no liability for use of this product or failure to comply with these instructions
and precautions.
If you are not prepared to accept complete liability for the purchase and/or use of this
product, you are advised to return it new and unused to the place of purchase immediately.
Never ship batteries without the expressed permission of the recipient. Batteries
carryinga charge of 25% or more cannot be shipped safely. Batteries which are damaged
cannot be shipped safely. Damage or loss due to unsafe shipping is the legal responsibility
of the person who shipped the product.
