Owners Manual Wall Mount Bracket
Introduction
We thank you for choosing this quality wall-mount bracket which has been designed to work particularly well with the Dynaudio
compact loudspeaker models. The bracket has been designed to provide a very rigid and stable support, thus allowing the
speaker(s) to perform at optimum levels in a wide variety of positions. The unique curved shape adds strength to the mounting
assembly while also offering the exibility of both vertical and horizontal adjustment capabilities. Therefore the loudspeaker(s)
may be precisely angled to obtain the optimum listening axis in any room. The speakers will be mounted in place at a distance
within 6 cm of the wall boundary, and the mounting bracket will essentially be hidden behind the speaker cabinet.
Mounting surfaces
WARNING
Carefully evaluate the composition, construction and strength of the sur face you are mounting to. Take care to avoid concealed
water (plumbing) and power (electric) supplies which may be located behind the desired mounting location(s).
Tools required
Spirit level
Power Drill
3 mm masonry drill bit
No2 Pozidriv screwdriver
Assembly/Installation
Before assembly you should check that the hardware kit
is complete. A complete kit consists of the following:
4 curved steel plates
8 wood screws
2 washers
1 wrench
2 bolts
2 nuts

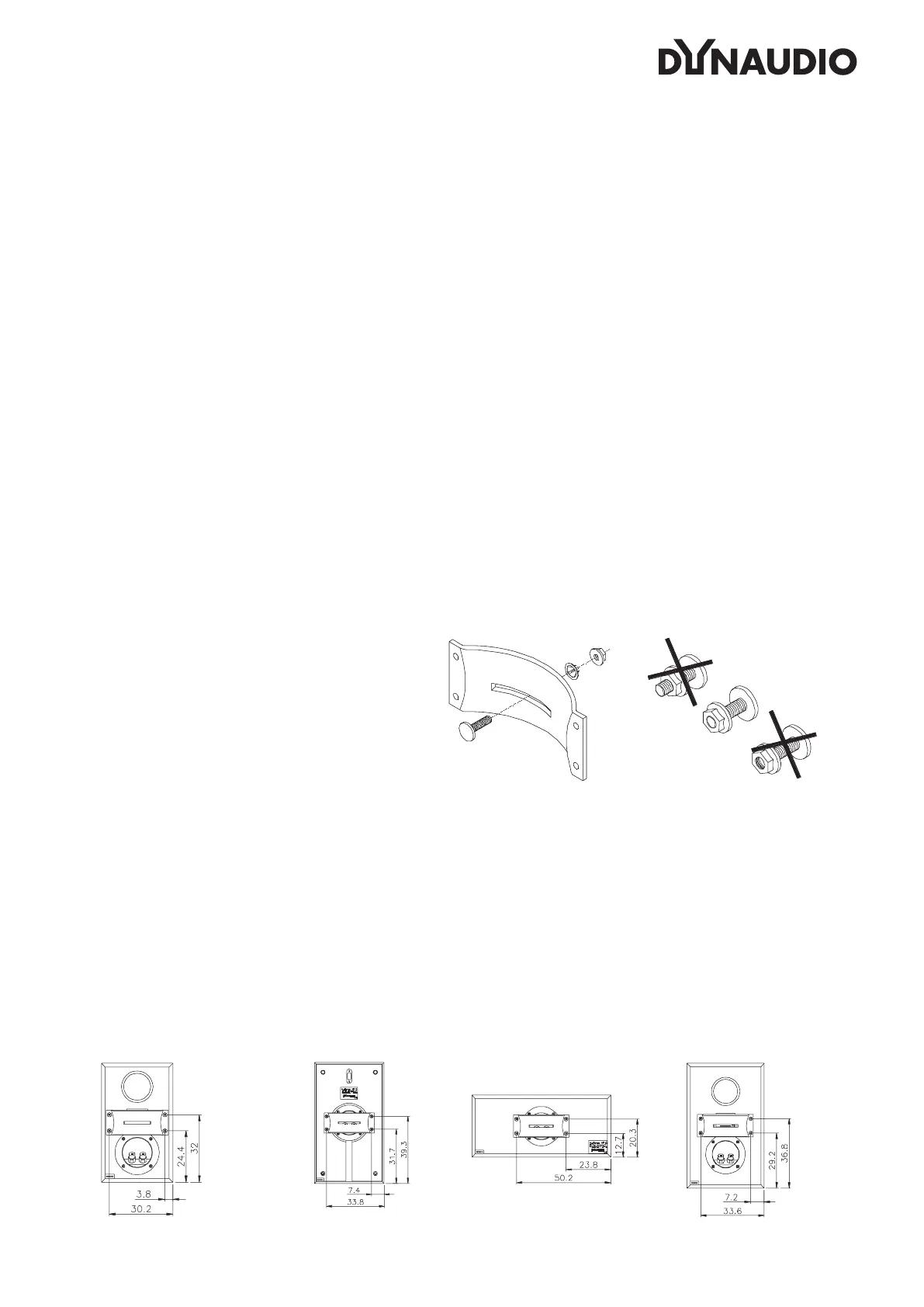

First put the bold and the plain washer through the slot of the smaller curved plate. Then, screw the nut ush onto the bolt,
as shown in the picture at the right.
Next, drill the holes and attach the smaller plate concentric onto the speaker cabinet. The holes should measure 3mm in
diameter but shouldn’t be deeper than 15mm to prevent the screws of breaking through into the cabinet enclosure.
NOTE
Sometimes it is helpful to connect the loudspeaker cable before completing the assembly. The mounting bracket plate could be
positioned right above the terminals of the speaker(s).
Examples
Audience 42
Audience 42W Audience 42C
Audience 52
Decide upon the location where the loudspeakers will be mounted and
mark the wall at the edges of the longer plate. Also mark the location
of the holes in the wall, having rst checked the vertical positioning
with the level.
Fix the plate with screws/wall plugs that are suitable for the consistency
and materials of your wall.
Please note that the hole at the end of the slot should be positioned at
the top of the plate.
You may then connect the plates by putting the nut of the shorter plate through the slot on the longer plate. Then tighten the nut
with the wrench to complete the installation.
Congratulations – and happy listening!
Dynaudio A/S, 8660 Skanderborg, Denmark
Sales & Marketing: Dynaudio International GmbH, Ohepark 2, 21224 Rosengarten, Germany, Phone: +49 4108 - 41 80 - 0
www.dynaudio.com
© Dynaudio International GmbH, Owners Manual Wall Mount Bracket 1112, Item No. 455240. All text and image copyrights reserved. Subject to change without notice.
Owners Manual Wall Mount Bracket Page 2/2
