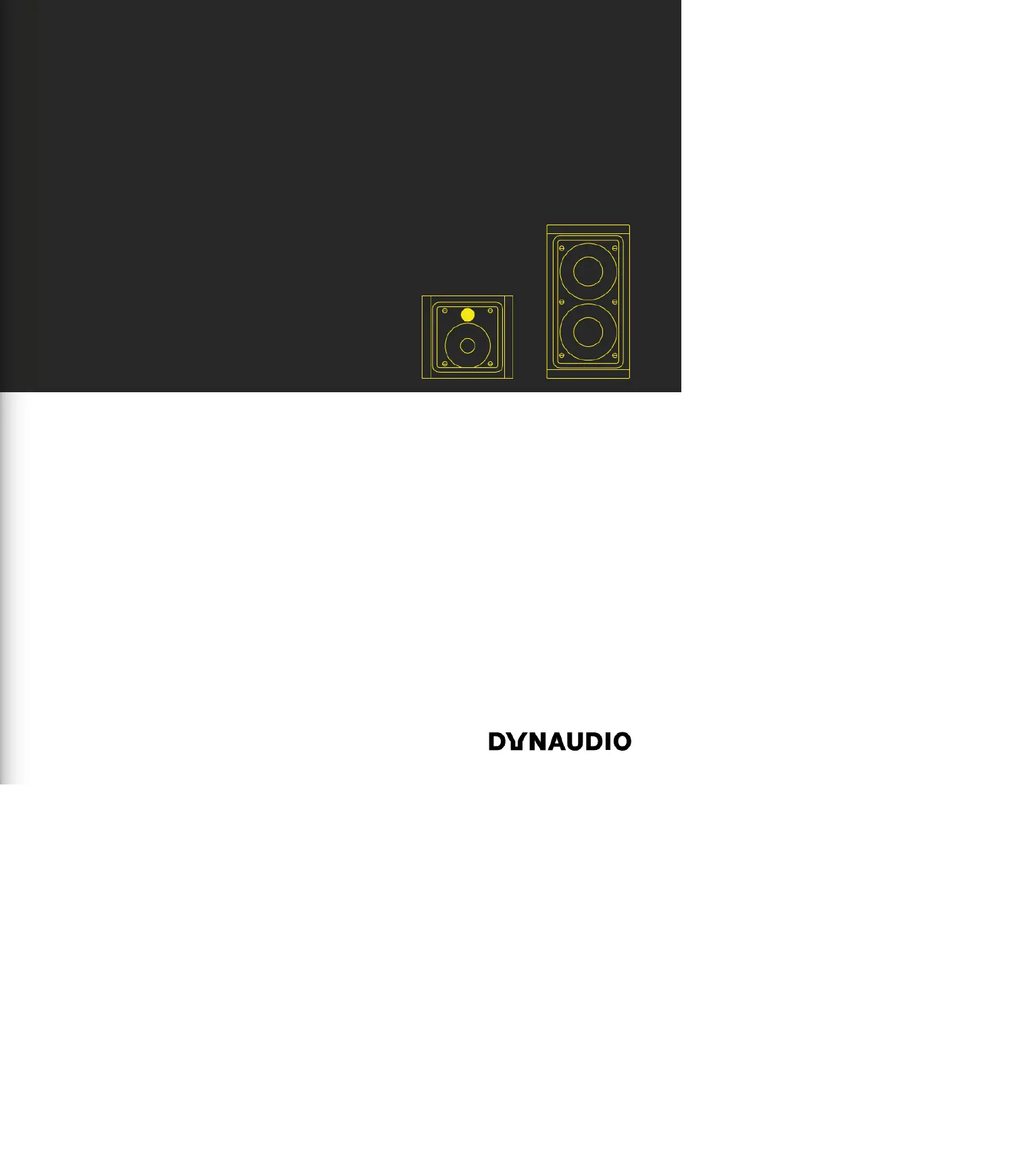

S4-LCRMT S4-LCR65W
Installation Manual
Studio Series
Welcome to the custom install Studio Series and thank you for choosing a
Dynaudio Custom Install product.
The S4-LCRMT and S4-LCR65W are modular in-wall speakers designed for left,
centre and right channel applications in multi-channel audio systems.
The S4-LCR Series offers very high quality audio performance while at the same
time providing multiple conguration options and incorporating numerous features
designed to ease installation.
Environmental note
This product complies with international directives, including but not
limited to the Restriction of Hazardous Substances (RoHS) in electrical
and electronic equipment, the Registration, Evaluation, Authorisation and
restriction of Chemicals (REACH) and the disposal of Waste Electrical and
Electronic Equipment (WEEE). Consult your local waste disposal authority
for guidance on how properly to recycle or dispose of this product.
Disposal
Disposal of used electrical and electronic equipment (applicable in
European countries with separate collection systems for this equipment).
This symbol on the product or its packaging indicates that the product
may not be treated as household waste. Instead it must be handed
over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health. The recycling of materials helps to
conserve natural resources. For more detailed information on recycling
this product, please contact your local authority, community waste
disposal of, or the shop where you purchased the product.
Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus that produce heat.
9. Only use attachments / accessories specied by the manufacturer.
10. Refer all servicing to qualied service personnel.
1. Introduction
This manual describes the installation of S4-LCR Series modules
within drywall/plasterboard walls. It begins by listing the carton
contents and continues information specic to installing in-wall
speakers.
If this is your rst time working with Dynaudio Studio Series
custom install speakers, or if you have not done so for a while, we
recommend that you read the appropriate sections of this manual
before you begin.
Note: Visit dynaudio.com for the latest Studio Series news and
information.
The S4-LCR Series is designed to provide very high quality left,
centre, and right channel audio in custom installations where
speakers are required to be tted ush in walls. The S4-LCR Series
not only benets from four decades of Dynaudio speaker expertise
but has been designed through its modular format to offer enhanced
versatility in terms of both practical installation and acoustic
performance.
S4-LCR Series modules comprise a Speaker Unit and Installation
Frame. The Installation Frame is inserted into the wall cut-out and
securely xed in place using auto-locking clamps. The Speaker Unit
is then connected to the speaker cables before being inserted into
the Installation Frame to be held in place by a latch system. The grille
is then tted, secured by magnets integrated within the Installation
Frame.
• S4-LCR Series modules are uniquely simple to install. Once a
wall cut-out is created, no tools are required and installation can
be completed by one person without assistance. Every element
of the S4-LCR Series installation procedure, from unpacking the
speakers to painting and tting the magnetic grilles is simplied
and streamlined by design.
• S4-LCR Series speakers employ numerous Dynaudio
technologies, borrowed from the company’s studio monitors and
high-end hi- speakers, to bring genuinely high performance
audio to custom installations: unique bass/mid drivers with large
diameter aluminium voice coils and nite element optimised, low-
distortion magnet systems, proprietary MSP (Magnesium Silicate
Polymer) diaphragms, and precision coated soft dome tweeters
with powerful neodymium magnets are just a few examples
among many.
• The S4-LCR Series comprises two modules:
the S4-LCRMT mid/tweeter module and the S4-LCR65W twin
driver bass module. A single S4-LCRMT module can be used
with one or, for higher volume level applications, two S4-LCR65W
modules.
• S4-LCRMT sensitivity can be adjusted via a rear mounted switch
to match either one or two S4-LCR65W modules. The electrical
crossover between S4-LCRMT and S4-LCR65W modules can
be accomplished passively, using either the standard internal
passive lters, or actively using external active lter components.
Switches and bypass jumpers located on the rear of the speaker
units engage or bypass the internal passive bass module low
pass and mid/tweeter high pass lters.
