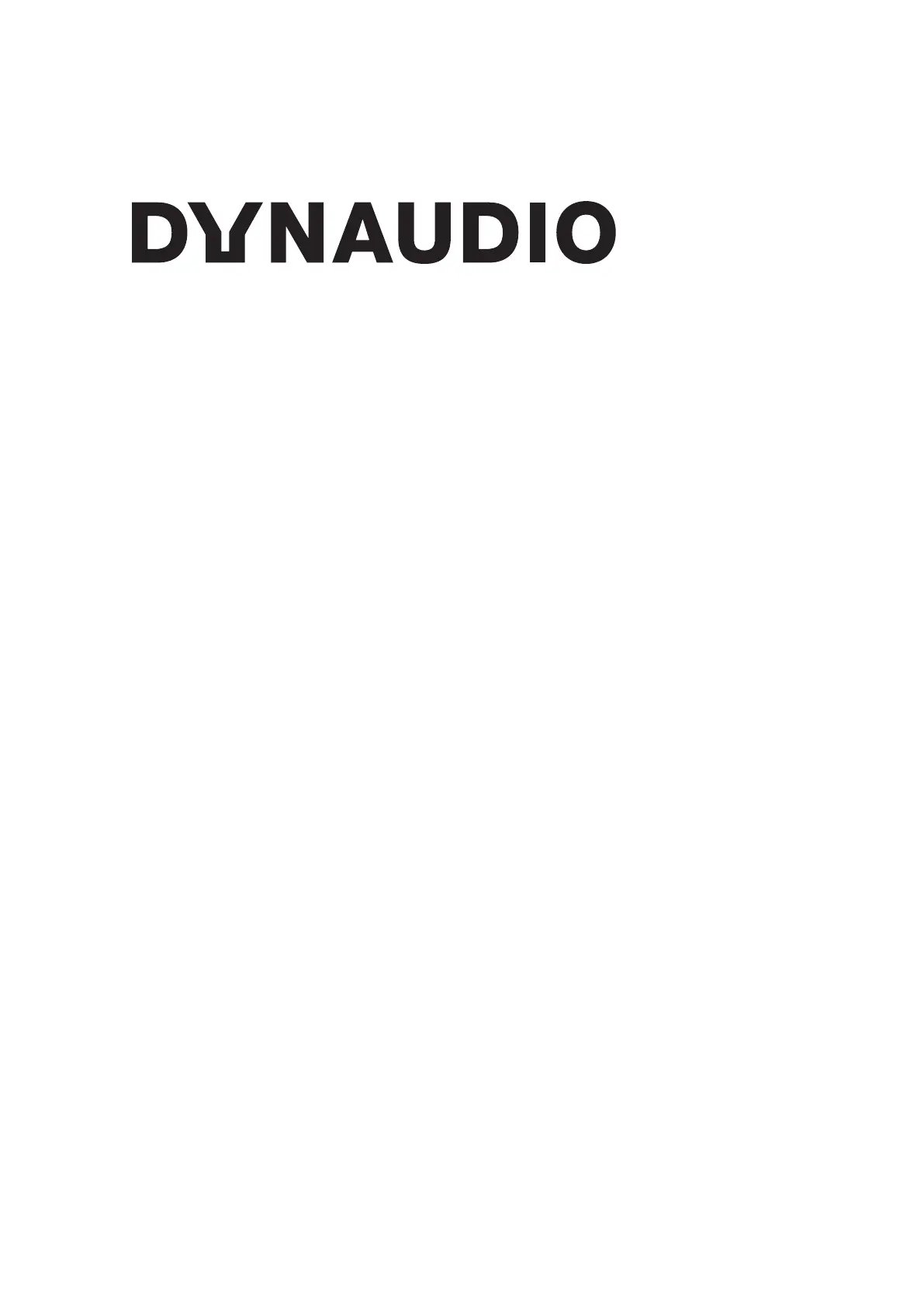

Seite 1/28
S4-DVC65S4-C65 S4-C80 S4-W65 S4-W80
Installation Manual
Studio Series
Dynaudio custom install limited warranty
Dynaudio warrants its custom install products to be free from defects in
materials and workmanship under conditions of normal use and service
for a lifetime period from the date of original purchase. For this warranty
to apply, the unit must be installed and used according to its written
instructions.
The obligation under this warranty shall be limited to the replacement,
repair or refund of any such defective device within the warranty period,
provided that:
1. inspection by Dynaudio indicates the validity of the claim;
2. the defect is not the result of damage, misuse, lightning, power
surges, negligence, improper operation (installation) or failure to follow
instructions contained in the manual or written instructions provided by
Dynaudio after the original purchase;
3. the product has not been altered in any way or repaired by others and
that factory sealed units are unopened (a service charge plus parts and
labour will be applied to units defaced or physically damaged);
4. the dealer from whom the Dynaudio products were purchased was
authorized to sell such products at the time of the original purchase;
5. the service provider for, including but not limited, installation or repair
of the product, was authorized in writing by Dynaudio;
6. the original, dated Bill of Sale is presented whenever service is required
during the warranty period;
7. freight charges for the return of products to Dynaudio are prepaid;
8. all units ‘out of warranty’ are subject to a service charge. The service
charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labour).
This warranty is in lieu of and excludes all other warranties, expressed or
implied. Neither this warranty nor any other warranty, express or implied,
including implied warranties of merchantability and tness, shall extend
beyond the warranty period.
Dynaudio shall not be liable for damages to any other equipment or
other items at the site of use, or any other damages whether incidental,
consequential or otherwise. Dynaudio shall not be liable for any anticipated
prots, any incidental or consequential damages, loss of time or other
losses incurred by the purchaser in connection with the purchase,
operation or use of the product.
The information this document contains is subject to change without
notice. In the event that there are differences between this warranty and
the provisions of any advertisements, documentation, product brochures or
packaging cartons, the terms of this warranty shall prevail.
Welcome to the custom install Studio Series
and thank you for choosing a Dynaudio Custom
Install product.
The Studio Series comprises the S4-C65, S4-DVC65
and S4-C80 in-ceiling speakers and the S4-W65 and
S4-W80 in-wall speakers.
Each is designed to offer high quality audio
performance while at the same time incorporating
features and facilities designed to ease installation.
1. Introduction
This manual describes the installation of Studio Series speakers
within drywall/plasterboard walls and ceilings. It begins by listing
the contents of the Studio Series cartons and continues with
sections that provide information common to in-ceiling and in-wall
speakers. Later sections in the manual provide information specic
to installing in-ceiling or in-wall speakers.
If this is your rst time working with Dynaudio Studio Series
custom install speakers, or if you have not done so for a while, p2-we
recommend that you read the appropriate sections of this manual
before you begin.
Note: Visit dynaudio.com for the latest Studio Series news and
information.
The Studio Series is designed to provide very high quality audio in
custom installations where speakers are required to be tted ush
in walls and ceilings. The Studio Series not only benets from four
decades of Dynaudio speaker expertise but has been designed
from rst principles to offer a new approach to custom speaker
installation and performance.
req
uired
a
id;
e
rvice
s
ed o
r
p
lied,
t
end
n
tal,
cip
ated
h
er
u
t
and
hures o
a
kers
listi
ng
t
h
in-wall
s
pec
ic
s
ile, we
m
anual
and
a
udio in
e
d

ush
m four
gn
ed
a
ker
Environmental note
this product complies with international directives, including but not
limited to the Restriction of Hazardous Substances (RoHS) in electrical
and electronic equipment, the Registration, Evaluation, Authorisation and
restriction of Chemicals (REACH) and the disposal of Waste Electrical and
Electronic Equipment (WEEE). Consult your local waste disposal authority
for guidance on how properly to recycle or dispose of this product.
Disposal
Disposal of used electrical and electronic equipment
(applicable in European countries with separate collection
systems for this equipment).
This symbol on the product or its packaging indicates
that the product may not be treated as household waste. Instead it must
be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for
the environment and human health. The recycling of materials helps to
conserve natural resources. For more detailed information on recycling
this product, please contact your local authority, community waste
disposal of, or the shop where you purchased the product.
Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus that produce heat.
9. Only use attachments / accessories specied by the manufacturer.
10. Refer all servicing to qualied service personnel
Consignes de sécurité importantes
1. Veuillez lire ces instructions.
2. Conservez ces instructions.
3. Respectez tous les avertissements.
4. Suivez toutes les instructions.
5. N’utilisez pas cet appareil près de l’eau.
6. Nettoyez uniquement avec un chiffon sec.
7. N’obstruez pas les ouïes de ventilation. Installez l’appareil en
respectant les instructions du fabricant.
8. Éloignez l’appareil des sources de chaleur : radiateurs, bouches de
chaleur, fours et autres (y compris les amplifcateurs).
9. Utilisez uniquement les câbles/accessoires recommandés par le
fabricant.
10. Confez toute réparation à un technicien qualifé.
• Studio Series speakers are uniquely simple to install. Once
a ceiling or wall cut-out is created, no tools are required
and installation can be completed by one person without
assistance. Every element of the Studio Series installation
procedure, from unpacking the speakers to painting and
tting the magnetic grilles is simplied and streamlined by
design.
• Studio Series speakers employ numerous Dynaudio speaker
technologies, borrowed from the company’s recording
studio monitors and high-end hi- speakers, to bring
genuinely high performance audio to custom installations:
unique bass/mid drivers with large diameter aluminium voice
coils and nite element optimised high-power, low-distortion
magnet systems, proprietary MSP (Magnesium Silicate
Polymer) diaphragms, and precision coated soft dome
tweeters with powerful neodymium magnet systems are just
a few examples among many.
• Studio Series in-ceiling speakers incorporate 18° angled,
360° rotatable bass/mid drivers, and three position,
adjustable tilt tweeters to enable their acoustic directivity to
be optimised for the installation arrangement and acoustic
character of the listening room.
• The S4-DVC65 in-ceiling speaker incorporates twin
tweeters and a dual voice-coil bass/mid driver that enable
it to reproduce both channels of stereo programme
material. The twin tweeters of the S4-DVC65 can also be
switched to opposite polarity to enable its use as a dipole
mode surround speaker in multi-channel home theatre
installations. When used in dipole mode the S4-DVC65
should be connected to only one amplier channel.
Studio Series speakers comprise a Speaker Unit and Installation
Frame. The Installation Frame is inserted into the ceiling or wall
cut-out and securely xed in place using auto-locking clamps.
The Speaker Unit is then connected to the speaker cables before
being inserted into the Installation Frame to be held in place by a
latch system. The grille is then tted, securely attached by magnets
integrated within the Installation Frame.

Produktspezifikationen

Marke: Dynaudio
Kategorie: Lautsprecher
Modell: S4-DVC65
