Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Drayton Digistat+1RF (6 Seiten) in der Kategorie Thermostaat. Dieser Bedienungsanleitung war für 5 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet
Seite 1/6
50 mm
minimum
clearance
40 mm
minimum
clearance
40 mm
N L 1 2 3 4
clearance
70 mm
minimum
minimum
clearance
N L 1 2 3
230V a.c.
Fused 3A
Common Heating
satised
or call for
cooling
Call for
heat
Volt free contacts
Room Thermostat
Models:
RF710/22190/2219
If you do not have the knowledge to install the SCR safely then you
must arrange for a competent electrician to install it for you. Wiring
must conform to the current IEE wiring regulations.
Prior to commencing the installation you must ensure the mains
supply is switched o.
The system wiring must be able to be fully disconnected from the
mains supply by a switch incorporated in the fixed wiring having a
contact separation of at least 3mm on both poles. Fused at 3A.
The Digistat SCR (receiver) should be mounted in a convenient
position, close to the boiler or central heating system wiring centre.
(Care should be taken not to mount the SCR in a position where it
is surrounded by metal objects or mains voltage cable, as this may
interfere with the radio signal).
For the best performance install in an open space, at least 30cm
distance from any metal objects including wall boxes and boiler
housing.
It is recommended that the SCR is mounted on the wall nearest the
final location of the Digistat +RF room thermostat and not less than
30cm from the boiler side panel.
mounting single conduit box using M3.5 x 14 screws. Minimum
wallplate clearances are shown.
1. Loosen the securing screws, remove the wallplate, and if surface
wiring is to be used, snap out the cable entry strip on the bottom
edge of the wallplate with a pair of pliers.
2. Fix the wallplate, terminals at the top, either direct onto the flat
wall using wall plugs and no 6 x1” wood screws or on a flush
3. Complete the wiring to the SCR wallplate in accordance with the
relevant diagram, to comply with current IEE wiring regulations.
4. Place the SCR onto the wallplate and tighten the securing screws.
This product is double insulated and does not require an earth connection.
The SCR should be wired to the combi boiler or central heating wiring using
the correct type of cable or flex. The SCR should be wired in to replace
hard wired room or programmable thermostats shown on the system or
boiler wiring diagrams. Always check other manufacturers instructions for
compatibility.
BOILER
30cm Min
Preferred side of boiler
The range may be aected by
composition/density and number of walls
between the Digistat +RF and SCR
Radio Signal Range:
30m Typically
SCR
On
Override
Receive / Alarm
2
1
Learn
Mode
Digistat
SCR
Wireless System
Digistat +1 &
Digistat +1RF
Drayton Controls reserve the right
to make changes without notice
and cannot accept liability for errors.
06515065001 ISS G
Room Thermostat
User Guide
Models:
RF710/22190/2219
also come on. Check to see if the boiler and/or motorised valve
are working.
Standard for all models
IMPORTANT: MULTIZONE INSTALLATIONS ONLY
If more than one ‘wireless system’ is fitted within the same property.
ie. for controlling 2 or more zones (multi-zone) it is essential that the
Digistat RF units are matched correctly to the relevant SCR. This is easily
achieved by commissioning each Digistat and SCR in turn.
1. Install (see installation instructions) and turn power on to the
SCR (receiver). If a separate programmer is fitted, ensure that it is
switched on. The red LED should come on.
2. Push the ‘override’ button on the SCR once. The green LED should
than one metre).
3. To enter ‘learn’ mode push the button marked 1 followed by 2
(OVERRIDE) and hold both depressed together. The red LED
ni si RCS eht gniyfingis tuo og neht dna sdnoces 2 rof hsafl dluohs
.snottub htob esaeleR .edom nrael
4. The red and green LED’s should both now be on.
5. Take the Digistat RF and hold it within sight of the SCR (no closer
11.
12.
The red LED on the SCR should flash for 7 seconds. This confirms
that the radio signal is being sent and received. After 7 seconds the
red LED should go out and the green one come on.
Check to confirm that the boiler and/or motorised valves are
working.
6. Remove the battery cover and fit the batteries.
7. The Digistat RF should now display the actual room temperature.
If the unit has been stored in a cold place, it may take time to warm
up.
8. As soon as the batteries are fitted, the red LED on the SCR should
flash for 7 seconds and then go out.
erutarepmet moor eht no gnidneped ffo ro no eb yam DEL neerg ehT
at the time of commissioning.
9. If the red LED remains on, remove the batteries on the Digistat RF,
check the battery positions are correct, and once the display has
faded, repeat steps 6 to 8.
10. Increase the ‘SET’ temperature on the Digistat RF by pressing the
+ button until a flame symbol appears, in the left hand segment of
the display.
During normal operation the red LED on the SCR will flash for 7 seconds
each time a radio signal is received from the Digistat RF. This will occur
approximately every 5 minutes.
The green LED on the SCR denotes a call for heat (ON).
13. Decrease the ‘SET’ temperature on the Digistat RF by pressing the
- button until the flame symbol disappears.
14. The red LED on the SCR should flash for 7 seconds. After 7 seconds
both the red and green LEDs should go out. Check that the boiler
and/or motorised valve have powered down.
15. Place the Digistat RF in the chosen operating position, (see Digistat
RF location section) and repeat steps 10 to 14. Once you have
confirmed the sy stem operates correctly, fi t and secure the Digistat RF
to the wall (see installation instructions).
L N 1 2 3
L -
SCR
N -
Digistat + RF
Radio signals
to SCR - no wiring
Switched
230 a.c.V
fused 3A,
Internal
boiler
electro cs ni
External
controls
connections
L N 1 2 3
L
SCR
Switched live
from wiring Motorised valve
centre N
and/or
To boiler
pump
Radio signals
to SCR - no wiring
230V a.c.
Digistat + RF
fused A 3
Dig ta t is +
1RF
Digista t +
1RF
and cannot accept liability for errors.
Drayton Controls reserve the right
to make changes without notice

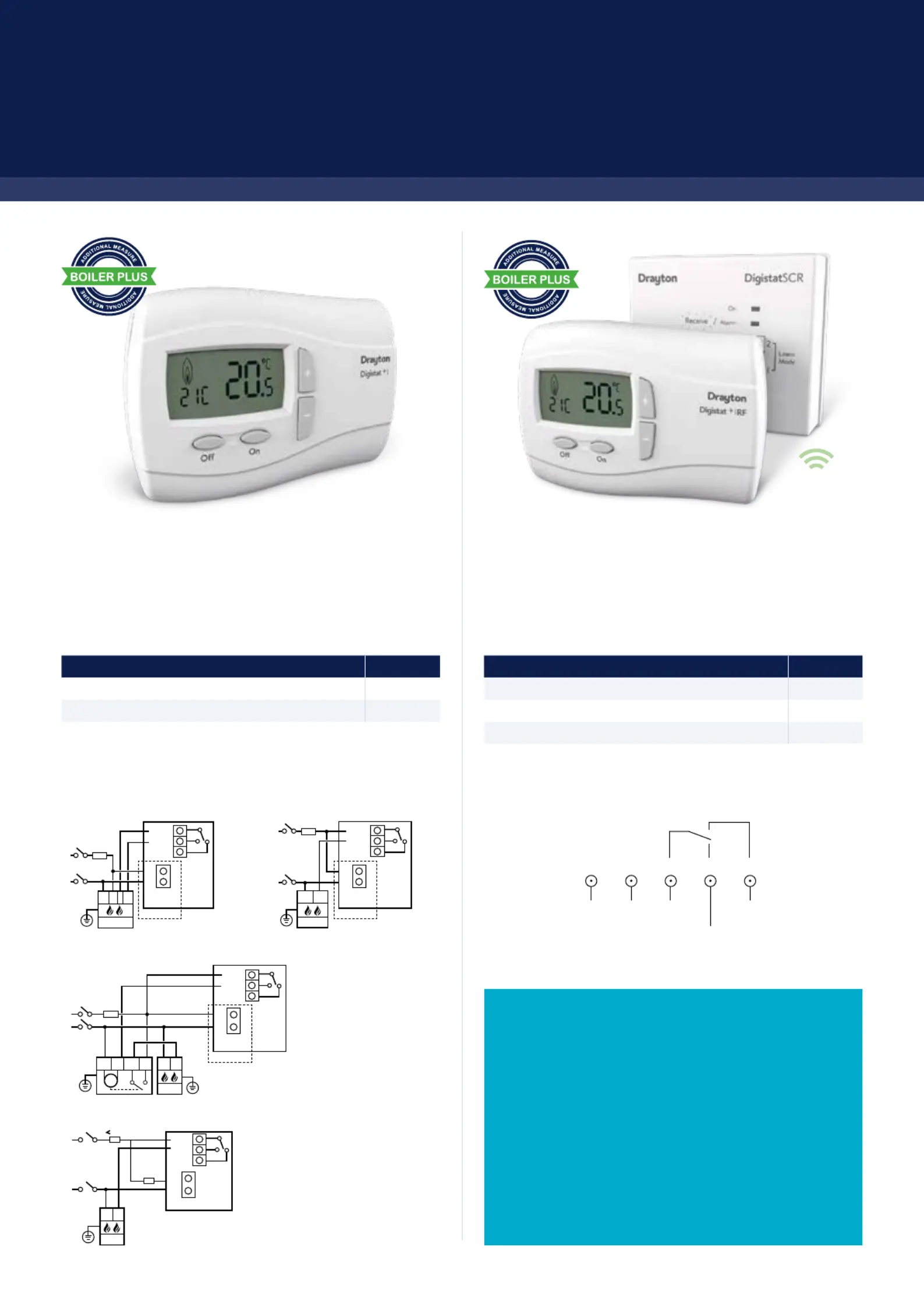

Digistat +1 &
Digistat +1RF
What is a room thermostat?
... An explanation for householders
A roo th mostat simply sw ches the hea nm er it ti g system on
an o as necessary. It works by sensind g th air temperature, e
switchin on the heatin when thg g e ai temperature falls below r
the thermostat setting, an s tchind wi g s it o once thi set
temperature ha been reached. s
Turning a roo thermostat to a highe settin wil no m e m r g l t ak
the roo heat up an faster. Ho quickly th oo he s up m y w e r m at
depends on the design of th heatin sy em fo example, the e g st , r
size of boile an radiators.r d
Neither does th settin aect hoe g w quickly th oo cools e r m
down. Turning a roo thermostat to a lowem r set ng wil esult ti l r
in th oo bein cone r m g trolled at a lower temperature an saves , d
en y.erg
Th heatin system will not work if a time s tc o pro ammer e g wi h r gr
ha switched it o.s
Th wa to set an us your roo th mostae y d e m er t is to fin he d t
lowest temperat e settin that yo are comfo able with, ur g u rt
an then leave i alone to do its job. Th be wa o do this d t e st y t
i to set th roo thermostat to a los e m w temperat e – sa 18ºC ur y
– and the turn t up by one de ee each da until yo aren i gr y u
comfortable with the temperat e. You won’ have to adjus theur t t
thermostat fu her. Any adjustment above th s tin will wastert is et g
en y an cost yo m e money.erg d u or
I yo heating system is a boiler wf ur ith adiators, there w l r il
usually be only on oo th mostat to co ole r m er ntr the whole
house. But yo ca hav diere temperat es in individual u n e nt ur
rooms b installing thermostatic radiat va es (TRVs) on y or lv
individual a at s. f you don’t hav TRVs yo should choose r di or I e , u
a temperat e that is easonable four r r th whole house. If yo do e u
hav TRVs, yo can choose a sl htly h he setting to make sure e u ig ig r
that even th coldest oo is comfortable, the prevent any e r m n
o rheating in other rooms by adjusting th TRVs.ve e
Roo thermostats need a fre flo of air to sense he m e w t
temperature so they mus no be cov ed by cu ains or , t t er rt
blocked by furniture. Nearby electric fires televisions wall or , ,
table lamps may prevent th thermosta from w n properly.e t orki g
06515065001 ISS G
Controls and Display Layout
* Temperature displayed while adjusting the settings. Once adjustment is
complete and after 5 seconds this will disappear. When the OFF button is
pushed the word ‘OFF’ is displayed here.
** When the OFF button is pushed the OFF temperature is displayed here.
Simple Setting or Operating
To set the required room temperature
To turn the Thermostat O
Flame shows when calling for heat
Sun shows when in ‘On’ (comfort) mode
Moon shows when in ‘O’
(setback) mode
*Setpoint
Temperature
**Room Temperature
OFF Button ON Button
+ or - buttons
for setting adjustments
To turn the Thermostat On
+
Digistat +
1RF
